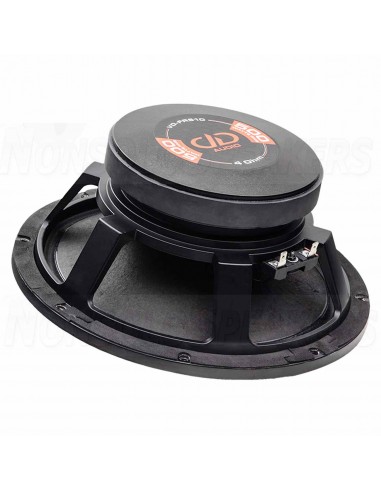

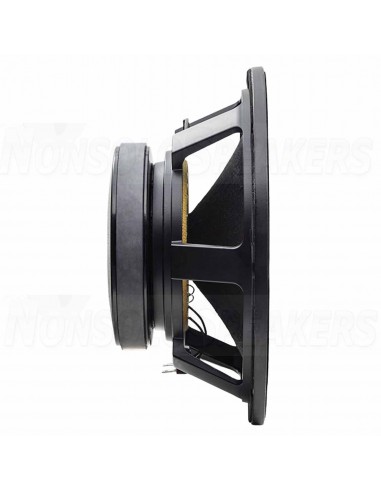

DIGITAL DESIGNS VO-FR510 midrange speakers 4 ohm

-

The VO-FR500s are ultra low inductance, high efficiency Full Range Voice Optimized drivers featuring a precision engineered dual cone design. The ultralight whizzer cone/cap is attached to the coil former to increase off axis response for greater output at higher frequencies augmenting the primary lower playing frequencies that midrange cone is designed to disperse.

The independently focused acoustics of each cone have been optimized for smooth and coherent frequency blend ensuring listeners experience a fantastically broad tonal spectrum from bass to treble with no audibly perceptible phase shift or delay. Complete your pro audio system today with these loud and clear full range speakers.

Made with motorcycles, boats and UTVs in mind, these speakers will overcome the harsh conditions and environmental noise you’ll encounter on road and off.

Technical Specifications:

• Driver Size - in 10
• 500W RMS
• 4 Ohm
• Paper cone with cloth edge surround
• Frequency Response 80Hz - 16kHz
• Fs - Hz 73
• Qms 12,08
• Qes 0,51
• Qts 0,49
• Vas - liters 34,71
• Xmax 4
• Susension travel 16
• dBSPL 97
• BL 8,9
• Mounting Diameter - mm 232
• Mounting Depth - mm 103
• NEW Aluminum die-cast basket
• 45 mm (1.8”) Kapton Vented Former CCA Wire w/Heat Resistant Bonder Treatment Voice Coil
• Magnet: φ156 X 60 X 18MM (51 Oz)
• Copper Faraday Shorting Ring
• Supercharged
• Ultra light Whizzer Cone/Cap Attached to Coil Former
