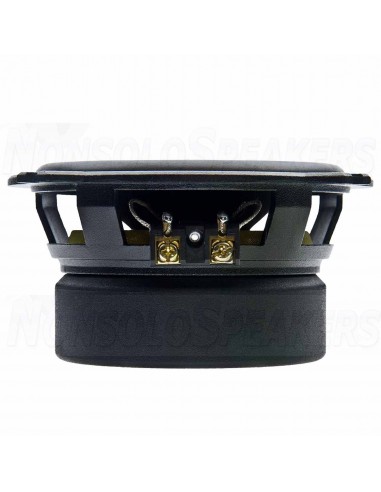

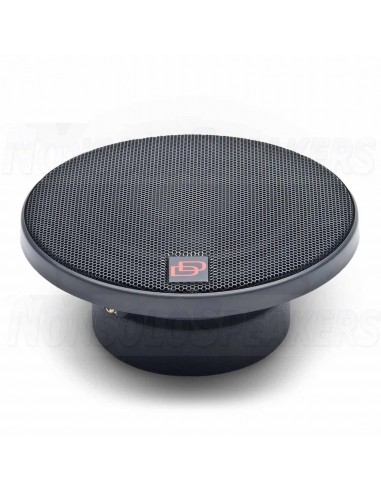

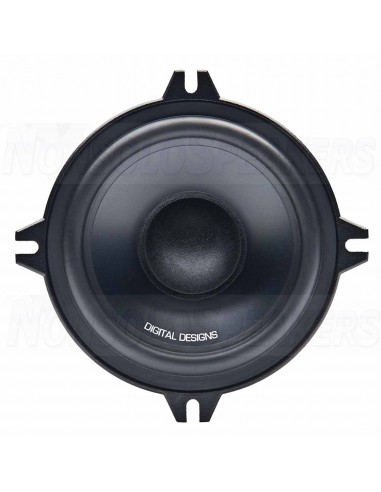

DIGITAL DESIGNS AW5.25 midrange speaker 4 ohm

The AW5.25 mid-woofers represent “state of the art” in driver technology. The machined motor structures with the distortion reducing effects of Faraday Rings are held to the tightest tolerances and provide a well damped magnetic field for the voice coil. The suspension was optimized for sharp mid-bass and controlled sub-bass. The coil wire is the highest temperature available and held with the finest adhesives. The coil former is ventilated and the wire gauge/former thickness optimized to reduce moving mass. The adhesives from the coil to cone are bonded with specialized, hardened material to pass all energy from the coil to the cone. The cone is made from lightweight aluminum to achieve wide bandwidth and efficient energy transfer to the air.

DDA components include all the dizzying array of technology one finds in the upper echelon of the world’s finest drivers along with precision German assembly and attention to detail.  The result is crisp, clear and detailed sound with a forceful bottom end.

.

specification

Driver Size: 5.25
Watts RMS: 75 - 150
Voice Coil Diameter (Inches): 1.5
Impedance: S4
Frequency Response (Hz): 50 - 18k
Fs (Hz): 63.99
Qms: 4.01
Qes: 00:43
Qts: 00:39
dBSPL: 90.5
Mounting Diameter (In): 4 15/32
Mounting Depth (In): 2 3/8
Shipping Weight (Lbs): 7

Features:

The Suspension Was Optimized for Sharp Mid-Bass and Controlled Sub-Bass
The Coil Wire Is the Highest Temperature Available and Held with The Finest Adhesives
THe Coil Former Is Ventilated and The Wire Gauge / former Thickness Optimized to Reduce Moving Mass
The Adhesives from The Coil to Cone Are Bonded with Specialized
Hardened Material to Pass All Energy from The Coil to The Cone
The Cone Is Made from Lightweight Aluminum to Achieve Wide Bandwidth and Efficient Energy Transfer to The Air
