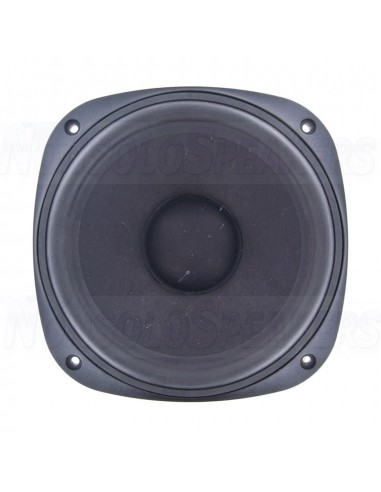

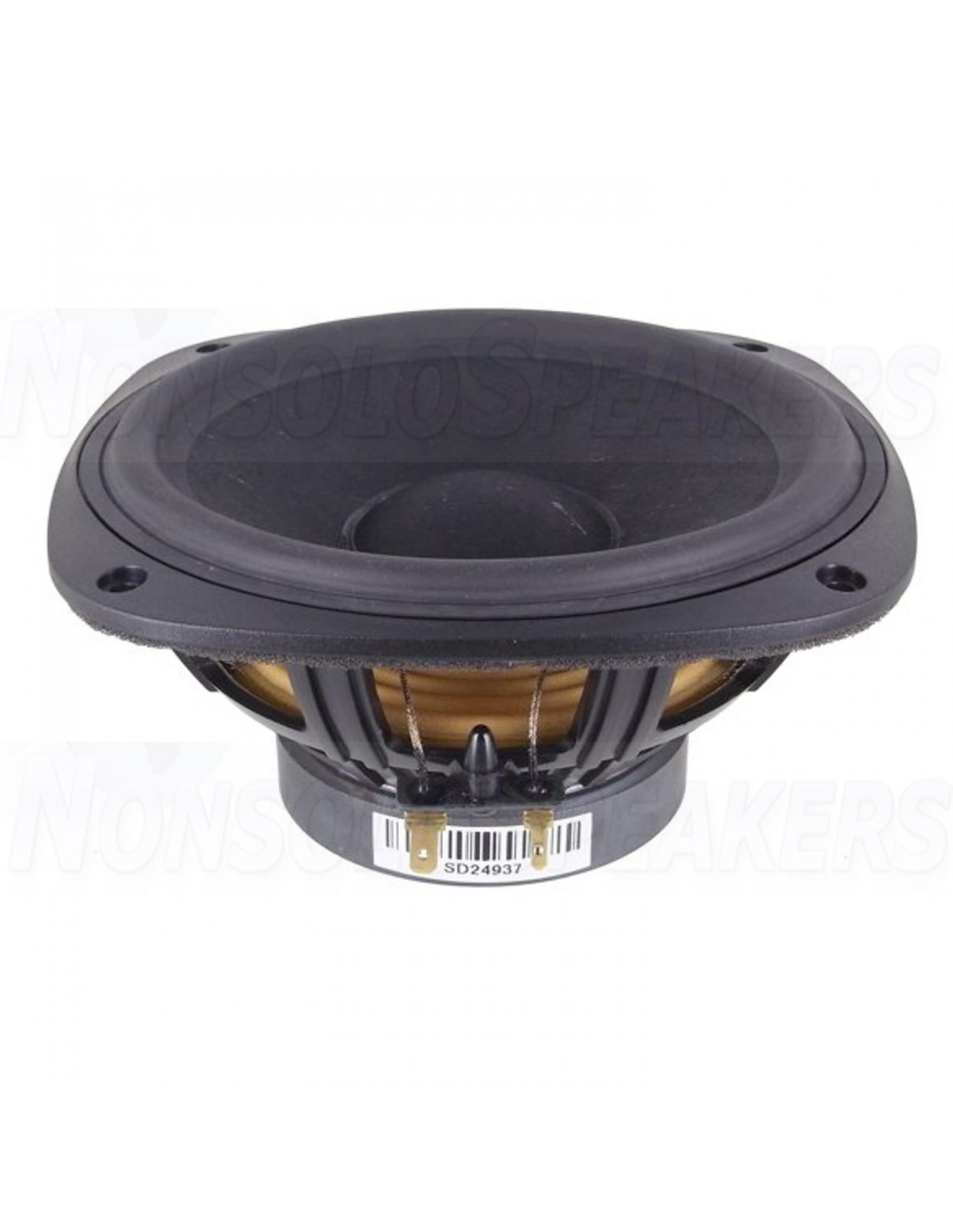

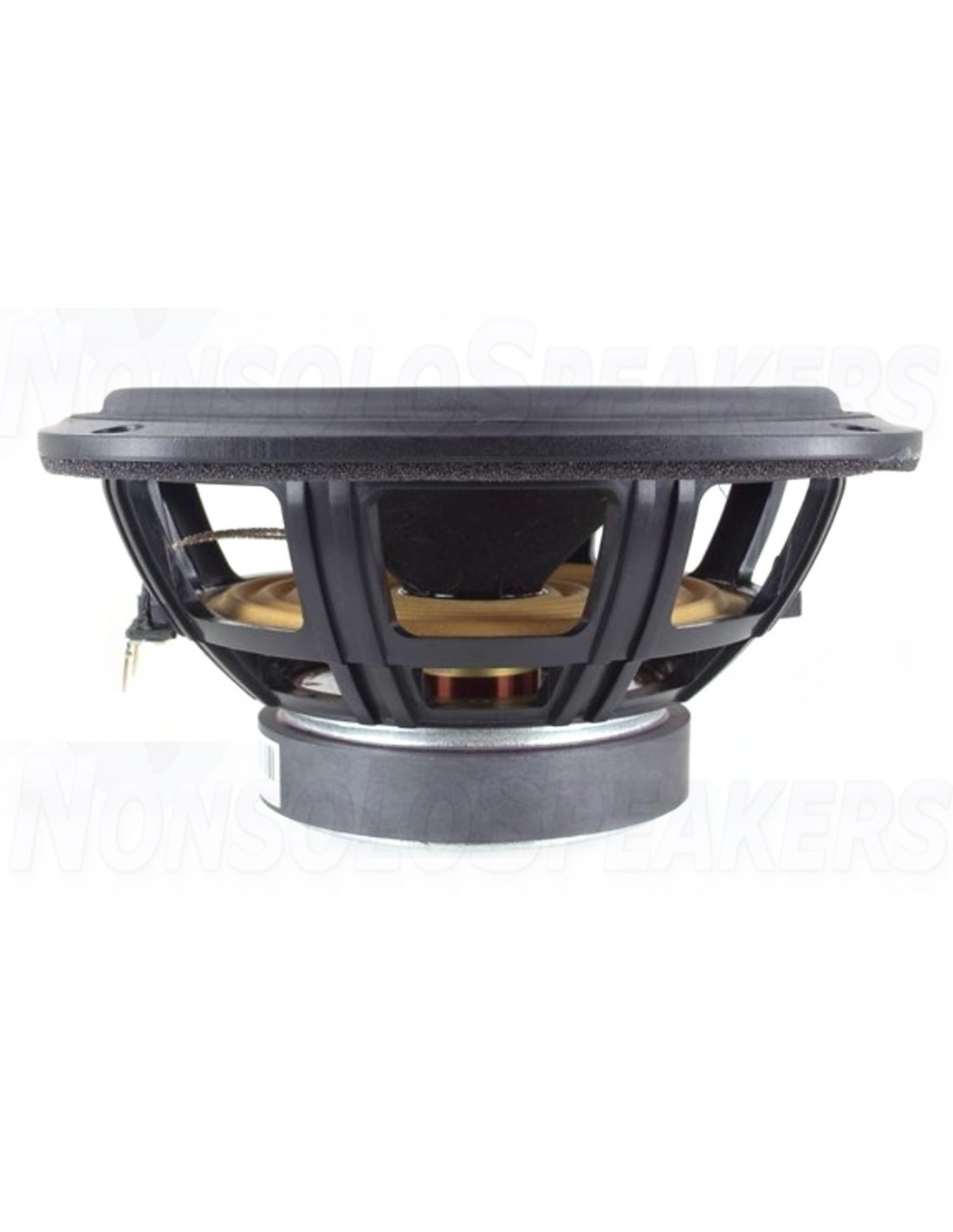

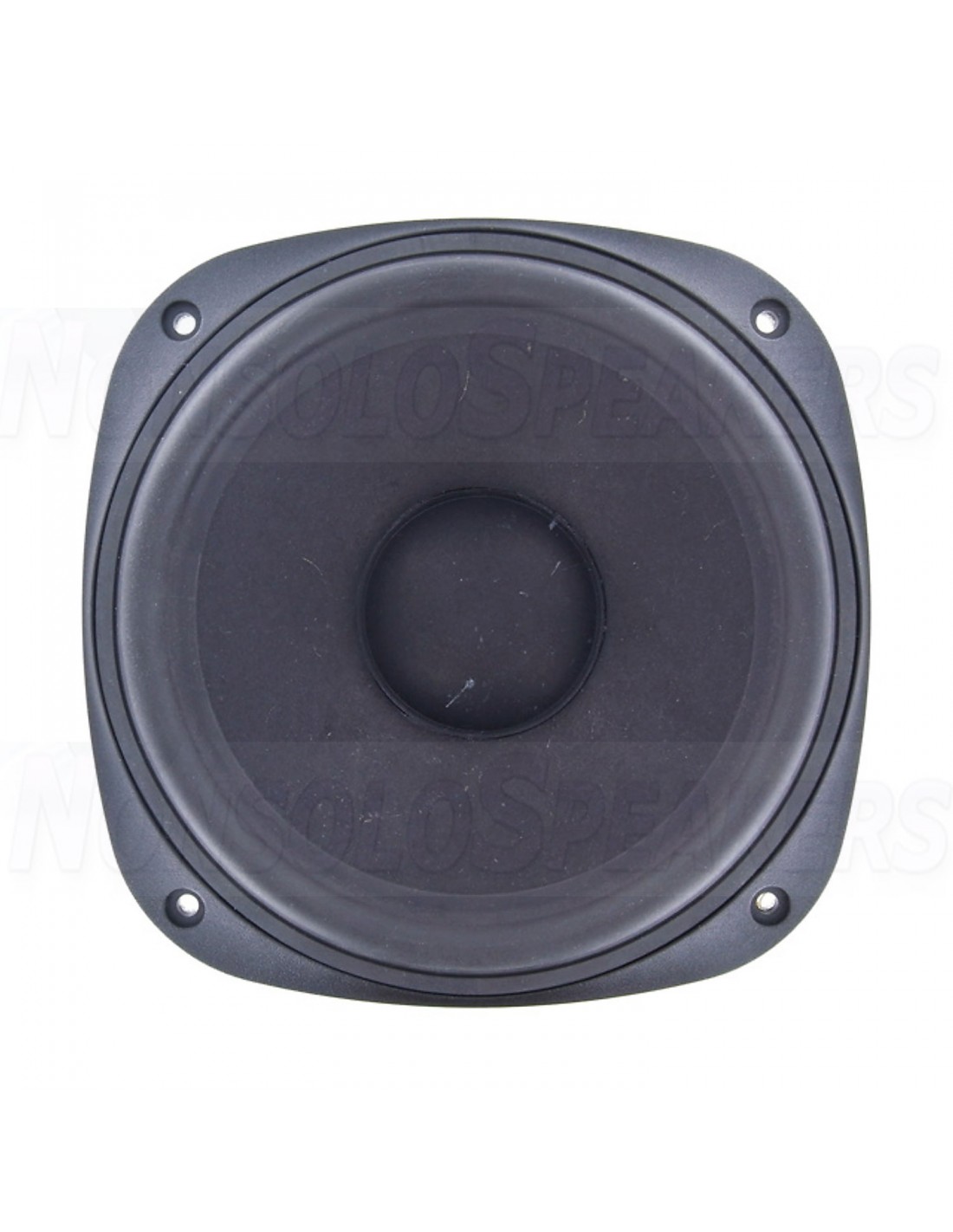

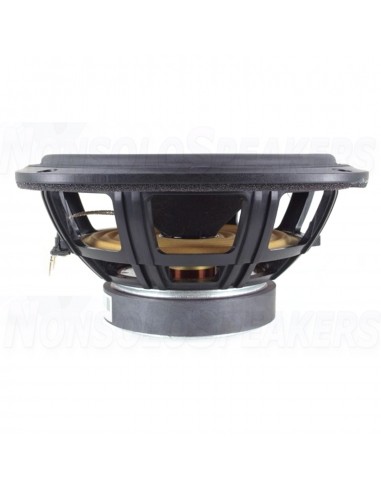

SB Acoustics SB16PFC25-4 6" Paper Cone Woofer
SB Acoustics SB16PFC25-4 6" Paper Cone Woofer
SB Acoustics SB16PFC25-4 6" Paper Cone Woofer
SB Acoustics SB16PFC25-4 6" Paper Cone Woofer
SB Acoustics SB16PFC25-4 6" Paper Cone Woofer
SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

The SB Acoustics SB16PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers.

SHIPMENT IN 7-10 WORKING DAYS
€32.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

.

Product description

Vented reinforced plastic chassis

Proprietary cone material with natural fibers made in-house

Soft low damping rubber surround for improved transient response

Optimized motor system

Vented coil former for low compression

Non-resonant long life lead wires

.

Product details

SB Acoustics SB16PFC25-4 6" Paper Cone Woofer

The SB Acoustics SB16PFC25-4 is composed by a vented reinforced plastic chassis and a proprietary cone material with natural made in-house fibers. The soft low damping rubber surround allows an improved transient response. Optimized motor system, vented coil former for low compression and non-resonant long life lead wires.

.

Specifications

Article numberSB16PFC25-4
Woofer SeriesPFC Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)40 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)89.5 dB
Voice Coil Diameter1"
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)0.56 mH
Resonant Frequency (Fs)35 Hz
Mechanical Q (Qms)2.76
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.34
Diaphragm Mass Inc. Airload (Mms)13.8 g
Mechanical Compliance of Suspension (Cms)1.5 mm/N
Surface Area of Cone (Sd)124 cm2
BL Product (BL)5 Tm
Compliance Equivalent Volume (Vas)1.15 ft.³
Maximum Linear Excursion (Xmax)4.5 mm

SB16PFC25-4
