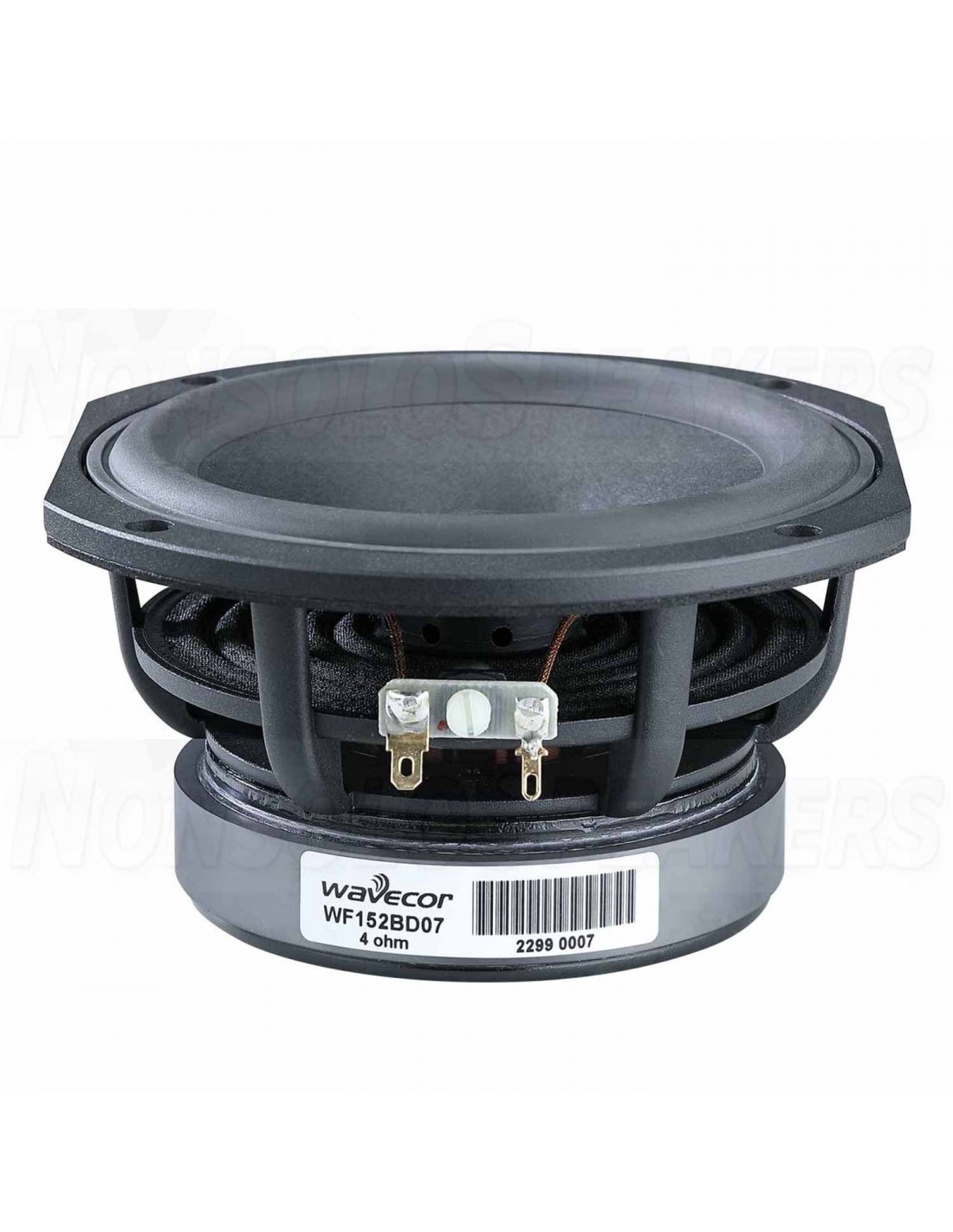

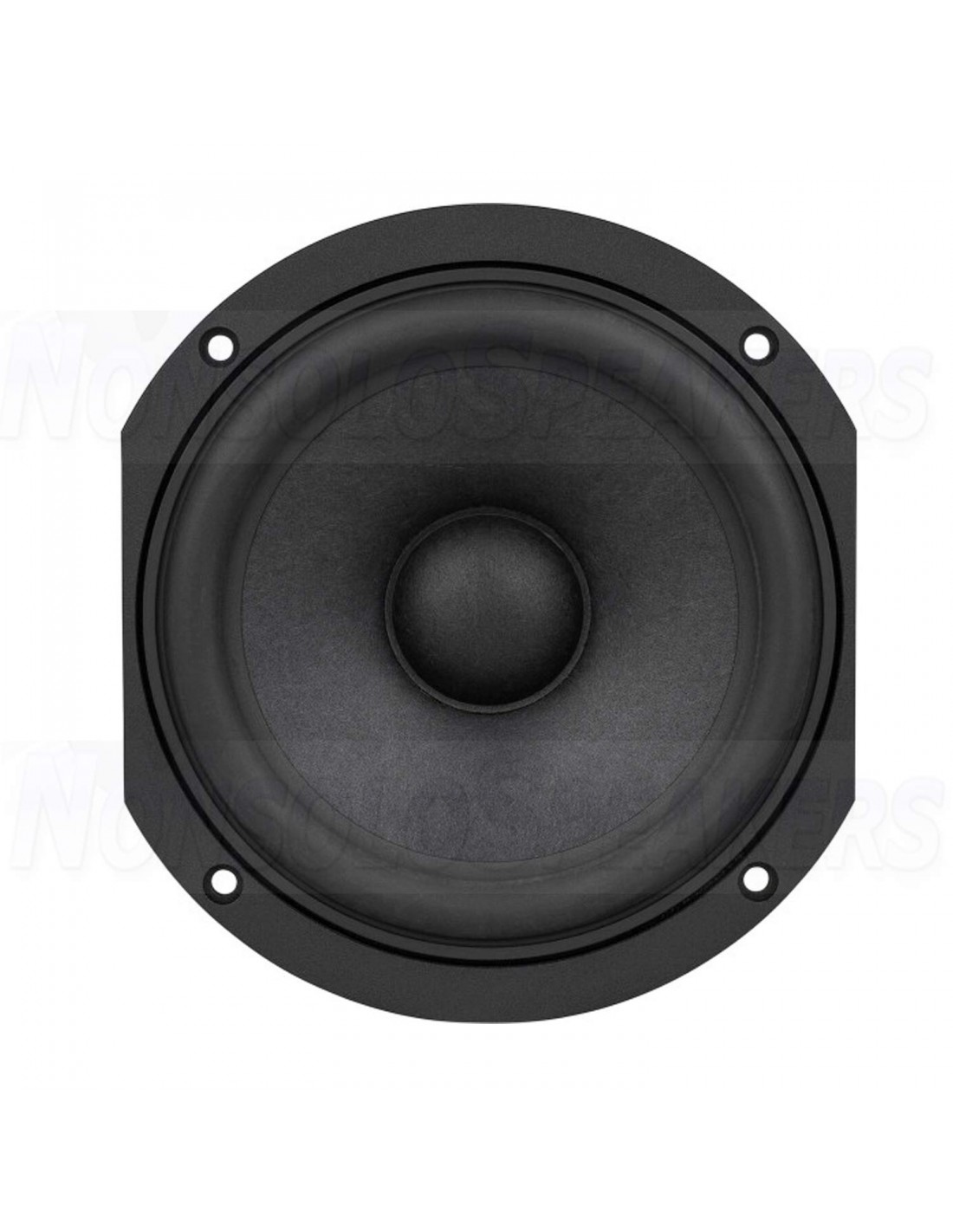

Wavecor WF152BD07 6" Balanced Drive Paper/Glass

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Built-in aluminum field-stabilizing ring for reduced high-level distortion
• Large motor structure for better control and power handling
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Rigid die cast aluminum chassis with extensive venting for lower air flow speed reducing audible distortion
• Progressive suspension with specially designed conex spider for long durability under extreme operating conditions

DIMENSIONS

Truncated dimension (other dimensions as round version)

Product Details

Brand Wavecor

Model WF152BD08

Part Number 298-1182

UPC 848864054926

Unit of Measure Each

Weight 3.55

Product Specifications

Nominal Diameter 6"

Power Handling (RMS) 70 Watts

Power Handling (MAX) 140 Watts

Impedance 8Ω

Frequency Response 70 to 3,000Hz

Sensitivity 87dB 2.83V/1m

Voice Coil Diameter 1.26"

Thiele-Small Parameters

Resonant Frequency (Fs) 46Hz

DC Resistance (Re) 3.2Ω

Voice Coil Inductance (Le) 0.11mH

Mechanical Q (Qms) 8

Electromagnetic Q (Qes) 0.36

Total Q (Qts) 0.35

Compliance Equivalent Volume (Vas) 0.45ft³

Mechanical Compliance of Suspension (Cms) 0.94mm/N

BL Product (BL) 8T·m

Diaphragm Mass Inc. Airload (Mms) 12.8g

Maximum Linear Excursion (Xmax) 4.5mm

Surface Area of Cone (Sd) 93cm²

Materials of Construction

Cone Material Paper / Glass Fiber

Voice Coil Wire Material Copper

Voice Coil Former Fiberglass

Basket / Frame Material Cast Aluminum

Mounting Information

Overall Outside Diameter 5.51"

Baffle Cutout Diameter 5.04"

Depth 2.95"

# Mounting Holes 4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume 0.0811ft³

Sealed F3 113.6Hz

Vented Volume 0.208ft³

Vented F3 65.16Hz
