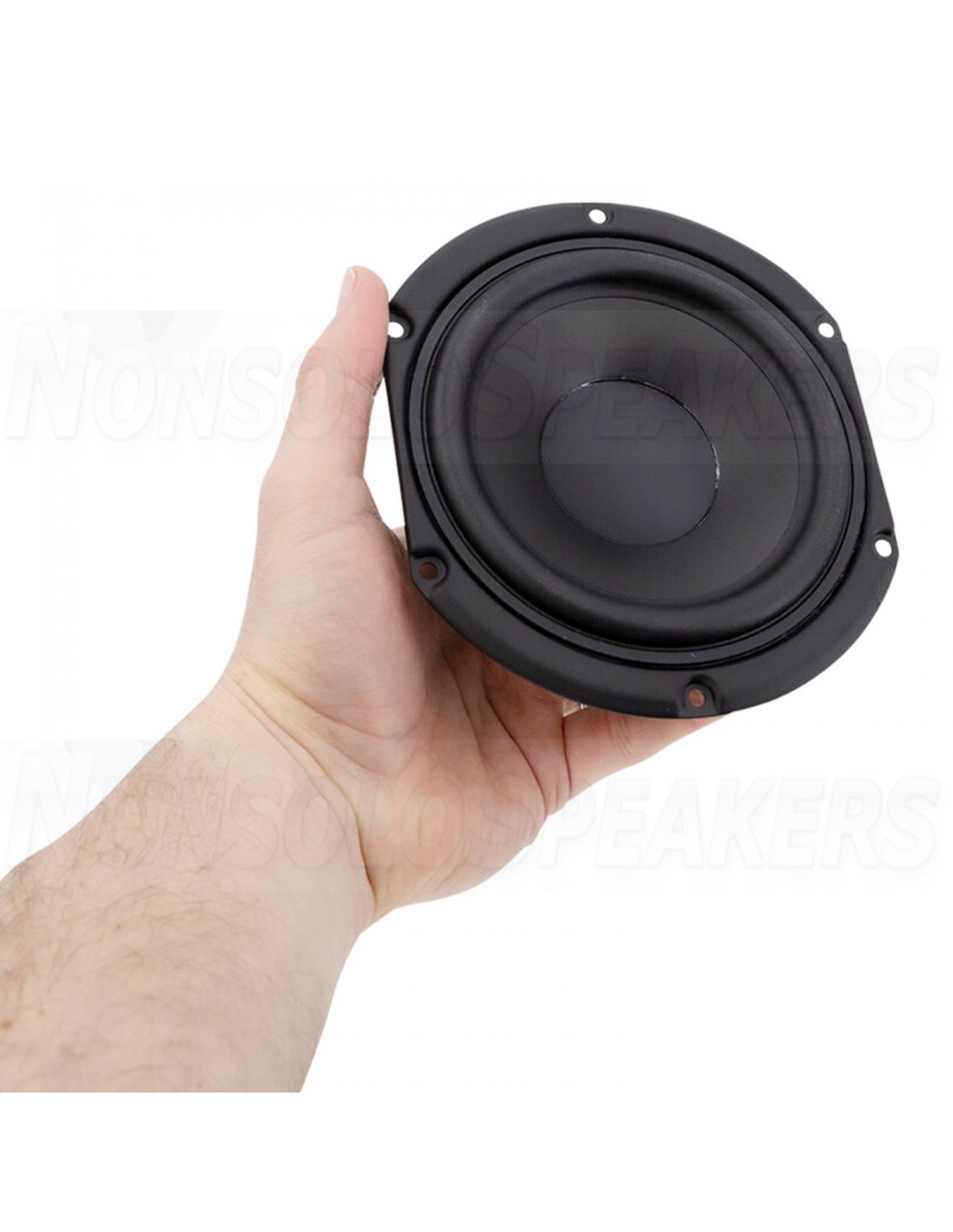

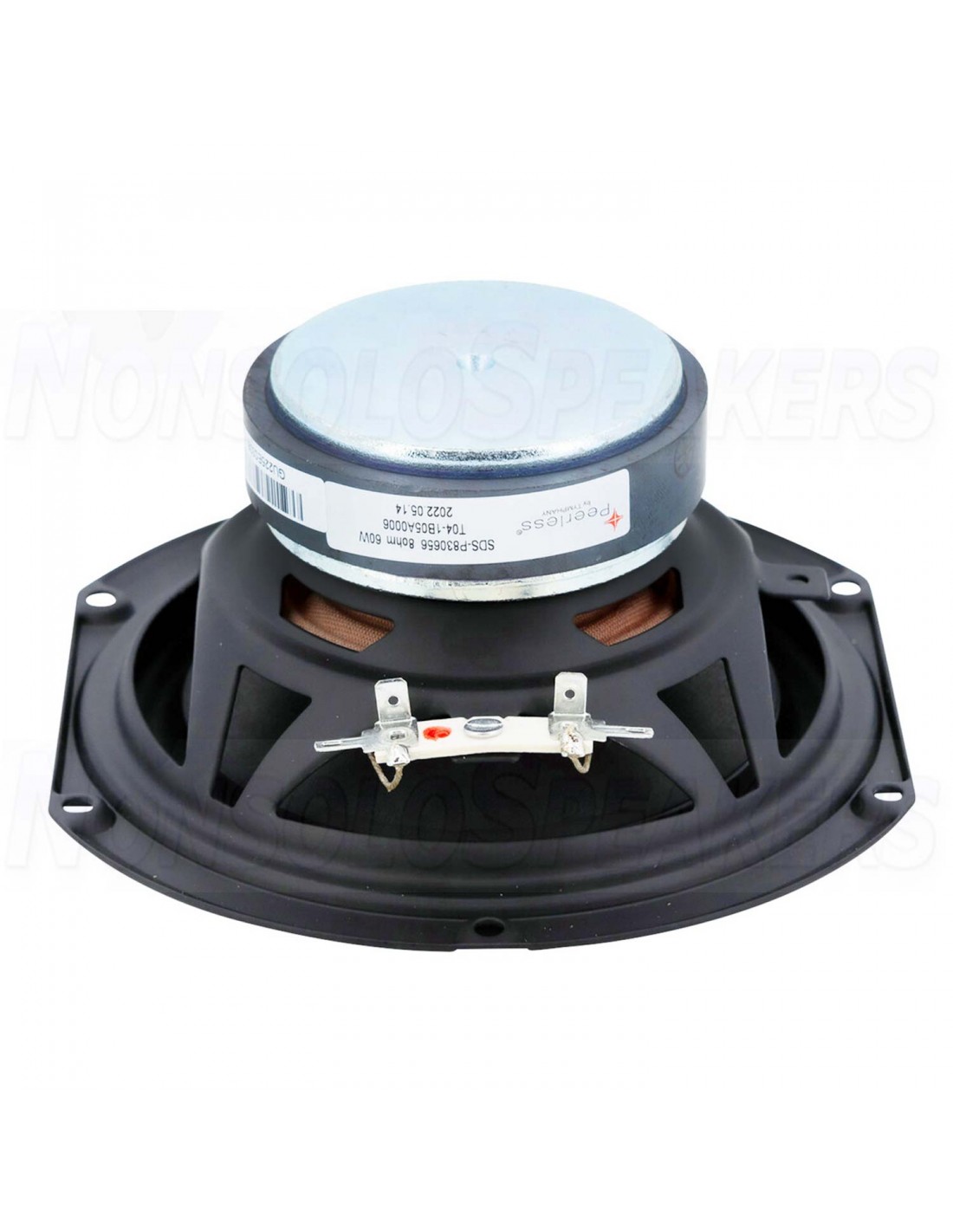

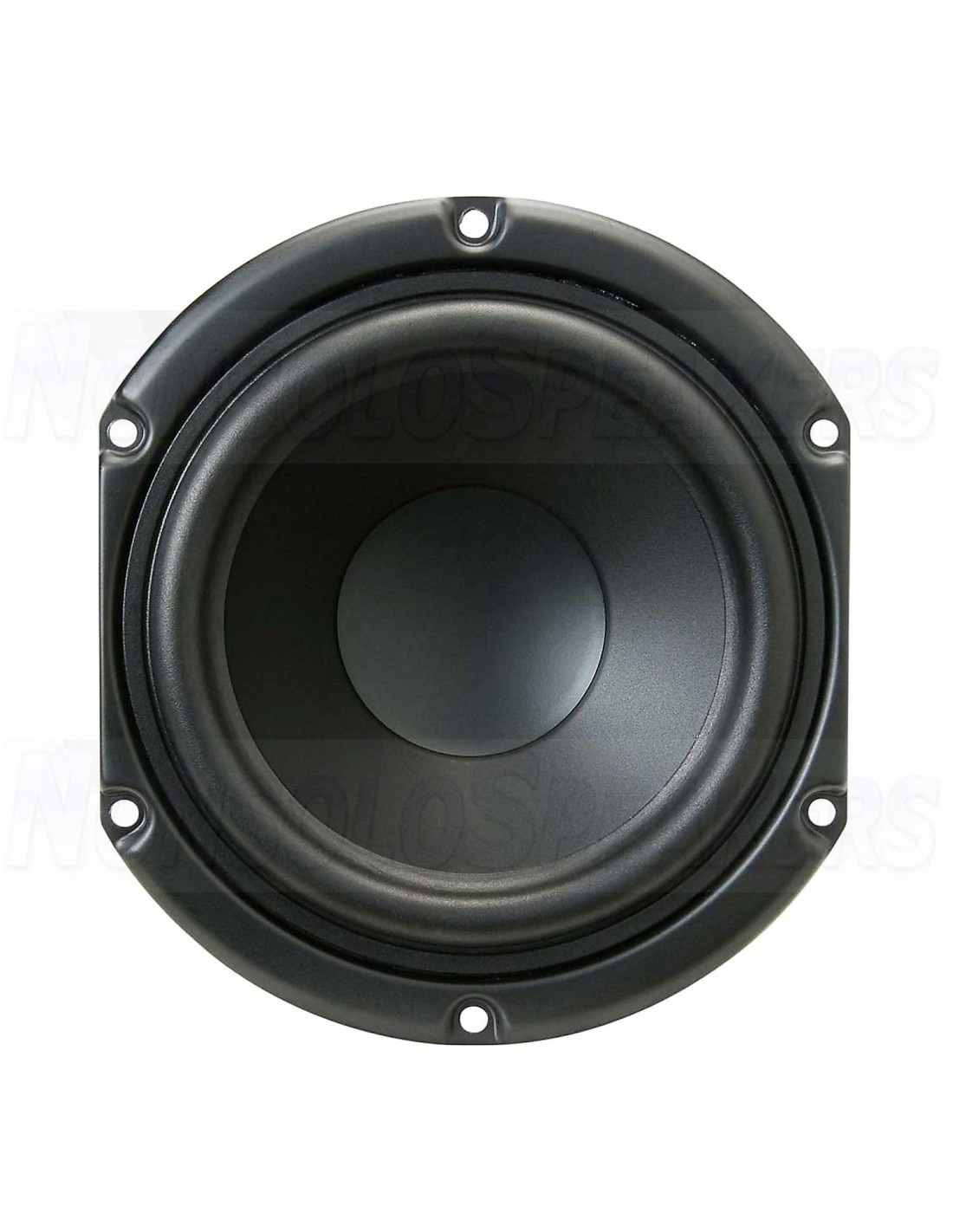

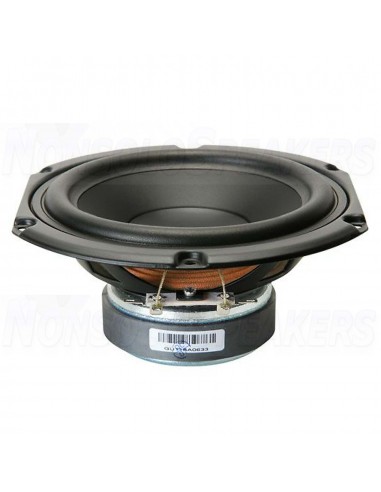

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer
Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

Out-of-Stock
€30.45
Tax included
rating No review at the moment

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

Product description

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.

.

Highlights

Premium sculpted stamped steel chassis

Coated paper cone with rubber edge

Smooth, extended response

.

Product details

Peerless by Tymphany SDS-P830657 6-1/2" Paper Cone SDS Woofer

The SDS compact subwoofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 6.5 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.

.

Specifications

Article number SDS-P830657

Woofer Series SDS Series

Woofer Type Midwoofer

Nominal Diameter 6-1/2”

Power Handling (RMS) 60 Watts

Power Handling (max) 110 Watts

Impedance (Z) 8 Ohms

Sensitivity (SPL at 1m / 2.83V) 88.2 dB

Frequency Response 40 to 4,000Hz

Voice Coil Diameter 1"

DC Resistance (Re) 6 ohms

Voice Coil Inductance (Le) 0.38 mH

Resonant Frequency (Fs) 45 Hz

Mechanical Q (Qms) 2.74

Electromagnetic Q (Qes) 0.55

Total Q (Qts) 0.46

Diaphragm Mass Inc. Airload (Mms) 11.5g

Mechanical Compliance of Suspension (Cms) 1.1 mm/N

Surface Area of Cone (Sd) 141 cm²

BL Product (BL) 5.98 Tm

Compliance Equivalent Volume (Vas) 1.09 ft.³

Maximum Linear Excursion (Xmax) 3.46 mm

Cone / Diaphragm Material Coated Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter7.17"

Overall Depth2.72"

Baffle Cutout Diameter 5.71"

# Mounting Holes 6

Sealed Volume 0.4 ft.³

Sealed F3 89 Hz

Vented Volume1.27 ft.³

Vented F3 45 Hz

.
