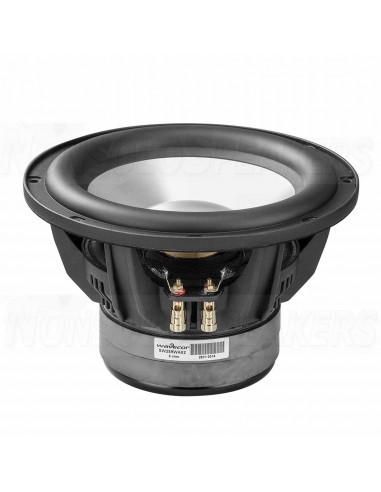

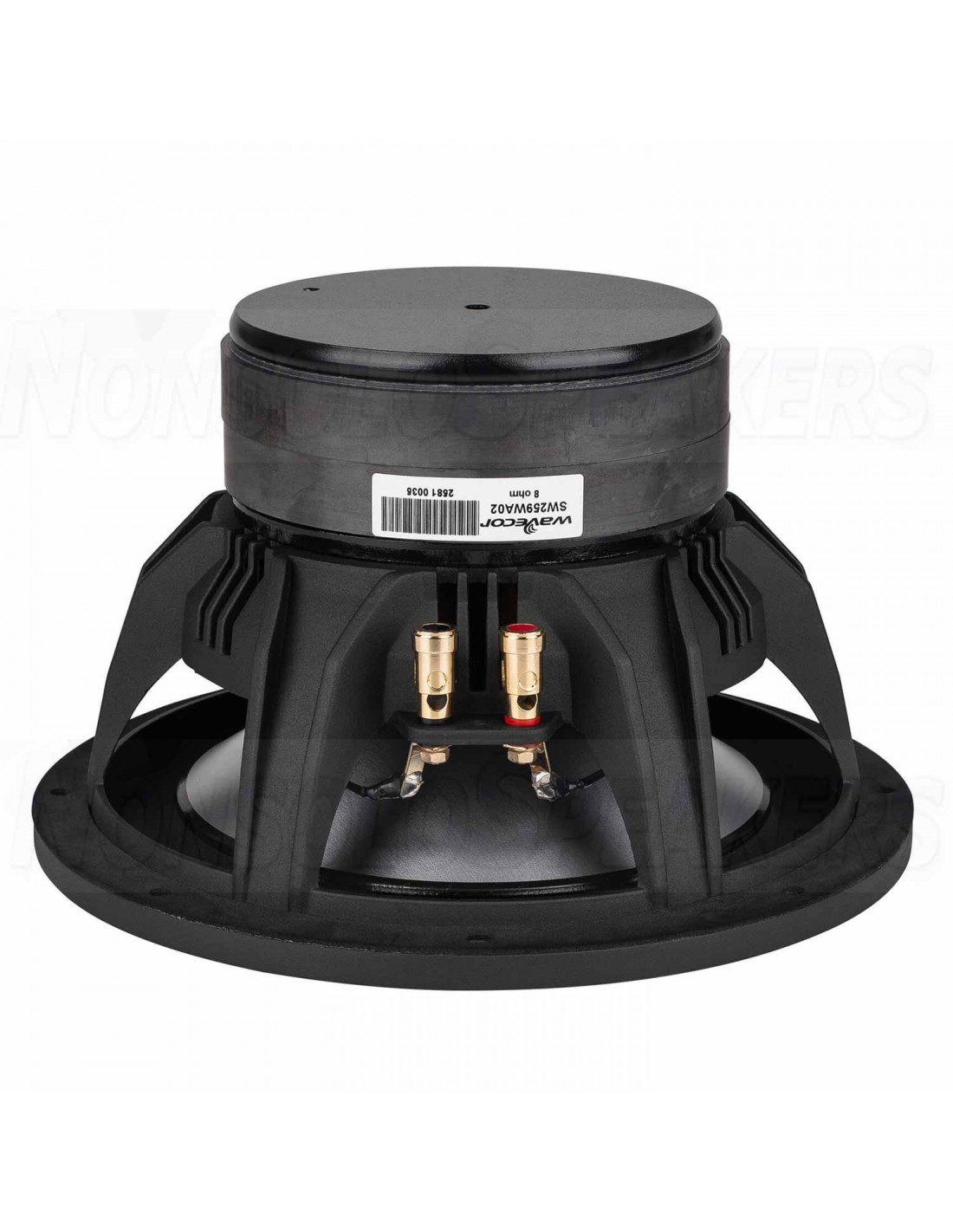

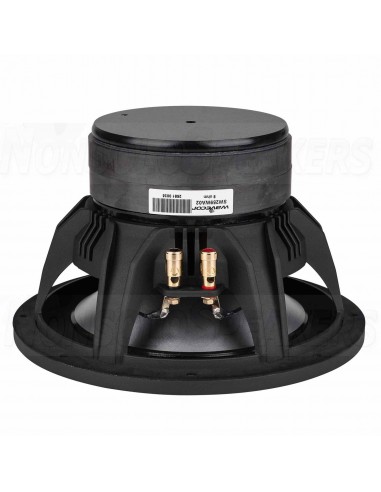

Wavecor SW259WA01 subwoofer 25 cm aluminium
Wavecor SW259WA01 subwoofer 25 cm aluminium
The Wavecor SW259WA01 is a 10-1/4" aluminum cone subwoofer that is equally at home in a home theater or hi-fi installation. This driver utilizes a rigid aluminum cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels.
Product Specifications
- Nominal Diameter 8"
- Power Handling (RMS) 300 Watts
- Power Handling (MAX) 1200 Watts
- Impedance 8Ω
- Frequency Response 33 to 2,000Hz
- Sensitivity 86.5dB 2.83V/1m
- Voice Coil Diameter 1.54"
The Wavecor SW259WA01 is a 10-1/4" aluminum cone subwoofer that is equally at home in a home theater or hi-fi installation. This driver utilizes a rigid aluminum cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels. The aluminum field-stabilizing rings also aid in distortion reduction. The SW259WA01 offers extremely low mechanical losses which allows for great performance in low volume or extreme dynamic situations.
FEATURES
- New optimized outer suspension (surround) for improved large-signal handling
- Extremely rigid aluminium cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels
- New reinforced die cast alu chassis with optimal ventilation and increased stroke
- Venting through holes in cone neck for reduced distortion and compression
- Vented chassis for lower air flow speed reducing audible distortion
- Two internally built-in alu rings for stabilizing the magnetic field leading to lower high-level distortion
- Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor structure with 2” voice coil diameter and 145 mm magnet for better control and efficiency
- Black-anodized magnet structure steel parts for increased heat dissipation and power handling
- Long linear stroke motor for reduced distortion at high levels
- Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
- 4-layer voice coil for increased control and better small-cabinet performance
- Product Details
Brand Wavecor
Model SW259WA01
Part Number 298-1068
UPC 848864054353
Unit of Measure Each
Weight 16.45
Product Specifications
Nominal Diameter 10"
Power Handling (RMS) 200 Watts
Power Handling (MAX) 400 Watts
Impedance 4Ω
Frequency Response 29 to 400Hz
Sensitivity 83.5dB 2.83V/1m
Voice Coil Diameter 2"
Thiele-Small Parameters
Resonant Frequency (Fs) 29Hz
DC Resistance (Re) 6.3Ω
Voice Coil Inductance (Le) 1.5mH
Mechanical Q (Qms) 10
Electromagnetic Q (Qes) 0.49
Total Q (Qts) 0.46
Compliance Equivalent Volume (Vas) 0.88ft³
Mechanical Compliance of Suspension (Cms) 0.18mm/N
BL Product (BL) 14.5T·m
Maximum Linear Excursion (Xmax) 11.5mm
Surface Area of Cone (Sd) 312cm²
Materials of Construction
Cone Material Aluminum
Voice Coil Wire Material Aluminum
Voice Coil Former Fiberglass
Basket / Frame Material Cast Aluminum
Mounting Information
Overall Outside Diameter 10.20"
Baffle Cutout Diameter 8.94"
Depth 5.83"
# Mounting Holes 8
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
Sealed Volume 0.348ft³
Sealed F3 52.85Hz
Vented Volume 1.134ft³
Vented F3 25.76Hz
