SB Acoustics Satori TW29DN-B-4 Dome Tweeter Black 4 Ohm

.

Product description

The SB Acoustics Satori TW29DN-B-8 Tweeter features a traditional soft textile dome with a wide surround and a high power neodymium magnet system incorporating a T shaped pole piece. Efficiency is very high with excellent extension. The tweeter has a large surround dome for increased acoustic output, dual balanced compression chamber for improved dynamics, dual copper caps for absolute minimum voice coil inductance and minimum phase shift, two part aluminium faceplate with integrated mechanical decoupling.

-

Highlights

Large surround dome for increased acoustic output

Dual balanced compression chamber for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

Two part aluminium faceplate with integrated mechanical decoupling

Saturation controlled motor system with T-shaped pole piece for lower distortion

Non-reflective cast aluminium chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

.

Product details

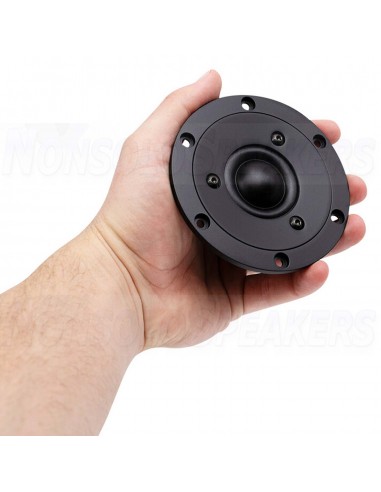

SB Acoustics Satori TW29DN-B-4 Dome Tweeter Black

The SB Acoustics Satori TW29DN-B-4 Tweeter has a traditional soft textile dome with a wide surround and a high power neodymium magnet system incorporating a T shaped pole piece. Efficiency is very high with excellent extension. The tweeter has a large surround dome for increased acoustic output, dual balanced compression chamber for improved dynamics, dual copper caps for absolute minimum voice coil inductance and minimum phase shift, two part aluminium faceplate with integrated mechanical decoupling.

The SB Acoustics Satori TW29DN-B-4 is a high-quality tweeter that is designed to provide clear, detailed sound with excellent dynamics. It is a good choice for a variety of applications, including home audio, studio monitors, and professional sound reinforcement. It has a nominal impedance of 8 ohms, a free-air resonance of 650 Hz, a sensitivity of 93 dB, and a total Q-factor of 0.46. It is rated for a maximum power handling of 80 watts.

.

.
