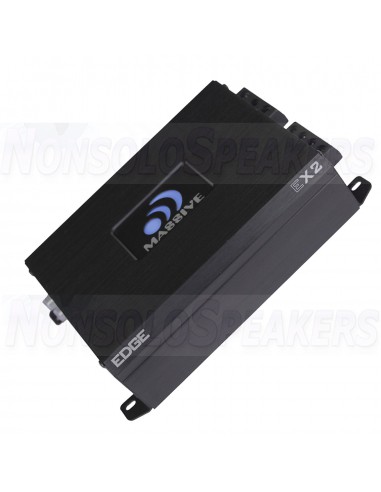

All NEW 8 “EDGE” Series Amplifiers use famous Nano Block Military speck circuit board and “N” drive MOSFET power supplies to ensure performance but they now have several new cutting edge features like RCA inputs that can take RCA or Speaker levels at up to 10 Volts in! This built in money saving OEM line converter is found in every model “EDGE” and every model uses a DC off set music sensing system to activate the ATO (Auto Turn On) Other new precision audio features found in all mono models include, an adjustable 1 band parametric EQ with up to 12 Db bass boost, a switchable 12V Out terminal, a preparatory docking input for optional custom matching Massive Audio 4 farad “Rail CAP” capacitor and on all 2, 4 & 5 channel amp crossovers adjusts to a X10 switch which means that “EDGE” can be programmed as a high pass or a low pass at 3K Hz adjustable Up or Down or even Band Passed enabling the use with raw drivers for more output control.
FEATURES:
SPECIFICATIONS:
RMS Power 120w x 2 @ 4 Ohm
PEAK Power 480w
RMS @ 2 Ohms 240w x 2
Bridged RMS 480w x 1
Min Impedance 2 Ohm
Min Ohm Bridged 4 Ohm
THD <0.05% @ 4 Ohm
S / N> 80 dB
Input Level 0.4 ~ 10V (Hi Inputs or Low Inputs)
Freq. Response 10Hz - 25KHz
Dimensions 7.3 (in) x 5.9 (in) x 2.1 (in)
Bass Remote n / a
