Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm
Visaton W 250 - 8 10" Woofer 8 Ohm

Visaton W 250 - 8 10" Woofer 8 Ohm

Visaton W 250 - 8 10" Woofer 8 Ohm

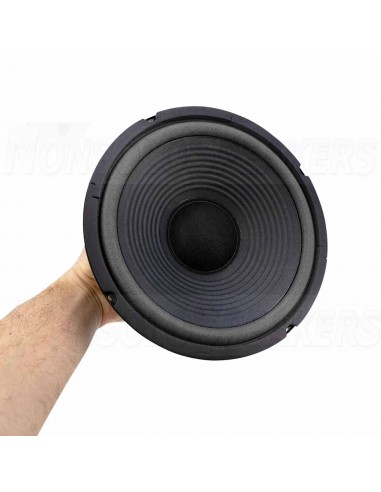

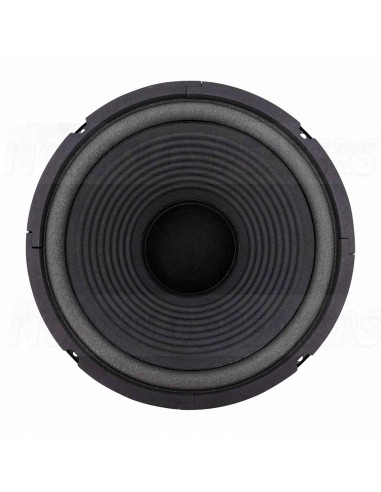

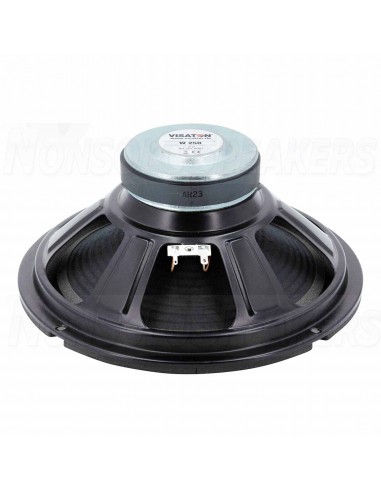

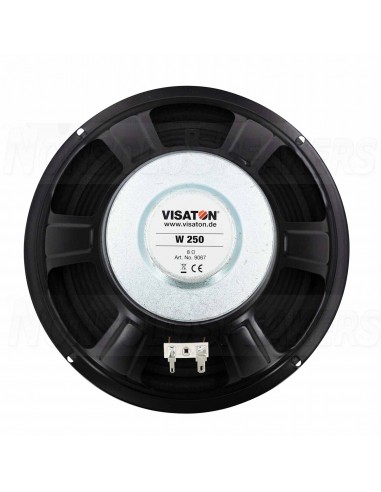

25 cm (10") woofer with air-dried cone and cone reinforcement. Front or rear mounting possible. Very good price/performance ratio and high power handling.

SHIPMENT IN 5-7 WORKING DAYS
€54.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 250 - 8 10" Woofer 8 Ohm

25 cm (10") woofer with air-dried cone and cone reinforcement. Front or rear mounting possible. Very good price/performance ratio and high power handling.

.

Highlights

  • Good Price/Performance ratio
  • Great replacement driver for sealed speaker cabinets
  • Foam surround and ribbed paper cone for a classic sound

.

Product Details

Visaton W 250 10" Woofer 8 Ohm

This woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround and ribbed, treated paper cone offer longevity while capturing that classic sound from the golden era of loudspeakers. A healthy 10 mm excursion limit allows this driver to pump out some serious bass in many different sized sealed, acoustic suspension cabinets. A smooth frequency response makes for easy integration with many different tweeters.

.

Technical Specifications

  • Article number W 250 - 8
  • Woofer Series W Series
  • Woofer Type Midwoofer
  • Nominal Diameter 10"
  • Power Handling (RMS) 90 Watts
  • Power Handling (max) 130 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 90 dB
  • Frequency Response 45 - 6,000 Hz
  • Voice Coil Diameter 35 mm
  • DC Resistance (Re) 6.8 ohms
  • Voice Coil Inductance (Le) 1.1 mH
  • Resonant Frequency (Fs) 45 Hz
  • Mechanical Q (Qms) 3.57
  • Electromagnetic Q (Qes) 1.00
  • Total Q (Qts) 0.78
  • Diaphragm Mass Inc. Airload (Mms) 27g
  • Surface Area of Cone (Sd) 360 cm2
  • BL Product (BL) 6.4 Tm
  • Compliance Equivalent Volume (Vas) 135 liter
  • Maximum Linear Excursion (Xmax) 3 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Foam
  • Overall Outside Diameter 255 mm
  • Overall Depth 110 mm
  • Baffle Cutout Diameter 236 mm
  • Bolt Circle Diameter 247 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 6 mm
  • Sealed Volume 283 liters
  • Sealed F3 40 Hz Vented
  • Volume 510 liters
  • Vented F3 22 Hz
