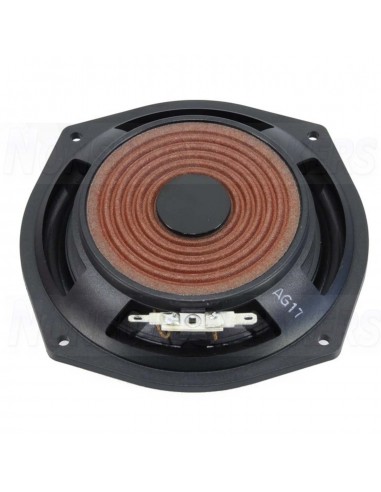

Visaton WF 130 ND Bass-midwoofer 5"
Visaton WF 130 ND Bass-midwoofer 5"
Visaton WF 130 ND Bass-midwoofer 5"
Visaton WF 130 ND Bass-midwoofer 5"

Visaton WF 130 ND Bass-midwoofer 5"

Visaton WF 130 ND Bass-midwoofer 5"

Considering building your own bookshelf speakers or revamping existing ones with limited space? The Visaton WF 130 ND bass-midwoofer might be the perfect solution. This 5-inch driver is specifically designed for shallow mounting depths, making it ideal for compact speaker enclosures.

SHIPMENT IN 5-7 WORKING DAYS
€129.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton WF 130 ND Bass-midwoofer 5"

Considering building your own bookshelf speakers or revamping existing ones with limited space? The Visaton WF 130 ND bass-midwoofer might be the perfect solution. This 5-inch driver is specifically designed for shallow mounting depths, making it ideal for compact speaker enclosures.

.

Highlights

  • Compact Design with Low Installation Depth: Ideal for building bookshelf speakers or integrating into existing enclosures with limited space.
  • Neodymium Magnet: This type of magnet is known for being lightweight and powerful, allowing for a compact design without sacrificing performance.
  • Balanced Sound: The polypropylene cone and rubber surround are designed to deliver clear and detailed mid-range tones alongside a good foundation of bass.
  • 8-Ohm Impedance: This is a common impedance rating compatible with most home audio amplifiers and receivers.

.

Product Details

Visaton WF 130 ND Bass-midwoofer

Despite its space-saving design, the WF 130 ND doesn't compromise on sound quality. A neodymium magnet, known for being lightweight yet powerful, allows for a compact build without sacrificing performance.

The combination of a polypropylene cone and a rubber surround contributes to a well-balanced sound profile. The WF 130 ND is designed to deliver clear and detailed mid-range tones while also providing a solid foundation of bass, making it suitable for a variety of musical genres.

.

Technical Data

Rated power 40 W

Nominal impedance 8 Ω

Transmission range (–10 dB)

Frequency response (–10 dB) fu–10000 Hz

Mean sound pressure level 84 dB (1 W/1 m)

Excursion limit xmech ± 8.1 mm

Resonant frequency fs 46 Hz

Top pole plate height: Height of front pole-plate 4 mm

Voice coil diameter 25.6 mm

Height of winding 7.6 mm

Baffle opening: Cut-out diameter 123 mm

Connection: Terminal 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (–)

Net weight 0.262 kg

.

Visaton WF 130 ND
