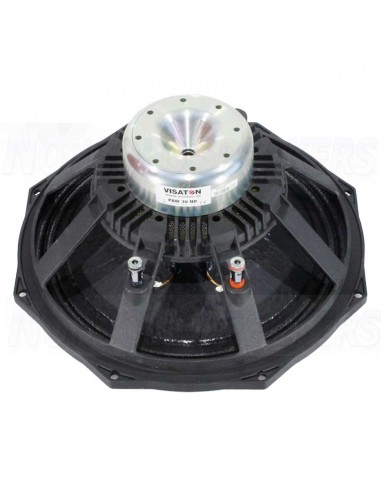

Visaton PAW 30 ND - 8 Bass-midwoofer 12" 8 Ohm

The Visaton PAW 30 ND - 8 is a 12-inch bass-midwoofer that injects power and clarity into professional audio (PA) systems. Designed to conquer the demanding world of live music, this 8-ohm speaker is ideal for bands, DJs, and other audio professionals who need their music to be heard loud and clear.

.

Highlights

• Octagonal die cast basket
• Paper membrane 75 mm voice coil for high power handling
• Til voice coil former Vented spider
• Additional vented air gap (8 holes) 10 mm t-yoke venting
• M shape surround for high excursion
• Connex spider
• EVA gasket Neodymium magnet
• Impedance control ring (aluminum)

Visaton PAW 30 ND - 8 Bass-midwoofer

Built to endure the rigors of live performances, the PAW 30 ND - 8 boasts a sturdy octagonal die-cast basket and a paper membrane. This robust combination ensures the speaker can handle the bumps and knocks that come with frequent use. But don't be fooled by its durability – this speaker packs a serious sonic punch. With a power handling of 400 watts, it delivers clear and powerful sound even in large venues. Additionally, the wide frequency response of the PAW 30 ND - 8 faithfully reproduces a broad range of sound, from deep bass tones to crisp mids, for a well-balanced and natural listening experience for your audience.

The PAW 30 ND - 8 incorporates thoughtful design elements to optimize its performance. A vented spider and strategically placed air gap holes work together to efficiently dissipate heat, ensuring the speaker maintains optimal performance throughout a show. Additionally, the M-shaped surround allows the speaker cone to move a significant distance without distortion. This translates to clear and accurate sound reproduction at high volumes, ensuring your music reaches the audience exactly as intended. Overall, the Visaton PAW 30 ND - 8 is a reliable and powerful mid-woofer solution for professional audio applications. Its robust build, high power handling, wide frequency response, and well-designed features make it a great choice for bands, DJs, and audio professionals who demand clear and powerful sound for their audiences.

Technical specifications include:

• Rated power 400 W
• Maximum power 600 W
• Impedance 8 Ω
• Frequency response (–10 dB) fu–5500 Hz
• Mean sound pressure level 93 dB (2.83 V/1 m)
• Max. linear displacement x lin ± 4 mm
• Excursion limit x mech ± 8 mm
• Resonant frequency 45 Hz
• Voice coil diameter 75 mm
• Cut-out diameter 286 mm
• terminals Terminal Spring terminals
• Net weight 3.05 kg
