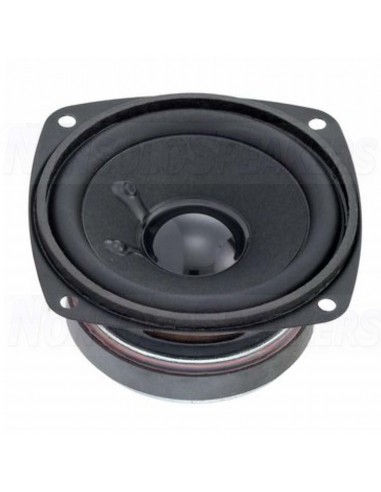

Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer
Visaton FRS 8 - 4 Full-range Woofer

Visaton FRS 8 - 4 Full-range Woofer

Visaton FRS 8 - 4 Full-range Woofer

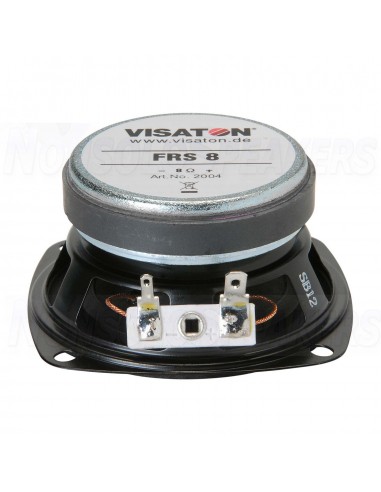

Choose the 2003 FRS8 3.3" full-range speaker from Visaton for sound applications where space is critical and high fidelity, full range sound is needed. 4-ohm impedance.

SHIPMENT IN 5-7 WORKING DAYS
€15.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton FRS 8 - 4 Full-range Woofer

Choose the 2003 FRS8 3.3" full-range speaker from Visaton for sound applications where space is critical and high fidelity, full range sound is needed. 4-ohm impedance.

.

Highlights

  • 4-ohm impedance for mobile and MTM center channel speaker applications
  • Rugged, compact design with rubber surround and steel frame
  • Smooth, linear frequency response from 200 to 20 kHz

.

Product Details

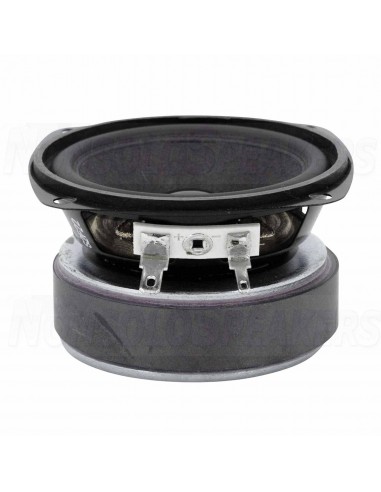

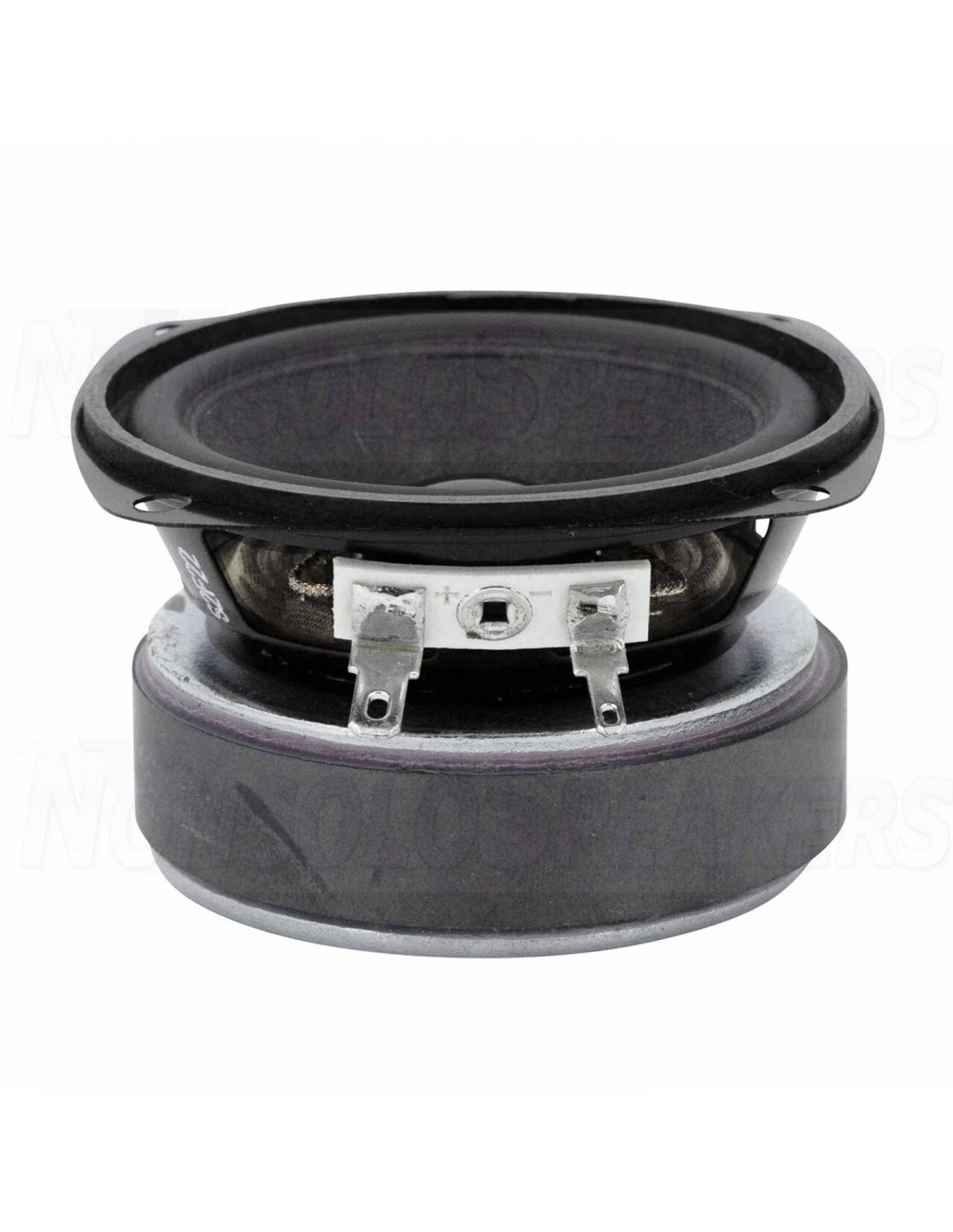

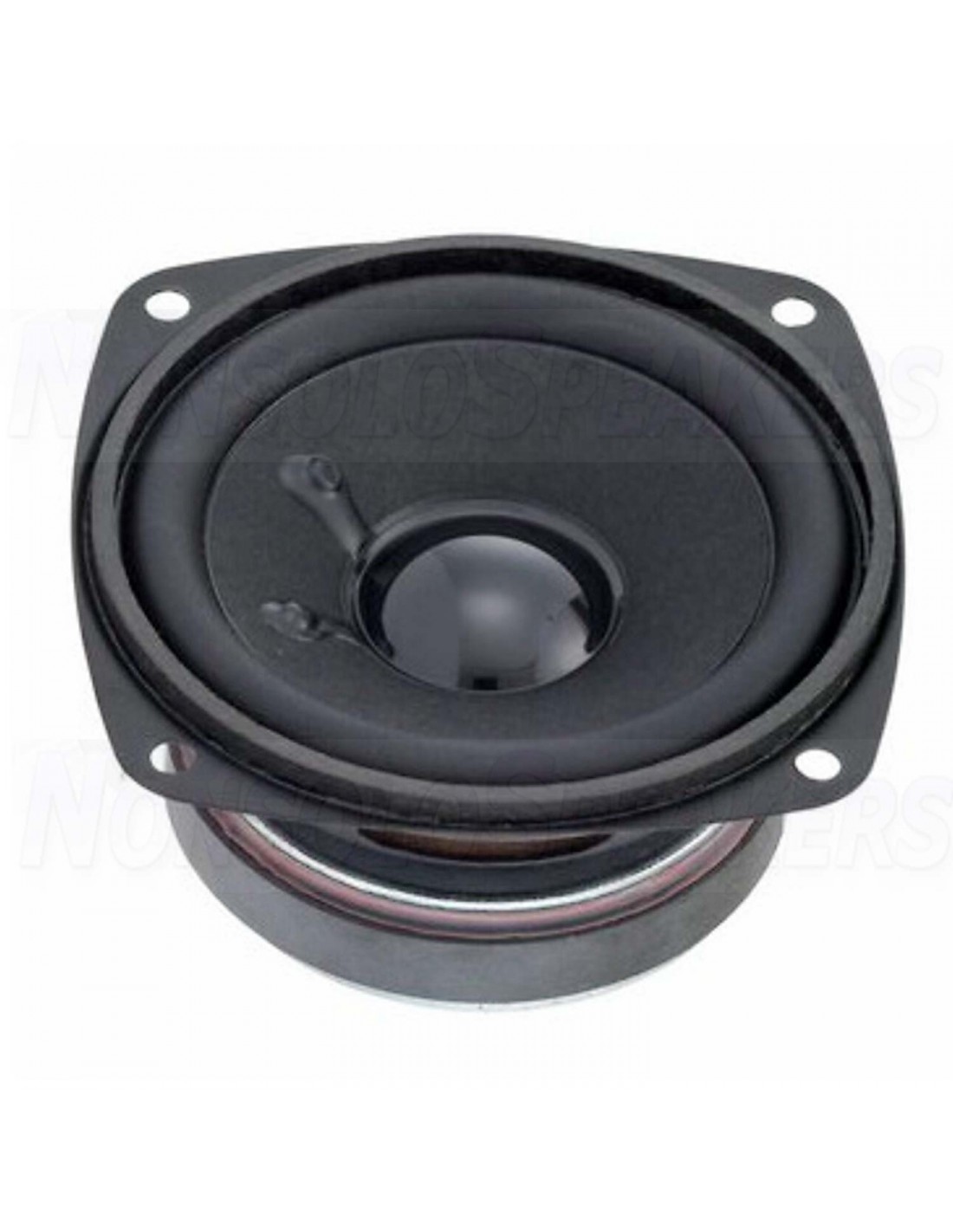

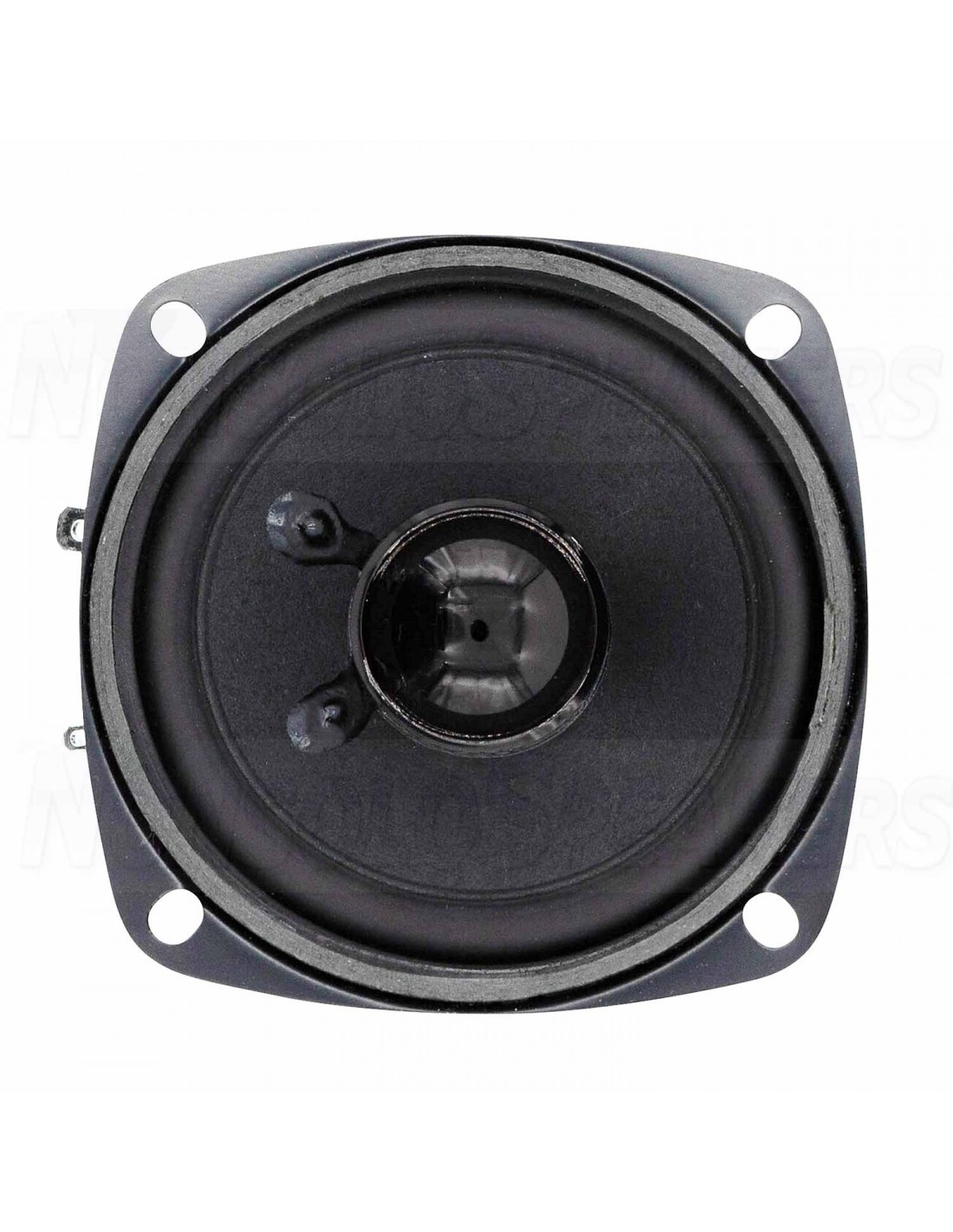

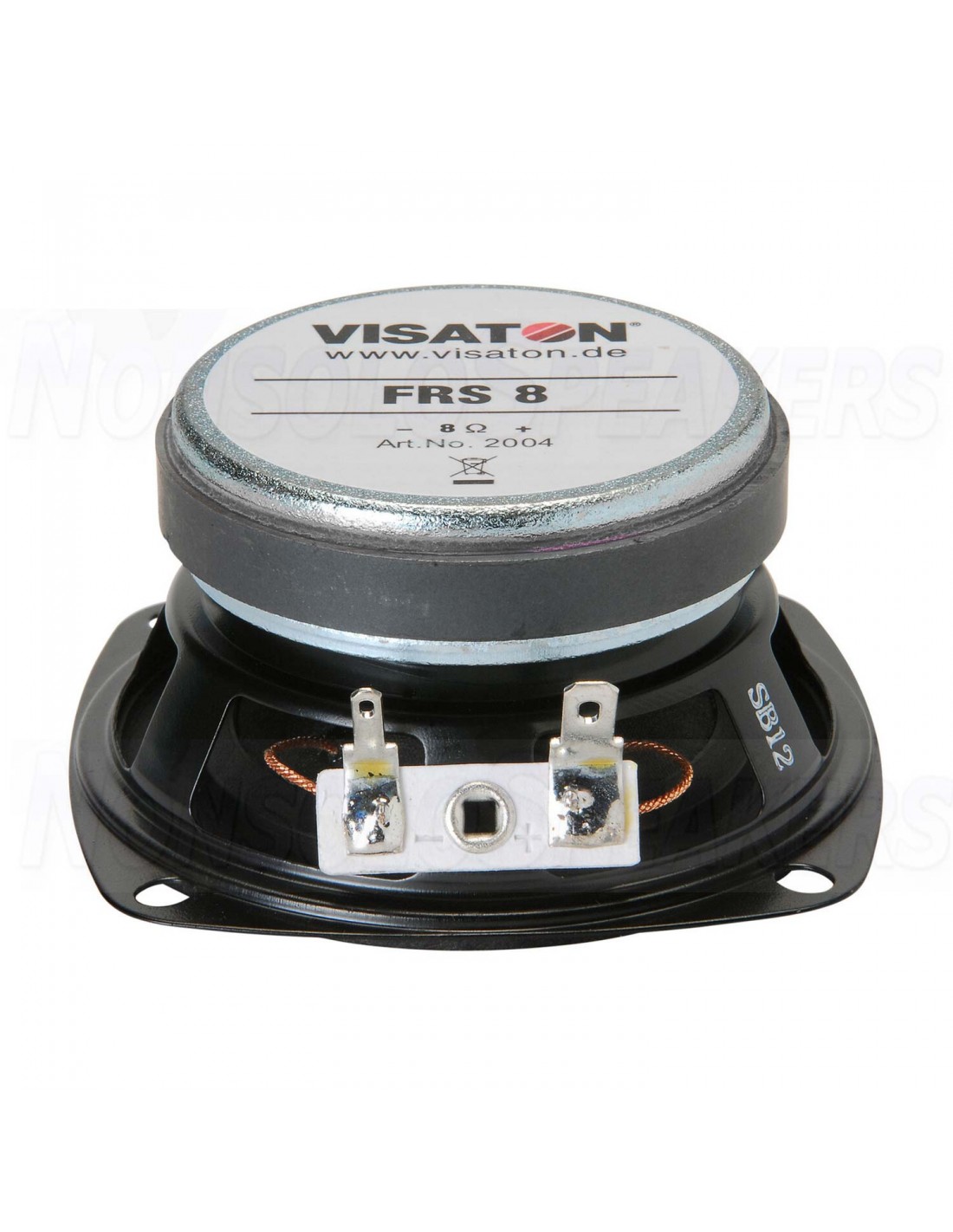

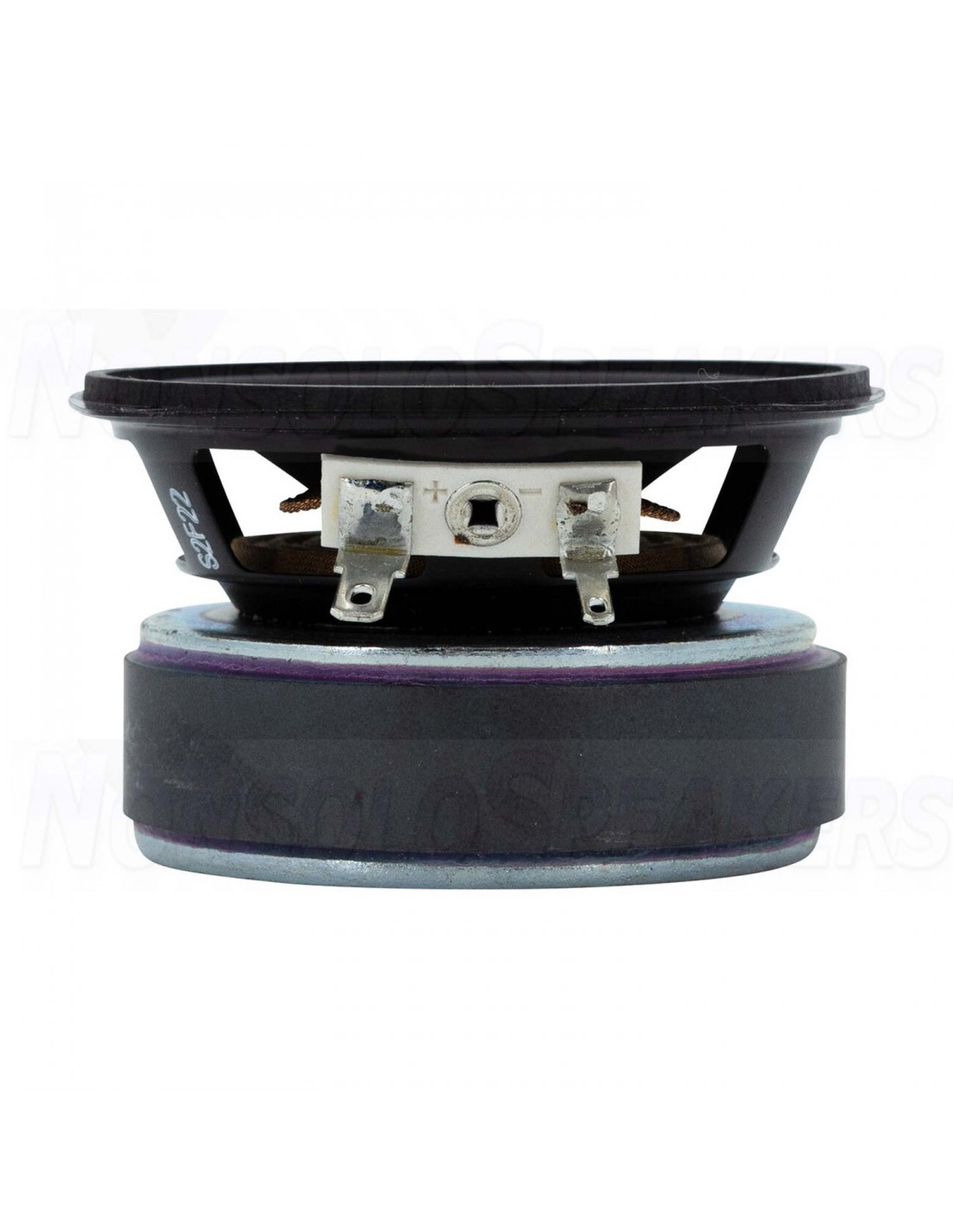

Visaton FRS 8 - 4 Full-range Woofer 4 Ohm
Visaton's 2003 FRS8 4-ohm, 3.3" paper cone HiFi full-range driver features smooth frequency response from 200 to 20,000 Hz, making it an ideal speaker for use in surround sound satellite speakers, multimedia

Technical Specifications

  • Article number FRS 8 - 4
  • Woofer Type Full-Range
  • Nominal Diameter 3"
  • Power Handling (RMS) 30 Watts
  • Power Handling (max) 50 Watts
  • Impedance (Z) 4Ω
  • Sensitivity (SPL at 1m / 2.83V) 82 dB
  • Frequency Response 100 to 20,000Hz
  • Voice Coil Diameter 0.75"
  • DC Resistance (Re) 3.5Ω
  • Voice Coil Inductance (Le) 0.4mH
  • Resonant Frequency (Fs) 115 Hz
  • Mechanical Q (Qms) 3.61
  • Electromagnetic Q (Qes) 0.85
  • Total Q (Qts) 0.69
  • Compliance Equivalent Volume (Vas) 1.1 liters
  • Maximum Linear Excursion (Xmax) 0.25 mm
  • Cone / Diaphragm Material Paper
  • Overall Outside Diameter 3.07"
  • Baffle Cutout Diameter 2.8"
  • Sealed Volume 3 liters
  • Sealed F3 133Hz
  • Vented Volume 3.4 liters Vented F3 71Hz

Visaton FRS 8 - 4
