SHIPMENT IN 5-7 WORKING DAYS
€208.95
Tax included
rating No review at the moment

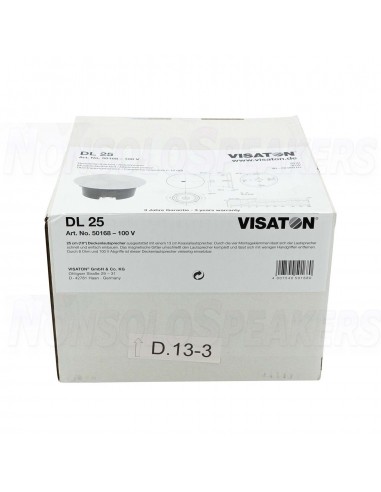

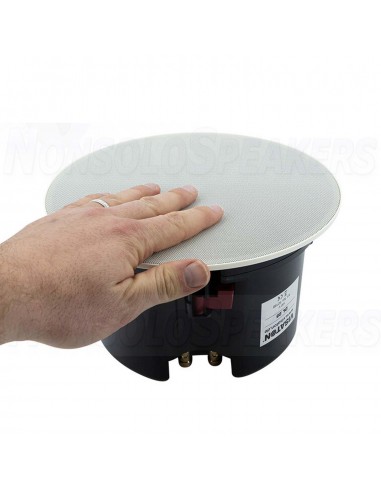

Visaton DL 25 25.4cm 100V Ceiling Speaker

25 cm (10") ceiling speaker equipped with a 13 cm coaxial driver.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton DL 25 25.4cm 100V Ceiling Speaker

25 cm (10") ceiling speaker equipped with a 13 cm coaxial driver.

.

Highlights

  • For suspended ceilings in shops, private accommodation, bathrooms etc.
  • For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
  • Ceiling-mounted speakers
  • Public address applications

.

Product Details

Visaton DL 25 25.4cm 100V Ceiling Speaker 8 Ohm

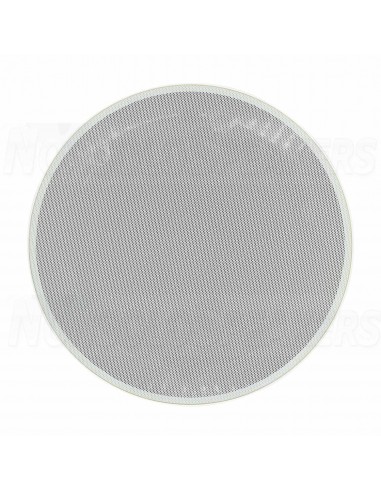

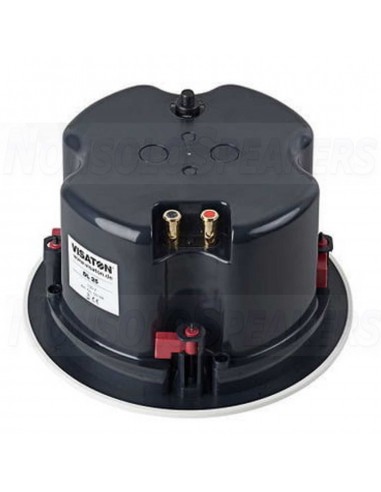

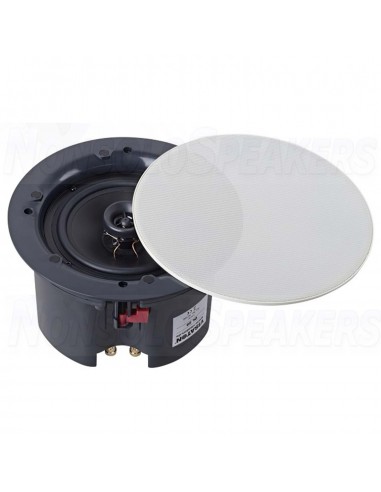

This ceiling speaker has four mounting clamps which make it easy and quick to install. The magnetic grilles covers the loudspeaker completely and can be removed with a simple step. Thanks to the 8 Ohm and 100 V taps, the ceiling speaker is versatile.

.

Technical Specifications

  • Rated power 20 watts
  • Maximum power 30 watts
  • Nominal impedance Z 8 ohms
  • Frequency response 90 - 20,000 Hz
  • Mean sound pressure level 90 dB
  • Opening angle (-6 dB) 70°/ 4000 Hz
  • Resonance frequency fs 150 Hz
  • Cutout diameter 212 mm
  • Net weight 2000 g
  • Transformer matching 20; 10; 5; 2.5 W
  • Sound pressure level 96 dB (1 W/1 m) at 4114 Hz
  • Max. sound pressure level 104.7 dB (30 W/1 m)
  • Colour RAL 9010
  • Mounting depth 150.5 mm
  • Diameter 245 mm
  • Cutout diameter 212 mm
  • Temperature range -40 - 70 °C
Visaton DL 25
2 Items

You might also like

CVS10C - OFC speaker cable 2x1.0mm² - white sheath CVS10C - OFC speaker cable 2x1.0mm² - white sheath 2
SHIPMENT IN 5/7 WORKING DAYS
Speakers Cables for Home HIFI

SPEAKERS CABLE CVS40C - OFC 2x4.0mm² - white sheath

XPL
CVS40C
rating 0 review
€4.99
SPEAKERS CABLE CVS40C - OFC  2x4.0mm² - white sheath Bipolar OFC copper cable for 2x4.0mm² speakers composed of 7 braids with 50 wires each of 0.12mm. External dimensions: 5.0x10.0mm. Available in 50m and 100m air-wound rolls. Excellent quality .. Price per linear meter. Technical features Cable type Double wire speaker Cross section Cable 40 mm Cable...

16 other products in the same category:

FOUR Connect 4-690976 M12 ring terminal 70-100mm², 1x black
SHIPMENT IN 7-10 WORKING DAYS
Power Cable Kit

FOUR Connect 4-690976 M12 ring terminal 70-100mm², 1x black

Four Connect
4-690919 M8
rating 0 review
€4.90
FOUR Connect 4-690915 M6 ring terminal 35mm², 1x red + 1x black  FOUR Connect ring terminals have good quality shrink tube as isolator instead of regular rubber or plastic sleeves. Shrink tube protects the connection much better against oxidation than loose plastic or rubber sleeves.  All FOUR Connect terminals that are for 20 mmq or larger cables, are...
Dayton Audio TCP115-4 4" Treated Paper Cone Midbass Woofer 4 Ohm Dayton Audio TCP115-4 4" Treated Paper Cone Midbass Woofer 4 Ohm 2
SHIPMENT IN 7-10 WORKING DAYS
1"-4,9" 8-12,5cm

Dayton Audio TCP115-4 4" Treated Paper Cone Midbass Woofer 4 Ohm

Dayton Audio
TCP115-4
rating 0 review
€16.00
Dayton Audio TCP115-4 4" Treated Paper Cone Midbass Woofer 4 Ohm With high excursion capabilities and low Fs, Dayton Audio's TCP115-4 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.

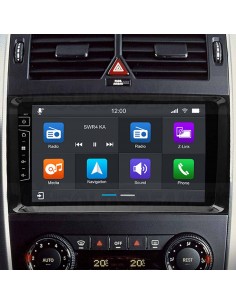

Dynavin D8-DF427 Pro Navigation Mercedes A, B, Sprinter Dynavin D8-DF427 Pro Navigation Mercedes A, B, Sprinter 2
