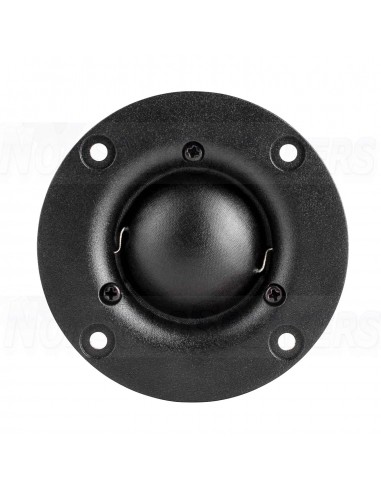

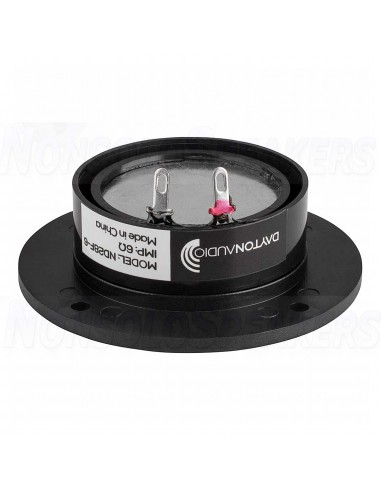

Dayton Audio ND28F-6 1-1/8'' Neodymium Dome Tweeter
SHIPMENT IN 7-10 WORKING DAYS
€17.45
Tax included
No review at the moment
Dayton Audio ND28F-6 1-1/8'' Neodymium Dome Tweeter
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate.
Highlights
- Front-mount design
- Center-to-center spacing as low as 2-1/2"
- Great top-end air and sparkle
- Self shielding neodymium motors
You might also like
Dayton Audio ND28F-6 1-1/8'' Neodymium Dome Tweeter
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate.
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate. Great for MTM or line array designs.
-
Highlights
- Front-mount design
- Center-to-center spacing as low as 2-1/2"
- Great top-end air and sparkle
- Self shielding neodymium motors
-
Product Details
Speaker Series ND Series
Model Number ND28F-6
Color Black
Unit of Measure Each
UPC 844632064586
Shipping Weight (lbs.) 0.6
Speaker Type Tweeter
Nominal Diameter 1.125"
Power Handling (RMS) 30 watts
Power Handling (max) 60 watts
Continuous Program Power --
Impedance 6 ohms
Sensitivity 88.4 dB @ 1W/1m
Frequency Response 2,200 - 20,000 Hz
Voice Coil Diameter 25 mm
Magnet Weight --
DC Resistance (Re) 5.4 ohms
Voice Coil Inductance (Le) 0.08 mH
Resonant Frequency (Fs) 1,097 Hz
Mechanical Q (Qms) 2.16
Electromagnetic Q (Qes) 2.94
Total Q (Qts) 1.24
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) 4.9 cm²
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material Textile Soft Dome
Entry / Exit Diameter --
Surround Material --
Voice Coil Wire Material Copper
Voice Coil Former Aluminum Basket/Frame Material --
Magnet Material Neodymium
Overall Outside Diameter 65 mm
Overall Depth 19.5 mm
Baffle Cutout Diameter 43.5 mm
# Mounting Holes 4
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
Cone / Dome Diameter 1-1/8"
ND28F-6
