55 mm (2.2”) Cone tweeter for the high-frequency range above 5,000 Hz.

Out-of-Stock
€14.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton TW 6 NG Replacement Cone Tweeter

55 mm (2.2”) Cone tweeter for the high-frequency range above 5,000 Hz.

.

Highlights

  • Balanced response for easy system integration
  • Great replacement driver
  • Sealed rear

.

Product Details

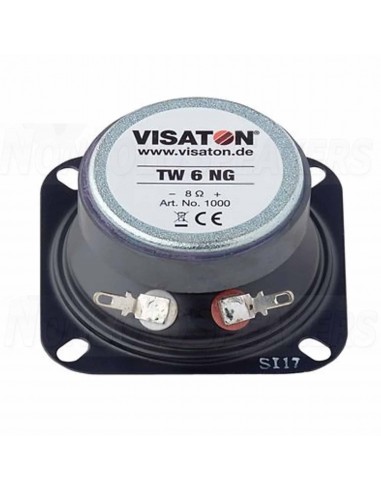

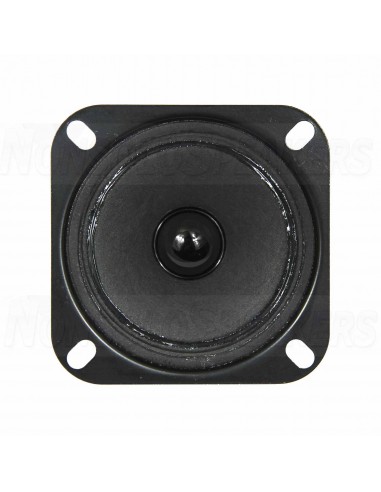

Visaton TW 6 NG 2.2" Cone Tweeter 8 Ohm

This tweeter has a balanced frequency response with brilliant treble and high power handling.

Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.

Technical Specifications

  • Article number TW 6 NG
  • Tweeter Type Cone
  • Tweeter Series TW Series
  • Cone / Dome Diameter 51 mm | 2"
  • Power Handling (RMS) 60 Watts
  • Power Handling (max) 100 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 91 dB
  • Frequency Response 1,000 - 30,000 Hz
  • Resonant Frequency (Fs) 1500 Hz
  • DC Resistance (Re) 6.5 ohms
  • Voice Coil Inductance (Le) 0.17 mH
  • Overall Outside Diameter 60 x 60 mm
  • Cutout Diameter 56 mm
  • Depth 27 mm
  • Recommended cut frequency >5,000 Hz

Visaton TW 6 NG
