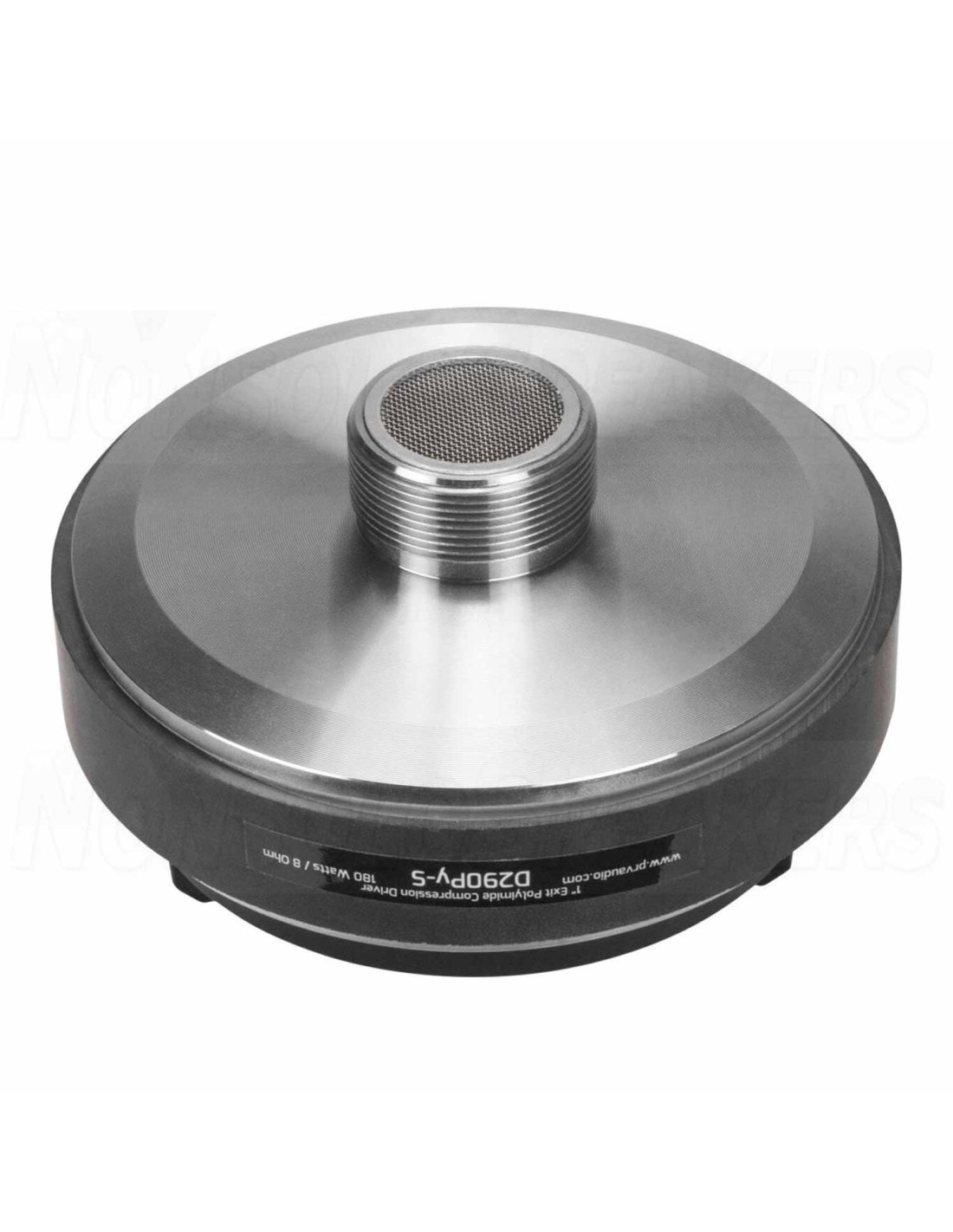

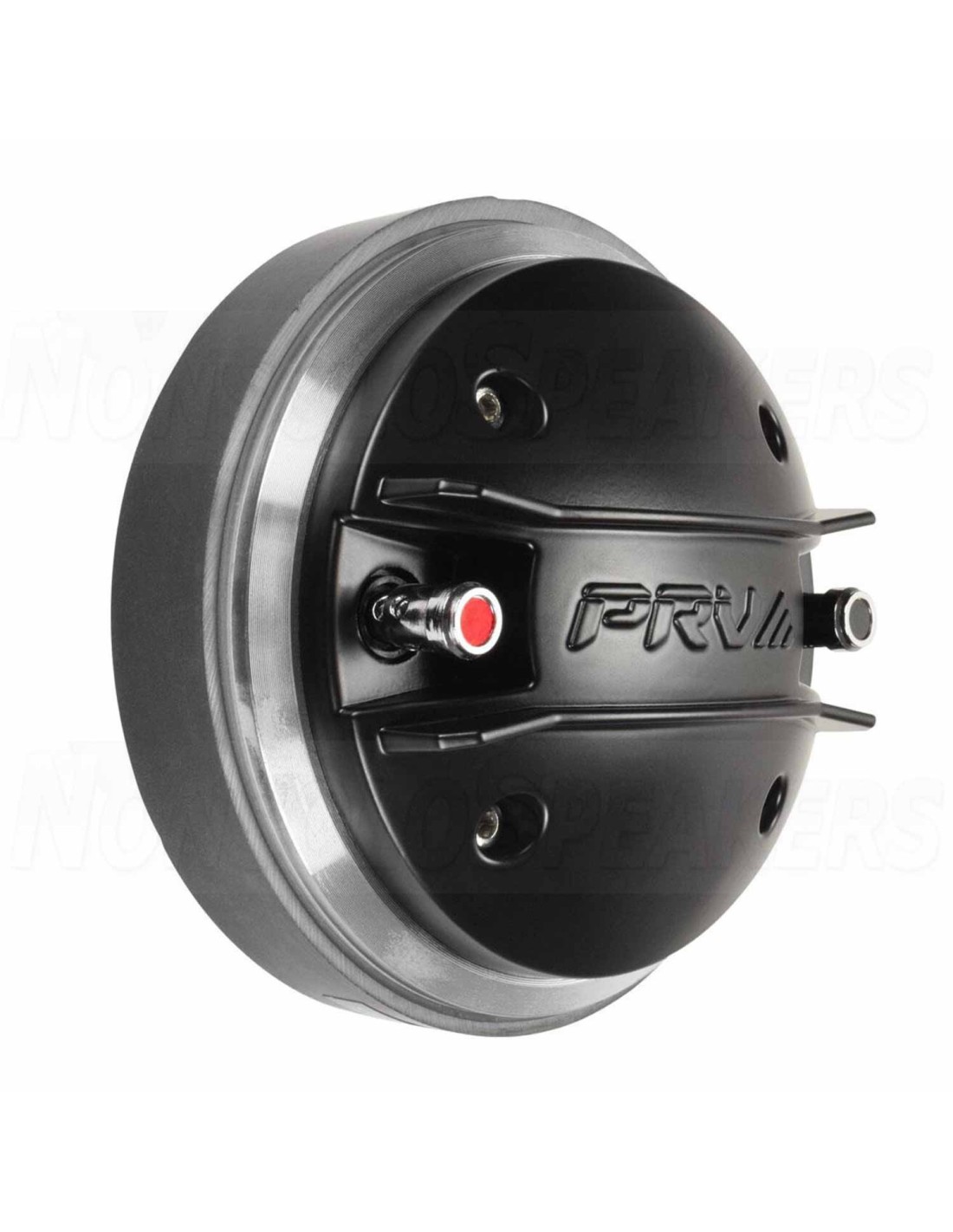

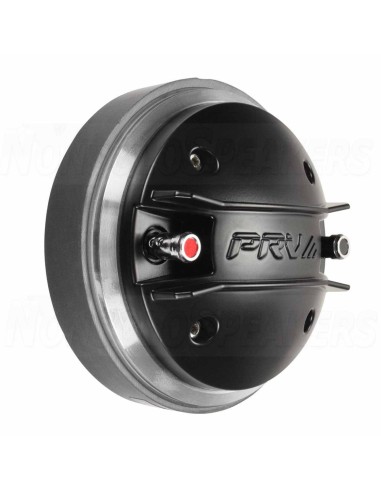

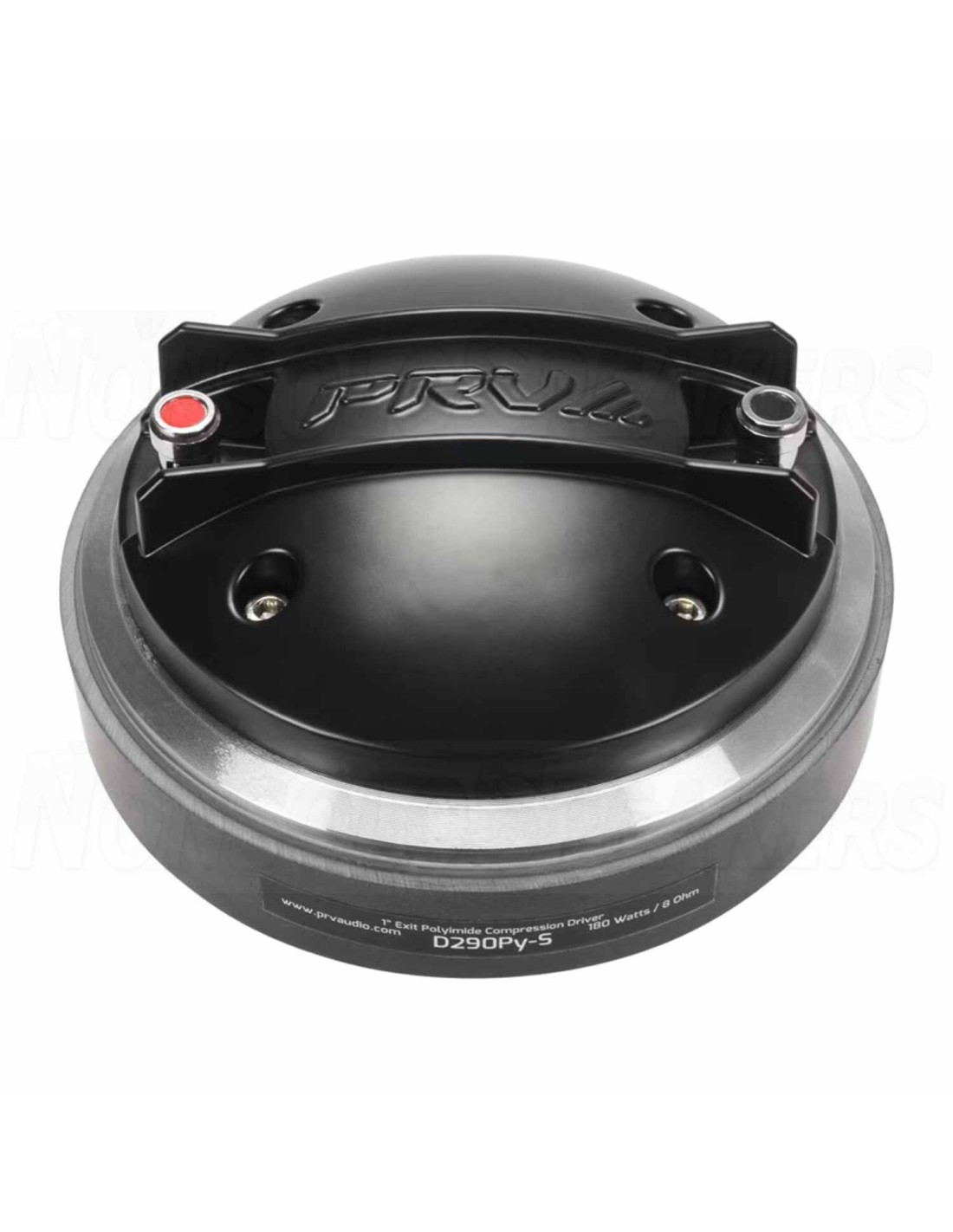

PRV Audio D290Py-S Compression Driver

.

The PRV Audio D290Py-S is a high-performance professional compression driver designed for powerful mid and high-frequency reproduction. With a 1.75" voice coil, 1" exit, and a robust polyimide diaphragm, it delivers exceptional clarity and durability for demanding audio applications.

.

Highlights

• 1.75" CCAW voice coil with 1" (25.4 mm) throat for enhanced clarity
• Handles 180 Watts program power and peaks up to 360 Watts
• High 109 dB sensitivity ensures excellent efficiency
• Durable polyimide diaphragm with ferrite magnet structure

.

Product details

PRV Audio D290Py-S Compression Driver

The PRV Audio D290Py-S is a professional-grade compression driver engineered for high-output sound reinforcement systems. It features a 1.75" voice coil wound with copper-clad aluminum wire (CCAW) on a lightweight Kapton® former, which offers high thermal resistance and minimal power compression. The 1" exit throat and polyimide diaphragm provide smooth and accurate high-frequency response from 650 Hz to 19,000 Hz, making it ideal for use in two-way and multi-driver horn-loaded speaker systems.

Designed with an 8-ohm nominal impedance, the D290Py-S can handle 90 Watts RMS and up to 180 Watts program power, peaking at 360 Watts. With a sensitivity of 109 dB at 2.83V/1m, it delivers powerful output with reduced amplifier strain. The robust ferrite magnet motor structure ensures consistent performance even under extended use.

Measuring just 120 mm in diameter and 77.7 mm in depth, this driver fits compactly into most horn setups. It features a standard 1-3/8"-18 TPI mounting thread, weighs 2.15 kg, and is recommended to be used with a 12 dB/octave crossover set at 1000 Hz or higher.

To support long-term reliability and easy maintenance, we offer a matching replacement diaphragm. The PRV Audio RPD290Py Replacement Diaphragm allows quick restoration of original performance and extending the service life of the compression driver.

Compatible with:

• PRV Audio WG11-25 Waveguide
• PRV Audio WG08-25 Waveguide
• PRV Audio WG17-25 Waveguide
• PRV Audio WG23-25 Waveguide
• PRV Audio WGP10-25 SLIM Waveguide
• PRV Audio WGP12-25 SLIM BLACK Waveguide

Technical Specifications:

• Article number D290Py-S
• Tweeter Type Compression Driver
• Cone / Dome Diameter 25.4 mm
• Power Handling (RMS) 180 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 109 dB
• Frequency Response 650 - 19000Hz
• Overall Outside Diameter 120 mm
• Depth 77.7 mm
• Mounting Type 1 3/8” 18TPI
• Diaphragm Material Titanium
• Recommended cut frequency 1000 Hz
