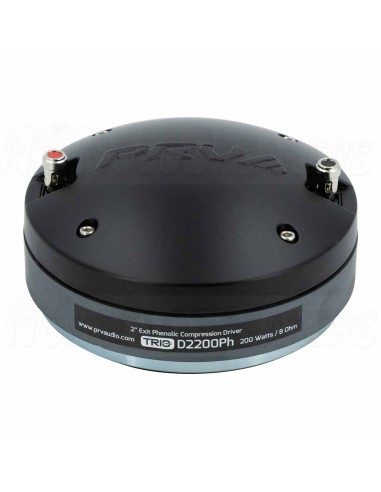

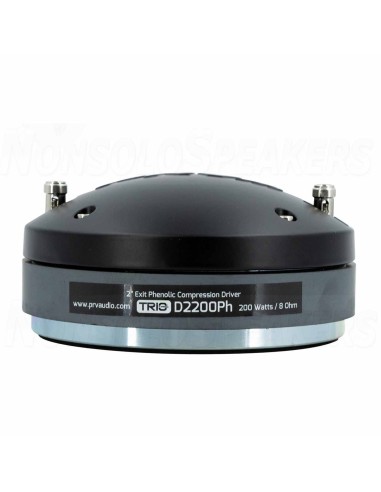

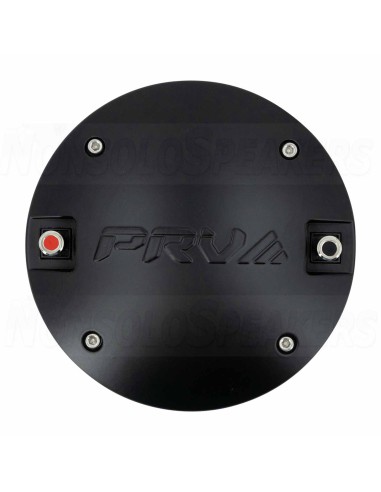

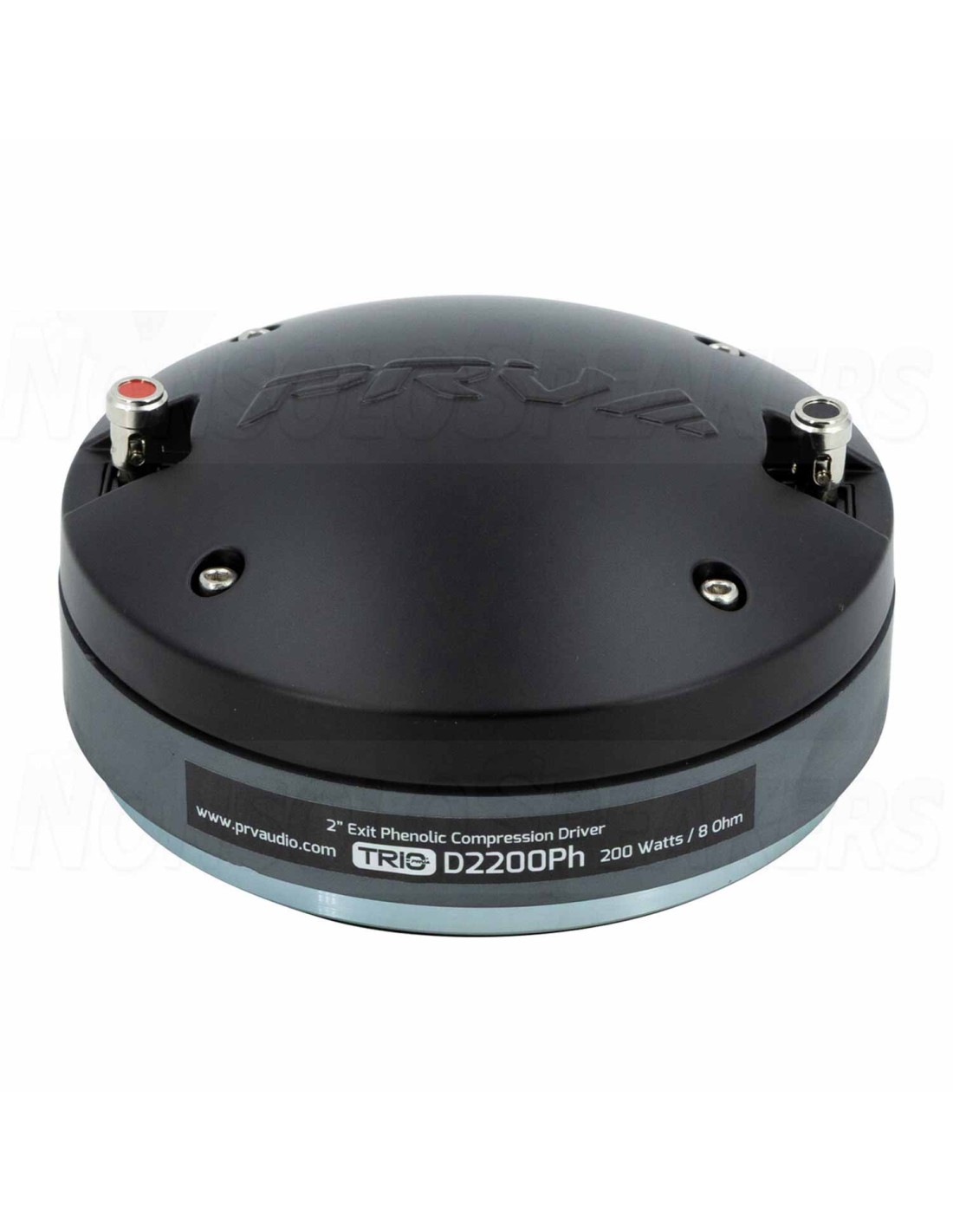

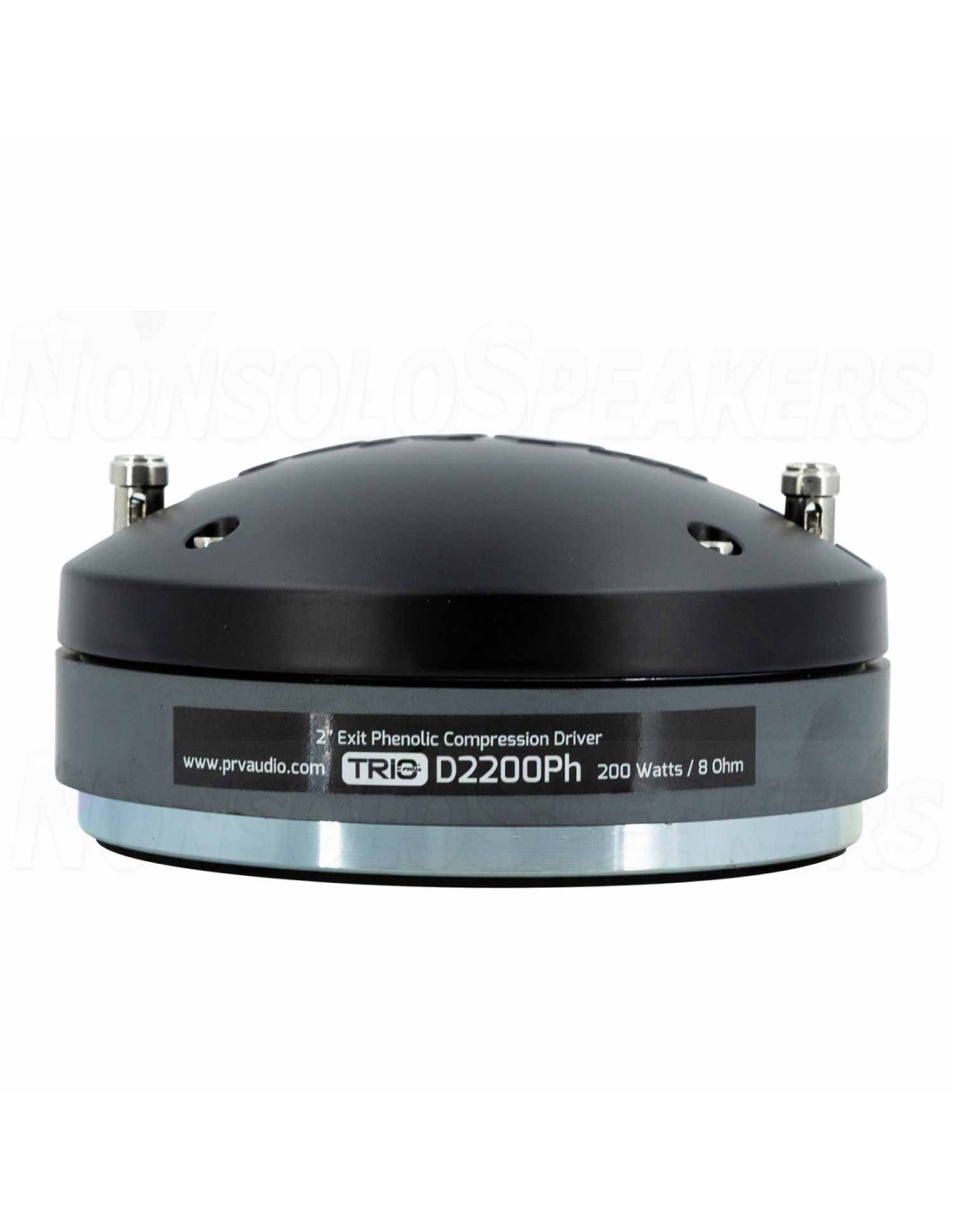

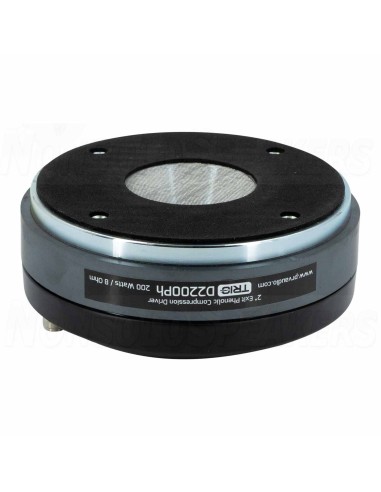

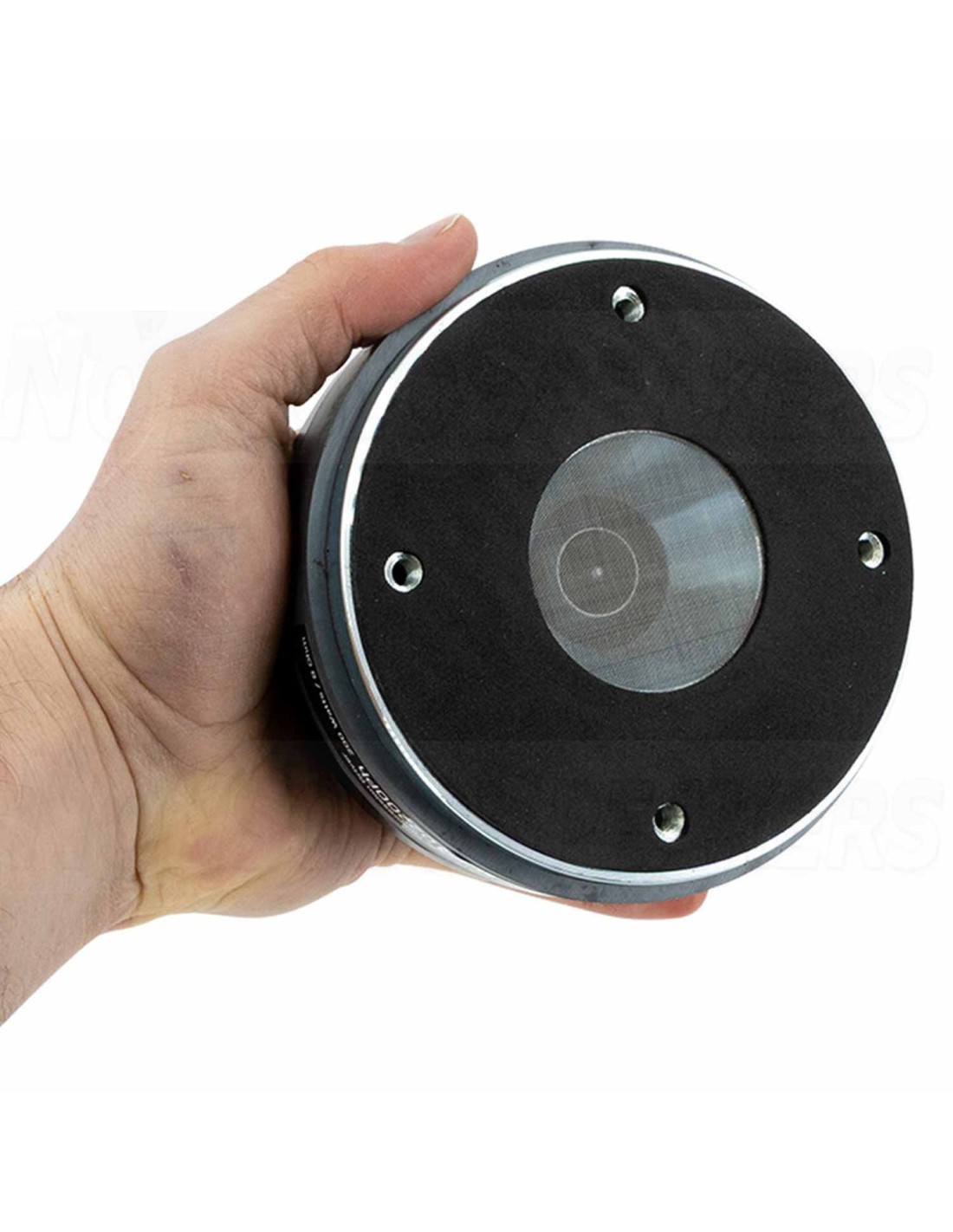

PRV Audio D2200Ph Compression Driver

.

The PRV Audio D2200Ph is a high-performance 2” exit compression driver engineered for professional audio applications requiring high power handling, extended frequency response, and durability. With its robust phenolic diaphragm and precise design, it delivers clean, articulate sound from 500 Hz to 9,000 Hz - making it ideal for midrange vocal reproduction in PA systems and custom speaker builds.

.

Highlights

• 2" voice coil and 2" exit throat for seamless horn integration
• Handles 100W RMS / 200W program power for powerful output
• High sensitivity of 109 dB ensures efficient performance
• Phenolic diaphragm for smooth midrange and vocal clarity

Product details

PRV Audio D2200Ph Compression Driver

The PRV Audio D2200Ph is a professional-grade 2” exit compression driver designed for audio enthusiasts and system integrators seeking clarity, efficiency, and reliability in mid to high-frequency reproduction. Built around a 2” CCAW voice coil wound on a heat-resistant Kapton® former, the driver delivers 100 watts RMS and peaks up to 200 watts of program power. Its phenolic diaphragm ensures smooth tonal character, especially in vocal applications, while the 109 dB sensitivity provides ample SPL with minimal amplifier power.

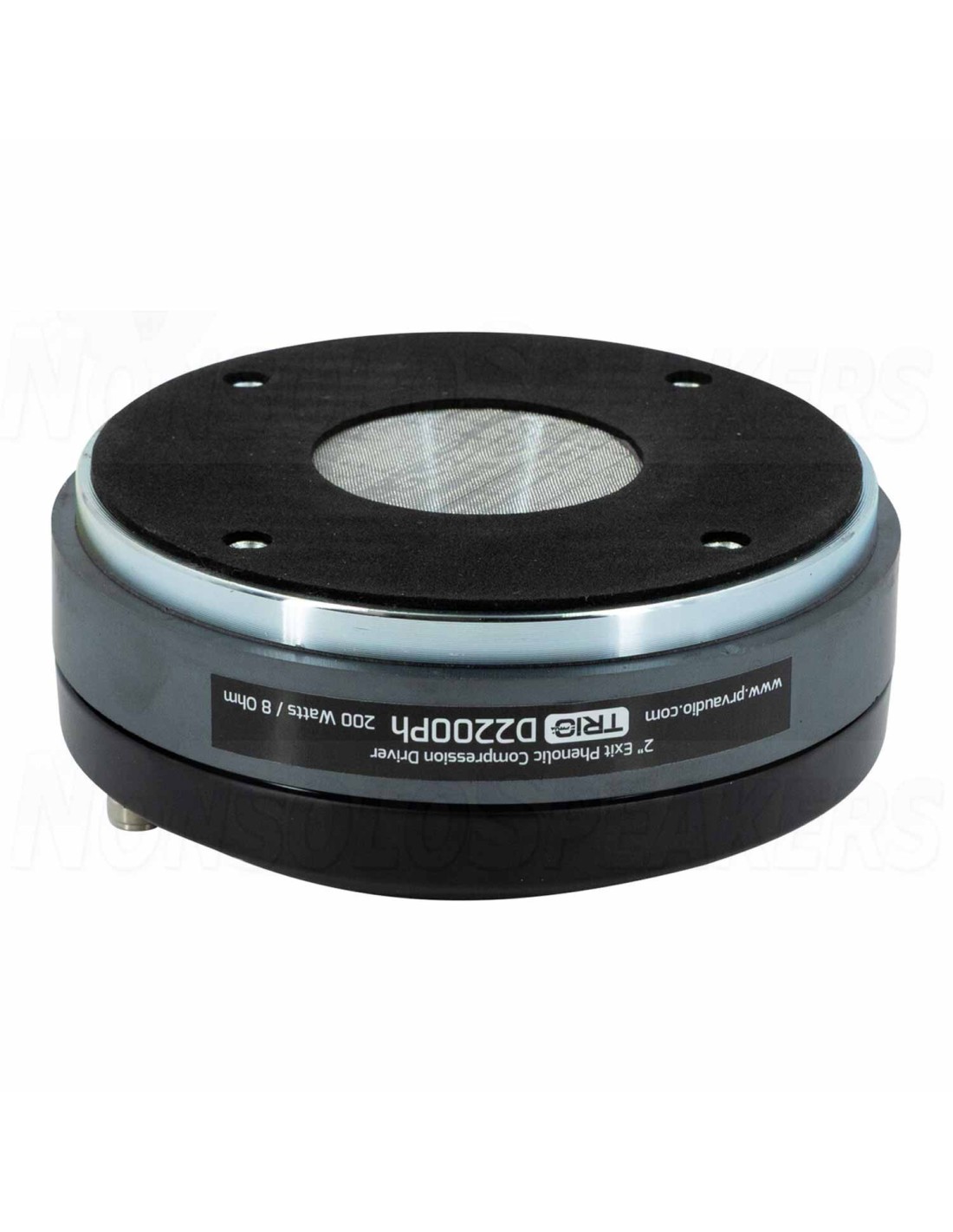

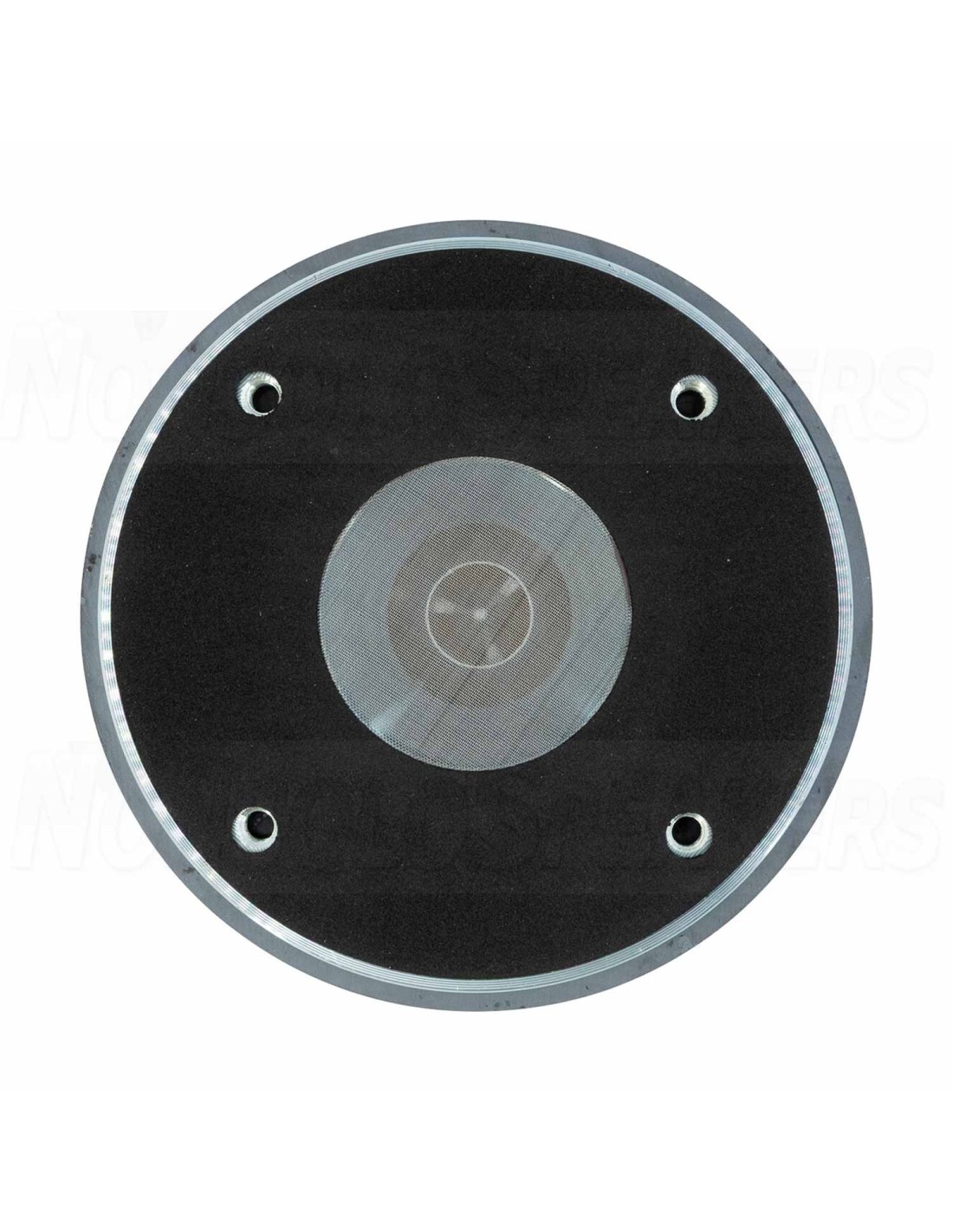

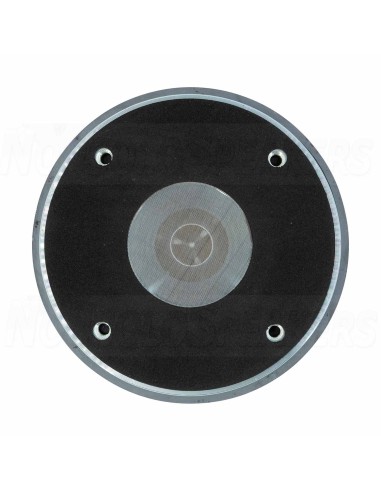

Featuring a ferrite magnet structure with a flux density of 1.66 T, the D2200Ph achieves strong magnetic performance in a compact and robust housing. Its recommended crossover point is 500 Hz with a 12 dB/octave slope, making it well-suited for use in two-way and three-way speaker configurations. The unit has a standard 4-bolt mount with a 65.5 mm depth and 133 mm diameter, compatible with industry-standard horns.

Whether used in touring systems, installed venues, or custom loudspeaker builds, the PRV Audio D2200Ph delivers articulate sound, high efficiency, and consistent performance - hallmarks of Brazilian engineering for pro audio applications.

Compatible with:

• PRV Audio WGP22-50X BLACK Waveguide

Technical Specifications:

• Article number D2200Ph
• Tweeter Type Compression Driver
• Tweeter Series PRV Trio
• Cone / Dome Diameter 50 mm
• Power Handling (RMS) 200 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 107 dB
• Frequency Response 800 - 9000Hz
• Overall Outside Diameter 133 mm
• Depth 65.5 mm
• Mounting Type M6 x 4 - 4” (101.6 mm)
• Diaphragm Material Phenolic
• Recommended cut frequency 800 Hz
