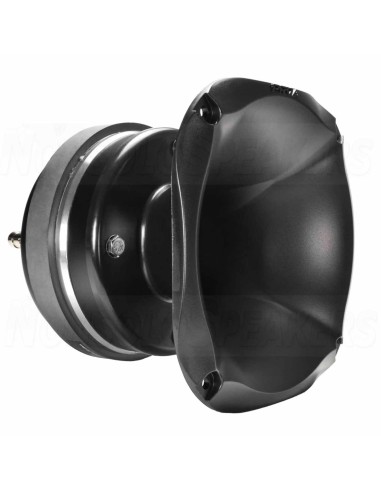

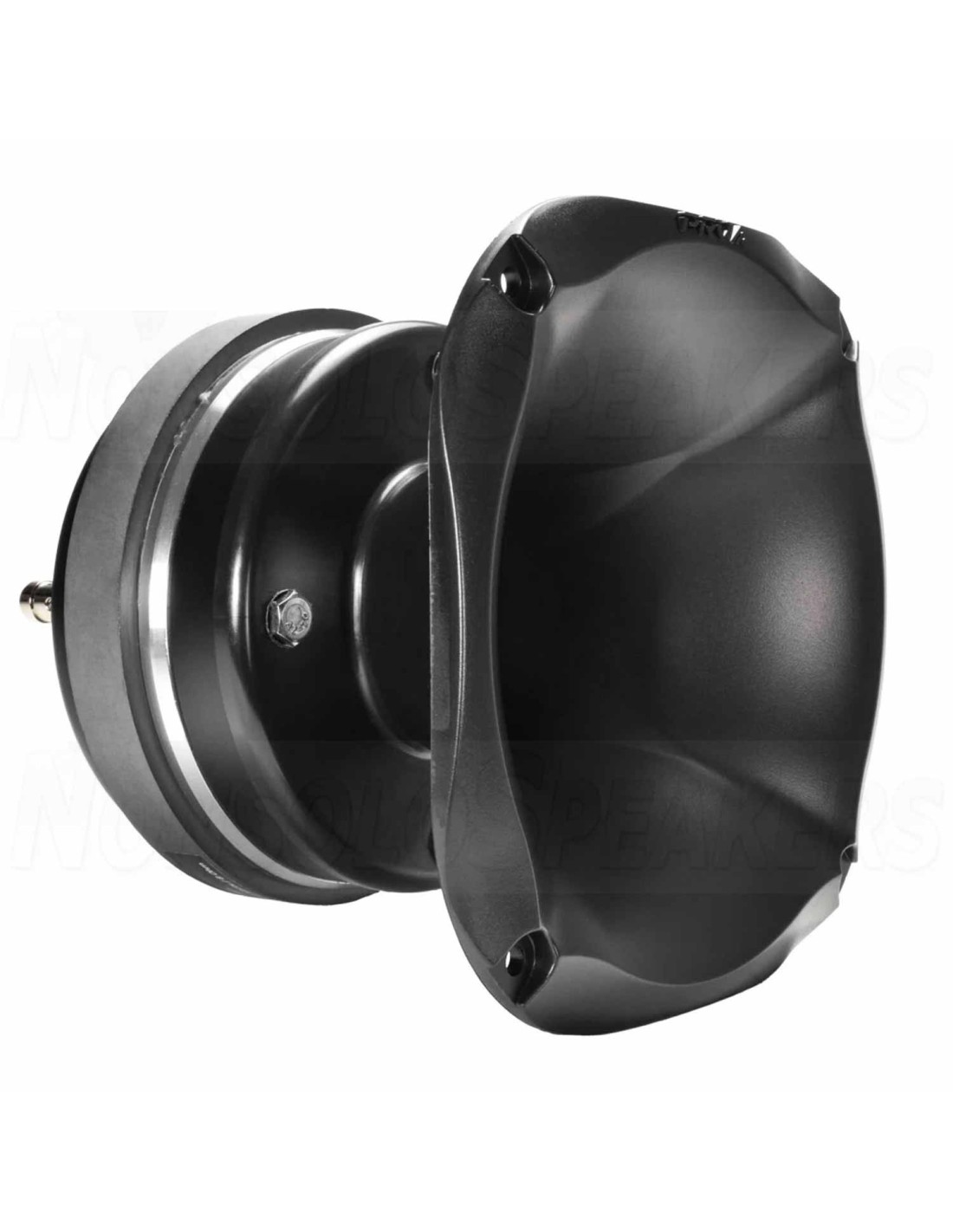

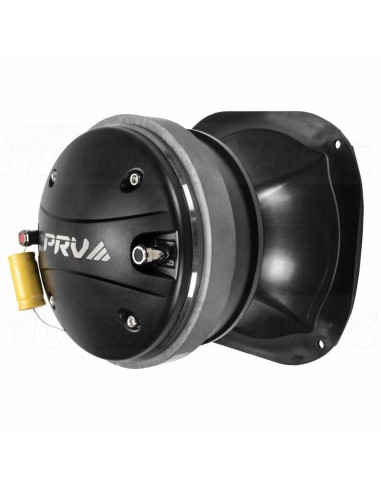

PRV Audio WG2000Py SLIM Horn Compression Driver

.

The PRV Audio WG2000Py SLIM is a professional compression driver engineered to deliver outstanding clarity and power in high-frequency reproduction, all within a compact design. Featuring a 2-inch voice coil and a 2-inch exit, this driver combines impressive 107 dB sensitivity with robust 150-watt continuous program power, making it ideal for demanding audio applications where space is at a premium.

.

Highlights

• 2" voice coil and 2" exit for powerful high-frequency output
• 150 watts continuous program power and 300 watts peak power
• Exceptional 107 dB sensitivity for efficient sound projection
• Ultra-slim design with a compatible WGPI4-50X SLIM waveguide

.

Product details

PRV Audio WG2000Py SLIM Professional Compression Driver 8 Ohm

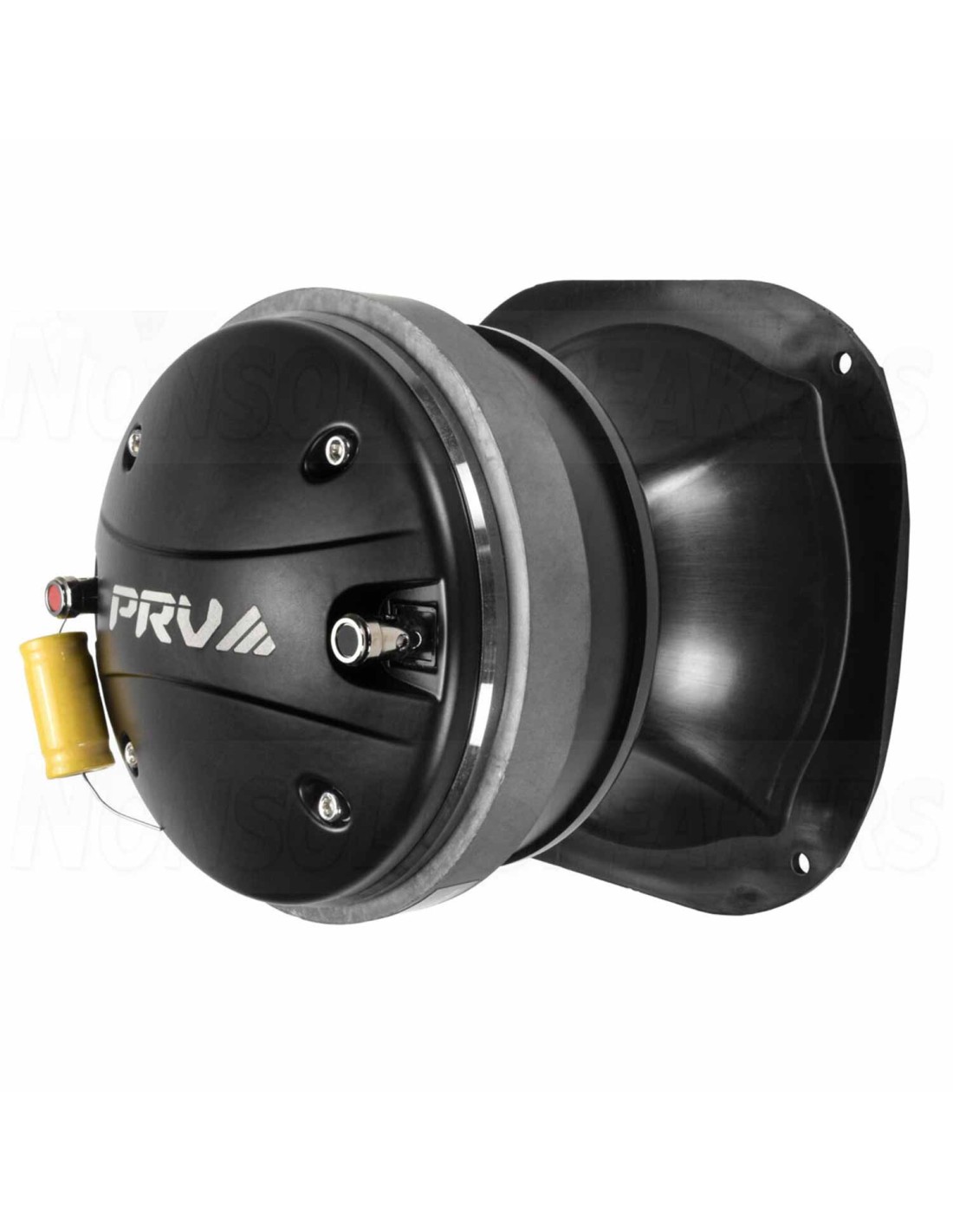

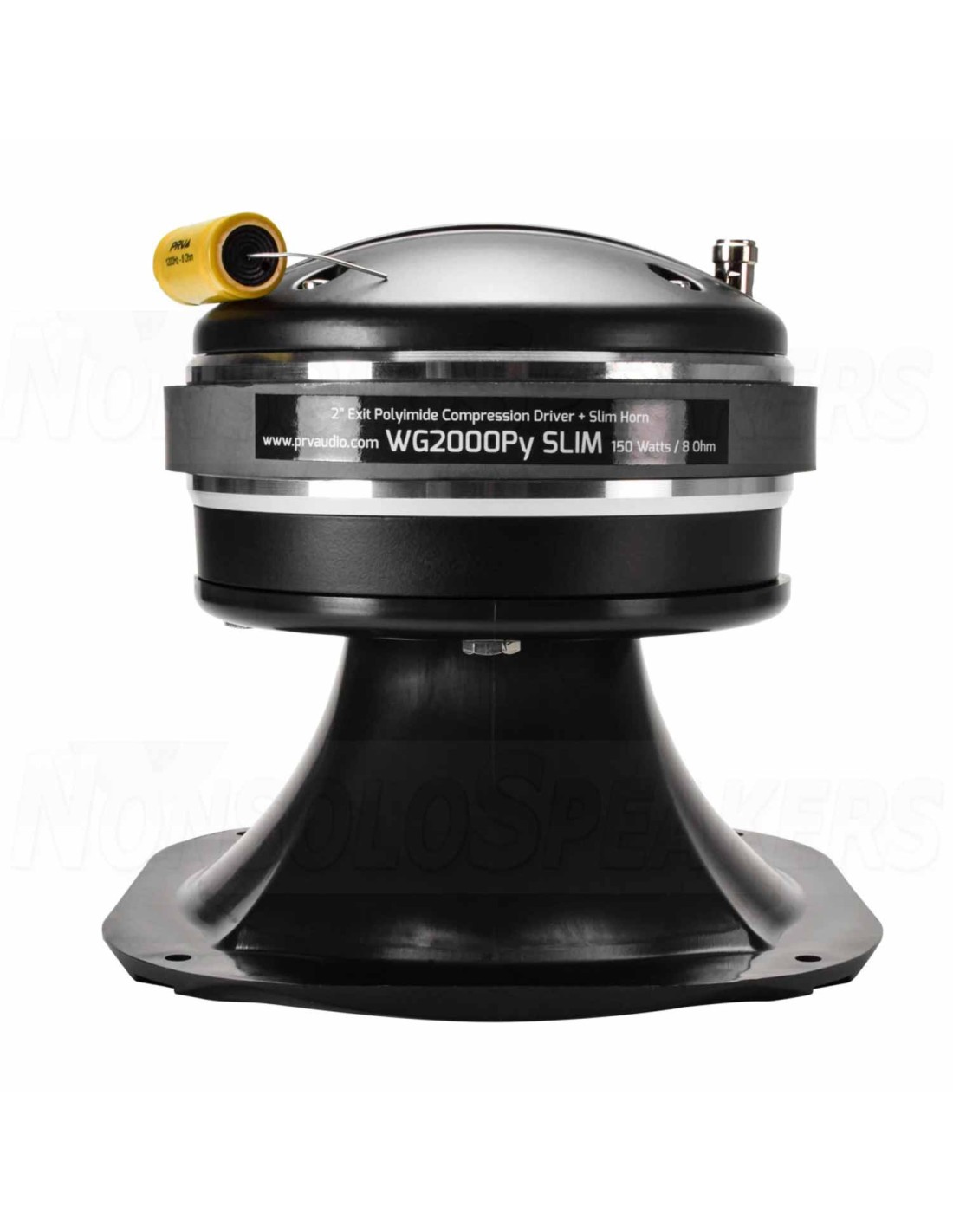

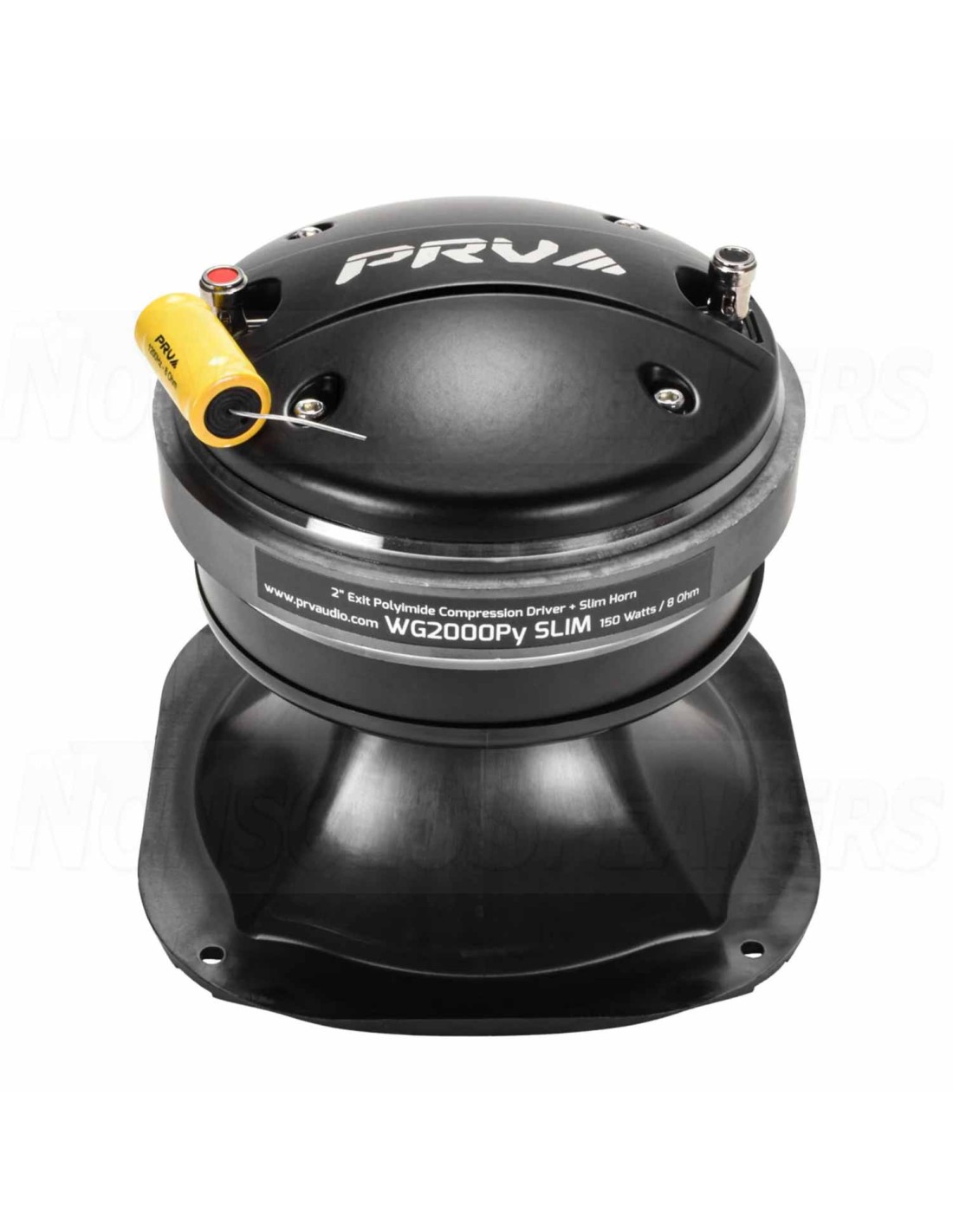

The WG2000Py SLIM stands out with its innovative slim profile, measuring only 149 mm in overall depth. This makes it an excellent solution for installations where space behind the mounting surface is limited, without compromising on output or durability. The robust ferrite magnet and CCAW voice coil ensure reliable operation even under high power loads, while the Kapton coil former provides excellent thermal stability for extended use.

Thanks to its high efficiency and sensitivity of 107 dB at 2.83V/1m, the WG2000Py SLIM is perfectly suited for use in tweeters and professional speakers where crisp, articulate highs are essential. Its frequency response from 1,000 Hz to 17,000 Hz at -10 dB allows for detailed vocal and instrument reproduction, making it ideal for both live sound reinforcement and high-end audio installations.

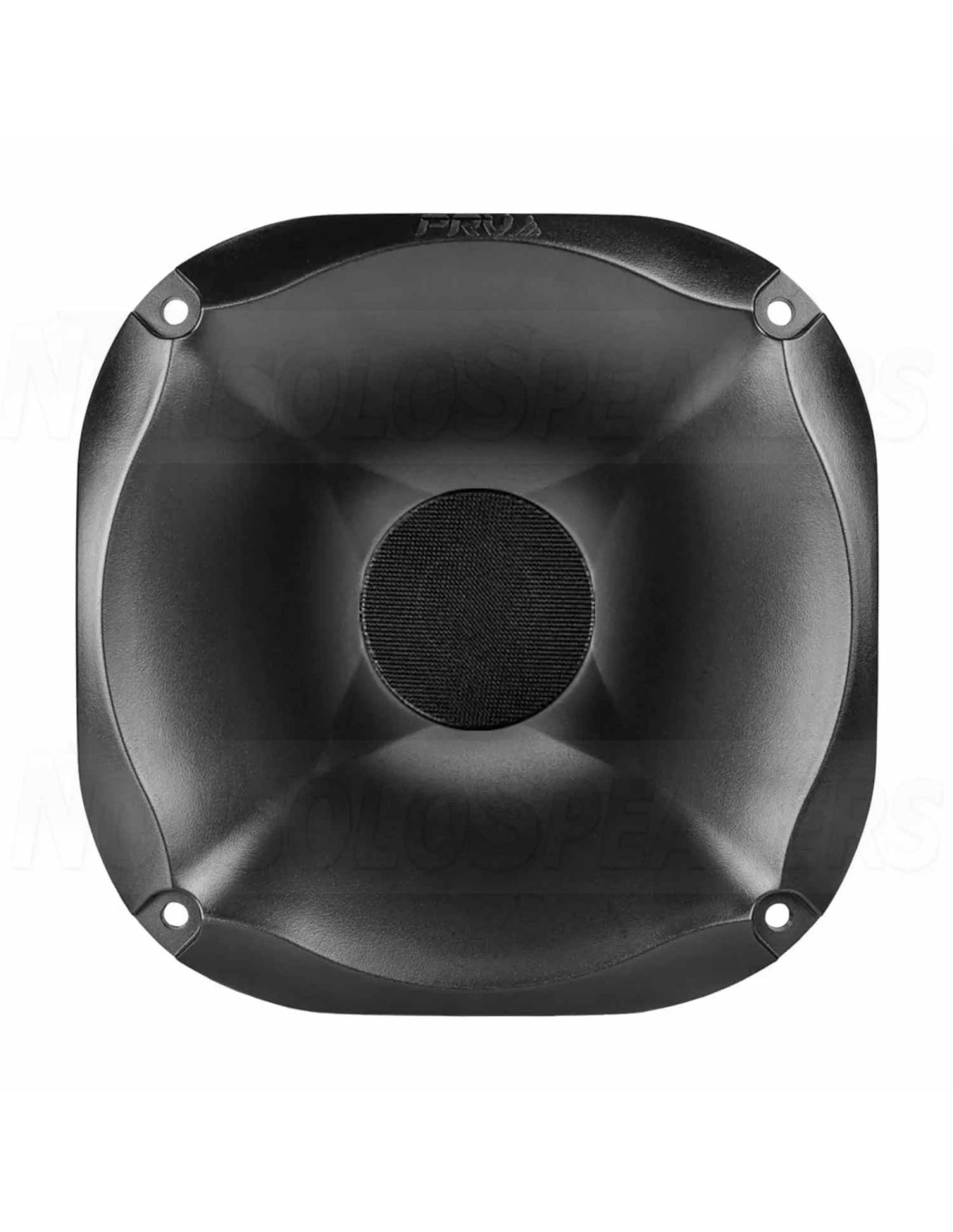

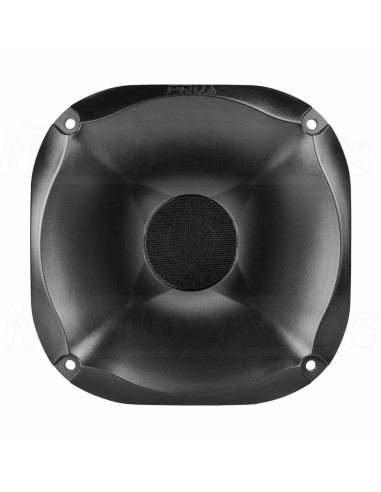

Designed for compatibility, the WG2000Py SLIM pairs seamlessly with the WGPI4-50X SLIM waveguide, ensuring optimal dispersion and integration into a variety of loudspeaker designs. It is also suitable for custom DIY speaker kit projects, providing audio enthusiasts and professionals with the flexibility to create compact yet powerful sound solutions.

With a rugged ferrite magnet structure and a precision-engineered baffle cutout of 146 mm, this compression driver is easy to mount and integrate into existing systems. Whether upgrading a professional audio rig or designing a new loudspeaker system, the WG2000Py SLIM offers a combination of compact form, high power handling, and exceptional sound quality that makes it a top choice in the world of audio components.

Technical Specifications:

• Article number WG2000Py SLIM
• Tweeter Type Compression driver
• Cone / Dome Diameter 51 mm
• Power Handling (RMS) 150 Watts
• Power Handling (max) 300 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 107 dB
• Frequency Response 1.000-17.000 Hz
• Overall Outside Diameter 156 mm
• Cutout Diameter 146 mm
• Depth 149 mm
• Mounting Type Screws
• Diaphragm Material Polyimide
