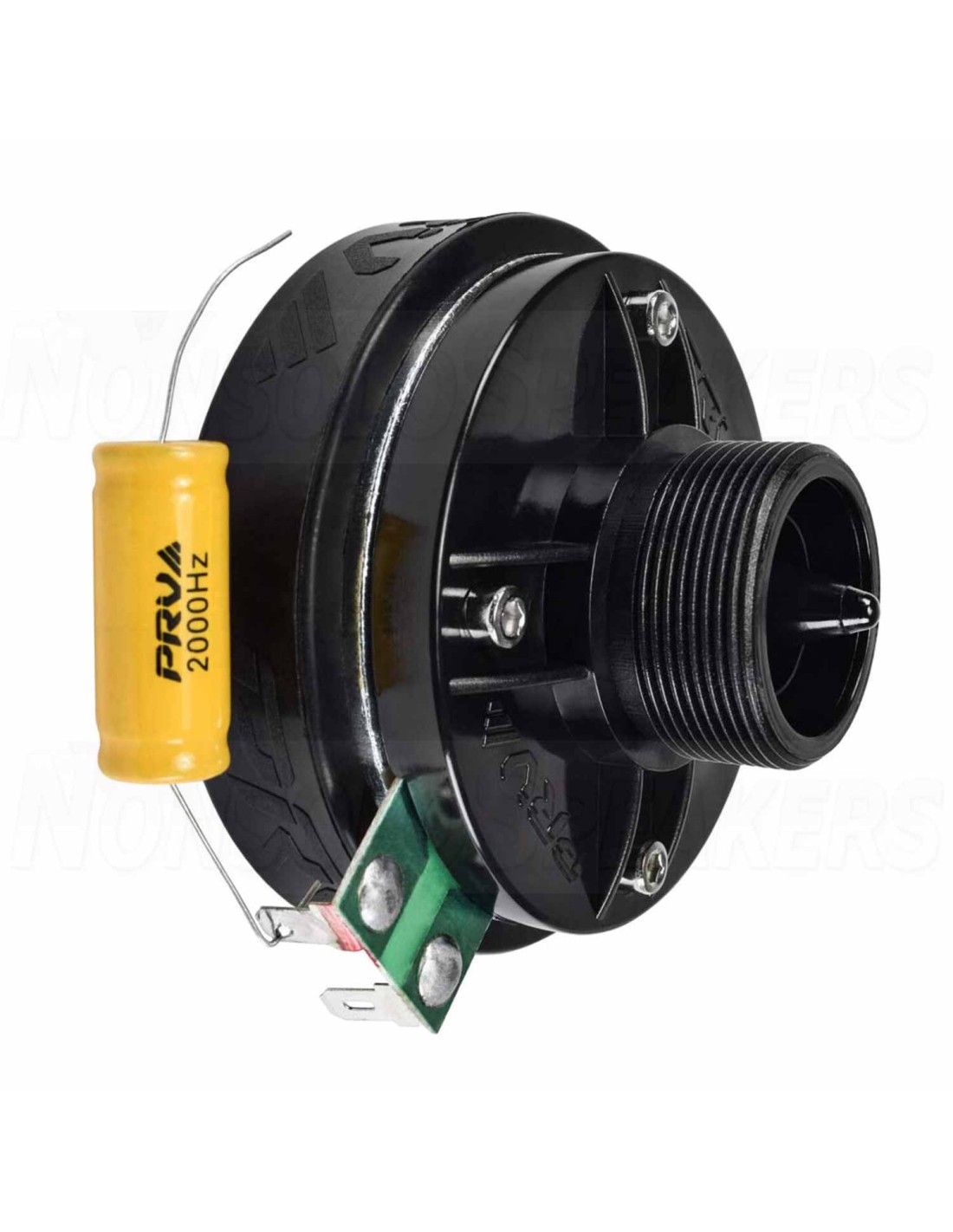

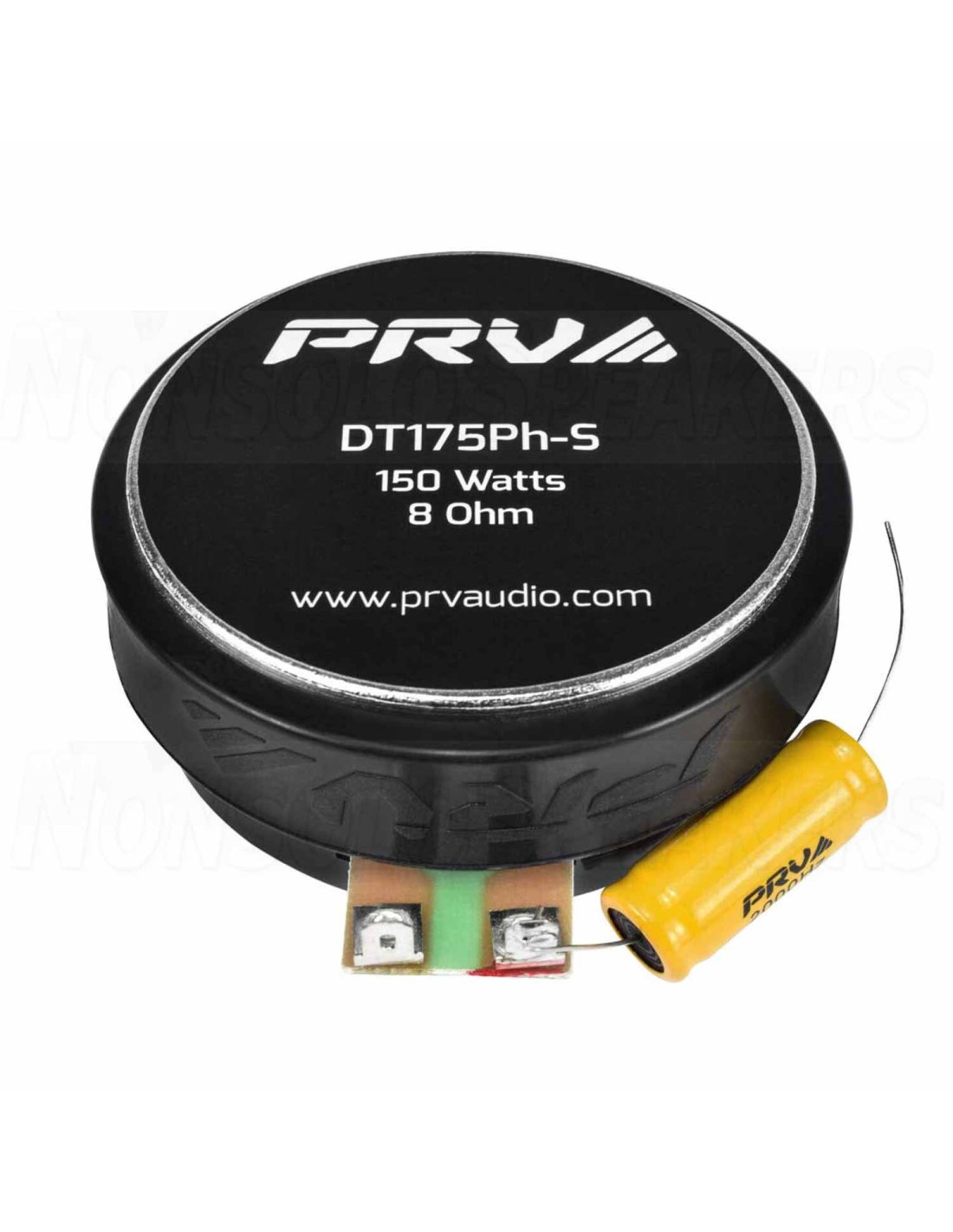

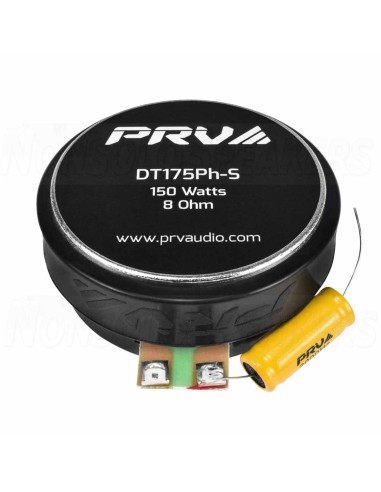

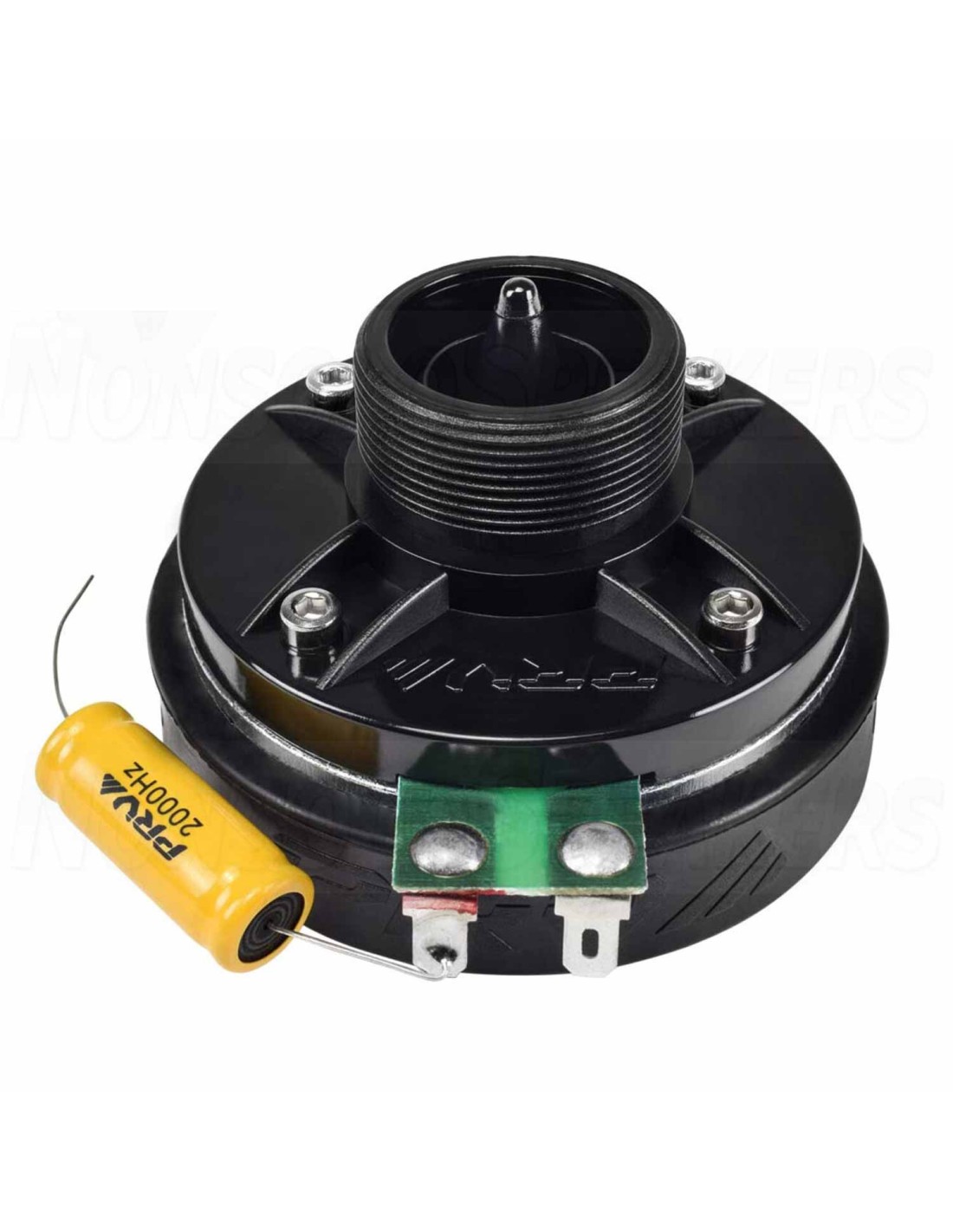

PRV Audio DT175Ph-S Compression Driver

.

Compact and powerful, the PRV Audio DT175Ph-S is a professional 1” exit compression driver designed for clear high-frequency reproduction in PA and sound reinforcement systems. With a phenolic diaphragm, high sensitivity, and robust build, it's a trusted component for audio professionals and DIY speaker builders alike.

.

Highlights

• 1” voice coil with phenolic diaphragm for smooth, extended high-frequency response
• 75 Watts RMS power handling and 150 Watts program power for reliable performance
• High sensitivity of 108 dB ensures loud, efficient output
• Ferrite magnet with 1.02 T flux density for strong motor structure and tight response

.

Product details

PRV Audio DT175Ph-S Professional Compression Driver

The PRV Audio DT175Ph-S is a 1” exit compression driver featuring a phenolic diaphragm, engineered for reliability and smooth sound in demanding audio environments. With an 8-ohm nominal impedance, 75 Watts RMS power handling (150 Watts program), and a sensitivity of 108 dB (measured at 2.83V/1m), this driver delivers excellent efficiency and output. The voice coil is made with CCAW (Copper-Clad Aluminum Wire) wound on a Kapton® former, ensuring high thermal stability and reduced distortion.

Designed for full-range applications, the DT175Ph-S offers a frequency response from 1,300 Hz to 19,000 Hz, with a recommended crossover point of 3,000 Hz at 12 dB/octave. Its ferrite magnet provides a flux density of 1.02 T, enhancing transient response and clarity. The compact design, with an overall diameter of 3.31” (84 mm) and depth of 2.60” (66 mm), makes it suitable for space-constrained cabinets, while the 1-3/8” 18 TPI mounting thread ensures compatibility with standard horn flares.

To support long-term reliability and easy maintenance, we offer a matching replacement diaphragm. The PRV Audio RPDT175Ph Replacement Diaphragm allows quick restoration of original performance and extending the service life of the compression driver.

Compatible with:

• PRV Audio WG11-25 Waveguide
• PRV Audio WG08-25 Waveguide
• PRV Audio WG17-25 Waveguide
• PRV Audio WG23-25 Waveguide
• PRV Audio WGP10-25 SLIM Waveguide
• PRV Audio WGP12-25 SLIM BLACK Waveguide

.

Technical Specifications:

• Article number DT175Ph-S
• Tweeter Type Compression Driver
• Cone / Dome Diameter 25.4 mm
• Power Handling (RMS) 150 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 108 dB
• Frequency Response 1100 - 18000Hz
• Overall Outside Diameter 83.8 mm
• Depth 62 mm
• Mounting Type 1 3/8” 18 TPI
• Diaphragm Material Phenolic Resin
• Recommended cut frequency 3000 Hz
