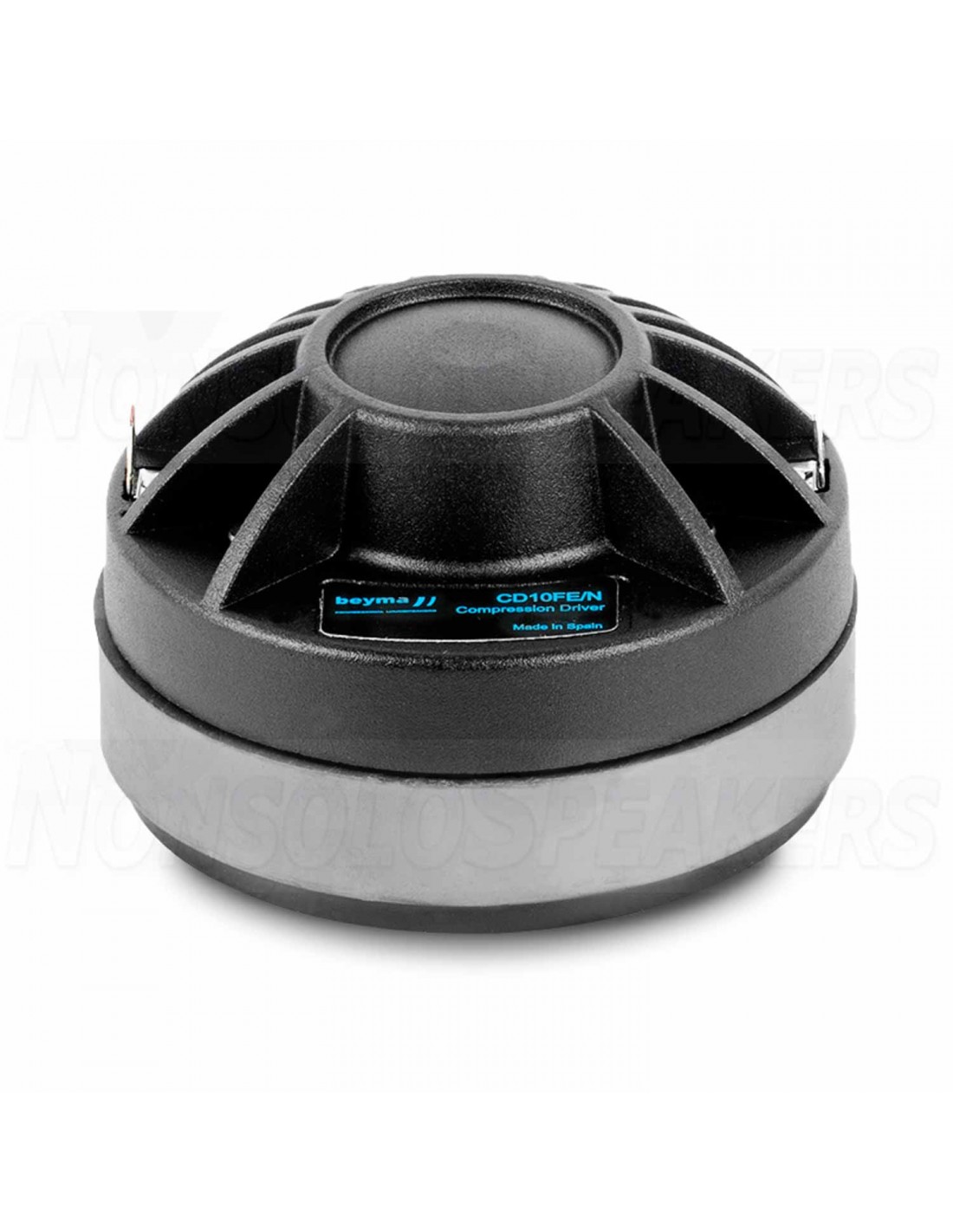

Beyma CD-10FE/N - compression driver 1" 8ohm 109dB 70W Ferrite
![rating](/modules/lgcomments//views/img/stars/square/yellow/0stars.png)
Beyma CD-10FE/N - compression driver 1" 8ohm 109dB 70W Ferrite
Beyma's unique, patented PM4 diaphragms incorporate a new high tech polymer never used in audio before. Delivering a stronger joint between the diaphragm dome and the voice coil former, resulting in high power handling and the ability to withstand extended duty cycles, PM4 diaphragms have been designed to bring a more transparent sound.
You might also like
Beyma CD-10FE/N - compression driver 1" 8ohm 109dB 70W Ferrite
Beyma's unique, patented PM4 diaphragms incorporate a new high tech polymer never used in audio before. Delivering a stronger joint between the diaphragm dome and the voice coil former, resulting in high power handling and the ability to withstand extended duty cycles, PM4 diaphragms have been designed to bring a more transparent sound. After bringing excellent results to reference acoustic systems, PM4 technology is now available in a range of compression drivers of exceptionally natural tonal qualities and stability.
.
Key Features:
- 1” (25.4 mm) high frequency compression driver
- Sensitivity 109 dB (1W / 1m)
- Ultra lightweight edgewound aluminum ribbon voice coil
- Aluminum cover Ferrite magnet
- Improved moving assembly mechanical coupling for excellent power handling capabilities
- PM-4 polymer diaphragm for natural sound reproduction
.
Technical Specifcations:
- Nominal diameter 25.4 mm 1 in
- Rated impedance 8 Ω
- Minimum impedance 5 Ω
- A.D. resistance 4.3 Ω
- Power capacity 70 WAES above 1.2 kHz
- Program power 140 W above 1.2 kHz
- Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-164
- Frequency range 0.7 - 19 kHz
- Recommended crossover 1.2 kHz or higher (12 dB/oct min.)
- Voice coil diameter 44.4 mm 1.75 in
- Magnetic assembly weight 1.2 kg
- Flux density 1.65 T
- Bl factor 6.6 N/A
.
Mounting Informations:
- Overall diameter 100 mm 3.94 in
- Depth 62 mm 2.44 in
- Mounting Three M5 threaded holes, 120º apart on 57 mm (2.24 in) diameter circle Two M5 threaded holes, 180º apart on 76.2 mm (3 in) diameter circle
- Net weight 1.3kg
- Shipping weight 1.4kg
