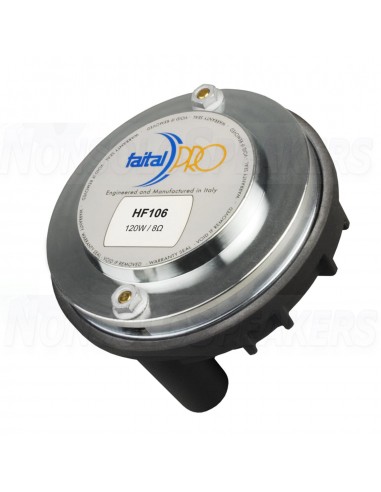

Faital HF106 -Compression Driver 1" Neodimio - 8 ohm
Faital HF106 -Compression Driver 1" Neodimio - 8 ohm
Faital HF106 -Compression Driver 1" Neodimio - 8 ohm
Faital HF106 -Compression Driver 1" Neodimio - 8 ohm

Faital HF106 -Compression Driver 1" Neodimio - 8 ohm

Faital HF106 -Compression Driver 1" Neodimio - 8 ohm

SHIPMENT IN 7-10 WORKING DAYS
€232.75 €245.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Faital HF106 -Compression Driver 1" Neodimio - 8 ohm

TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power Handling (1) 60 W
Maximum Power Handling (2) 120 W
Minimum Crossover Frequency (3) 1.3 kHz
Sensitivity (1W/1m) (4) 110 dB
Frequency Range 1.3÷20 kHz
Voice Coil Diameter 44 mm (1.73 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Annular
Winding Depth 2.3 mm (0.09 in)
Magnetic Gap Depth 2.6 mm (0.10 in)
Flux Density 2.1 T
Magnet Neodymium Ring
Re 5.4 Ohm
Phase Plug Design Annular
Exit Angle (5) Combined Exit
NET Air Volume filled by HF Driver

NOMINAL SPECIFICATIONS

Throat Diameter 25.4 mm (1 in)
Overall Diameter 95.7 mm (3.77 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 58.8 mm (2.31 in)
Net Weight 1.1 Kg (2.3 lb)
Shipping Box
(Single carton box)		 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 1.4 Kg (3.1 lb)


QUICK ACOUSTIC SPECS

Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power Handling (1) 60 W
Maximum Power Handling (2) 120 W
Minimum Crossover Frequency (3) 1.3 kHz
Sensitivity (1W/1m) (4) 110 dB
Frequency Range 1.3÷20 kHz
Voice Coil Diameter 44 mm (1.73 in)
Diaphragm Material Ketone Polymer
Diaphragm Shape Annular
Flux Density 2.1 T
Re 5.4 Ohm
Phase Plug Design Annular


QUICK MECHANICAL SPECS

Throat Diameter 25.4 mm (1 in)
Overall Diameter 95.7 mm (3.77 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 58.8 mm (2.31 in)
Net Weight 1.1 Kg (2.3 lb)
Shipping Box
(Single carton box)		 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 1.4 Kg (3.1 lb)
