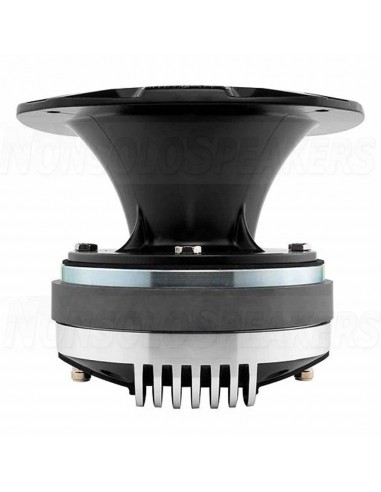

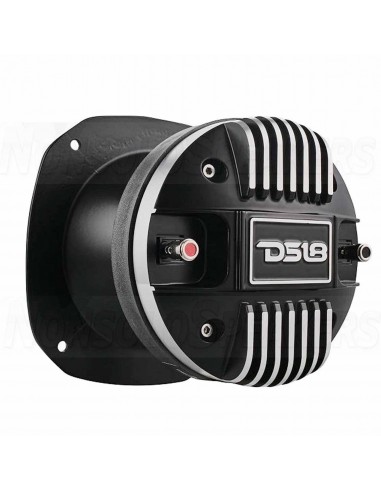

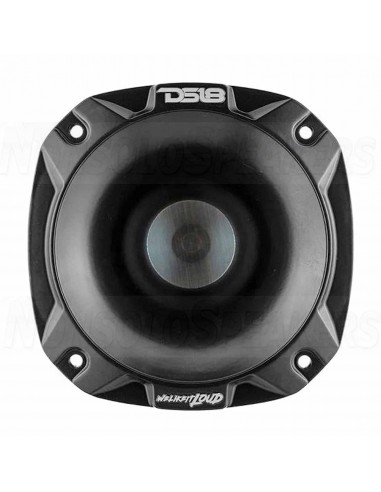

DS18 PRO-DKH1S Driver Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK)
.
Price for 1 piece
.
Introducing DS18’s PRO-DKH1S, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, this product combines a 2" bolt-on throat compression driver and a PRO-HA102/BK horn, to help deliver a rich, powerful, and immersive sound experience. Built with a titanium VC and diaphragm, the DS18 PRO-DKH1S is capable of handling Peak Powers of upto 640W, making it one of the most powerful compression drivers in the market.
The PRO-DKH1 is not just about power, but also about delivering crystal clear and distortion-free sound. With a sensitivity of 111 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1S guarantees an EXTREMELY LOUD and exceptional listening experience. DS18’s PRO-DKH1S includes the DS18 DKH1 neodymium driver plus our newly redesigned shorty throat, so you only need 4.9” mounting depth to mount these ear-ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency.
The DS18 PRO-DKH1S is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03" voice coil ensures that the product operates efficiently and reliably, even at high volumes and extended playtimes. Whether you're a professional audio installer or a car enthusiast, the DS18 PRO-DKH1S is the perfect addition to your sound system. The PRO-DKH1S is bolt on so you can spend less time in installation, and more time enjoying your system.
.
Technical Specifications:
- Nominal impedance 8 OHM
- AES power 160 Watt
- Program power 320 Watt
- Peak power 640 Watt
- Sensitivity (1w/1m) 110 dB
- Frequency response 630Hz-20KHz
- Recommended high-pass crossover 900Hz
- Voice coil diameter 2.03” / 51.5 mm
- Voice coil material Kapton
- Winding material CCAW
- Diaphragm material Titanium
- Magnet material Ferrite
- Magnet weight 35 oz
- Body material Aluminum
- Nominal diameter 6.5” / 165 mm
- Throat diameter 2” / 50.8 mm
- Sound coverage 57° rounded
- Body material aluminum
- Color and finish satin black
- Overall Diameter 6.37” / 162 mm
- Overall Depth 5.3” / 134.7 mm
- Mounting Depth 4.9” / 125.8 mm
- Mounting Hole Diameter 5.7” / 145 mm
- Bolt Pattern / Type Ø 6.33“ / 161mm x 4 - 0.21” / 5.5mm Hole
- Product Weight 7.5 lbs
- Product Dimensions 7 x 7 x 6
