PRV Audio D250TI-S Compression Driver

The PRV Audio D250Ti-S is a professional high frequency compression driver designed for pro audio applications, delivering clear, powerful highs and excellent sensitivity in a compact, reliable package..

.

Highlights

• Pure titanium diaphragm for detailed and accurate high frequency reproduction
• High sensitivity of 106 dB for efficient sound output
• 100 Watts continuous program power handling for robust performance
• Compact screw-on design for easy installation and upgrade

Product details

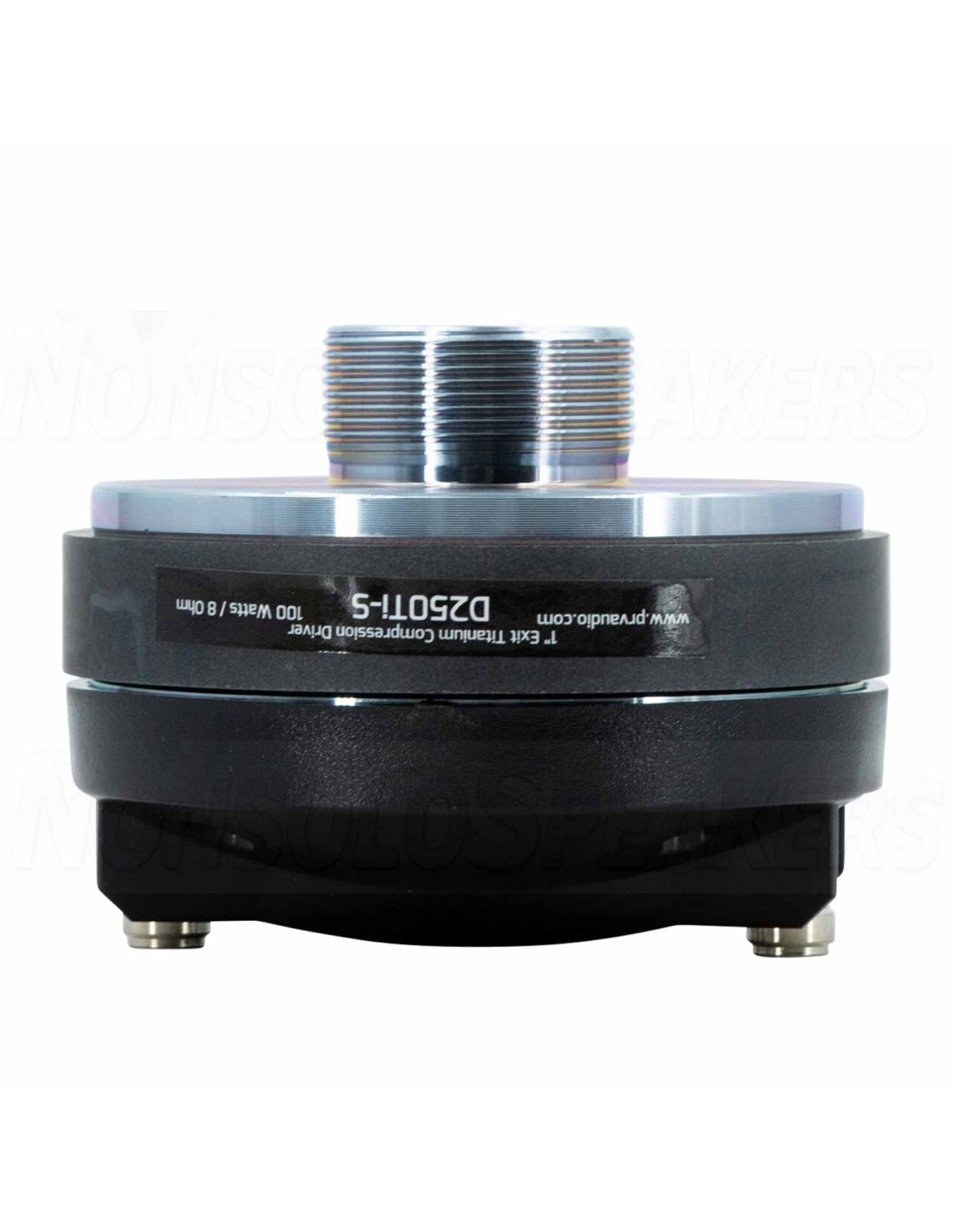

PRV Audio D250Ti-S 1" Titanium High Frequency Compression Driver

The PRV Audio D250Ti-S is engineered for professional sound reinforcement and upgrade applications where compact size and high performance are essential. Its pure titanium diaphragm and Kapton® former provide low moving mass for crisp, clear high frequency reproduction.

With a sensitivity of 106 dB at 2.83 V measured at 1 meter, this driver delivers efficient output with minimal power input. It handles up to 100 Watts of continuous program power, making it suitable for demanding pro audio environments and DJ cabinets.

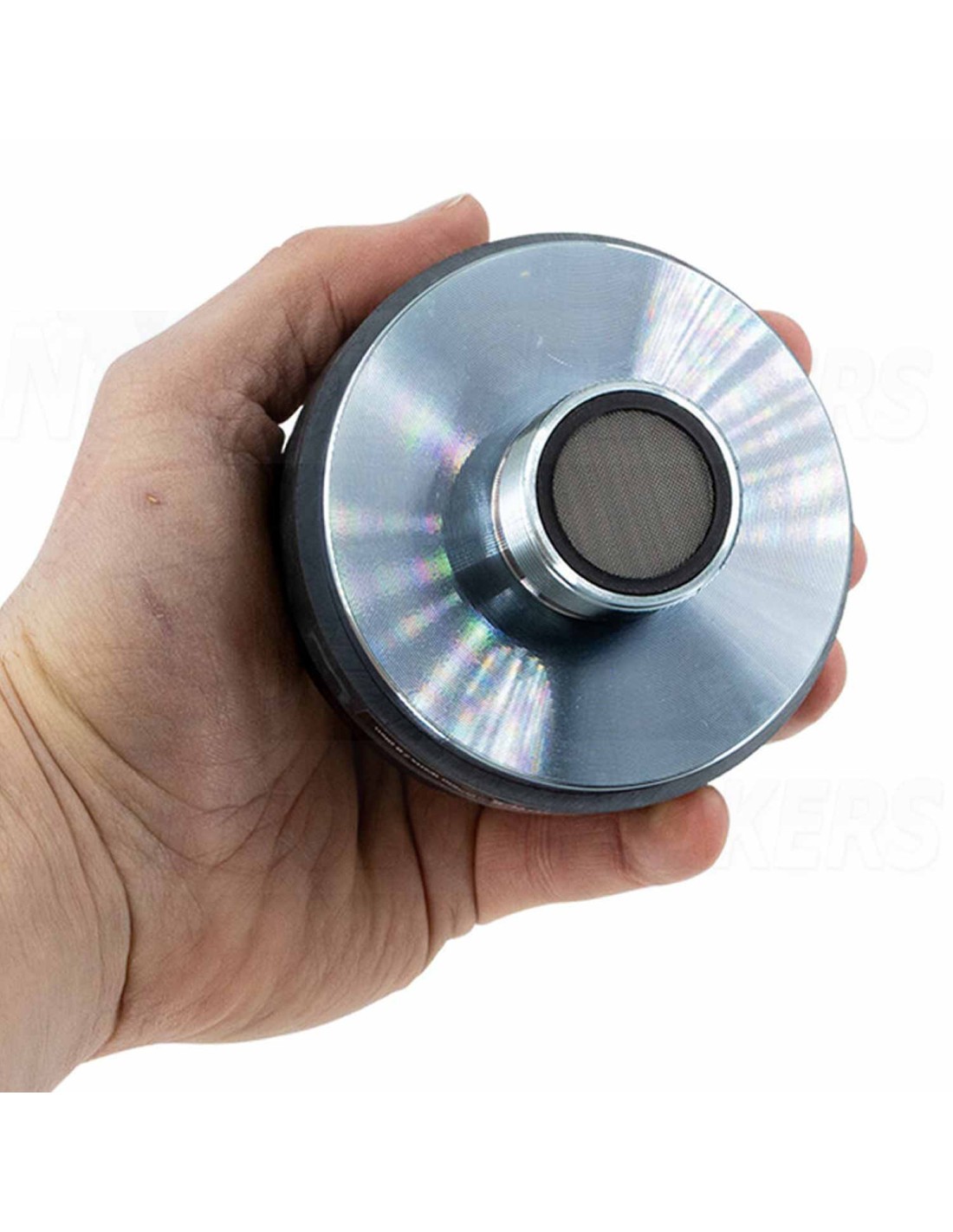

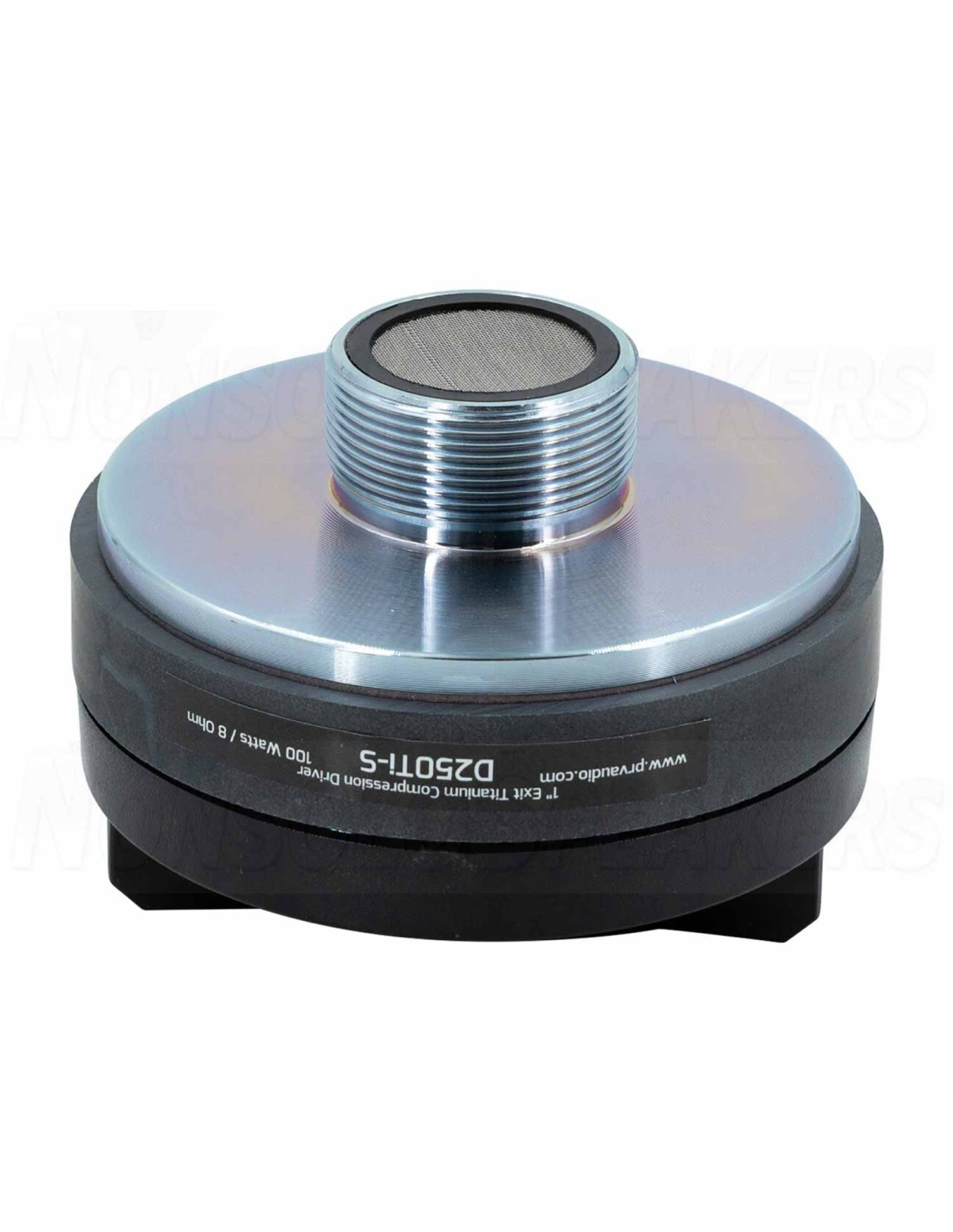

The driver features a 1‑inch exit throat and 1‑3/8"‑18 TPI screw‑on thread for straightforward compatibility with many standard horns, allowing easy replacement or upgrade in existing systems. Its frequency response extends from approximately 1,800 Hz to 20,000 Hz to reproduce clear highs and vocal detail.

The compact overall diameter and lightweight construction make the D250Ti-S ideal for portable sound systems and multi‑way speaker designs where space is limited yet performance cannot be compromised.

Compatible with:

• PRV Audio WGP10-25 SLIM Waveguide
• PRV Audio WGP12-25 SLIM BLACK Waveguide

Technical Specifications:

• Article number D250TI-S
• Tweeter Type Compression Driver
• Cone / Dome Diameter 25.4 mm
• Power Handling (RMS) 100 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 106 dB
• Frequency Response 1800 - 20000Hz
• Overall Outside Diameter 90 mm
• Depth 68.3 mm
• Mounting Type 1 3/8” 18TPI
• Diaphragm Material Titanium
• Recommended cut frequency 2000 Hz
