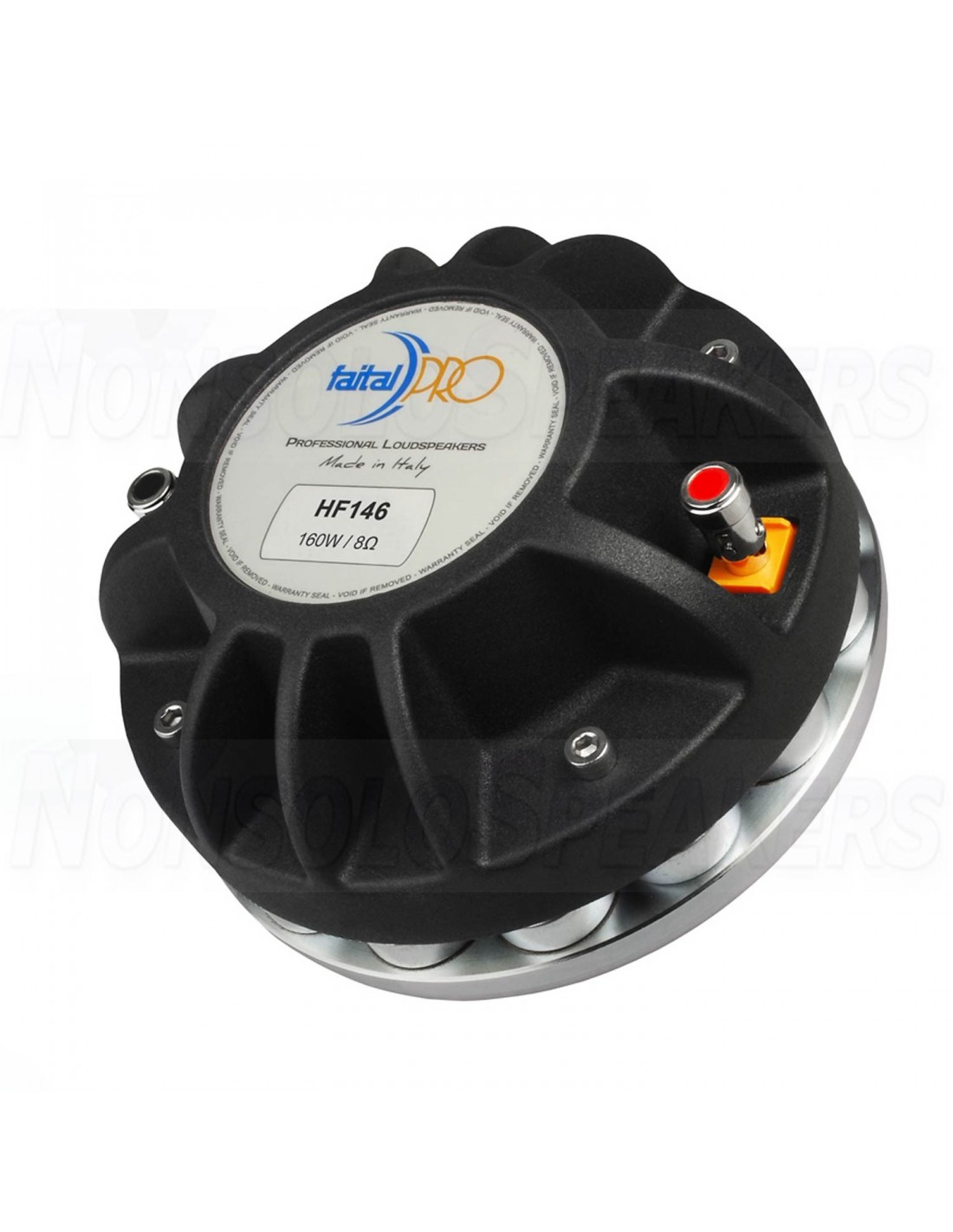

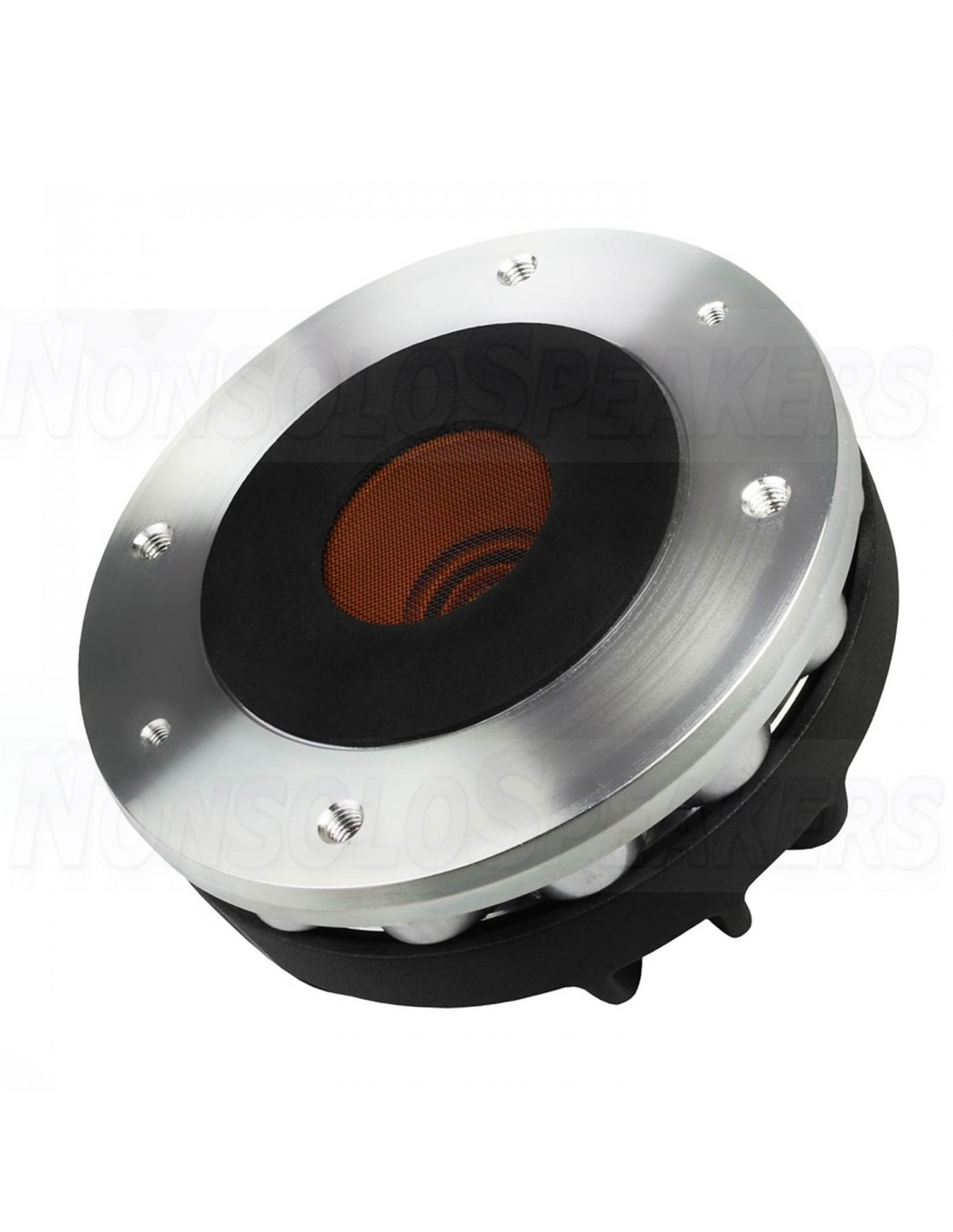

Faital HF146 Compression Driver 1,4" Neodimio - 8ohm
Faital HF146 Compression Driver 1,4" Neodimio - 8ohm
Faital HF146 Compression Driver 1,4" Neodimio - 8ohm
Faital HF146 Compression Driver 1,4" Neodimio - 8ohm

Faital HF146 Compression Driver 1,4" Neodimio - 8ohm

Faital HF146  Compression Driver 1,4" Neodimio - 8ohm

Out-of-Stock
€292.58 €307.98 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Faital HF146  Compression Driver 1,4" Neodimio - 8ohm

TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power above 0.9 kHz (1) 80 W
AES Power above 0.65 kHz 40 W
Maximum Power above 0.9 kHz (2) 160 W
Maximum Power above 0.65 kHz 80 W
Minimum Crossover Frequency (3) 0.9 kHz
Sensitivity (1W/1m) (4) 109 dB
Frequency Range 0.7÷18 kHz
Voice Coil Diameter 65 mm (2.56 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Winding Depth 3 mm (0.12 in)
Magnetic Gap Depth 4.2 mm (0.17 in)
Flux Density 1.7 T
Magnet Neodymium Slug Crown
Re 5.5 Ohm
Phase Plug Design Annular
Exit Angle (5) 29° Conical
NET Air Volume filled by HF Driver 0.55 dm^3 (0.019 ft^3)

NOMINAL SPECIFICATIONS

Throat Diameter 35.6 mm (1.4 in)
Overall Diameter 123 mm (4.84 in)
90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
Depth 63.5 mm (2.5 in)
Net Weight 2 Kg (4.4 lb)
Shipping Box
(Single carton box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 2.3 Kg (5.1 lb)


QUICK ACOUSTIC SPECS

Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power above 0.9 kHz (1) 80 W
AES Power above 0.65 kHz 40 W
Maximum Power above 0.9 kHz (2) 160 W
Maximum Power above 0.65 kHz 80 W
Minimum Crossover Frequency (3) 0.9 kHz
Sensitivity (1W/1m) (4) 109 dB
Frequency Range 0.7÷18 kHz
Voice Coil Diameter 65 mm (2.56 in)
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Flux Density 1.7 T
Re 5.5 Ohm
Phase Plug Design Annular


QUICK MECHANICAL SPECS

Throat Diameter 35.6 mm (1.4 in)
Overall Diameter 123 mm (4.84 in)
90° Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
Depth 63.5 mm (2.5 in)
Net Weight 2 Kg (4.4 lb)
Shipping Box
(Single carton box)		 185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in)
Shipping Weight 2.3 Kg (5.1 lb)
