PRV Audio 6CX380-4 SLIM Coaxial Woofer

.

The PRV Audio 6CX380-4 SLIM is a compact, high-performance professional coaxial driver designed for space-constrained audio installations without sacrificing clarity or power. Delivering impressive output with precise detail, it's ideal for pro audio and custom automotive applications.

.

Highlights

• Dual concentric design with 6.5" woofer and 1" high-frequency driver
• 380 Watts continuous program power handling at 4 Ohms
• Slim profile with only 2.76" (70 mm) mounting depth
• Wide frequency response from 100 Hz to 20,000 Hz with 96 dB sensitivity

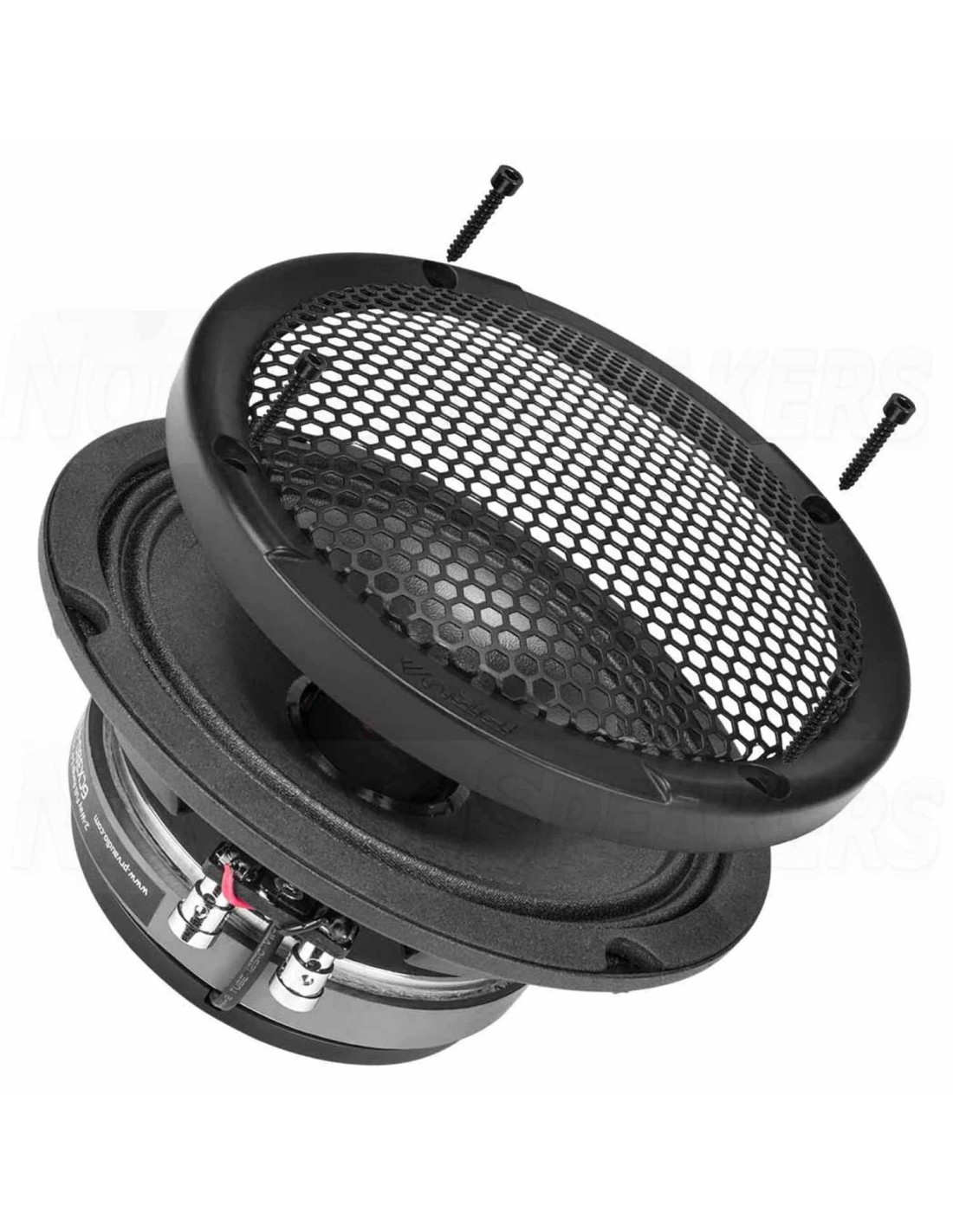

• Grill and screws included

.

Product details

PRV Audio 6CX380-4 SLIM Coaxial Driver

The PRV Audio 6CX380-4 SLIM is a precision-engineered coaxial speaker optimized for installations where depth is limited but performance is critical. Featuring a 6.5" low-frequency driver paired with a 1" high-frequency compression driver, it offers true point-source alignment and coherent sound reproduction across its wide 100 Hz to 20 kHz frequency range.

Built with a 1.5" copper-clad aluminum wire (CCAW) voice coil on a Kapton former, the woofer delivers strong midbass performance and handles up to 380W of program power. The high-frequency section uses a Mylar diaphragm and 1" CCAW voice coil for detailed treble and efficient output. Sensitivity is rated at 96 dB at 1W/1m, ensuring high output even with modest amplification.

The driver’s slim profile (2.76" mounting depth) makes it a perfect solution for tight spaces in car audio, pro audio monitors, or portable sound systems. Its robust steel frame ensures long-term durability, while the integrated design minimizes phase issues and simplifies installation. With a recommended high-pass crossover of 120 Hz, it integrates smoothly into multi-way systems for clear, balanced sound reproduction.

.

Technical Specifications:

• Article number 6CX380-4 SLIM
• Woofer Type Coaxial
• Nominal Diameter 6.5"| 152 mm
• Power Handling (RMS) 380 Watts
• Sensitivity (SPL at 1m / 2.83V) 96 dB
• Frequency Response 100 - 20000 Hz
• Voice Coil Diameter 38 mm
• DC Resistance (Re) 3.6 Ω
• Voice Coil Inductance (Le) 0.113 mH
• Resonant Frequency (Fs) 111.7 Hz
• Mechanical Q (Qms) 8.6
• Electromagnetic Q (Qes) 0.84
• Total Q (Qts) 0.77
• Diaphragm Mass Inc. Airload (Mms) 8.77 g
• Moving Mass Of Diaphragm (Mmd) 7.80 g
• Surface Area of Cone (Sd) 143 cm²
• BL Product (BL) 5.11 Tm
• Compliance Equivalent Volume (Vas) 6.61 L
• Maximum Linear Excursion (Xmax) 2.75 mm
• Cone / Diaphragm Material Mylar
• Voice Coil Wire Material Copper
• Voice Coil Former Kapton
• Basket / Frame Material Stamped Steel
• Magnet Material Ferrite
• Overall Outside Diameter 172 mm
• Overall Depth 98 mm
• Baffle Cutout Diameter 185.5 mm
• Mounting Holes 4
