The PRV Audio 6FR200 is a professional-grade 6.5" full-range speaker engineered to deliver clean, dynamic sound across a broad frequency spectrum. Designed for high-efficiency performance, this driver is ideal for compact speaker designs, studio monitors, and portable sound reinforcement systems.

.

Highlights

• 200 Watts continuous program power handling for reliable performance
• High 92.5 dB sensitivity for loud and clear output with minimal power
• Wide frequency response from 80 Hz to 20,000 Hz
• Durable 1.5" CCAW voice coil with Kapton former for thermal stability

.

Product details

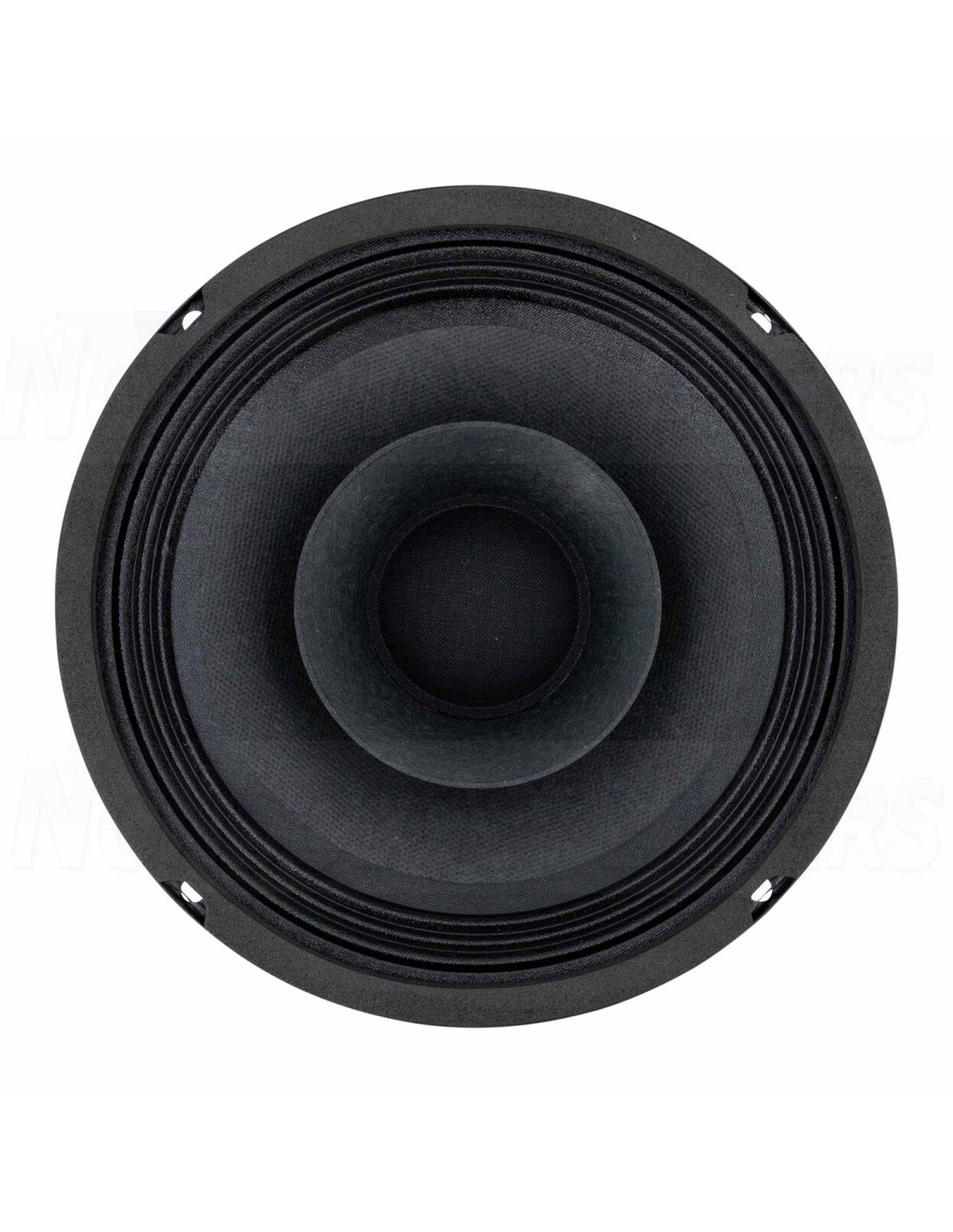

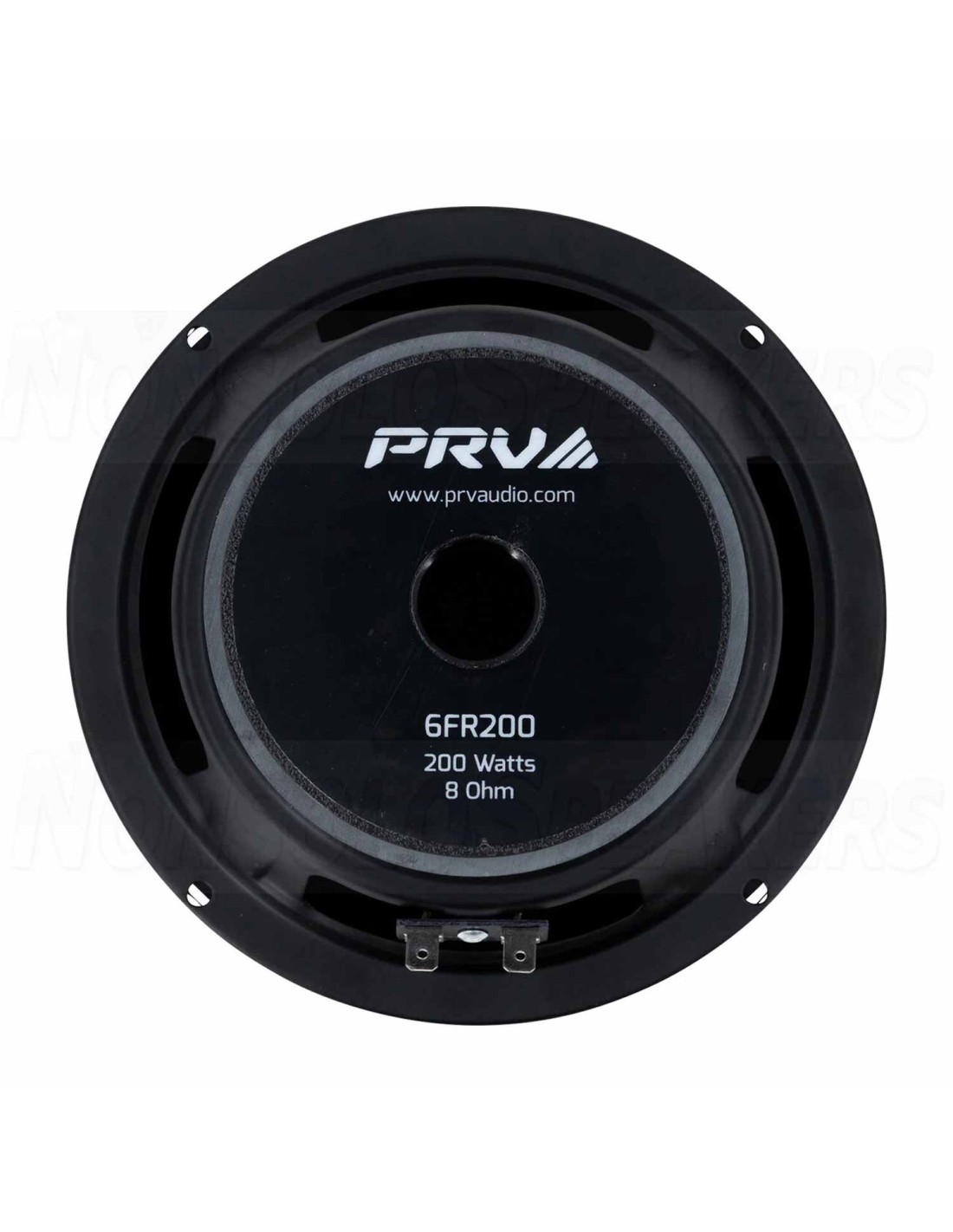

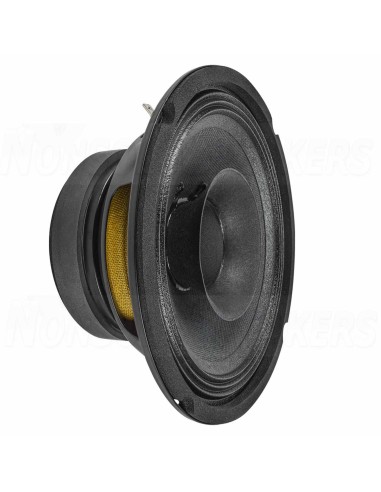

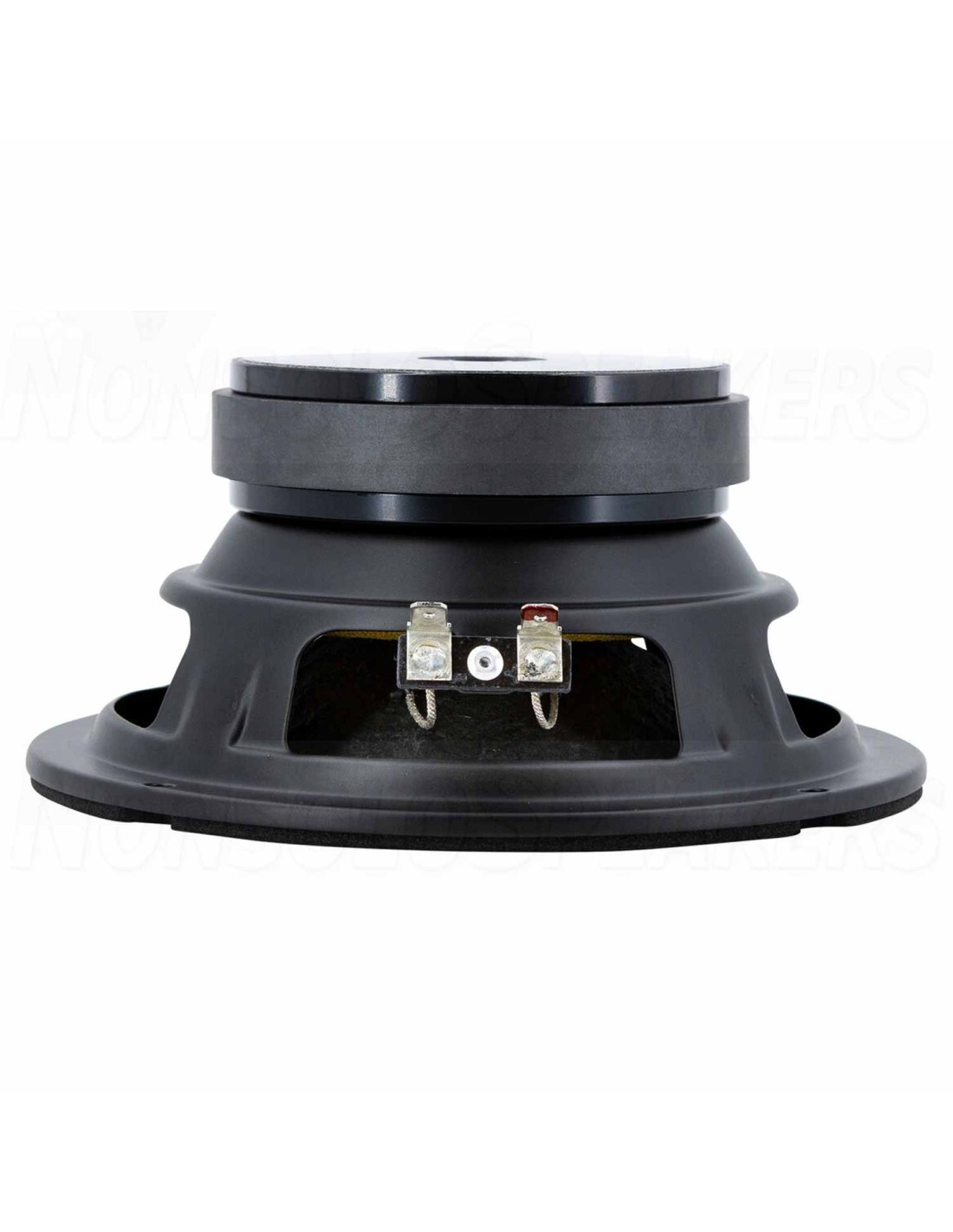

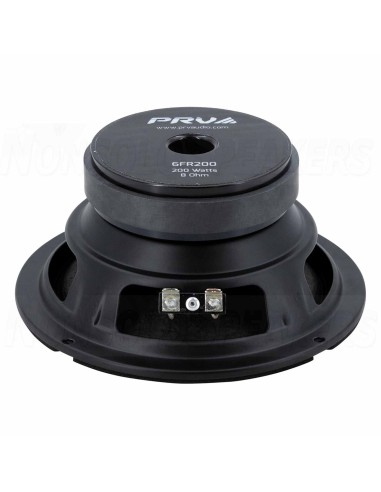

PRV Audio 6FR200 Full Range Driver

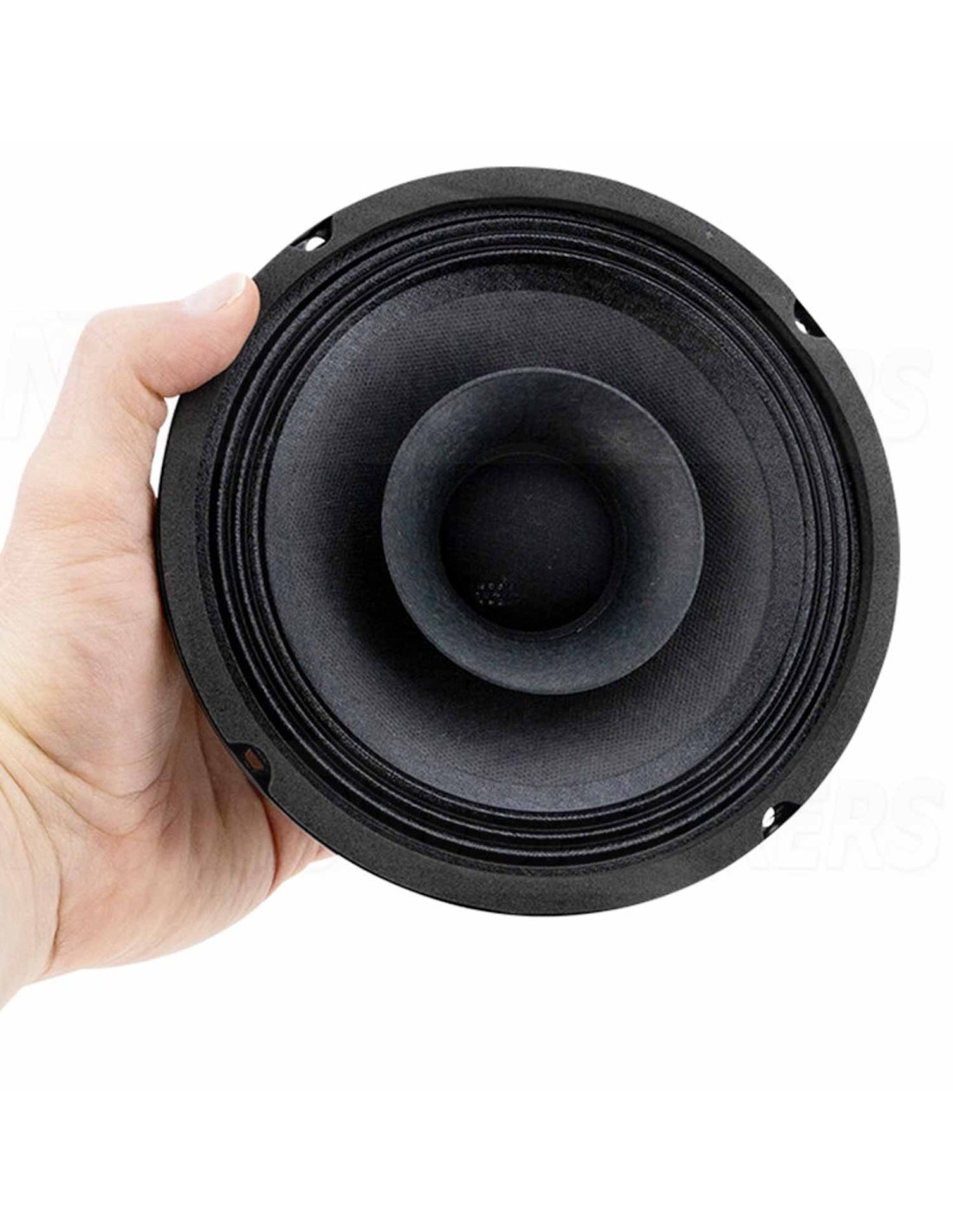

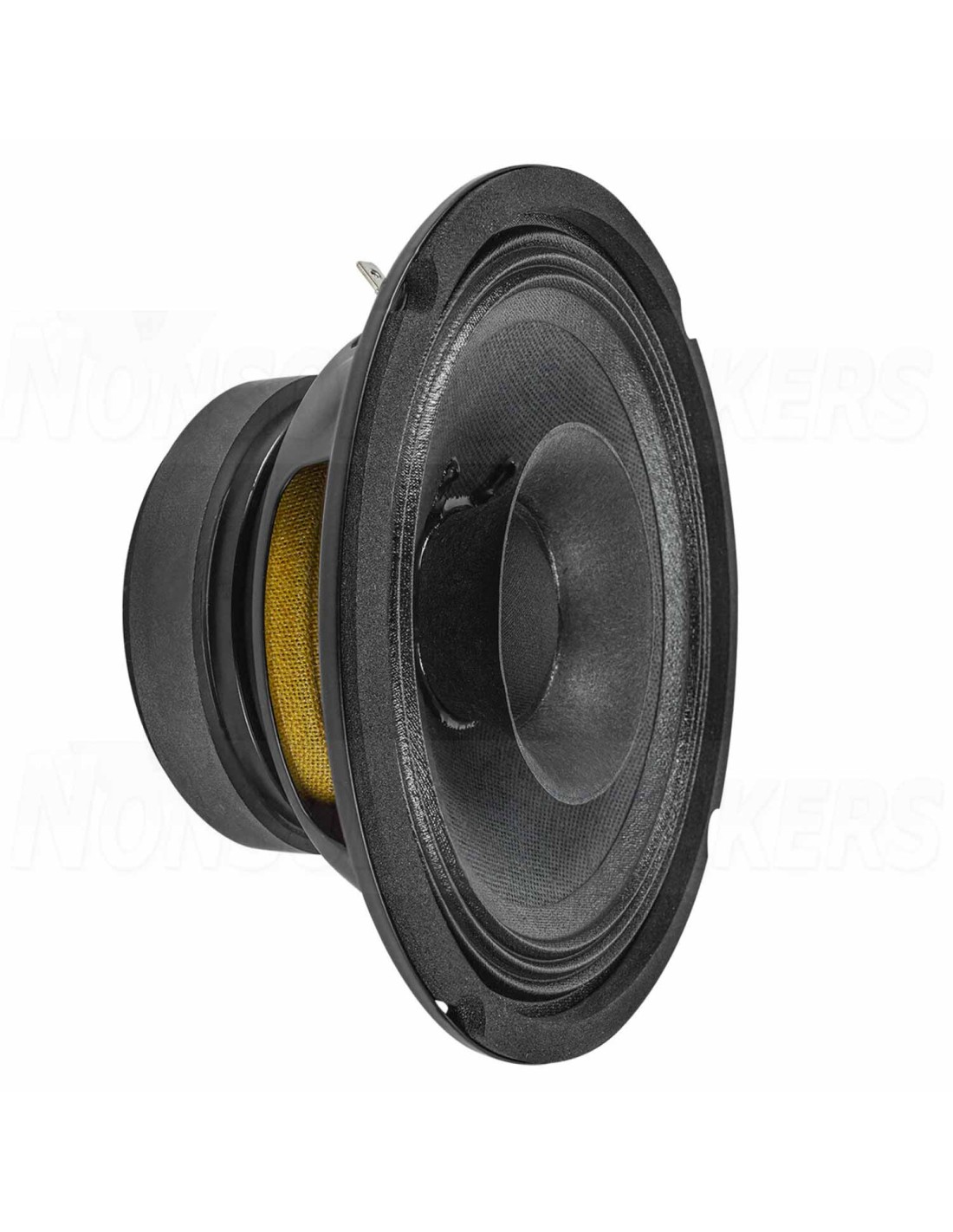

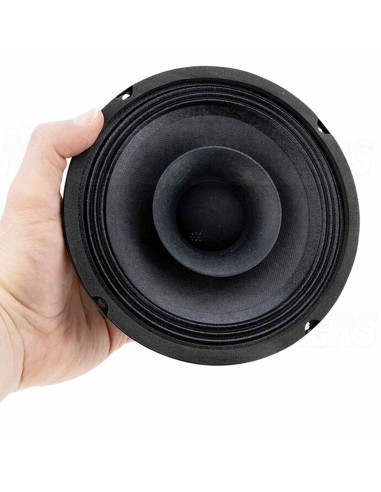

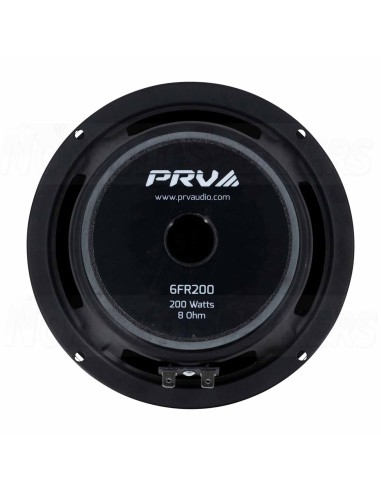

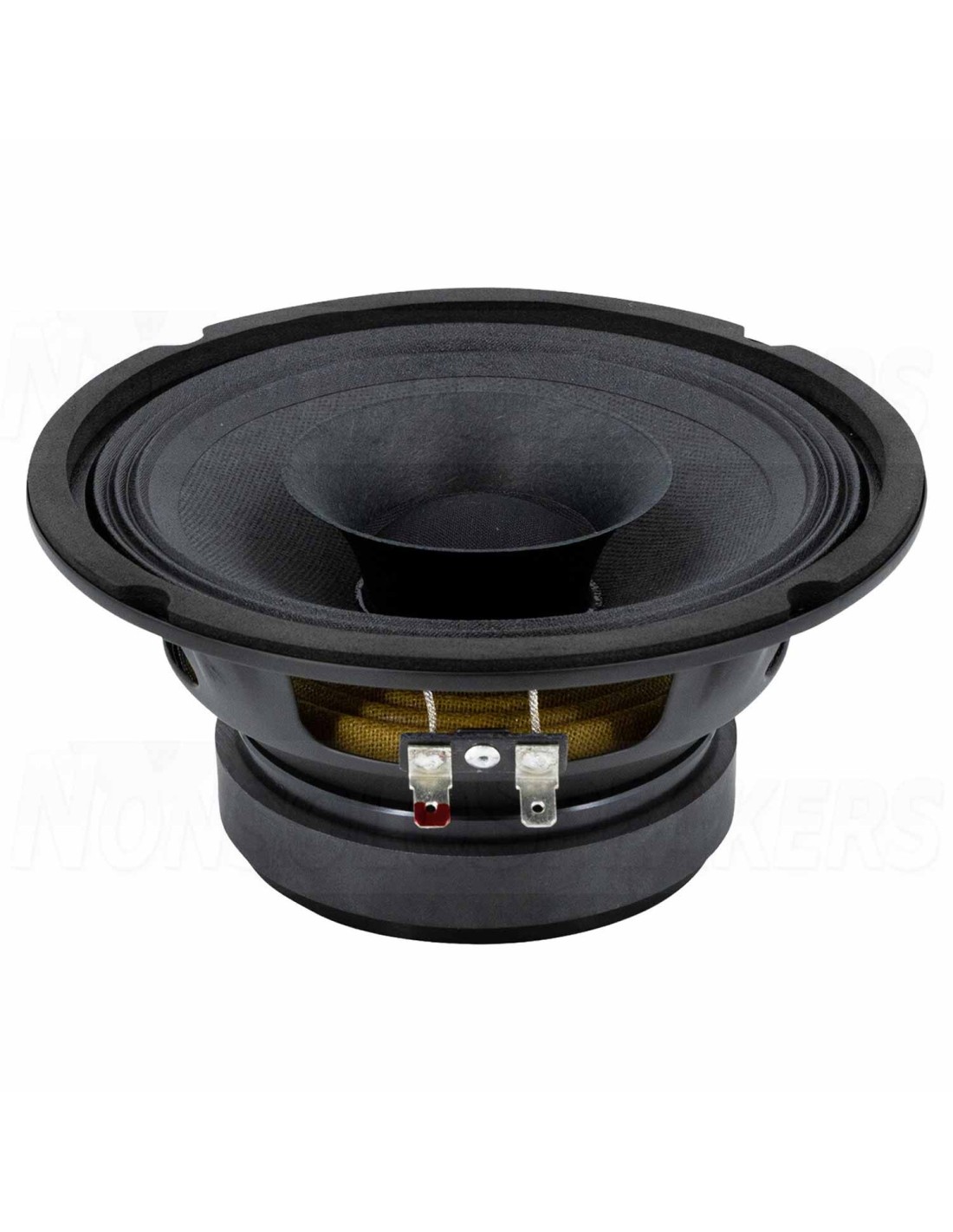

The PRV Audio 6FR200 is a 6.5" full-range loudspeaker designed for high-efficiency sound reproduction in professional audio systems. With a continuous program power of 200 Watts and a peak power rating of 400 Watts, it delivers powerful midbass and detailed high-frequency response suitable for a variety of audio applications including stage monitors, compact PA systems, and DIY speaker projects.

This driver features a high-sensitivity rating of 92.5 dB (2.83V/1m), ensuring impressive output even with modest amplification. The 1.5" diameter voice coil uses a CCAW (Copper-Clad Aluminum Wire) winding on a Kapton former, offering excellent thermal resistance and stability. The Xmax of 3.5 mm and a frequency range from 80 Hz to 20,000 Hz allow it to function efficiently without needing a dedicated tweeter in many applications.

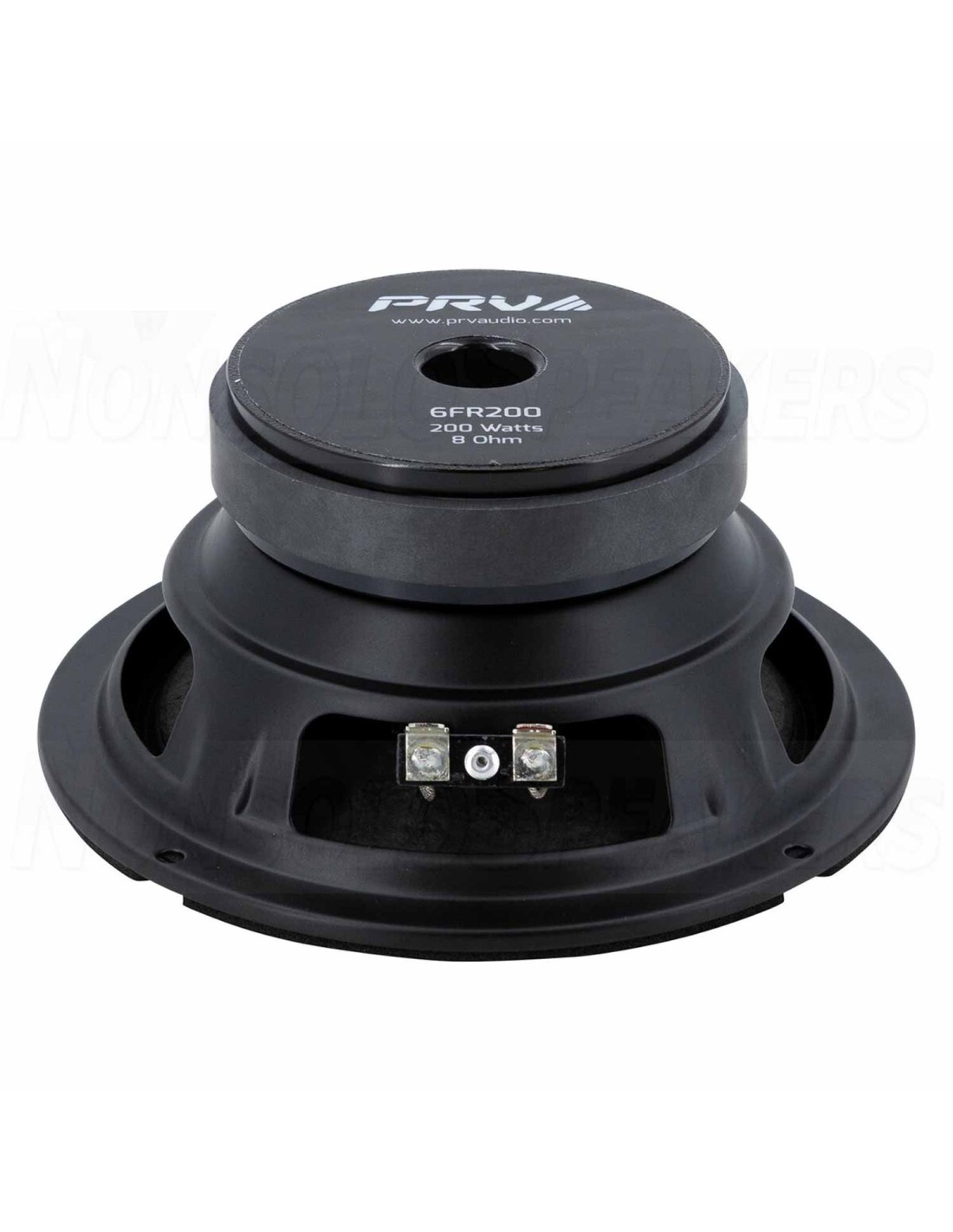

Built on a stamped steel frame for durability, the 6FR200 also includes precision motor design parameters such as a Bl factor of 5.17 Tm, Re of 6.4 ohms, and a low Le of 0.264 mH for enhanced transient response. Recommended high-pass crossover is 85 Hz (12 dB/octave) to ensure full power handling and optimized performance.

Ideal for demanding audio setups, this compact yet powerful speaker combines robust mechanical structure with acoustically refined performance..

Technical data

• Article number 6FR200
• Woofer Type Full Range
• Nominal Diameter 6" | 152 mm
• Power Handling (RMS) 200 Watts
• Sensitivity (SPL at 1m / 2.83V) 92.5 dB
• Frequency Response 80 - 20000 Hz
• Voice Coil Diameter 38 mm
• DC Resistance (Re) 6.4 Ω
• Voice Coil Inductance (Le) 0.264mH
• Resonant Frequency (Fs) 111.7 Hz
• Mechanical Q (Qms) 15.69
• Electromagnetic Q (Qes) 1.4
• Total Q (Qts) 1.29
• Diaphragm Mass Inc. Airload (Mms) 8.37 g
• Moving Mass Of Diaphragm (Mmd) 7.40 g
• Surface Area of Cone (Sd) 143 cm²
• BL Product (BL) 5.17 Tm
• Compliance Equivalent Volume (Vas) 6.93 L
• Maximum Linear Excursion (Xmax) 3.50 mm
• Cone / Diaphragm Material Paper
• Voice Coil Wire Material CCAW
• Voice Coil Former Kapton
• Basket / Frame Material Stamped Steel
• Magnet Material Ferrite
• Overall Outside Diameter 166.5 mm
• Overall Depth 78.5 mm
• Baffle Cutout Diameter 145.5 mm
• Mounting Holes 4
