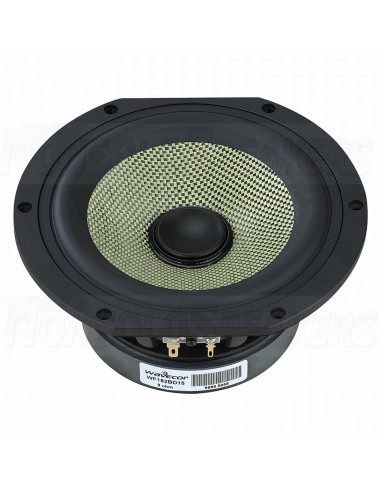

Wavecor WF182BD15 Kevlar Carbon cone 17 cm midwoofer

Wavecor WF182BD15 Kevlar Carbon cone 17 cm 4 ohm midwoofer

Name: Wavecor WF182BD15 Kevlar Carbon cone 17 cm 4 ohm midwoofer
Brand: WAVECOR
SKU: Wavecor WF182BD15
Price: 229 EUR
Availability: InStock

SHIPMENT IN 5-7 WORKING DAYS

€229.00

Tax included

No review at the moment

Wavecor WF182BD15 Kevlar Carbon cone 17 cm 4 ohm midwoofer

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

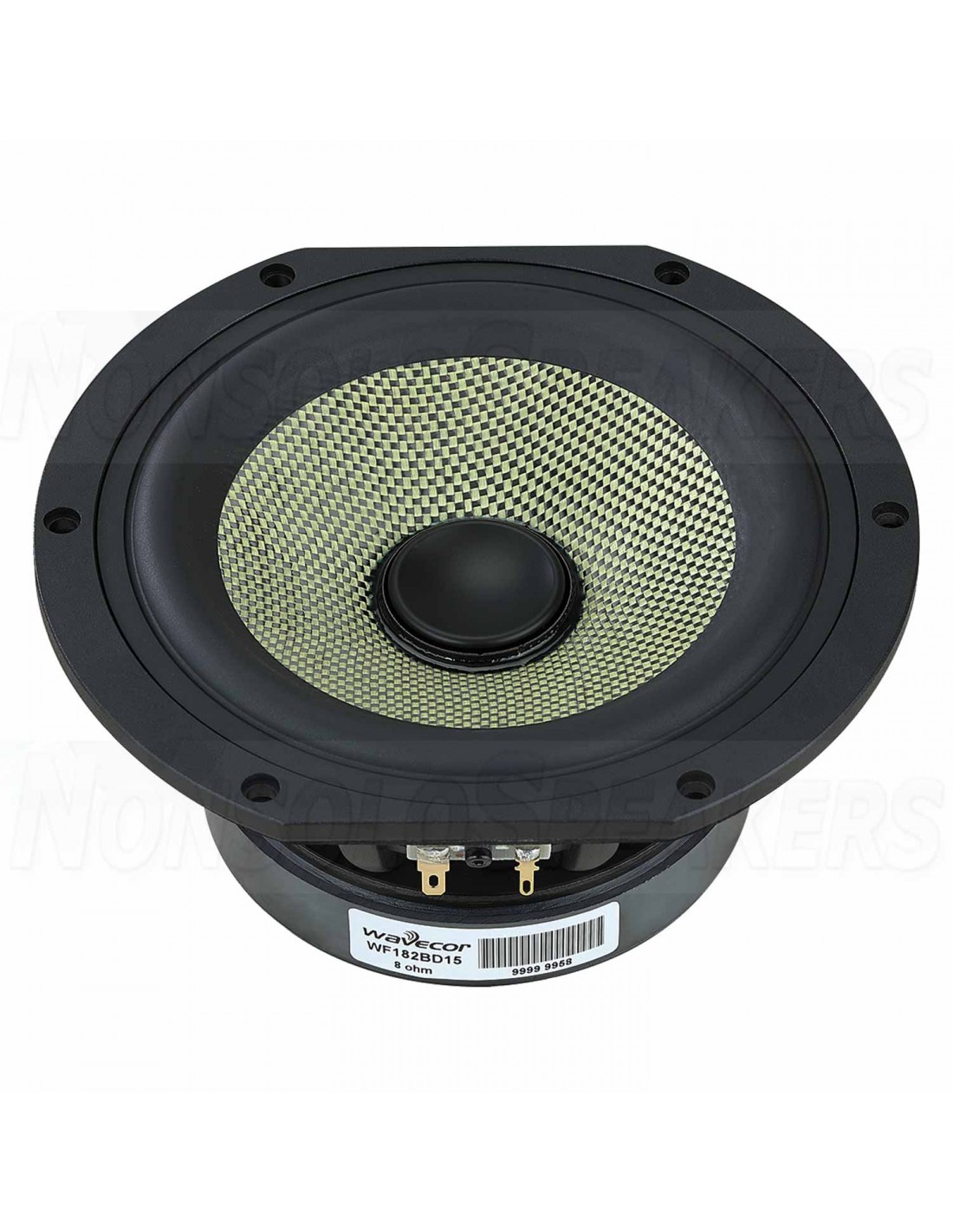

Wavecor WF182BD15 Kevlar Carbon cone 17 cm 4 ohm midwoofer

The 7” transducers WF182BD13 (round, 4 ohm), WF182BD14 (truncated, 4 ohm), WF182BD15 (round, 8 ohm), and WF182BD16 (truncated, 8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.

FEATURES

• New cone of interwoven Kevlar/Carbon fibers, a new reference for the

combination of low mass, rigidness, and damping - highly beneficial properties

for midrange reproduction

• Balanced Drive motor structure for optimal drive force symmetry resulting in

largely reduced even order harmonic distortion

• Vented, inverted center dome for reduced compression

• Copper cap on center pole to reduce voice coil inductance and to minimize

variations in voice coil inductance as a function of voice coil position

• Rigid die cast alu chassis with extensive venting for lower air flow speed

reducing audible distortion

• Vented voice coil former for reduced distortion and compression

• Heavy-duty black fiber glass voice coil former to reduce mechanical losses

resulting in better dynamic performance and low-level details

• Large motor with 1.25” voice coil diameter for better control and power

handling

• Built-in alu field-stabilizing ring for reduced distortion at high levels

• Low-loss suspension (high Qm) for better reproduction of details and dynamics

• Black motor parts for better heat transfer to the surrounding air

• Conex spider for better durability under extreme conditions

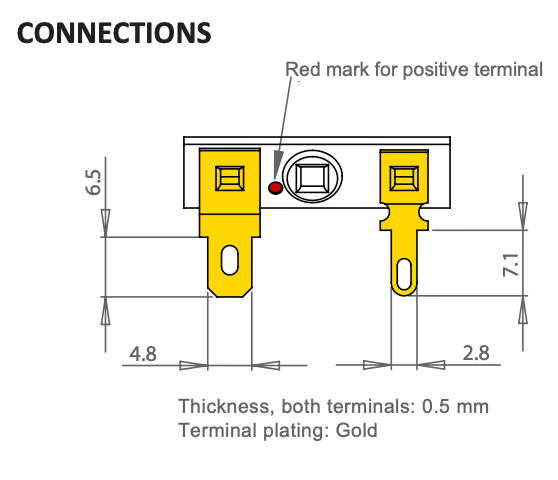

• Gold plated terminals to ensure long-term trouble free connection

NOMINAL SPECIFICATIONS

Notes	Parameter	WF182BD13/15		WF182BD14/16		Unit
Notes	Parameter	Before burn-in	After burn-in	Before burn-in	After burn-in	Unit
	Nominal size	7		7		[inch.]
	Nominal impedance	4		8		[ohm]
	Recommended max. upper frequency limit	2.5		2.5		[kHz]
1, 4	Sensitivity, 2.83V/1m (average SPL in range 300 - 1,000 Hz)	91		88		[dB]
2, 4	Power handling, short term, IEC 268-5, no additional filtering	350		350		[W]
2, 4	Power handling, long term, IEC 268-5, no additional filtering	250		250		[W]
2, 4	Power handling, continuous, IEC 268-5, no additional filtering	80		80		[W]
	Effective radiating area, Sd	117		117		[sq.cm]
3, 4, 6	Resonance frequency (free air, no baffle), Fs	38	36	39	37	[Hz]
	Moving mass, incl. air (free air, no baffle), Mms	16		15.5		[g]
3, 4	Force factor, Bxl	6.9		8.5		[N/A]
3, 4, 6	Suspension compliance, Cms	1.07	1.18	1.07	1.18	[mm/N]
3, 4, 6	Equivalent air volume, Vas	20.8	23	20.8	23	[lit.]
3, 4, 6	Mechanical resistance, Rms	0.35	0.35	0.35	0.35	[Ns/m]
3, 4, 6	Mechanical Q, Qms	10.9	10.5	10.7	10.3	[-]
3, 4, 6	Electrical Q, Qes	0.27	0.26	0.33	0.31	[-]
3, 4, 6	Total Q, Qts	0.26	0.25	0.32	0.30	[-]
4	Voice coil resistance, RDC	3.3		6.3		[ohm]
5	Voice coil inductance, Le (measured at 10 kHz)					[mH]
	Voice coil inside diameter	32		32		[mm]
	Voice coil winding height	16		16		[mm]
	Air gap height	5		5		[mm]
	Theoretical linear motor stroke, Xmax	+/-5.5		+/-5.5		[mm]
	Magnet weight	880		880		[g]
	Total unit net weight excl. packaging	2.4		2.4		[kg]
3, 4, 5	Krm					[mohm]
3, 4, 5	Erm					[-]
3, 4, 5	Kxm					[mH]
3, 4, 5	Exm					[-]
