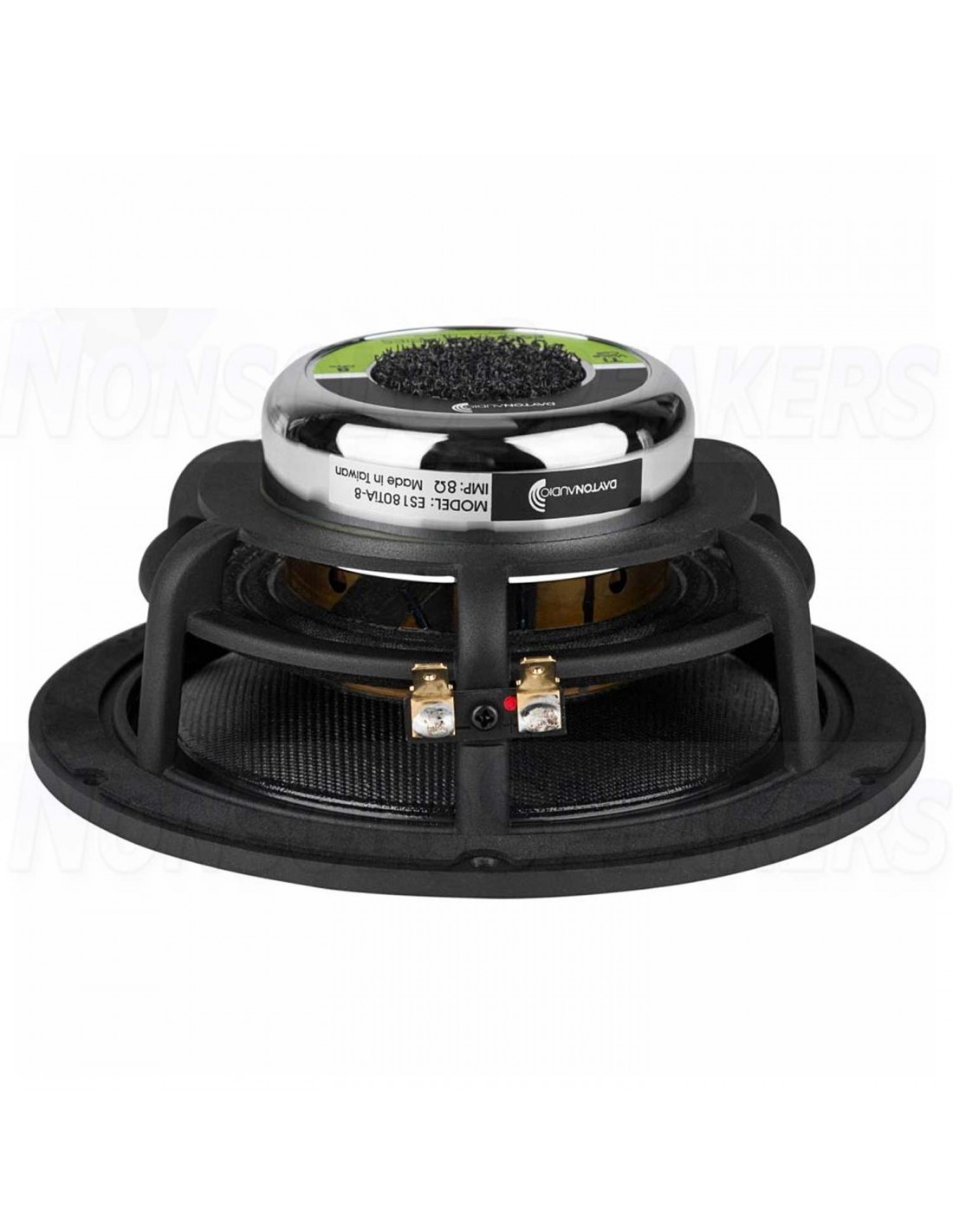

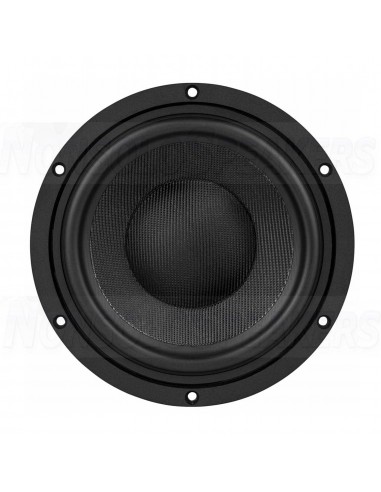

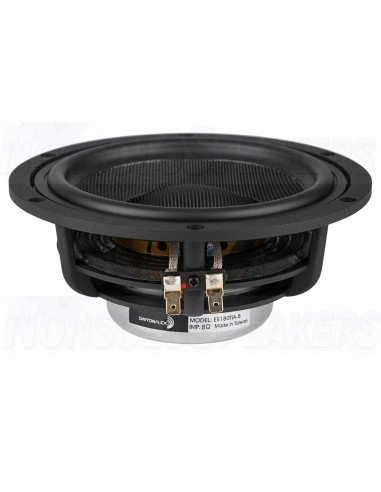

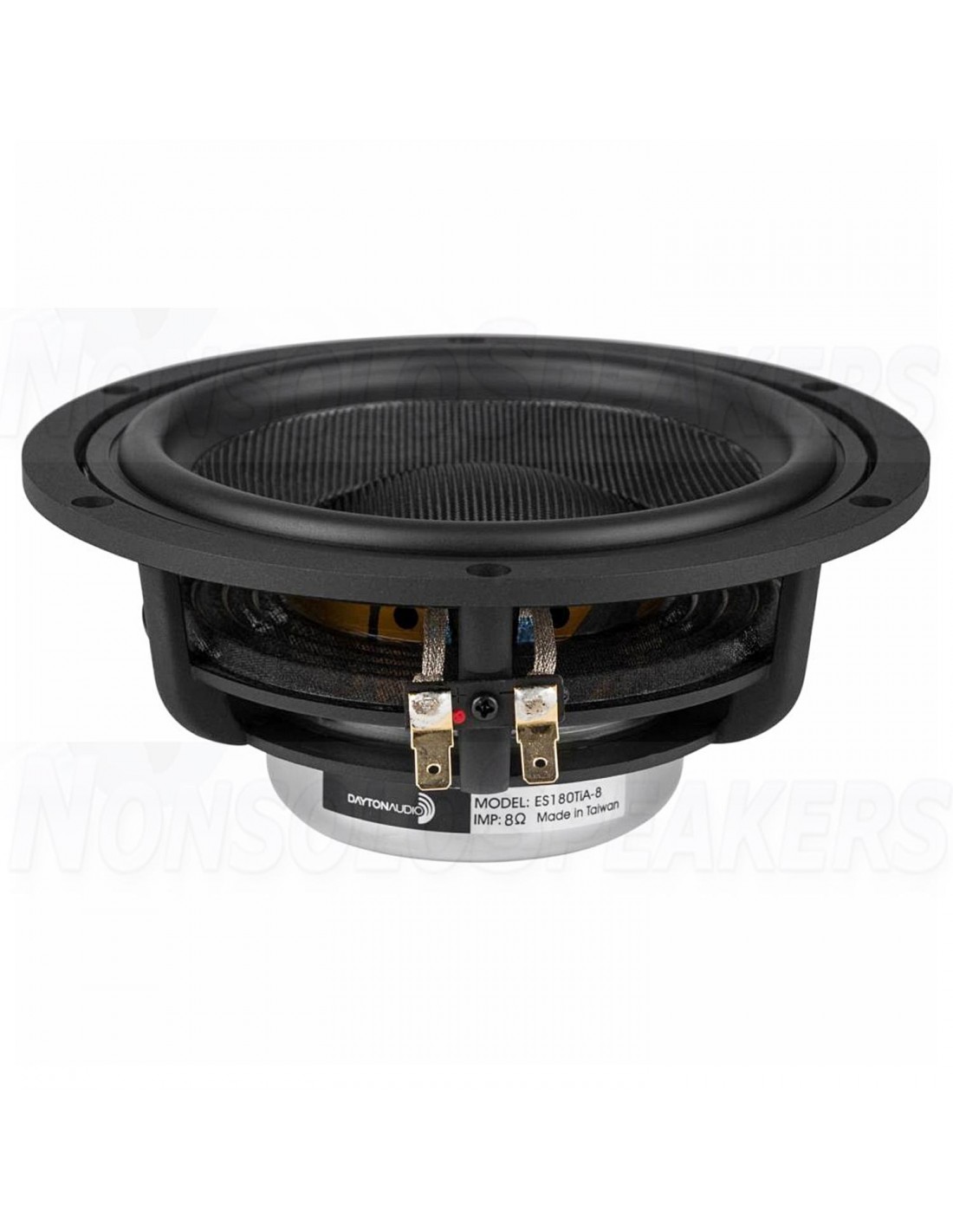

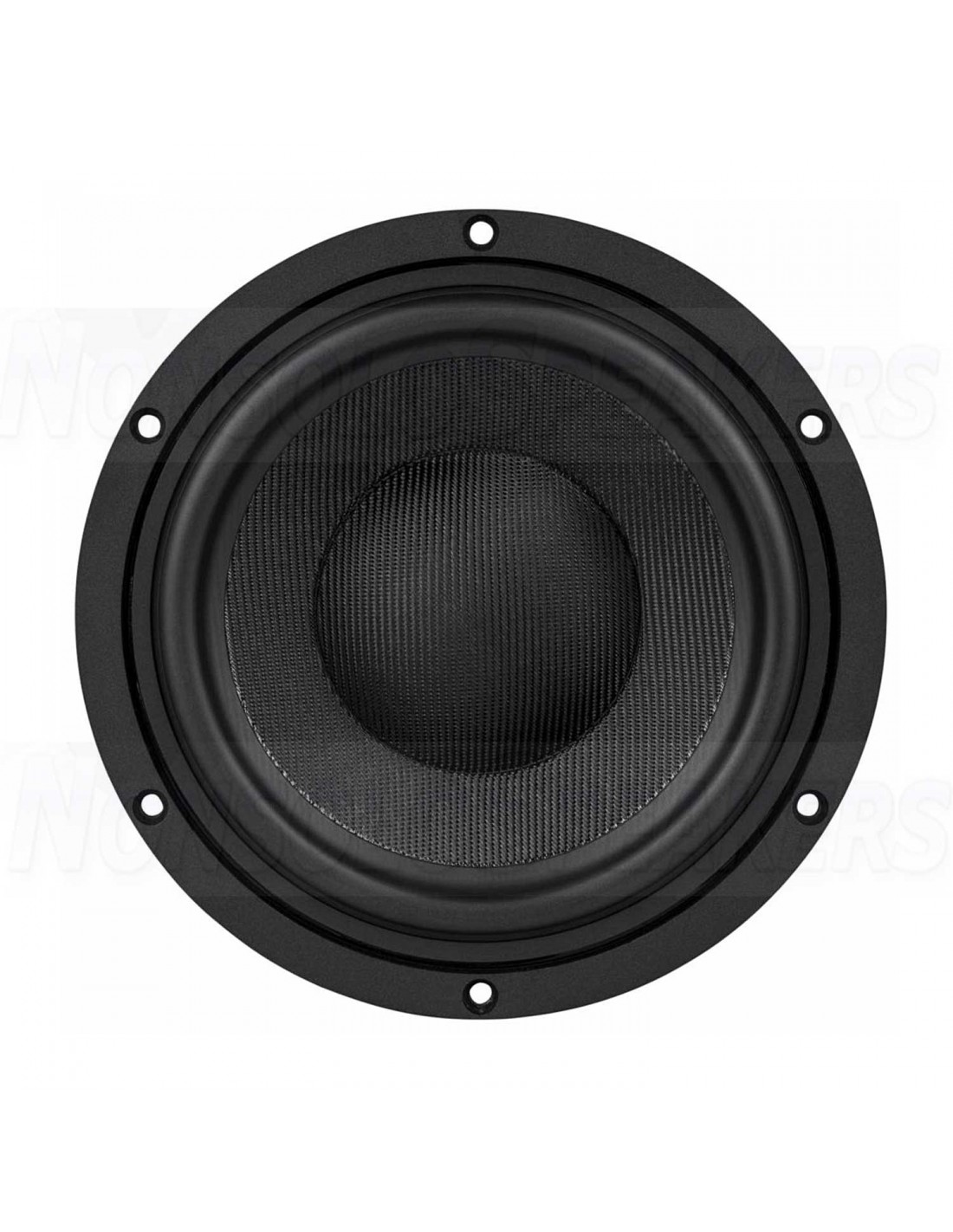

Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

High-tech 7" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion.


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?



Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

The Dayton Audio ES180TiA-8 is a high-tech 7" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power handling and excellent transient response.

-

Highlights

Now with improved frequency response for easier crossover integration

Dual copper shorting rings in the motor for reduced energy storage

3" edgewound voice coil on titanium former provides exceptional transient response

Woven glass-fiber cone provides excellent stiffness for minimal cone flex

High excursion suspension design with tethered tinsel leads and fully ventilated frame

High-power, ultra-low-distortion design

-

Product details

Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

Dayton Audio's Esoteric Series is the ultimate expression of Dayton Audio’s transducer engineering knowledge and finesse. Featuring high-end materials and advanced engineering throughout, the Esoteric Series collection of drivers elevates the state of the art in driver design. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

The ES180TiA-8 7” woofer is a technological tour de force, with a fully FEA- and Klippel-optimized design from the powerful neodymium motor assembly with dual shorting rings to the moving structure with large 3” voice coil, titanium voice coil former, and tightly woven glass fiber cone. The voice coil is edgewound using rectangular copper-coated aluminum wire (CCAW) for maximum conductor density within the magnetic gap. The motor structure has been optimized using magnetic finite element analysis (FEA) to provide a symmetrical and extended flux field along the length of the gap, to permit longer excursion beyond the traditional limits in loudspeaker motor design. Dual shorting rings reduce coil inductance by shorting eddy currents created by the coil when it moves, for greatly reduced distortion. A titanium voice coil former was chosen to transmit motor force with maximum efficiency and minimal deformation of the coil former, for supreme resolution. The woven glass fiber cone supports the high force generated by the motor assembly with less deflection than other cone materials. Even the suspension system has been Klippel-optimized for excellent linearity. The attention to detail doesn’t end there – even the voice coil leads are tethered to the black Conex spider to eliminate mechanical resonance.

All of these elements combine to create a driver that breaks new ground with superb transient response and ultra-low distortion. By breaking free from established design conventions and rethinking how each part of the driver should behave, the ES180TiA-8 consistently delivers a musically accomplished performance, time after time. It works well as the woofer in a 2-way high-performance loudspeaker system, and the 8-ohm impedance makes it a natural choice for dual woofer configurations

.

Specifications

Article number ES180TiA

Woofer Series Esoteric Series

Woofer Type Midwoofer

Nominal Diameter 7"

Power Handling (RMS) 100 watts

Power Handling (max) 200 watts

Impedance (Z) 8 ohms

Sensitivity 84.8 dB @ 2.83V/1m

Frequency Response 35 - 5,500 Hz

Voice Coil Diameter 75 mm

DC Resistance (Re) 7.4 ohms

Voice Coil Inductance (Le) 1.13 mH @ 1 kHz

Resonant Frequency (Fs) 33.7 Hz

Mechanical Q (Qms) 4.90

Electromagnetic Q (Qes) 0.44

Total Q (Qts) 0.40

Diaphragm Mass Inc. Airload (Mms) 26.8g

Mechanical Compliance of Suspension (Cms) 0.84 mm/N

Surface Area of Cone (Sd) 132.7 cm²

Volume of Displacement (Vd) 70.3 cm³

BL Product (BL) 9.8 Tm

Compliance Equivalent Volume (Vas) 20.7 liters

Maximum Linear Excursion (Xmax) 5.3 mm

Cone / Diaphragm Material Nomex Cone

Surround Material Rubber

Voice Coil Wire Material CCA

Voice Coil Former Titanium

Basket / Frame Material Cast Aluminum

Magnet Material Neodymium

Overall Outside Diameter 175 mm

Overall Depth 74.3 mm

Baffle Cutout Diameter 148.3 mm

# Mounting Holes 6

Sealed Volume 0.19 ft.³

Sealed F3 71 Hz

Vented Volume 0.57 ft.³

Vented F3 40 Hz

ES180TiA-8
New
844632095412
