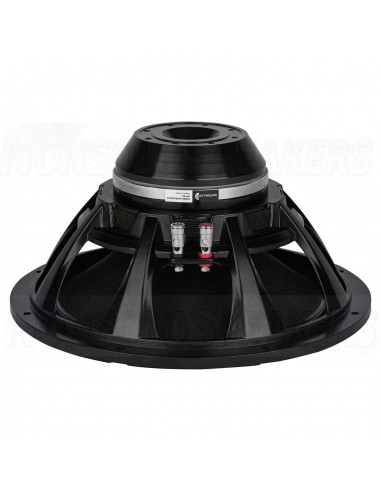

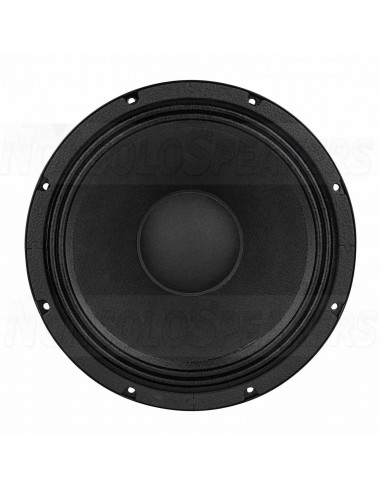

Dayton Audio Odeum Apollo 15MB500N-8 Bass-midwoofer
Dayton Audio Odeum Apollo 15MB500N-8 Bass-midwoofer
After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.
Dayton Audio Odeum Apollo 15MB500N-8 Bass-midwoofer
Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.
.
Highlights
Powerful neodymium motor for superior output.
Copper inductance cap for low distortion
Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch
3” Inside/outside wound copper voice coil leads on fiberglass former lends solid power handling capability
Under spider and rear periphery venting allow for a cooler running voice coil
Low Qts means high damping and smaller boxes
.
Product details
Odeum Apollo 15N 15MB500N-8 15" Professional Neodymium Bass-midwoofer 8 Ohm
Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.
The Dayton Audio Apollo 15 has a response that matches a large number of horn drivers due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 6 makes it easy to pair up with your favorite tweeters without taxing your power amplifiers!
The Apollo 15 is a 15" mid-bass woofer that is guaranteed to outperform the stock woofers in your PA system. A 200W power limit is achieved through the combination of a neodymium motor, a 3" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!
We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on). Upgrade, replace, or create a new pro sound system with the ODEUM series.
-
Specifications
Article number 15MB500N-8
Woofer Series Odeum
Woofer Type Bass-midwoofer
Nominal Diameter 15"
Power Handling (RMS) 500 Watts
Power Handling (max) 1000 Watts
Impedance (Z) 8Ω
Sensitivity 98.6dB 2.83V/1m
Frequency Response 40 to 4,500Hz
Voice Coil Diameter 3"
DC Resistance (Re) 5.8Ω
Voice Coil Inductance (Le) 0.14mH
Resonant Frequency (Fs) 44Hz
Mechanical Q (Qms) 10.47
Electromagnetic Q (Qes) 0.34
Total Q (Qts) 0.33
Diaphragm Mass Inc. Airload (Mms) 93.39g
Mechanical Compliance of Suspension (Cms) 0.142mm/N
Surface Area of Cone (Sd) 844.53cm²
BL Product (BL) 20.96T·m
Compliance Equivalent Volume (Vas) 5.46ft³
Maximum Linear Excursion (Xmax) 6.55mm
Cone / Diaphragm Material Coated Paper
Surround Material Paper
Voice Coil Wire Material Copper
Voice Coil Former Fiberglass
Basket / Frame Material Steel
Magnet Material Neodymium
Overall Outside Diameter 15.42"
Overall Depth 6.65"
Baffle Cutout Diameter 13.89"
# Mounting Holes 8
Sealed Volume 1.7ft³
Sealed F3 114Hz
Vented Volume 3.5ft³
Vented F3 49Hz
