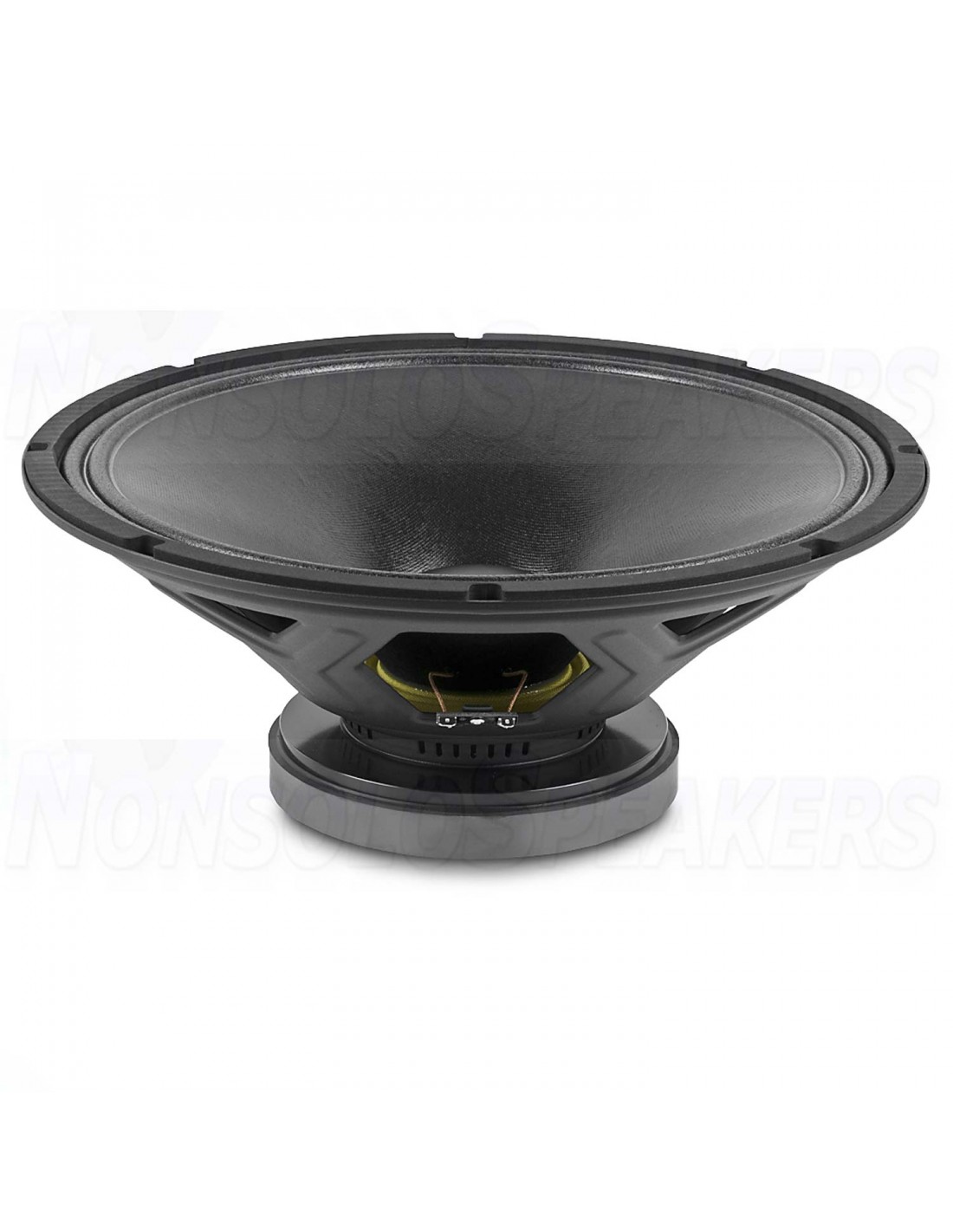

Beyma 15WRS400 - Woofer 15" 8ohm 98.5dB 400W Ferrite

The Beyma 15WRS400 wide range low-mid bass speaker pushes a 400 Watt AES power output at 8 Ohms, has a 40Hz to 4000Hz frequency range and a 98.5 decibel sensitivity level so it can be installed to support an array of systems. To ensure consistent, high-end performance backed up by low harmonic distortion, this speaker also features a 3 inch copper voice coil and a magnetic circuit that fully complies with FEA norms; a 30mm peak-to-peak maximum excursion; and a weather-proofed cone.

.

Key Features:

• High power handling: 800 W program power
• 3” copper wire voice coil
• High sensitivity: 98,5 dB (1W / 1m)
• Optimized pressed steel frame FEA optimized ceramic magnetic circuit
• Weatherproof cone treatment for both sides of the cone
• Low harmonic distortion and linear response
• Wide range of applications of low and mid-low frequencies

.

Technical Specifcations:

• Nominal diameter 380 mm 15 in
• Rated impedance 8 Ω
• Minimum impedance 7 Ω
• Power capacity 400 WAES
• Program power 800 W
• Sensitivity 98,5 dB 1W / 1m @ ZN
• Frequency range 40 - 4.000 Hz
• Recom. enclosure vol. 70 / 150 l 2,5 / 5,2 ft3
• Voice coil diameter 76,2 mm 3 in
• Bl factor 18,2 N/A
• Moving mass 0,091 kg
• Voice coil length 16 mm
• Air gap height 8 mm
• Xdamage (peak to peak) 30 mm

.

Thiele-Small Parameters:

• Resonant frequency, fs 36 Hz
• D.C. Voice coil resistance, Re 5,6 Ω
• Mechanical Quality Factor, Qms 9,1
• Electrical Quality Factor, Qes 0,35
• Total Quality Factor, Qts 0,33
• Equivalent Air Volume to Cms, Vas 236 l
• Mechanical Compliance, Cms 215 μm / N
• Mechanical Resistance, Rms 2,3 kg / s
• Efficiency, η0 3 %
• Effective Surface Area, Sd 0,088 m2
• Maximum Displacement, Xmax4 6,3 mm
• Displacement Volume, Vd 555 cm3
• Voice Coil Inductance, Le 1,1 mH

Mounting Information:

• Overall diameter 385 mm 15,2 in
• Bolt circle diameter 367 mm 14,4 in
• Baffle cutout diameter:
• - Front mount 353 mm 13,9 in
• Depth 165 mm
• Net weight 6,2 kg
• Shipping weight 7,2 kg
