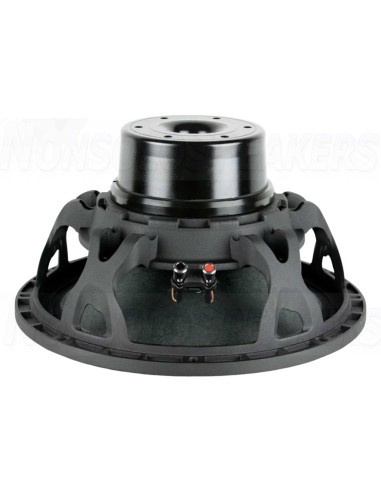

Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio
Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio
Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio
Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio

Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio

Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio

Is a professional-grade 14-inch transducer purpose-built for high-output bass and midbass performance.
Variants
SHIPMENT IN 7/10 WORKING DAYS
€363.60 €606.00 -40%

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?



Beyma 14MLEX1000ND - Woofer 14" 8ohm 99dB 1000W Neodimio

.

Product description Beyma 14MLEX1000Nd Bass-midwoofer

The Beyma 14MLEX1000Nd is a 14” high-efficiency neodymium transducer designed for advanced bass and midbass applications. Featuring a powerful 4” DUO voice coil and patented Malt Cross® cooling, it offers ultra-low distortion and remarkable thermal performance.

.

Highlights of the Beyma 14MLEX1000Nd

  • 1,000 W AES / 2,000 W program power handling with 99 dB sensitivity
  • 4” in/out copper DUO voice coil with Malt Cross® Cooling System
  • Neodymium FEA-optimized magnetic circuit with aluminum demodulating ring
  • ±11 mm Xmax and weatherproof cone for extreme linear excursion and durability

.

Product details Beyma 14MLEX1000Nd

The Beyma 14MLEX1000Nd is a professional-grade 14-inch transducer purpose-built for high-output bass and midbass performance. Engineered with a massive 4” DUO double-layer in/out copper voice coil and powered by an FEA-optimized neodymium magnet structure, this driver delivers up to 1,000 W AES (2,000 W program) while maintaining high efficiency and ultra-low distortion. It achieves a sensitivity of 99 dB (1W/1m), making it ideal for demanding sound reinforcement systems. The transducer incorporates Beyma’s exclusive Malt Cross® cooling system to minimize power compression and ensure long-term thermal stability. Its mechanical design includes a weather-treated cone, Conex spider, and a peak-to-peak excursion limit of 60 mm, offering extended displacement and superior durability. The high Bl factor of 26.5 N/A and an Xmax of ±11 mm further enhance its linear behavior, ensuring clear and punchy response even at high SPLs. With a net weight of 9.2 kg and a compact depth of 191 mm, the 14MLEX1000Nd offers exceptional performance for compact yet powerful loudspeaker configurations targeting professional applications in live sound and fixed installations.

.

Specifications

  • Article number 14MLEX1000Nd
  • EAN 8435469058705
  • Woofer Type Low & Mid Frequency Transducer
  • Nominal Diameter 14"
  • Power Handling (RMS) 1000 Watts
  • Continuous Program Power 2.000 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 99 dB
  • Frequency Response 50-4.500 Hz
  • Voice Coil Diameter 4"
  • DC Resistance (Re) 5.1 Ω
  • Voice Coil Inductance (Le) 1.22 mH
  • Resonant Frequency (Fs) 47 Hz
  • Mechanical Q (Qms) 4
  • Electromagnetic Q (Qes) 0.23
  • Total Q (Qts) 0.22
  • Diaphragm Mass Inc. Airload (Mms) 0.107 kg
  • Mechanical Compliance of Suspension (Cms) 0,106 mm/N
  • Surface Area of Cone (Sd) 707 cm²
  • Volume of Displacement (Vd) 0,78 dm³
  • BL Product (BL) 26,5 N/A
  • Compliance Equivalent Volume (Vas) 75 Liters
  • Maximum Linear Excursion (Xmax) 11 mm
  • Driver's Mechanical Losses (Rms) 8 kg/s
  • Dual Voice Coil DUO double layer in/out copper voice coil
  • Magnet Material Neodymium
  • Overall Outside Diameter 359 mm
  • Overall Depth 191 mm
  • Baffle Cutout Diameter 323 mm
  • Bolt Circle Diameter 340 mm
  • # Mounting Holes 8
  • Mounting Hole Diameter 7.0 mm
14MLEX1000ND
2 Items

.

Beyma is a Spanish audio brand that has been a key player in the professional audio and loudspeaker driver markets for decades. Founded in 1969, Beyma is known for its high-performance drivers and transducers, which are widely used in high-end audio systemsPA (public address) systemshome theater setups, and especially in car audio and sound reinforcement. The company is highly regarded for its professional-grade components and has developed a reputation for sound accuracyefficiency, and durability.

Here’s an overview of what Beyma Audio is all about:

1. Loudspeaker Drivers:

Beyma specializes in high-quality loudspeaker drivers, including woofersmidrange driverstweeters, and compression drivers. Their drivers are designed to deliver high output with low distortion and are often used in professional sound systems and high-end car audio.

  • Woofers and Subwoofers: Beyma's woofers and subwoofers are engineered to deliver deep, tight bass and high power handling. They are commonly used in subwoofer enclosuresPA systems, and home theater setups for powerful, clean low-frequency response.
    • Beyma 18B: A well-known 18-inch woofer that delivers impressive bass performance with a robust design, suitable for large PA systems or home subwoofer applications.
    • Beyma 15P: A high-performance 15-inch woofer designed for professional sound applications, with high excursion capabilities and efficiency for low-frequency reproduction.
  • Midrange Drivers: Beyma’s midrange drivers are designed for clarity and accuracy, producing natural and detailed mids that are critical for vocal reproduction and instrumental fidelity in full-range systems.
    • Beyma 6MI90: A 6-inch midrange driver known for its efficiency and smooth frequency response, often used in 2-way and 3-way systems.
  • Tweeters: Their high-frequency drivers (or tweeters) deliver smooth, detailed treble frequencies with minimal distortion. They are commonly used in hi-fi and PA systems.
    • Beyma T19: A compression tweeter with a high power handling capacity, designed for professional applications where high SPL (sound pressure level) and clarity are important.
  • Compression Drivers: These are used in horn-loaded systems to provide high-frequency sound with high efficiency and low distortion, often used in PA systems and concert sound systems.
    • Beyma CP-380: A compression driver that offers high output and high-frequency extension, often paired with horns for concert and professional sound systems.

2. Subwoofer Systems and Kits:

Beyma also produces complete subwoofer kits and systems, often used in professional and commercial setups where powerful, clear bass is required. Their subwoofer systems are typically designed to handle high power levels and deliver tight, controlled bass even at high volumes.

3. Car Audio:

Beyma has a significant presence in the car audio market, particularly among enthusiasts who seek high output and precision in their setups. Beyma drivers are known for their ability to handle large amounts of power while maintaining sound clarity and low distortion. Some popular Beyma products for car audio include:

  • Beyma Pro Series Woofers: Known for their high power handling and extended bass response, these woofers are frequently used in high-end car audio builds.
  • Beyma Coaxial Speakers: Beyma also produces coaxial speakers for car audio, combining a woofer and tweeter in a single unit for a more compact solution without sacrificing sound quality.

4. Professional Audio Systems:

Beyma’s products are widely used in professional audio systems, particularly in applications that require high SPL (sound pressure level) and durability. Their loudspeakers are found in:

  • Live Sound Reinforcement: For concerts, festivals, and events where powerful, clear sound is essential.
  • PA Systems: Beyma's woofers, midrange drivers, and compression drivers are used in PA (Public Address) systems and touring sound systems for delivering full-range sound with accuracy and high efficiency.
  • Theater and Cinema: Beyma drivers are used in cinema sound systems for accurate and powerful reproduction of both low-frequency and high-frequency sounds.

5. Build Quality & Materials:

Beyma is known for using high-quality materials in its drivers, ensuring that their components can handle high power levels and provide long-lasting performance. Some features include:

  • Paper and Composite Cones: For woofers and midrange drivers, Beyma often uses paper or composite cones for their excellent stiffness-to-weight ratio and natural sound characteristics.
  • Voice Coils: Their voice coils are made of high-temperature resistant materials, allowing Beyma speakers to handle high power without overheating.
  • Ferrite and Neodymium Magnets: Beyma uses both ferrite and neodymium magnets depending on the application, providing the right balance of efficiencypower handling, and size for different speaker types.

6. Technology and Innovation:

Beyma constantly strives to improve the performance and efficiency of their drivers through technological innovations. Some of their innovations include:

  • High excursion designs for subwoofers and woofers, allowing for greater low-frequency output and less distortion at high volumes.
  • Neodymium magnet technology for lightweight, efficient drivers that maintain high output levels, especially in their compression drivers and tweeters.

Why Choose Beyma Audio?

  • Sound Quality: Beyma is known for producing drivers that provide clearaccurate sound across all frequencies, making them a favorite among professionals who demand precision and high-quality audio.
  • Power Handling: Beyma drivers are built to handle high power loads without sacrificing sound quality. They are often used in high-output environments such as live sound systems and car audio competitions.
  • Durability and Reliability: Beyma’s components are built to last, designed to withstand the rigors of professional sound applications, and offer long-term reliability.
  • Flexibility: Beyma offers a wide range of drivers suitable for different applications—from entry-level car audio to high-end professional sound systems.
