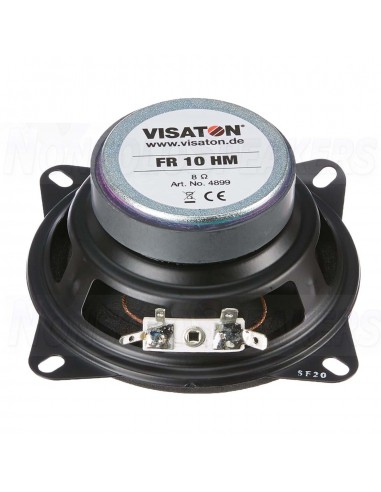

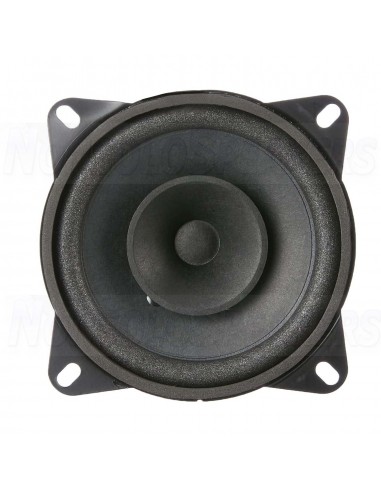

Visaton FR 10 HM - 8 Full-range Woofer
Visaton FR 10 HM - 8 Full-range Woofer
Visaton FR 10 HM - 8 Full-range Woofer
Visaton FR 10 HM - 8 Full-range Woofer
Visaton FR 10 HM - 8 Full-range Woofer
Visaton FR 10 HM - 8 Full-range Woofer

Visaton FR 10 HM - 8 Full-range Woofer

Visaton FR 10 HM - 8 Full-range Woofer

Packing a punch in a small frame, the Visaton FR 10 HM-8 Full-range Woofer delivers surprising audio performance. This 4-inch speaker boasts a tweeter cone, allowing it to reproduce a broad soundstage, from bass at 95 Hz to highs reaching 22 kHz.

SHIPMENT IN 5-7 WORKING DAYS
€9.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton FR 10 HM - 8 Full-range Woofer

Packing a punch in a small frame, the Visaton FR 10 HM-8 Full-range Woofer delivers surprising audio performance. This 4-inch speaker boasts a tweeter cone, allowing it to reproduce a broad soundstage, from bass at 95 Hz to highs reaching 22 kHz. This versatility makes it a great choice for various applications, from revamping car speakers to crafting bookshelf speakers or portable sound systems.

.

Highlights

  • Moisture-resistant membrane
  • Metal basket

.

Product Details

Visaton FR 10 HM - 8 Full-range Woofer

Installation is a breeze thanks to the FR 10 HM-8's adherence to the European standard basket design, ensuring compatibility with a wide range of enclosures. Despite its compact size, it can handle up to 20 watts of continuous power with a peak of 30 watts. Furthermore, it offers a high sensitivity of 86 dB, translating to ample sound output even with lower power input. The speaker's 8-ohm impedance also ensures seamless integration with most amplifier setups.

Technical Specifications

  • Rated power 20 W
  • Impedance 4Ω / 8 Ω
  • Frequency response (–10 dB) 95–22000 Hz
  • Mean sound pressure level 86 dB (1 W/1 m)
  • Excursion limit x mech ± 2 mm
  • Resonant frequency 120 Hz
  • Height of front pole-plate 2 mm
  • Voice coil diameter 14 mm Ø
  • Height of winding 5 mm
  • Cut-out diameter 94 mm Ø
  • Connections 2 x 4.8 x 0.8 mm (+)
  • Terminal 2 x 2.8 x 0.8 mm (–) Net weight 0.34 kg
Visaton FR 10 HM - 8
