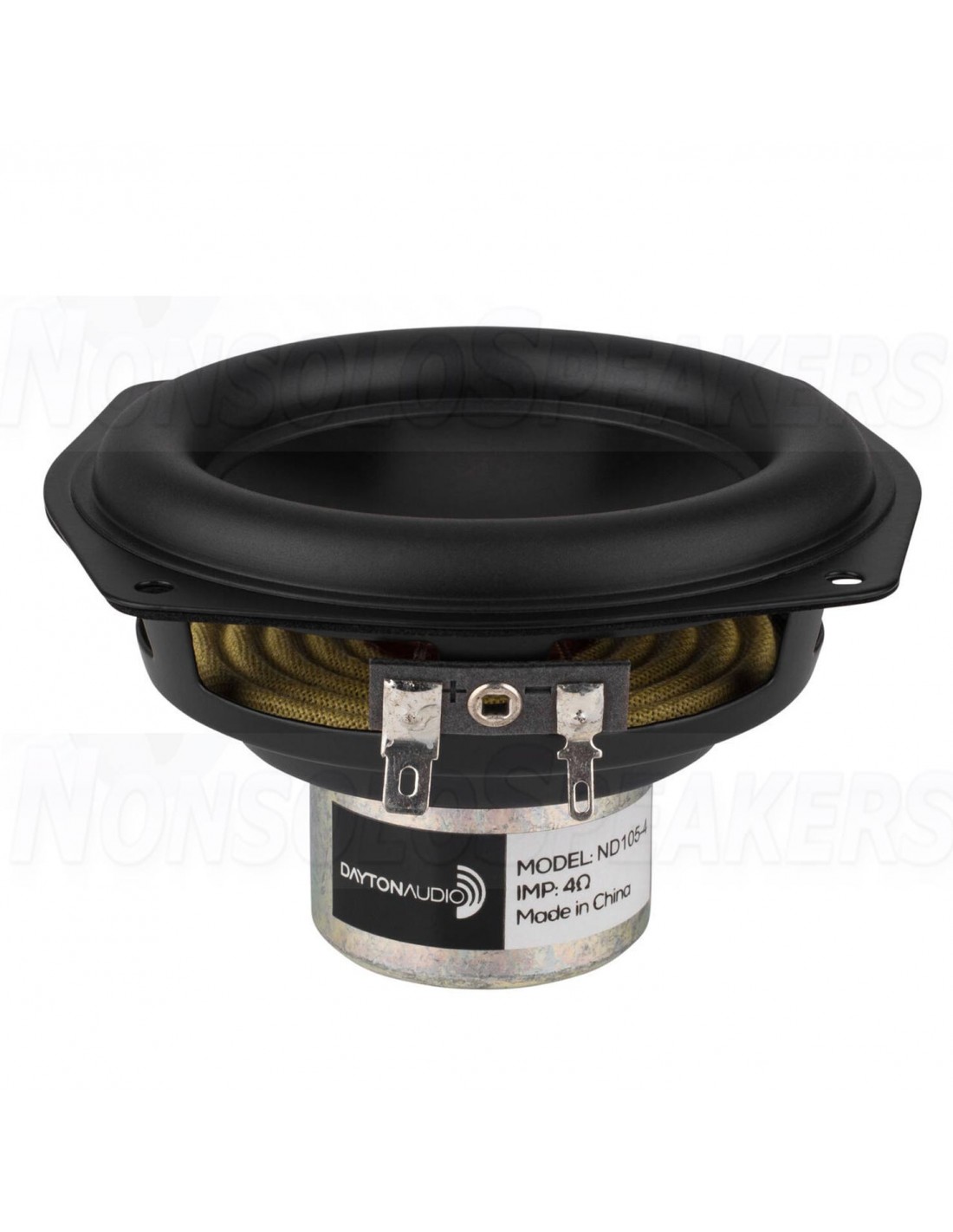

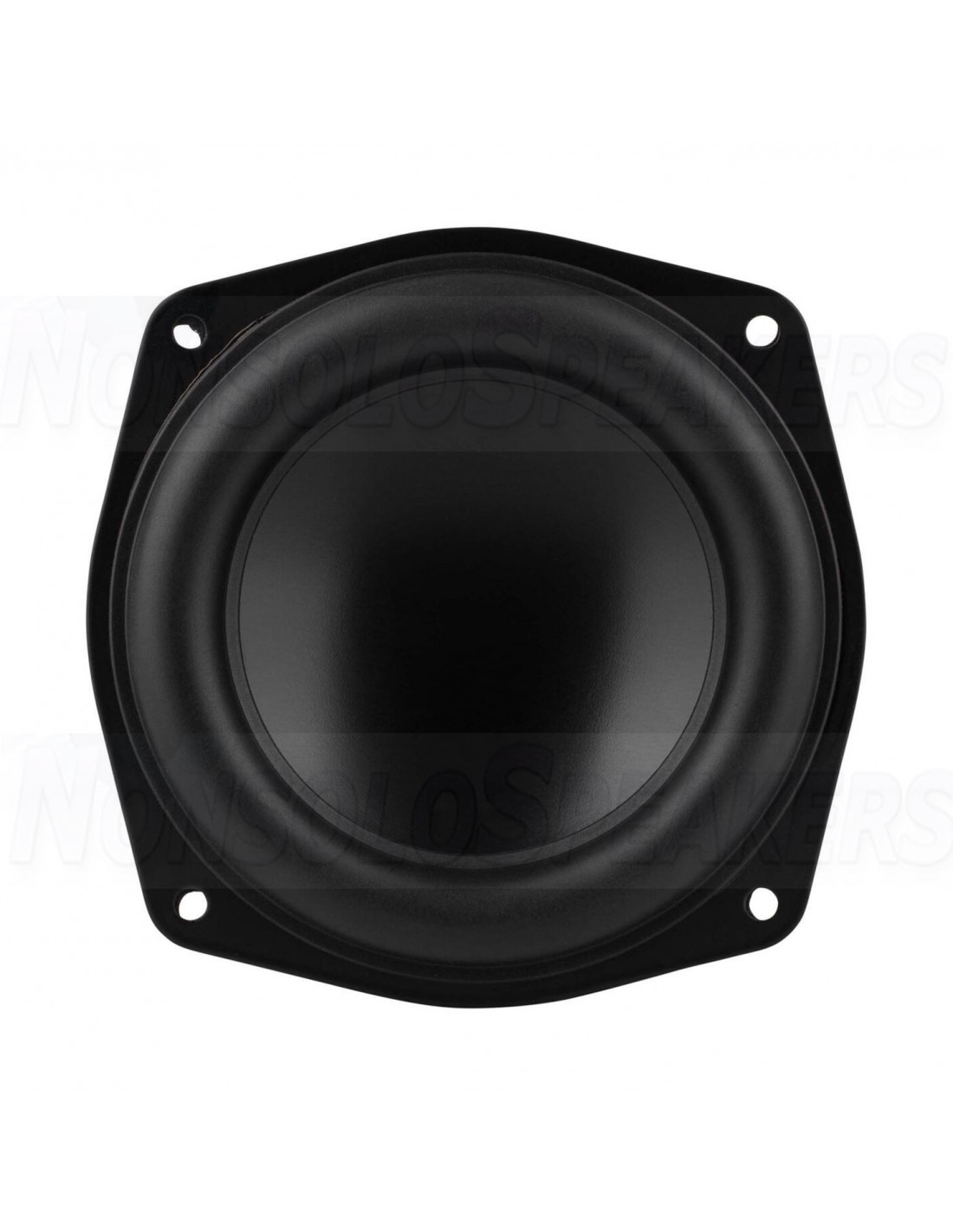

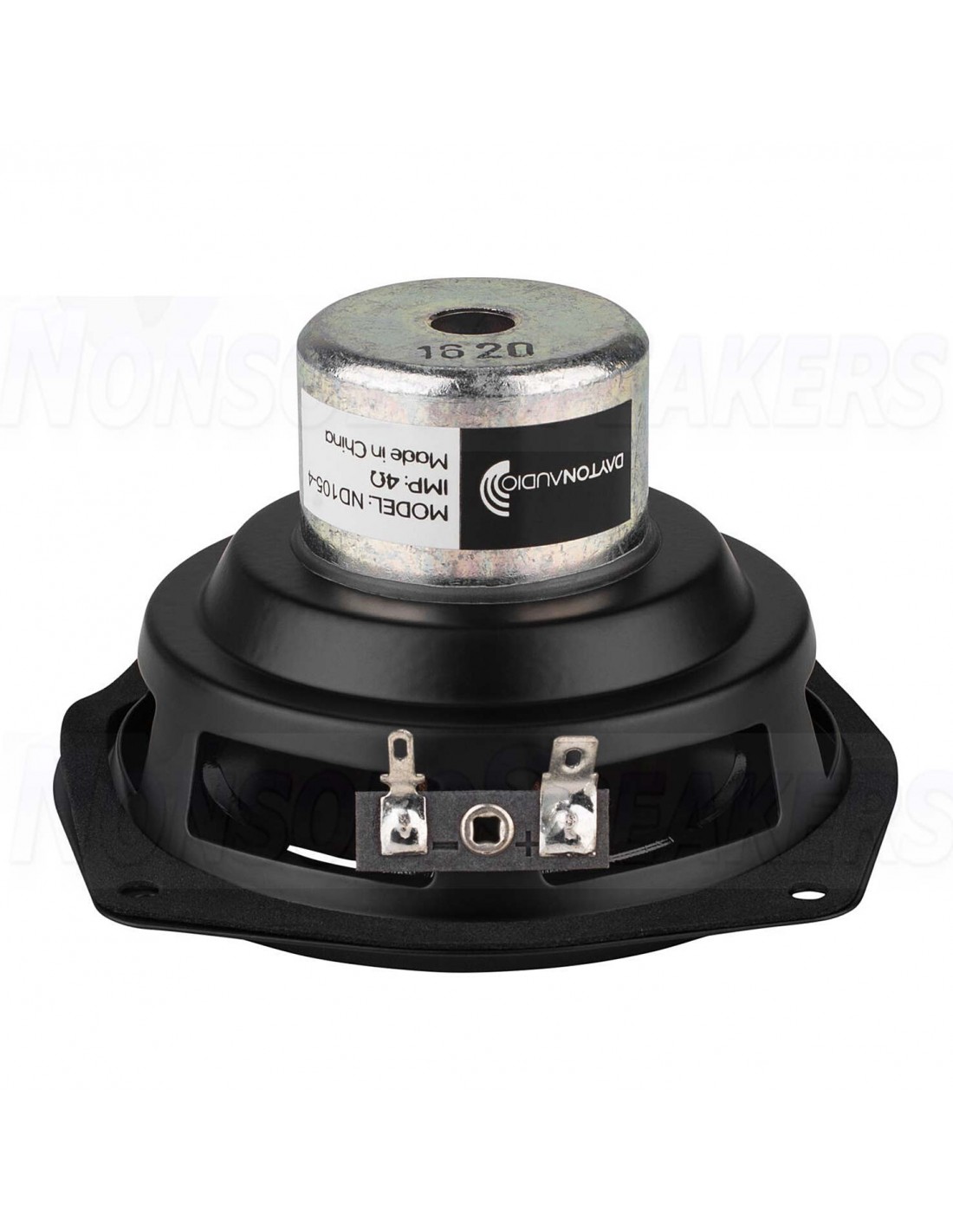

Dayton Audio ND105-4 4" Aluminum Cone Midbass Neo Driver 4 Ohm

SHIPMENT IN 7-10 WORKING DAYS
€36.00
Tax included
rating No review at the moment

Dayton Audio ND105-4 4" Aluminum Cone Midbass Neo Driver 4 Ohm

Dayton Audio's ND105-4 compact aluminum cone midbass produces high-impact audio demonstrating the latest advances in high-excursion design processes. When teamed up with the matching ND series passive radiators this driver can produce incredible full sound from compact enclosures.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio ND105-4 4" Aluminum Cone Midbass Neo Driver 4 Ohm

Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

.

Product Details

Brand Dayton Audio

Model ND105-4

UPC 844632081071

Unit of Measure Each

Weight 0.5 grams

.

Product Specifications

Nominal Diameter 4"

Moving Mass Of Diaphragm (Mmd) 7.4

Power Handling (RMS) 30 Watts

Power Handling (MAX) 60 Watts

Impedance 4Ω

Frequency Response 60 to 10,000Hz

Sensitivity 86.8dB 2.83V/1m

Voice Coil Diameter 1"

.

Thiele-Small Parameters

Resonant Frequency (Fs) 78.7Hz DC

Resistance (Re) 3.7Ω

Voice Coil Inductance (Le) 0.76mH

Mechanical Q (Qms) 7.42

Electromagnetic Q (Qes) 0.66

Total Q (Qts) 0.61

Compliance Equivalent Volume (Vas) 0.069ft³

Mechanical Compliance of Suspension (Cms) 0.55mm/N

BL Product (BL) 4.52T·m

Maximum Linear Excursion (Xmax) 4mm

Surface Area of Cone (Sd) 51.5cm²

.

Materials of Construction

Cone Material Aluminum

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Kapton® / Polyimide

Basket / Frame Material Steel

Magnet Material Neodymium

.

Mounting Information

Overall Outside Diameter 4.13"

Baffle Cutout Diameter 3.66"

Depth 2.64"

# Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume 0.1ft³

Sealed F3 84Hz

Vented Volume 0.3ft³

Vented F3 41Hz
