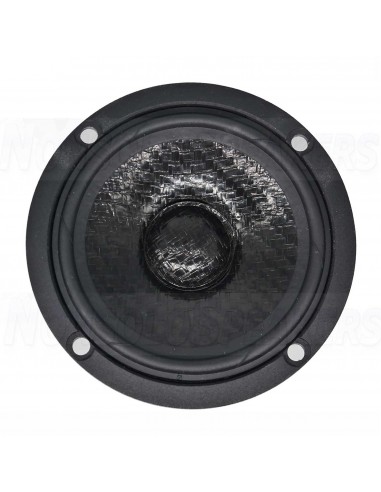

SEAS Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
.
Product description
Long term power handling (RMS) is 40 Watts
New Curv cone, a woven polypropylene with excellent internal damping
The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance
.
Product details
Seas Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange
The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.
A high loss natural rubber surround makes this driver perform its best as a midrange. The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A stiff and stable injection molded aluminum chassis keeps the critical components in perfect alignment.
The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.
.
Specifications
Article numberMU10RB-SL
Woofer SeriesPrestige Series
Woofer TypeMidwoofer
Nominal Diameter4"
Power Handling (RMS)40 Watts
Power Handling (max)100 Watts
Impedance (Z)4 ohms
Sensitivity84.7 dB 2.83V/1m
Frequency Response100 to 20,000 Hz
Voice Coil Diameter0.31"
Magnet Weight3.17 oz.
DC Resistance (Re)3.3 ohms
Voice Coil Inductance (Le)0.14 mH
Resonant Frequency (Fs)100 Hz
Mechanical Q (Qms)1.63
Electromagnetic Q (Qes)1.15
Total Q (Qts)0.67
Diaphragm Mass Inc. Airload (Mms)4.51g
Mechanical Compliance of Suspension (Cms)0.6 mm/N
Compliance Equivalent Volume (Vas)0.03 ft.³
Maximum Linear Excursion (Xmax)2 mm
Overall Outside Diameter3.86"
Overall Depth1.93"
Baffle Cutout Diameter3.15"
Bolt Circle Diameter3.5"
# Mounting Holes4
Mounting Hole Diameter0.2"
