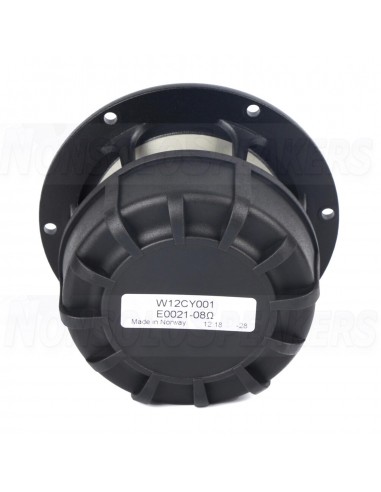

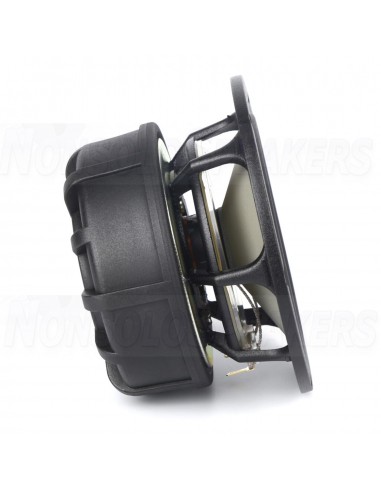

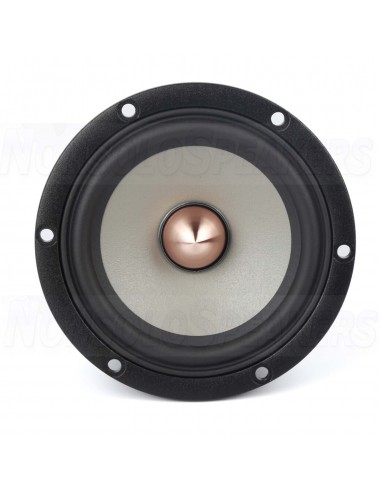

SEAS Excel W12CY/001 - E0021-08S 4.5" Magnesium Cone Woofer
.
Product description
Long term power handling (RMS) is 70 Watts
Reduced non linear and modulation distortion
Extra large magnet system for good sensitivity and transient response
.
Product details
Seas Excel W12CY/001 - E0021-08S 4.5" Magnesium Cone Woofer
The W12CY001 is a 12cm (4,5’’) cone driver developed for use as a high fidelity woofer/midrange unit. The extremely stiff, yet light cone gives tremendous bass precision and midrange detail. Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. An extra large magnet system for good sensitivity and transient response. Copper plating of the top and bottom plates and a solid copper phase plug, which enhance the performance of the copper rings and improve heat conduction away from the pole piece.
Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
.
Specifications
Article numberW12CY001
Woofer SeriesExcel Series
Woofer TypeMidwoofer
Nominal Diameter4,5"
Power Handling (RMS)70 Watts
Power Handling (max)200 Watts
Impedance (Z)8 ohms
Sensitivity (SPL)84 dB 2.83V/1m
Frequency Response60 to 3,500 Hz
Voice Coil Diameter1.02"
Magnet Weight14.8 oz.
DC Resistance (Re)5.6 ohms
Voice Coil Inductance (Le)0.43 mH
Resonant Frequency (Fs)45 Hz
Mechanical Q (Qms)2.50
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.36
Moving Mass Of Diaphragm (Mmd)7.5g
Mechanical Compliance of Suspension (Cms)1.7 mm/N
Compliance Equivalent Volume (Vas)0.21 ft.³
Maximum Linear Excursion (Xmax)3 mm
Overall Outside Diameter4.74"
Overall Depth2.81"
Baffle Cutout Diameter3.9"
Bolt Circle Diameter4.36"
# Mounting Holes6
