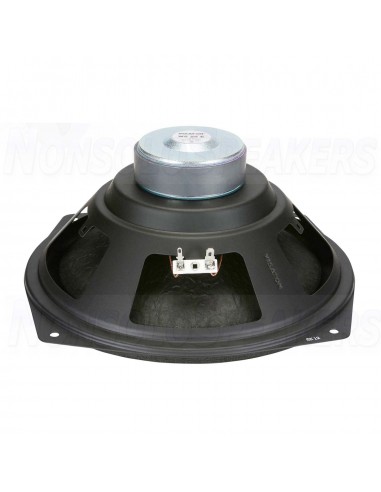

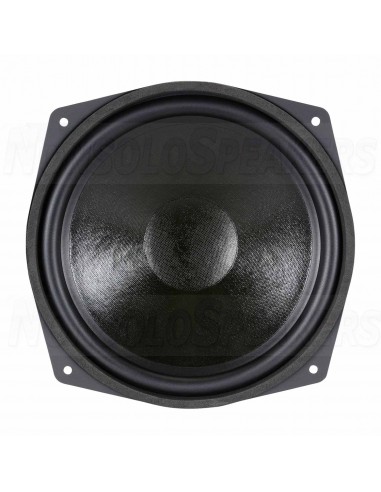

Visaton WS 25 E 10" HiFi Woofer 8 Ohm
Visaton WS 25 E 10" HiFi Woofer 8 Ohm
Visaton WS 25 E 10" HiFi Woofer 8 Ohm
Visaton WS 25 E 10" HiFi Woofer 8 Ohm
Visaton WS 25 E 10" HiFi Woofer 8 Ohm
Visaton WS 25 E 10" HiFi Woofer 8 Ohm

Visaton WS 25 E 10" HiFi Woofer 8 Ohm

Visaton WS 25 E 10" HiFi Woofer 8 Ohm

25 cm (10") woofer with coated paper cone, rubber surround and extended rear pole plate for long strokes.

SHIPMENT IN 5-7 WORKING DAYS
€42.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton WS 25 E 10" HiFi Woofer 8 Ohm

25 cm (10") woofer with coated paper cone, rubber surround and extended rear pole plate for long strokes.

.

Highlights

  • High Qts design for sealed cabinets
  • Rubber surround won't disintegrate
  • Bumped backplate and 5.5 mm of Xmax

.

Product Details

Visaton WS 25 E 10" HiFi Woofer 8 Ohm

Visaton designed this woofer to replace vintage and modern home audio hi-fi woofers in sealed cabinet speakers. For a classic natural sound, the WS 25 E features a coated paper cone. A rubber surround and bumped back plate protect this woofer from overexcursion. Both the low free-air resonance and low inductance allow this driver to play from 34 Hz up to 6,000 Hz, making great for use in small 3-way speakers as well as large format 2-way speakers.

.

Technical Specifications

  • Article number WS 25 E - 8
  • Woofer Series HiFi Series
  • Woofer Type Midwoofer
  • Nominal Diameter 10"
  • Power Handling (RMS) 80 Watts
  • Power Handling (max) 110 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88 dB
  • Frequency Response 34 - 6,000 Hz
  • Voice Coil Diameter 25 mm
  • DC Resistance (Re) 5.9 ohms
  • Voice Coil Inductance (Le) 0.8 mH
  • Resonant Frequency (Fs) 34 Hz
  • Mechanical Q (Qms) 2.82
  • Electromagnetic Q (Qes) 2.92
  • Total Q (Qts) 1.43
  • Diaphragm Mass Inc. Airload (Mms) 33g
  • Surface Area of Cone (Sd) 346 cm2
  • Compliance Equivalent Volume (Vas) 113 liters
  • Maximum Linear Excursion (Xmax) 5.5 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Overall Outside Diameter 245 mm
  • Overall Depth 107 mm
  • Baffle Cutout Diameter 225 mm
  • Bolt Circle Diameter 262 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 6 mm
  • Sealed Volume 132.2 liters
  • Sealed F3 32 Hz
