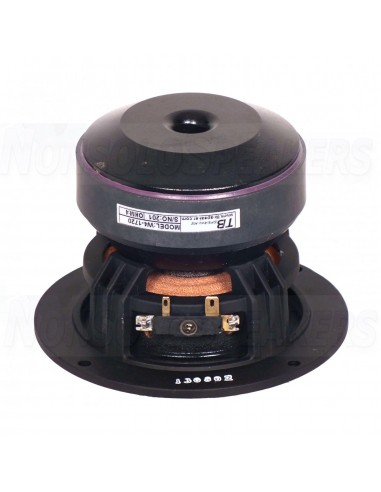

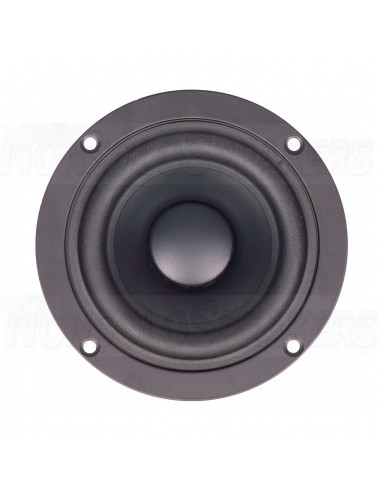

TANG BAND W4-1720 - 4" Mid Bass TB-Speaker
TANG BAND W4-1720 - 4" Mid Bass TB-Speaker
TANG BAND W4-1720 - 4" Mid Bass TB-Speaker
TANG BAND W4-1720 - 4" Mid Bass TB-Speaker
TANG BAND W4-1720 - 4" Mid Bass TB-Speaker
TANG BAND W4-1720 - 4" Mid Bass TB-Speaker

TANG BAND W4-1720 - 4" Mid Bass TB-Speaker

Out-of-Stock
€111.00
Tax included
rating No review at the moment

TANG BAND W4-1720 - 4" Mid Bass TB-Speaker


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W4-1720 - 4" Mid Bass TB-Speaker

.

Specifications

  • Brand TB-Speaker
  • Series Woofer
  • Magnet Material Ferrite
  • Free Air Resonance [Hz] 60
  • Impedance [Ohm] 8
  • Sensitivity [dB] 86
  • Power Handling [Watt] 30
  • Cone Material Paper
  • Cone Diameter [inch] 4
  • Xmax [mm] 5
  • Qts 0,42

-

Parameters Values

  • Nominal impedance 4 Ω
  • Re 3.8 Ω
  • Sensitivity 1W/1m 86 dB
  • fs 60 Hz
  • Moving coil diameter 32 mm
  • Nominal power 30 W
  • Maximum power 60 W
  • Bxl 3.82 Tm
  • Mms 5 gr
  • Levc 0.037 mH
  • Zo 22 Ω
  • Xmax 5 mm
  • Vas 5.92 l
  • Qts 0.42
  • Qms 2.33
  • Qes 0.51




.

.




W4-1720
