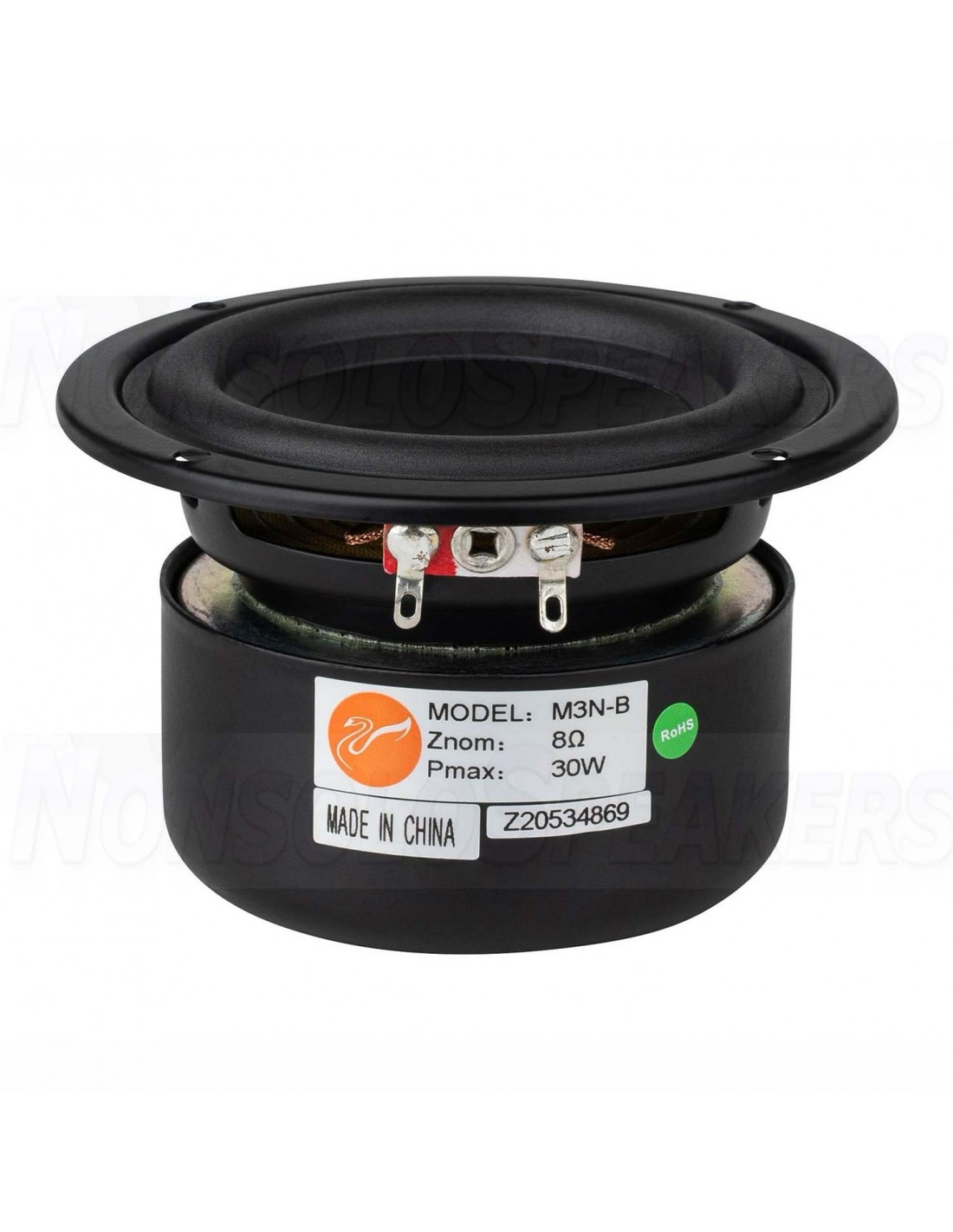

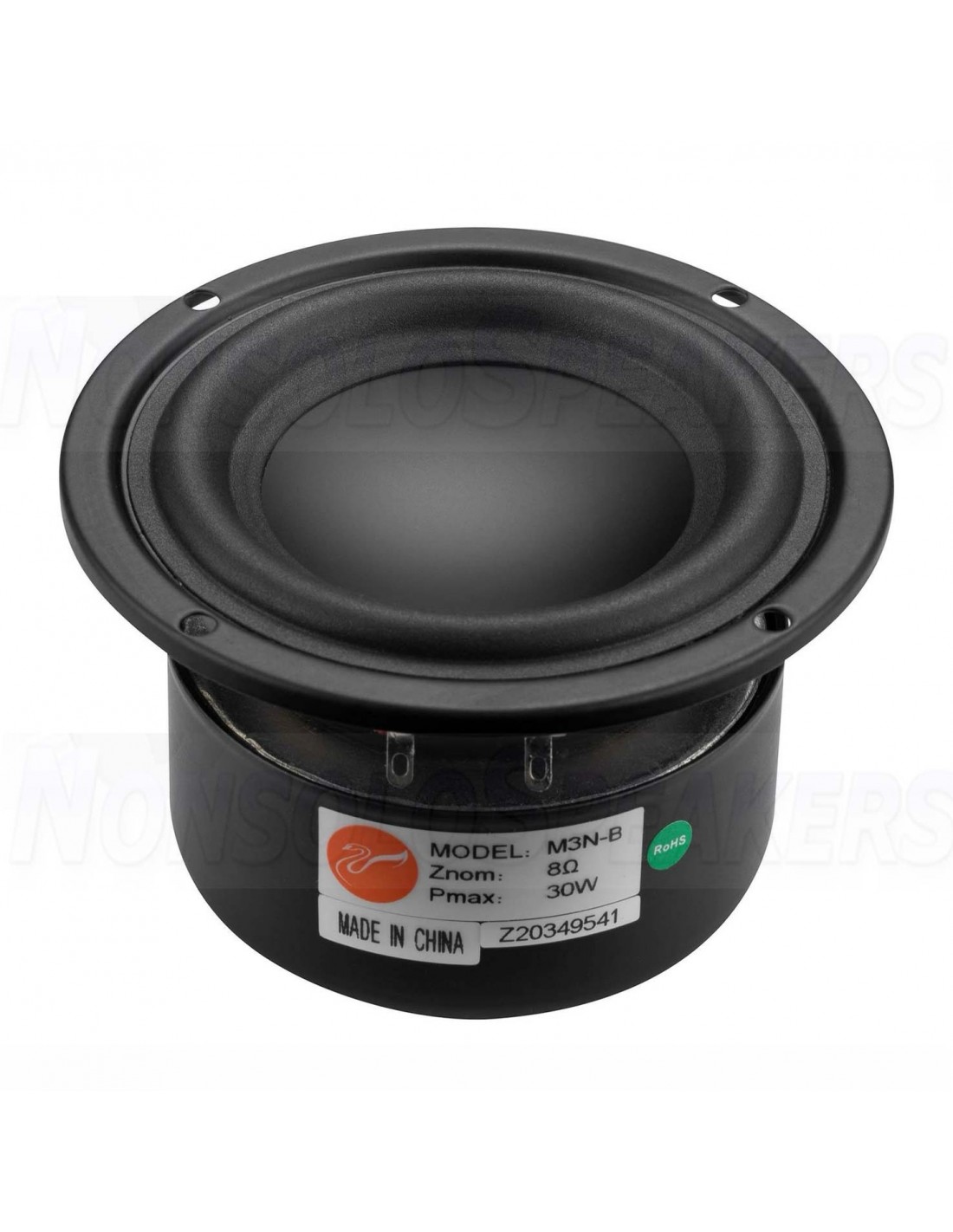

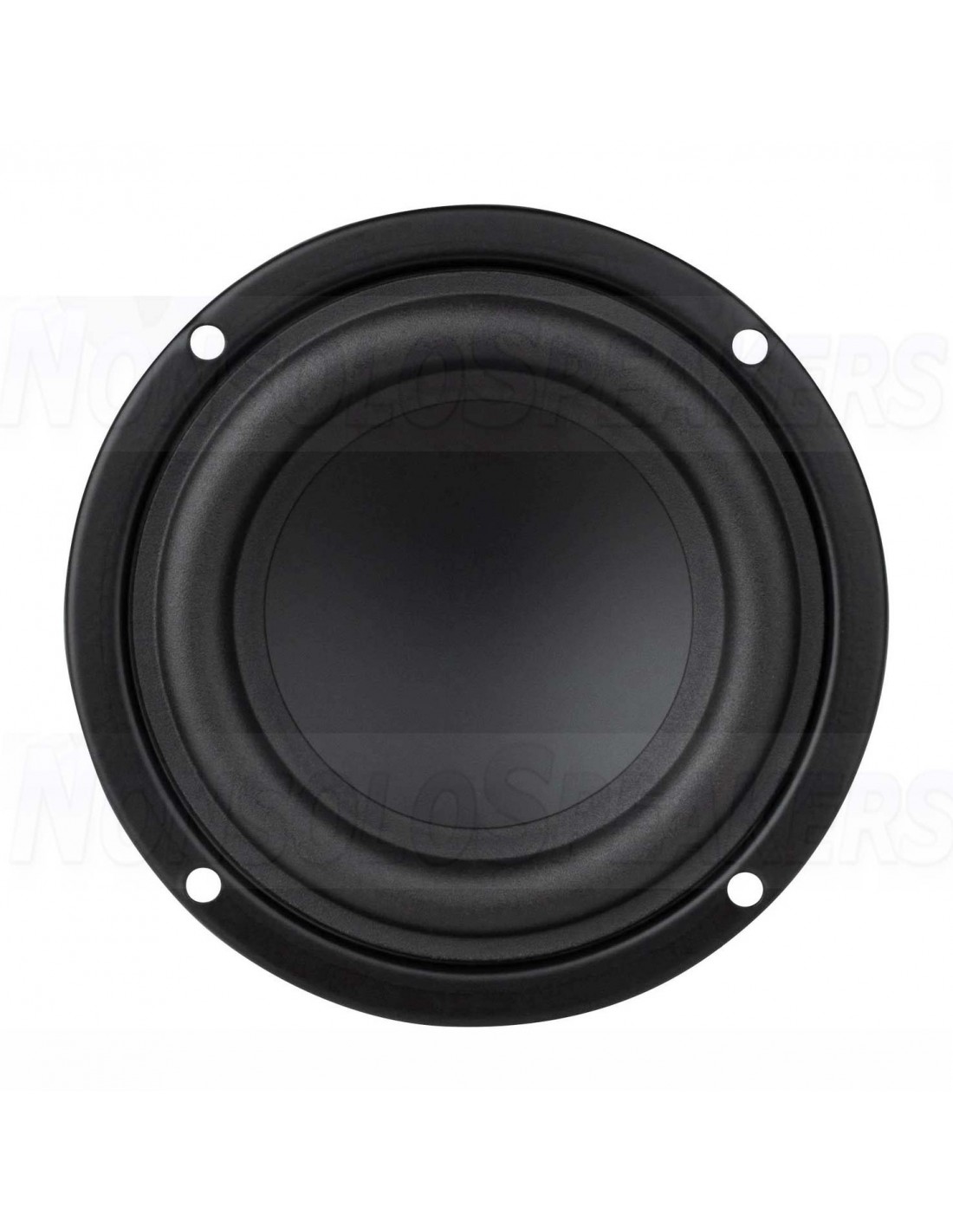

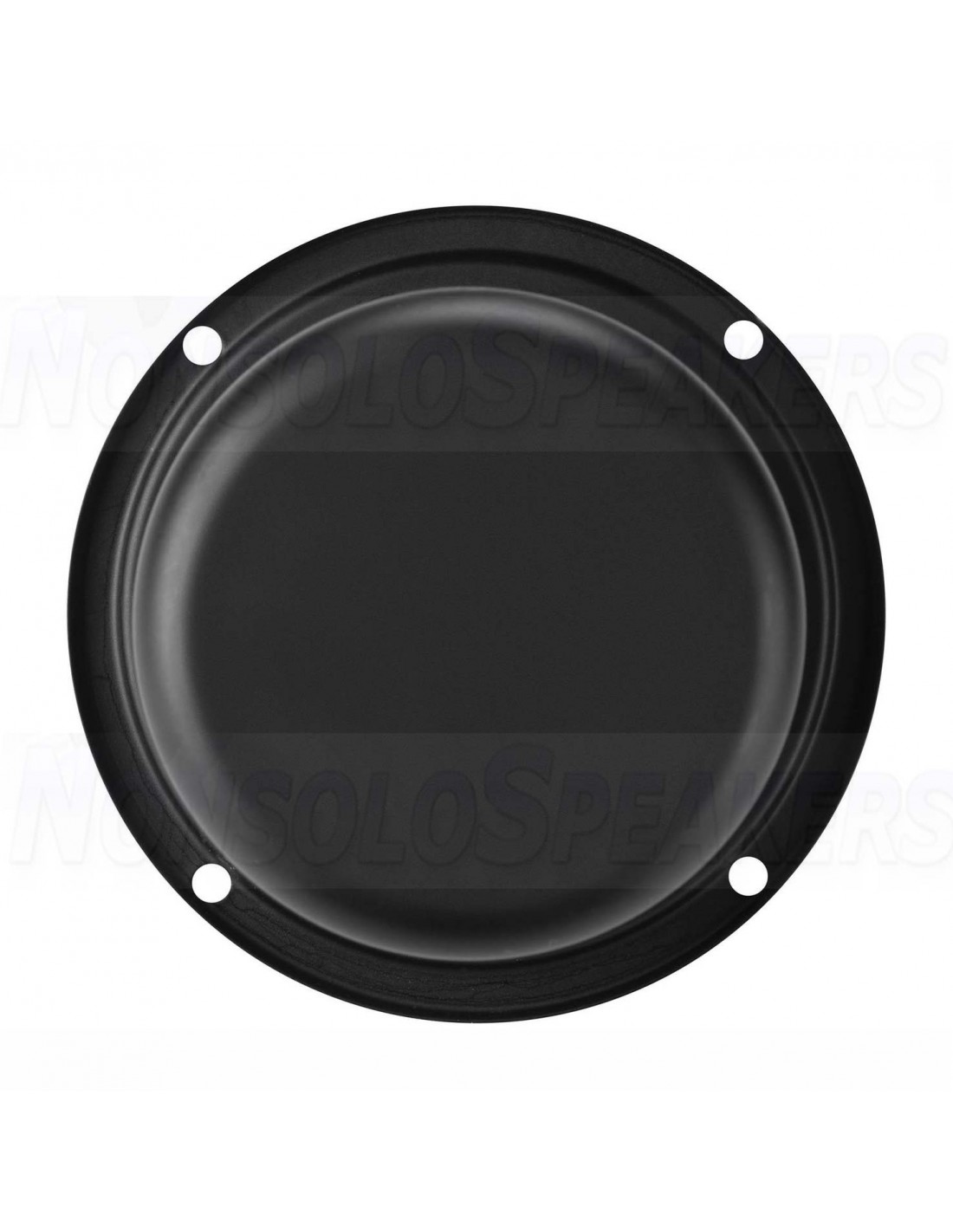

HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Bass-midwoofer

The HiVi M3N-B 3" full-range speaker features a black magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Bass-midwoofer

The HiVi M3N-B 3" full-range speaker features a black magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.

.

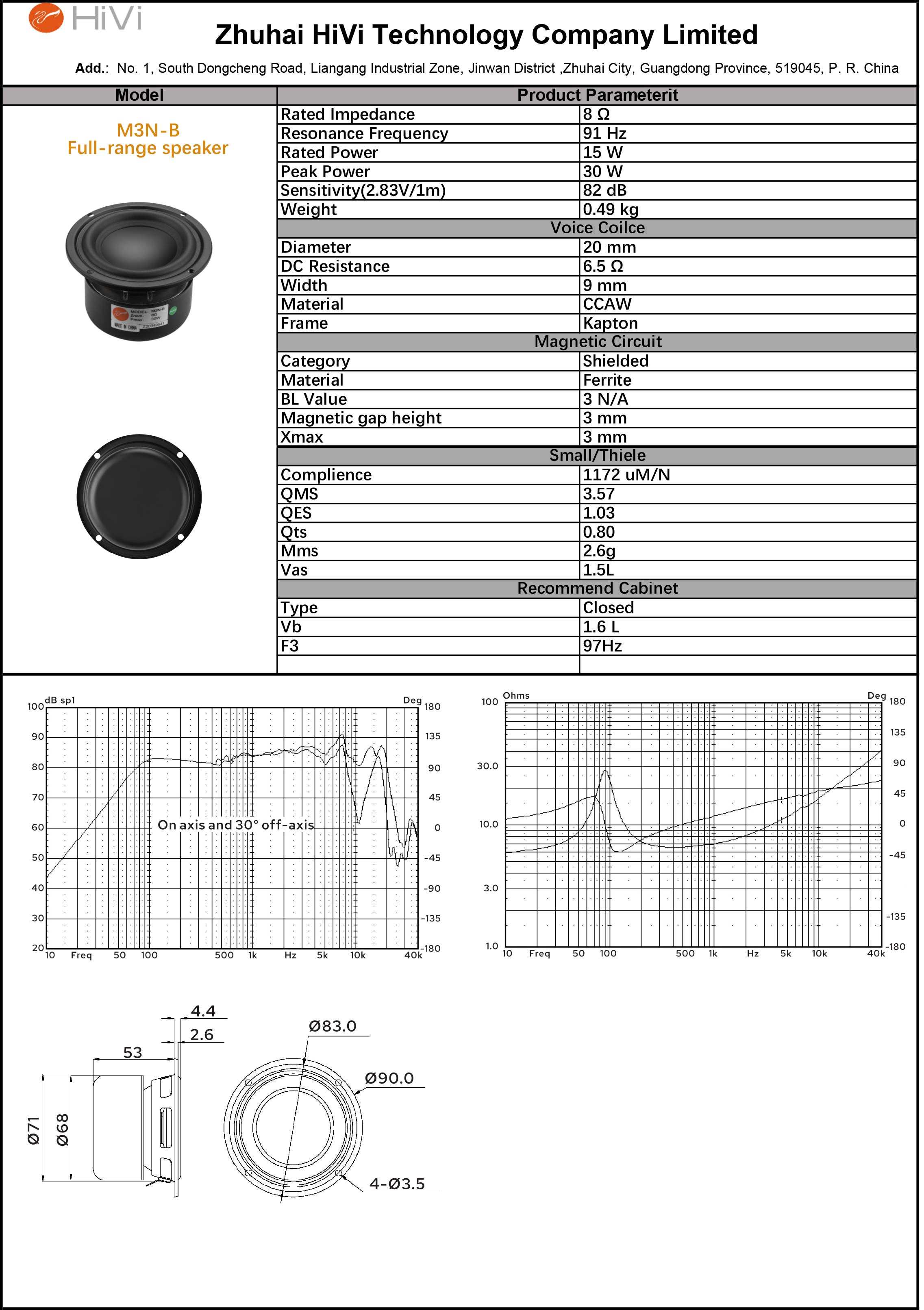

Product Specifications

  • Article number M3N-B
  • Resonant Frequency (Fs) 91 Hz
  • Total Q (Qts) 0.80
  • Maximum Linear Excursion (Xmax) 3 mm
.

Highlights

  • Hielded magnet structure
  • May be used in a small closed box as a midrange unit in a three-way system
  • Black magnesium/aluminum alloy cone

.

Product details

HiVi M3N-B 3" Damped Aluminum/Magnesium Cone Full-Range Driver

A shielded magnet structure allows the HiVi M3N-B 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a black magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.
.
.
HiVi M3N-B
10 Items

.

Swan origins from China and enjoys worldwide reputation.

Founded in 1991, Swan is China’s first professional manufacturer of high-end speakers. Decades of vigorous development have witnessed Swan growing into a world-renowned audio brand with various excellent electroacoustic products.

Since 1991, Swan has been committed to perfect sound reproduction. Our philosophy Hear the Difference is deeply rooted in our company DNA.

Swan has a full product range: Hi-Fi, home theater, multimedia active audio, power amplifier, Internet cloud audio, Hi-Fi headphones, car audio, professional audio, smart radio, conference system and speaker drivers. We have all you need for high-quality sound experience.

Swan has various cutting-edge software and hardware facilities including two professional electroacoustic anechoic chambers with ultra large cutoff frequencies as low as 50Hz and 60Hz. These are important professional facilities for the research and development of electroacoustic products and technology, ensuring our leading position in the industry.

With advanced electroacoustic technology combined with China's precision industrial manufacturing, Swan products have excellent sound quality and cost performance. Swan 17 times honor CES Innovation Awards, including two Best of CES.

.

Some key points about HiVi Swan speakers:

1. Sound Quality:

HiVi Swan speakers are known for delivering clear, detailed sound with excellent imaging. The midrange is typically smooth, and the treble is crisp without being overly harsh.

Bass response is solid, especially for bookshelf speakers, though the larger floor-standing models will give you a more immersive low-end experience.

2. Design:

The Swan series is often praised for its stylish and elegant aesthetics. The speakers usually come in a wooden finish (like walnut or piano black), which complements most modern home decor.

The design also often emphasizes high-quality materials like metallic driver cones and high-end crossovers, ensuring durability and performance.

3. Connectivity:

HiVi Swan speakers are often active (powered), meaning they come with their own built-in amplifiers, which makes them easy to set up, especially for casual users who don’t want to mess with external amplifiers.

4. Use Cases:

Perfect for audiophile listening, home theater setups, and even studio monitoring if you're looking for accuracy in sound reproduction.

They pair well with a variety of audio sources like computers, smartphones, or high-end audio equipment.

.

Popular Models:

HiVi Swan OS-10 active: The Swan os-10 4"Bluetooth Stereo Active Speaker is more than beauty. It has wonderful Hi-Fi sound, smooth aesthetic fashion style, professional acoustics everywhere and is innovative and charming.The OS10 speakers often come with multiple input options, such as Bluetooth, USB, optical, and analog RCA inputs, giving you a wide variety of ways to connect to different devices.

You can connect them to computers, TVs, smartphones, or even game consoles.

HiVi Swan D300 active: A popular active bookshelf speaker model that is known for its clarity and balance. The Swan D300 are compact but offer excellent sound quality for their size.

HiVi Swan D3.2MKIII Tower Speakers: The Swan D3.2MKIII Tower is high-end floor-standing model, featuring powerful bass and refined high frequencies, often a go-to choice for audiophiles who want an immersive experience.

HiVi Swan M300MKII: Known for a smooth and transparent sound profile with impressive midrange clarity. The HiVi Swan M300MKII is a great choice for get perfect sound in compact space.

.

We offer in our catalogue also a lot of separate components and kit Diy of HIVI Swan:

Woofers B-Series:The bronze/aluminium alloy cones, rubber surrounds cosmetic steel frames and shielded motor structures are the distinguishing features of the HiVi B Series full-range speakers. The HiVi B4N and the HiVi B3N Bass-midwoofers are capable of covering a wide portion of the audio spectrum, and the magnetically shielded design allows use in the centre channel and other multimedia applications.

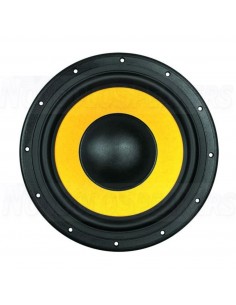

Woofers F-Series:The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure. The HiVi F8 woofer utilizes a Kevlar and paper composite cone that has a lower weight, higher rigidity, and an improved damping factor. The HiVi F5  has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy. Its cone weighs less, is more rigid, and has an improved damping factor. The driver utilizes a central phase plug to avoid air compression and internal air volume resonance, as well as improving frequency response and dispersion. These drivers will perform superbly in a small box as a bass-midrange unit, especially when a subwoofer is employed. The recommended crossover frequency region for a two-way system design is 2-4 kHz

Woofers M-Series: A shielded magnet structure allows the HiVi M5N and the HiVi M4N to be incorporated easily into audio/video speaker applications. The drivers may be used in a small closed box as a midrange unit in a three-way system, and good extension (50 Hz) in a vented enclosure guarantees a great performance in a two-way two-driver or MTM configured system. The HiVi M8N has been optimized for extended and dynamic bass reproduction in vented systems. The clarity and accuracy provided by the unique one-piece aluminium/magnesium cone is remarkable.

HiVi Tweeters: HiVi combines a hand treated 1" fabric dome, a large non-resonant rear acoustic chamber, and a Ferrofluid cooled voice coil together in the HiVi TN25, creating a high-performance tweeter with a small faceplate for close driver placement. The HiVi SD1.1-A is a high-quality tweeter that utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response. With a large, fully shielded magnet structure, ferrofluid, and aluminium former, power handling is very good. The HiVi Q1R features a precisely manufactured German diaphragm which is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics. Transient response is improved via the use of ferrofluid and a copper-clad aluminium voice coil.

HiVi Planar Isodynamic Tweeters: Unlike other conventional tweeters and electrostatic speakers, the HiVi RT1C and HiVi RT2C-A have an extremely wide sound dispersion in the horizontal plane. At the same time, they have a well-controlled sound dispersion in the vertical plane. This helps to avoid disturbing floor and ceiling reflections in a home environment thus enhancing clarity and imaging accuracy.

.

HiVi DIY kits

HiVi offers two designs in Bookshelf DIY Kits: the HiVi DIY2.2-A and the HiVi DIY3.1-A. Both these kits come in two versions: Black and White. These kits include everything you need to build a 2-way and a 3-way pair of speakers. The boxes are unfinished MDF which you can paint or veneer. A vinyl black wood grain veneer is supplied which you can adhere to the box. Grill cloth and the grill frames are included. For the DIY3.1, all the components used in this kit, many of them like the isodynamic ribbon tweeter are also used in HiVi's much more expensive hi-end systems.
