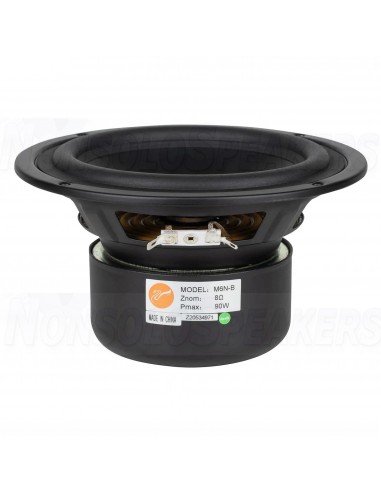

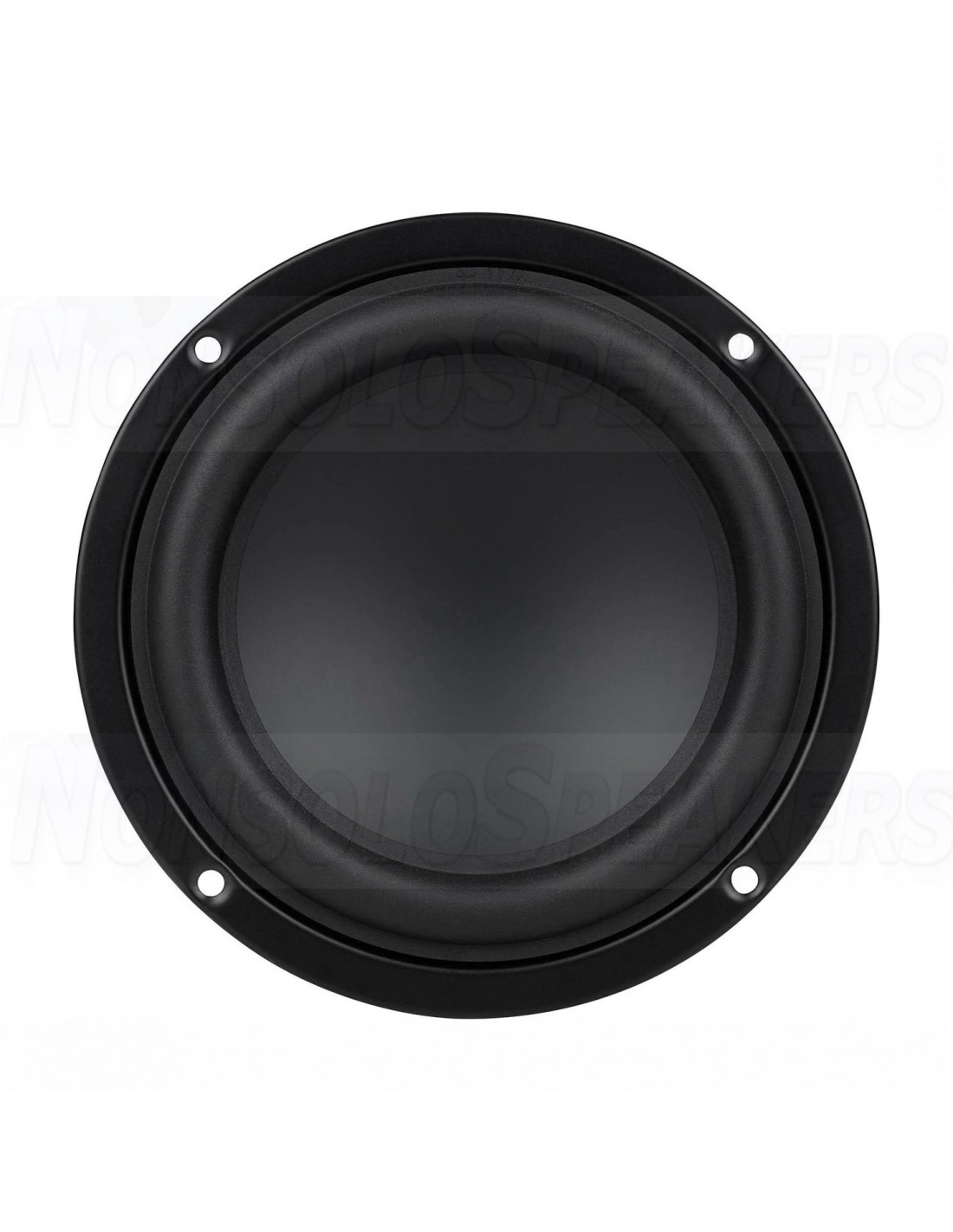

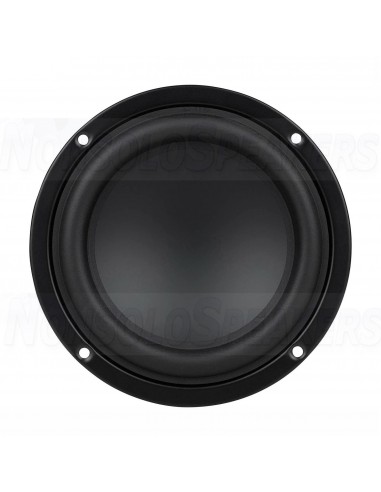

HiVi M6N-B 6" Damped Aluminum/Magnesium Cone Woofer

A shielded magnet structure allows the HiVi M6N-B to be incorporated easily into audio/video speaker applications.

.

Product Specifications

• Article number M6N-B
• Resonant Frequency (Fs) 46 Hz
• Total Q (Qts) 0.39
• Maximum Linear Excursion (Xmax) 4.3 mm

Highlights

• Symmetrical Motor Drive (SMD) reduces distortion
• Advanced magnesium/aluminum alloy cone provides optimal stiffness and damping
• Hi-temp voice coil and former for high power handling
• Magnetically shielded
• Dynamic, accurate performance

.

Product details

HiVi M6N-B 6" Damped Aluminum/Magnesium Cone Woofer

A shielded magnet structure allows the HiVi M6N-B to be incorporated easily into audio/video speaker applications. The driver may be used in a small closed box as a midrange unit in a 3-way system and the good extension (50 Hz) in a vented enclosure allows for use in a 2-way, two-driver or MTM configured system.

.
