Aiyima T5 Tube amplifier with 36V power supply

Aiyima T5 Tube amplifier with 36V power supply

Powerful output and low-frequency output: The T5 V2.0 mini tube amplifier can deliver 140 watts x 2 (4 ohms, 92 dB SNR, 0.1% THD). Equipped with a 32V5A power supply, it increases the low-frequency output to facilitate the connection of active speakers. When building a 2.1-channel system, the bass effect is significantly improved.
SHIPMENT IN 7-10 WORKING DAYS
€141.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Aiyima T5 Tube amplifier with 36V power supply

.

Powerful output and low-frequency output: The T5 V2.0 mini tube amplifier can deliver 140 watts x 2 (4 ohms, 92 dB SNR, 0.1% THD). Equipped with a 32V5A power supply, it increases the low-frequency output to facilitate the connection of active speakers. When building a 2.1-channel system, the bass effect is significantly improved.

.

Highlights

  • Brands Aiyima
  • Maximum load: 160 W*2 (32 V)
  • Output power: 140 W*2 4 Ω load

.

Product details

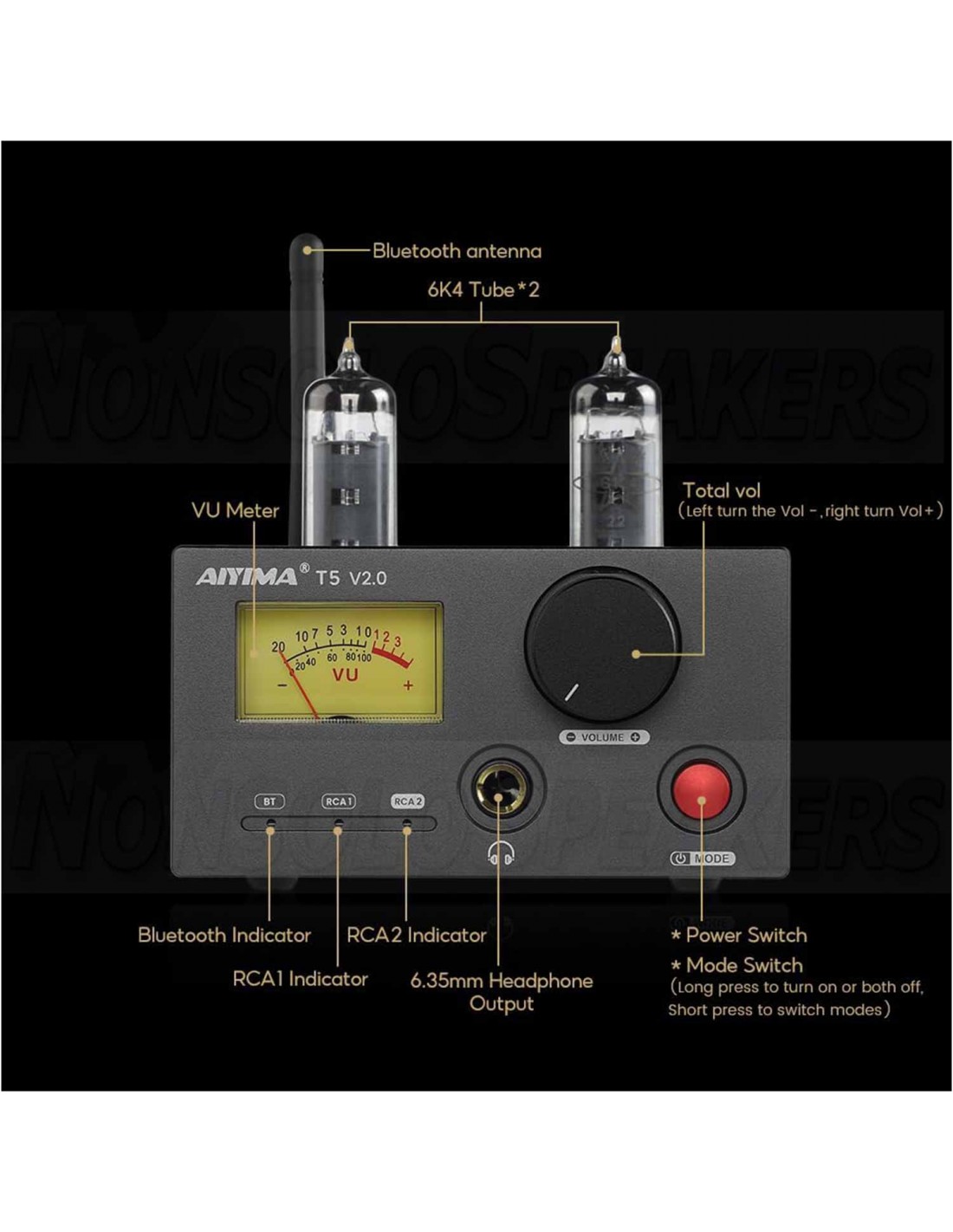

Retro vacuum tube: Using a 6K4 vacuum tube, the sound is softer and the digital feel is filtered out. The sound is warm and sweet without noise.

Interchangeable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6J1P, 6AK5, etc. You can replace the tubes according to your needs.

Retro vacuum tube: The 6K4 vacuum tube is used to soften the sound and filter out the digital feeling. Multiple digital audio inputs: Supports Bluetooth/RCA1/RCA2 input, compatible with a wide range of multimedia audio sources such as mobile phones, tablets, computers, MP3 players, TVs, etc.

The T5 V2.0 desktop amplifier can be used as a stereo headphone tube amplifier, with a 6.35 mm headphone output and a headphone output for 16-300 Ω. For headphones, the headphone amplifier's output power is 125 mW (32 Ω), allowing you to enjoy high-quality, lossless music at any time.

Unique and stunning design: The T5 V2.0 headphone amplifier features a VU meter that's so small that the meter moves when listening to hi-fi music, creating a retro feel.

Compatible with a variety of op-amp chips: If you want to personalize your audio experience with the T5 V2.0 op-amp rolling function, you can try using a compatible 8-pin dual op-amp chip, such as: OPA2604AP, OPA2134, MUSE02, OPA2107AP, etc.

.

Technical Specifications

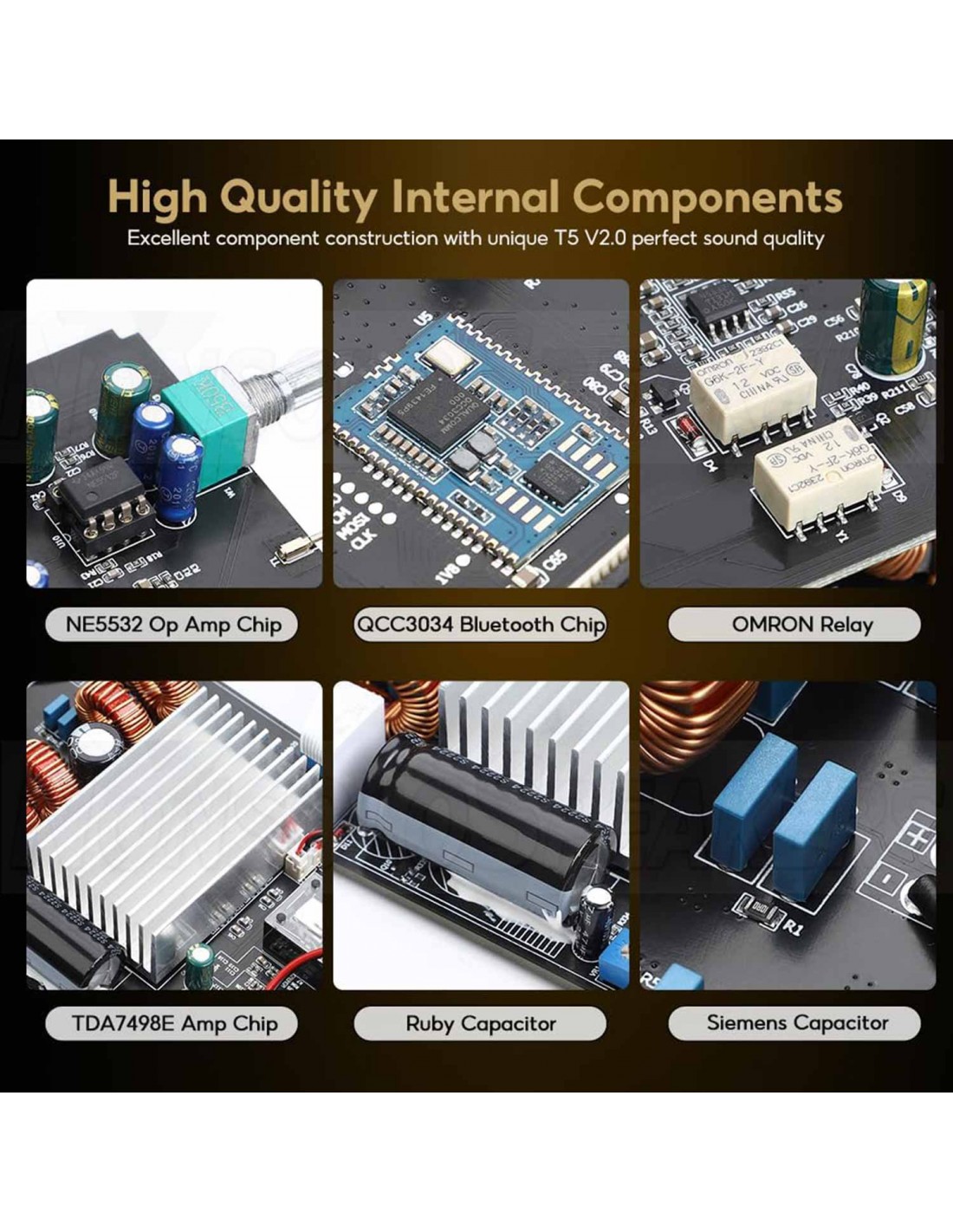

  • Chipset: 6K4+TDA7498E*1+NE5532P*2+NJM4580+QCC3034+HT97220
  • Op-amp chip: NE5532P*2, Replaceable chips: OPA2604AP, OPA2134, MUSE02, OPA2107AP, etc.
  • Tube model: 6K4, Replaceable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6J1P, 6AK5, etc.
  • Bluetooth chip: QCC3034 (Bluetooth 5.1)
  • Supports: SBC, AAC, APTX, APTX-HD, APTX-LL
  • Distortion (THD): 0.1 percent
  • Signal-to-noise ratio: ≥92 dB
  • Frequency response: 20-20 kHz (±3 dB)
  • Speaker impedance: 2-8 Ω
  • Output power: 140 W*2 4 Ω load
  • Maximum load: 160 W*2 (32 V)
  • Headphone output power: 125 mW (32 Ω)
  • Headphone impedance: 16-300 Ω

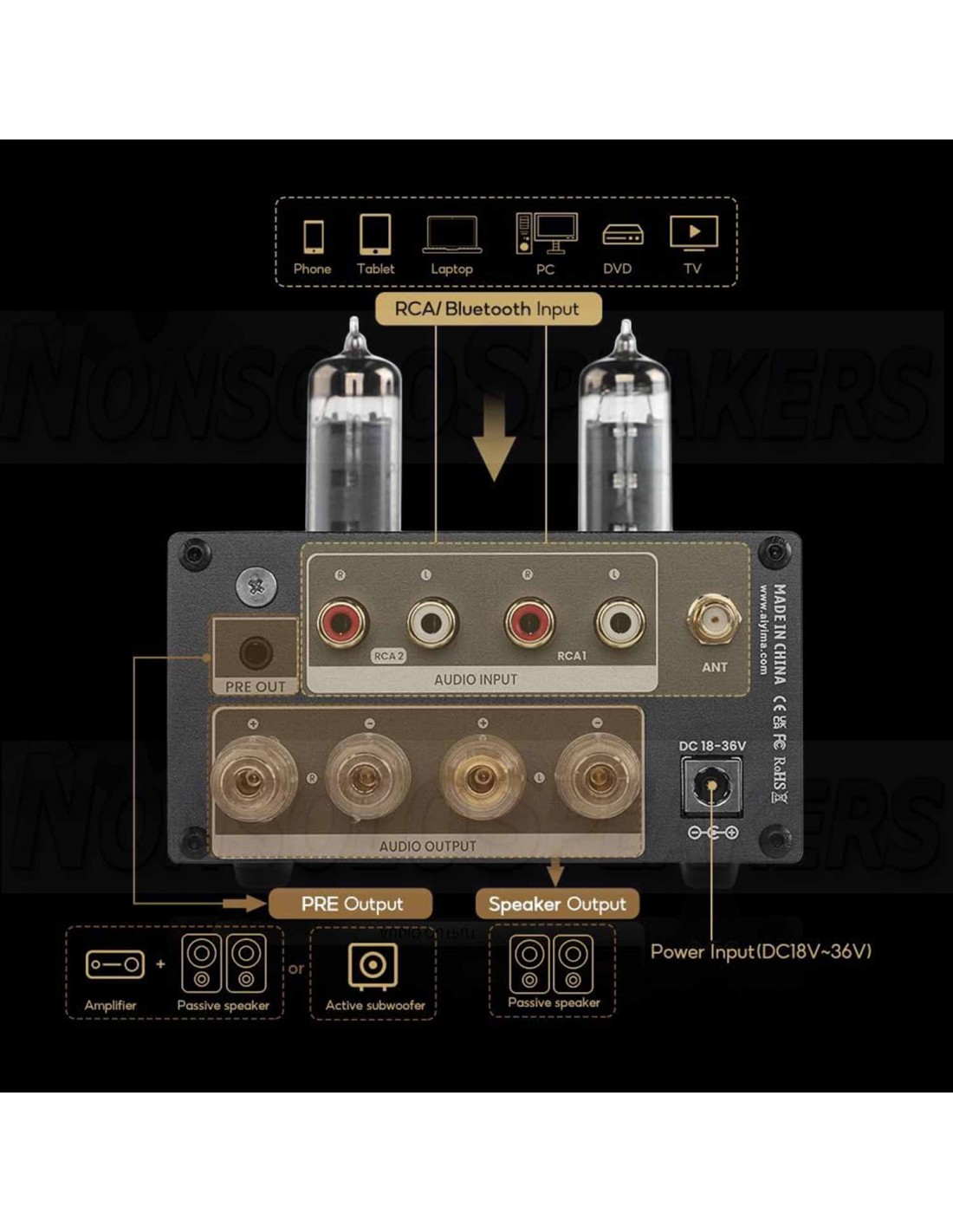

  • Input mode: Bluetooth / RCA1 / RCA2
  • Supported devices: Mobile phones, tablets, computers, MP3 players, TVs, etc.
  • Output mode: Passive speaker Working power supply: DC 18-32 V

Package included:

*1 T5 amplifier
*1,32 V power adapter
*1 manual

.

Aiyima T5
1 Item
New

Aiyima is a brand that specializes in audio equipment, particularly amplifiers, speakers, and other related audio components. They are known for offering high-quality products at relatively affordable prices, often targeting audiophiles and enthusiasts who want good sound performance without breaking the bank.

Some of their popular products include:

  1. Aiyima Amplifiers – They produce both integrated and power amplifiers, often using Class D or Class AB technology. The Aiyima TPA3255 amplifier, for example, is quite popular due to its clean power output and efficiency.

  2. Aiyima DACs (Digital-to-Analog Converters) – These are designed to improve audio quality by converting digital signals into analog with high precision.

  3. Aiyima Speakers – While not as widely known as their amplifiers, Aiyima does offer speakers and other audio accessories, such as preamps and tube amplifiers.
