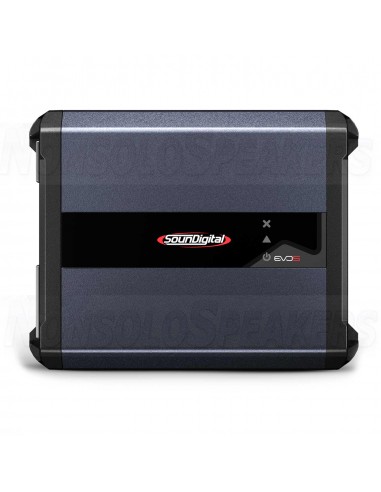

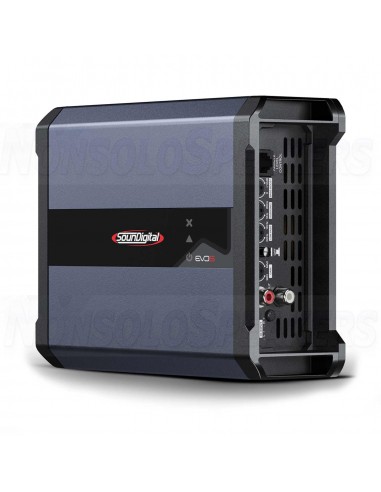

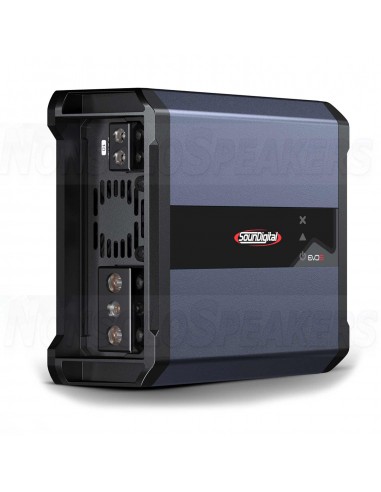

SounDigital SD1200.1 EVO 5 - 2 Ohm 1 Channel amplifier
SounDigital SD1200.1 EVO 5 - 2 Ohm 1 Channel amplifier
The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS
Frequency Response (-3dB): 5Hz ~ 25kHz
You might also like
SounDigital SD1200.1 EVO 5 - 2 Ohm 1 Channel amplifier
The 1200.1 EVO 5 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1200 WRMS
Power @ 4Ω: 1 X 792 WRMS
Frequency Response (-3dB): 5Hz ~ 25kHz
Subsonic Filter: 5Hz ~ 80Hz
Low Pass Filter: 50Hz ~ 1kHz
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 9V ~ 16V
Signal-Noise Ratio: 95dB
Input Sensitivity: 0.2V ~ 2V
Current Draw (Music): 1Ω: 54A, 2Ω: 52A
Current Draw (Max): 1Ω: 108A, 2Ω: 105A
Total Efficiency: 1Ω: 88%, 2Ω: 91%
Damping Factor: 2000
Power Cable:16mm² (5AWG)
Audio Output Cable:
1Ω: 2 x 4 mm² (6 AWG)
2Ω: 2 x 2,5 mm² (13 AWG)
Recommended Fuse (Music): 70A
Recommended Battery:70Ah
Width:13.6 cm / 5.4 in
Length: 18 cm / 7.1 in
Height: 5.48 cm / 2.2 in
Weight: 1,12 Kg
