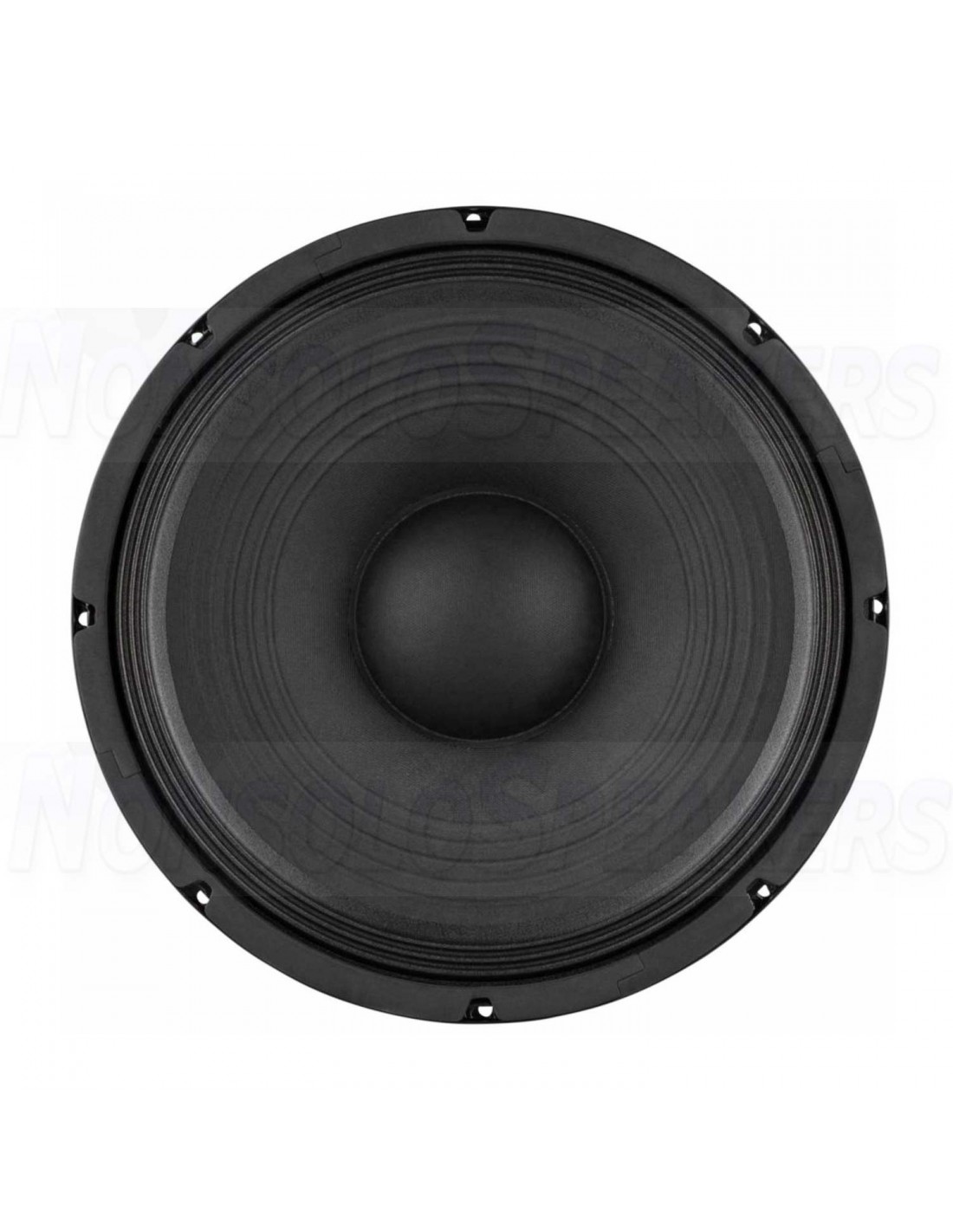

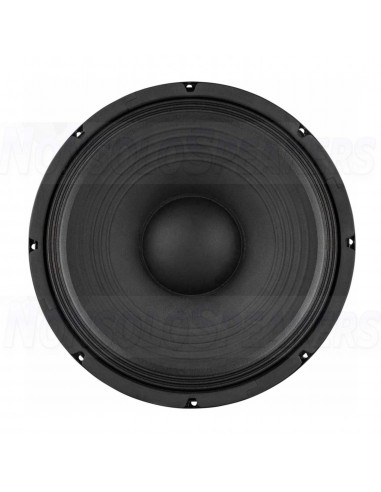

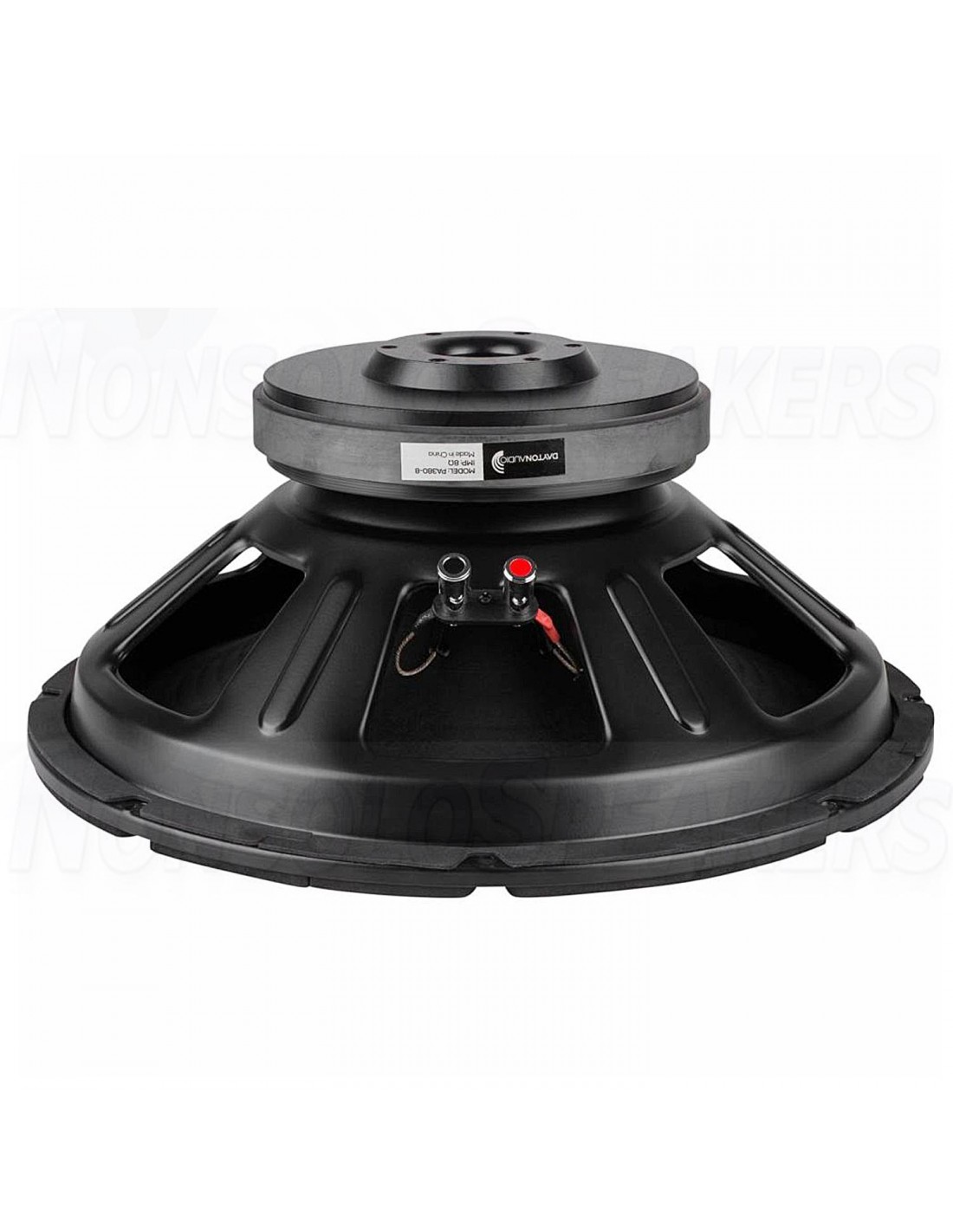

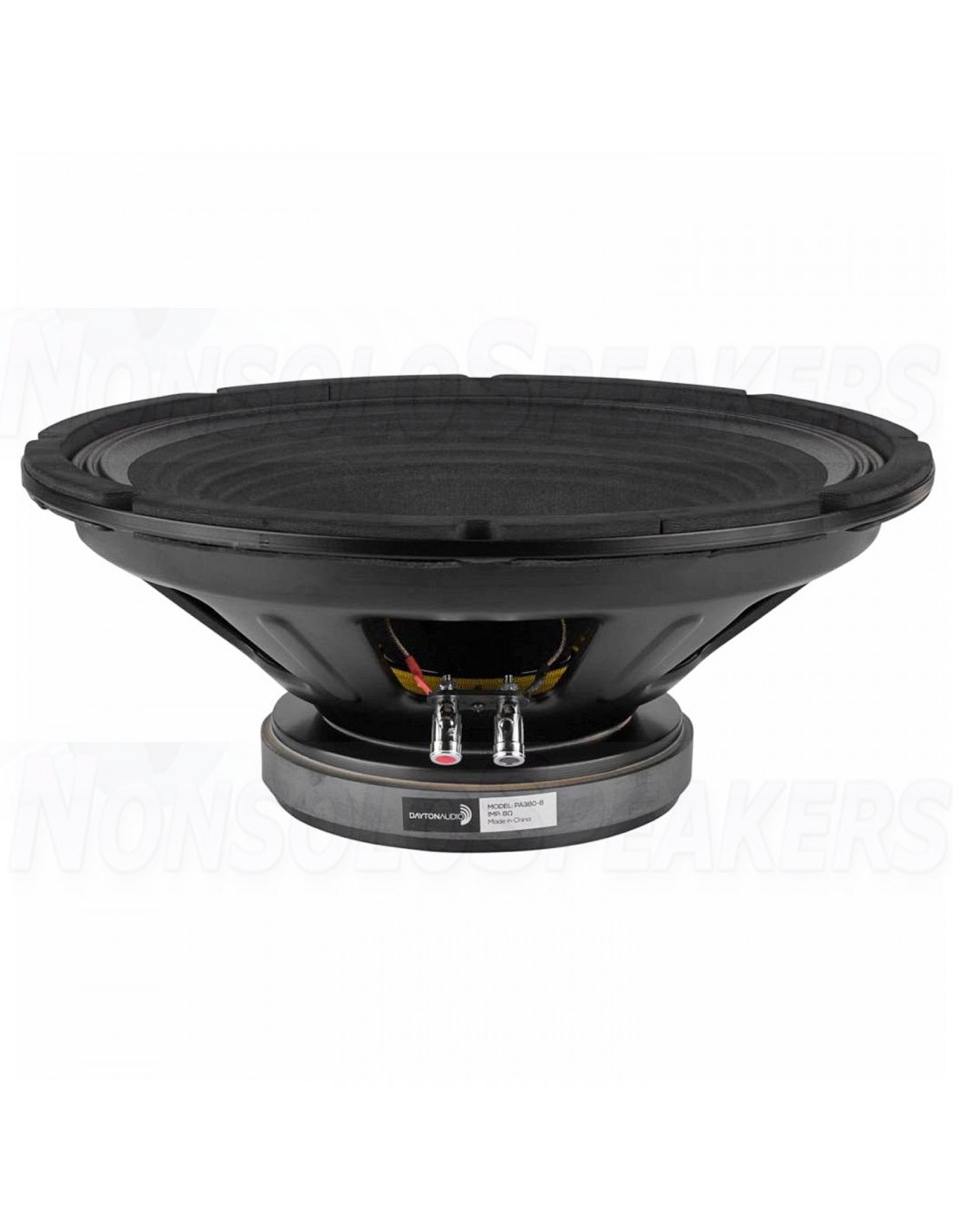

Dayton Audio PA380-8 15" Pro Woofer
SHIPMENT IN 7-10 WORKING DAYS
€159.71
€177.45
-10%
Tax included
No review at the moment
No review at the moment
0Dayton Audio PA380-8 15" Pro Woofer
Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.
You might also like
Dayton Audio PA380-8 15" Pro Woofer
Product description
Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.
.
Highlights
Strong, low-mass carbon fiber impregnated paper cone
I-beam rolled edge 1.5 mm steel frame
Low distortion motor system w/copper cap
Powerful 80 oz. ceramic ferrite magnet
Vented pole piece/vented voice coil gap improve thermal management
Black motor parts and black polyimide voice coil former dissipate heat
Bumped back plate for unrestricted excursion
.
Product details
Dayton Audio PA380-8 15" Pro Woofer
The Dayton Audio PA380-8 15" PA Series Pro Woofer is a powerful upgrade for guitar, bass guitar or sound reinforcement cabinets. The PA380-8 also excels in custom-built speaker system cabinets. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.
.
Specifications
Article number PA380-8
Woofer Series Pro Audio Series
Woofer Type Midwoofer
Nominal Diameter 15"
Power Handling (RMS) 500 watts
Power Handling (max) 1000 watts
Impedance (Z) 8 ohms
Sensitivity 96.1 dB @ 2.83V/1m
Frequency Response 28 - 3,500 Hz
Voice Coil Diameter 76 mm
Magnet Weight 80 oz.
DC Resistance (Re) 6.3 ohms
Voice Coil Inductance (Le) 4.12 mH @ 1 kHz
Resonant Frequency (Fs) 31.6 Hz
Mechanical Q (Qms) 12.20
Electromagnetic Q (Qes) 0.27
Total Q (Qts) 0.27
Diaphragm Mass Inc. Airload (Mms) 147g
Mechanical Compliance of Suspension (Cms) 0.17 mm/N
Surface Area of Cone (Sd) 845.0 cm²
Volume of Displacement (Vd) 422.5 cm³
BL Product (BL) 25.8 Tm
Compliance Equivalent Volume (Vas) 175 liters
Maximum Linear Excursion (Xmax) 5.0 mm
Cone / Diaphragm Material Paper / Carbon Fiber Cone
Surround Material Cloth
Voice Coil Wire Material Copper
Voice Coil Former Kapton® / Polyimide
Basket / Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 380 mm
Overall Depth 163 mm
Baffle Cutout Diameter 355 mm
# Mounting Holes 8
Sealed Volume 0.7 ft.³
Sealed F3 101 Hz
Vented Volume 1.55 ft.³
Vented F3 65 Hz
PA380-8
2 Items
New
Dayton Audio stands for speaker excellence
Dayton Audio has been designing and manufacturing high-quality audio components for more than 20 years. The brand has made a name for innovation, high quality, and values. The products of this premium DIY audio brand are produced in North America, Europe, and Asia. Dayton Audio products have received acclaim worldwide throughout the years and are often compared favourably to similar items costing far more.
Dayton Audio woofers
The dominant component in a majority of loudspeaker designs, woofers are responsible for much of a system's tone and character. Don't underestimate this cornerstone element—Dayton Audio has the perfect woofer for every application and budget. Discover some of Dayton’s high-quality audio woofers, such as the popular Dayton Audio Ultimax UM18-22 from the powerful Ultimax Series, the Dayton Audio RSS390HF-4 featuring ultra-low distortion or check out the never-failing Dayton Audio PS95-8 full-range woofer.
Tweeters from Dayton Audio
Although they are the smallest driver in most loudspeakers, tweeters play an important role in our auditory information perception. Clarity, articulation, imaging—Dayton Audio tweeters make your speaker system come alive! Discover the immense popular Dayton Audio air motion tweeters and dome tweeters! Dayton Audio tweeters, such as the Dayton Audio AMTPRO-4, provide ultra-clean, detailed, and dynamic treble output.
Dayton Audio Drivers by Series
Dayton Audio has created a comprehensive selection of speaker components for every application and budget, all of which you can find at Nonsolospeakers. Find some of the Dayton audio most popular driver series below.
Dayton Audio Reference Series
Dayton Audio's Reference Series is dedicated to the pursuit of supreme low-distortion high fidelity audio reproduction. The Dayton Audio Reference RS100-4 for example comes with a rigid yet lightweight anodized aluminium cone, enhanced motors with distortion-reducing devices, and carefully optimized T/S parameters result in accuracy and detail that are second to none.
Dayton Audio Designer Series
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that the Dayton Audio DS135-8 5" Designer Series Woofer can handle full rated power at the lowest possible frequencies—without exceeding Xmax. The series combines useful performance parameters with elegant style.
Dayton Audio Ultimax Series
Most low-frequency drivers smear, distort, or alter their input waveform. Ultimax DVC subwoofers by Dayton Audio, such as the Dayton Audio UM12-22 woofer, sweep a higher volume of air while preventing false, deceptive reproduction. They are designed to deliver powerful low-end response from modest-sized enclosures.
Dayton Audio amplifiers
Give your home entertainment system the power it deserves with an amplifier from Dayton Audio! Find out more about the Dayton Audio amplifiers, plate amplifiers, and amplifier modules. The manufacturer’s exceptional engineering, combined with rigorous testing, will provide you with years of faithful high-fidelity service. Find out more about some of the brand’s best-seller amplifiers, such as the Dayton Audio MA1260 & Dayton Audio MA1240a, as well as the Dayton Audio DTA 2.1 Bluetooth amplifier.
Dayton Audio Exciters & bass shakers
Exciters are compact devices that attach to surfaces and vibrate them mechanically. The vibrations translate into auditory information; the result is surprisingly musical and accurate. Test them on doors, ceiling panels, windows, projection screens—whatever excites you! Check out some of the brand's most sold exciters and transducers, such as the Dayton Audio DAEX32EP-4, DAEX30HESF-4, and the BST-1 bass shaker!
Dayton Audio Test & Measurement equipment
Design better speakers and optimize their in-room performance. Dayton Audio test and measurement products take the guesswork out of determining loudspeaker parameters and room interactions—providing an authoritative, easy-to-use method of achieving superior results. Discover the brand’s easy to use DATS V3 measurement system (the upgraded version of de Dayton Audio DATS V2) or take control of your audio system with the DSP-408 Digital Signal Processor.
Dayton Audio Home Audio Speakers
Dayton Audio not only offer audio component, amplifiers, and crossover components. In case you do not feel like a DIY project, pre-assembled home audio speakers from Dayton Audio might be the right alternative for you. These speakers are equipped with high quality audio components and offer a audiophile-friendly sound quality. The Dayton Audio B652-AIR 6-1/2" 2-Way Bookshelf Speaker with AMT Tweeter Pair, for example, are known for their pleated ribbon diaphragm AMT tweeters that add an extra portion of smoothness to the already overall great sound experience. Dayton Audio B652-AIR speakers take a big step up, thanks to the addition of a higher-quality AMT tweeter. The AMT's folded Kapton ribbon diaphragm moves more air but with less effort and distortion, for purer and satisfyingly dimensional sound.
You might also like
16 other products in the same category:
Subwoofer 15" for car

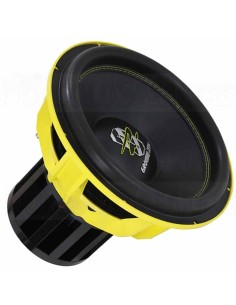

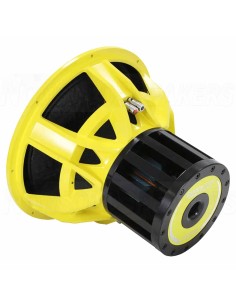

GROUND ZERO GZNW 38NEO-SPL 38 cm High-Power Langhub-Subwoofer
