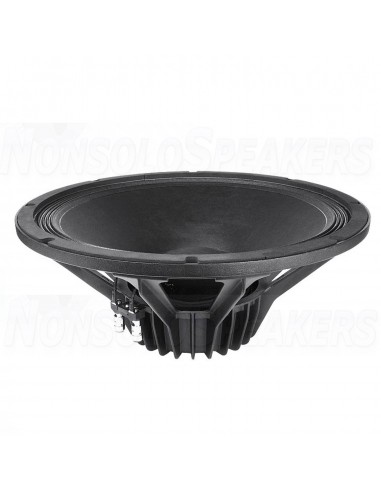

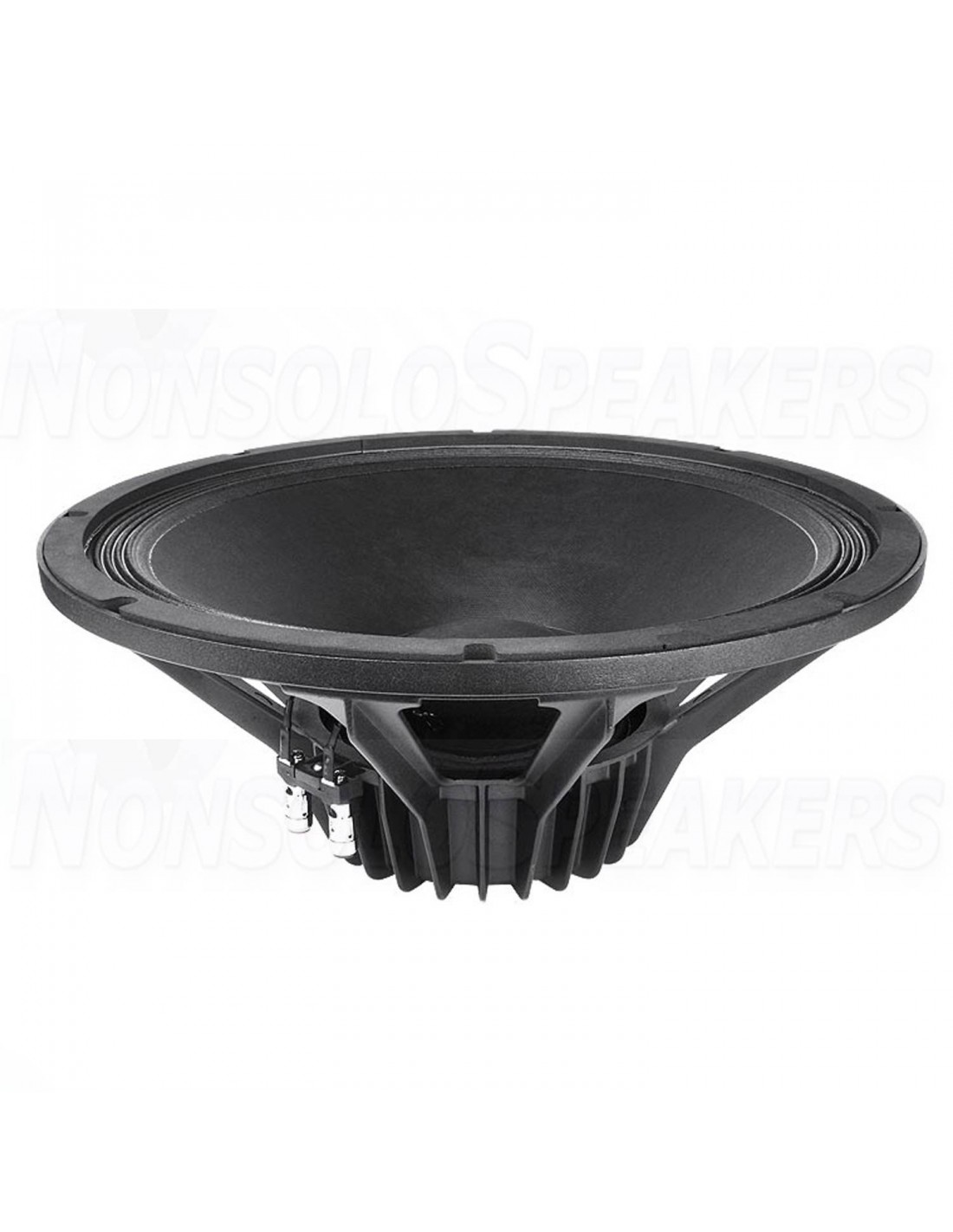

Faital 15PR400 FaitalPRO - Midwoofer 15" - 8 ohm

Faital 15PR400 FaitalPRO - Midwoofer 15" - 8 ohm

SHIPMENT IN 7-10 WORKING DAYS
€268.84 €282.99 -5%
Tax included
rating No review at the moment

Faital 15PR400 FaitalPRO - Midwoofer 15" - 8 ohm

Estimated Shipping Costs
Shipping Costs
€19.20
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 15PR400 FaitalPRO - Midwoofer 15" - 8 ohm

NOMINAL SPECIFICATIONS

Nominal Diameter380 mm (15 in)
Overall Diameter393 mm (15.47 in)
Bolt Circle Diameter374 mm (14.72 in)
Baffle Cutout Diameter356 mm (14.02 in)
Depth165 mm (6.50 in)
Flange and Gasket Thickness13.1 mm (0.52 in)
Net Weight3.6 Kg (7.9 lb)
Shipping Box
(Single Carton Box)		430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight4.7 Kg (10.4 lb)



TECHNICAL PARAMETERS

Nominal Impedance8 Ohm
Minimum Impedance5.9 Ohm
AES Power Handling (1)400 W
Maximum Power Handling (2)800 W
Sensitivity (1W/1m)99 dB
Frequency Range35÷4000 Hz
Voice Coil Diameter77 mm (3 in)
Winding MaterialAl
Former MaterialGlass Fiber
Winding Depth15 mm (0.59 in)
Magnetic Gap Depth10.5 mm (0.41 in)
Flux Density1.15 T
MagnetNeodymium Slug
Basket MaterialAluminum
DemodulationNo
Cone Surround (3)Accordion (4 waves)
NET Air Volume filled by Loudspeaker3.7 dm^3 (0.131 ft^3)
Spider Profile1x constant height waves


QUICK ACOUSTIC SPECS

Nominal Impedance8 Ohm
Minimum Impedance5.9 Ohm
AES Power Handling (1)400 W
Sensitivity (1W/1m)99 dB
Frequency Range35÷4000 Hz
Flux Density1.15 T
MagnetNeodymium Slug
DemodulationNo
Cone Surround (2)Accordion (4 waves)
Fs35 Hz
Re5.1 Ohm
Qes0.34
Qms6.0
Qts0.32
Vas248.9 dm^3 (8.79 ft^3)
Sd857 cm^2 (132.84 in^2)
Xmax (3)5.75 mm
Xdamage (4)15.5 mm
Mms85.2 g
Bl16.7 N/A
Le0.72 mH
Mmd56.8 g
Cms0.24 mm/N
Rms3.1 Kg/s
Eta Zero3.02 %
EBP103 Hz


QUICK MECHANICAL SPECS

Nominal Diameter380 mm (15 in)
Overall Diameter393 mm (15.47 in)
Bolt Circle Diameter374 mm (14.72 in)
Baffle Cutout Diameter356 mm (14.02 in)
Depth165 mm (6.50 in)
Flange and Gasket Thickness13.1 mm (0.52 in)
Net Weight3.6 Kg (7.9 lb)
Shipping Box
(Single Carton Box)		430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight4.7 Kg (10.4 lb)

15PR400
