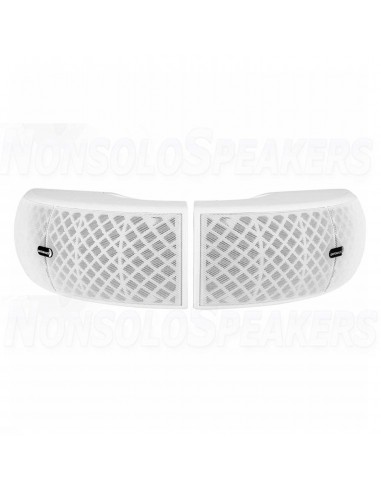

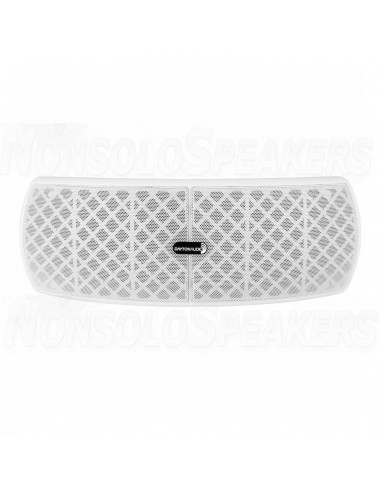

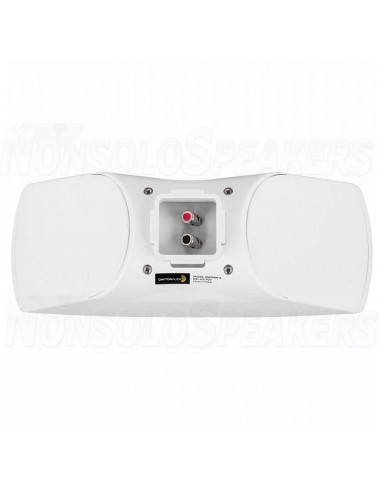

Dayton Audio QS204W-4 passive quadrant speakers

Product description

Dayton Audio QS204W-4 speakers feature an innovative and modern "quadrant" shape that lets you create arrays of multiple speakers for ultra-wide sound dispersion. The robust, reliable design is 70 volt and 100 volt enabled for commercial audio systems, and weather-resistant for outdoor placement.

.

Highlights

Quadrant quarter-arc form factor permits circular arraying

70V / 100V transformer built in for distributed applications

Dual 10.2cm woofers and 2.54cm treated dome tweeter provide punch and articulation

Durable white ABS enclosure and metal grill resist the elements

Clean, modern styling complements any installation

Optional 4-way mounting bracket kit creates a 360 degree ring of sound when used with two pairs of QS204W-4

.

Product details

Dayton Audio QS204W-4 Quadrant 70V / 100V Indoor/Outdoor Speaker Pair with 4 Ohm Bypass – White

Great sound goes full circle with the sleek, modern design of the Dayton Audio QS204W-4 "Quadrant Speaker." Developed for commercial applications requiring high performance and high style, the QS204W-4 speaker allows virtually endless possibilities for mounting and installation via its clever multi-angle mounting bracket. Thanks to the expertly tuned acoustic package of dual 10.2cm poly-cone woofers and 2.54cm treated dome tweeter angled for superior dispersion over a wide area, the QS204W-4 delivers punch, presence, and clarity normally associated with high-fidelity loudspeakers for the home.

The sturdy enclosure of the QS204W-4 is made from weather-inert and UV-resistant ABS plastic, with integrated aluminum grill to prevent pest ingress or foreign object damage. A concealed structural matrix behind the grill material prevents denting from impacts. An internal 70V / 100V transformer makes these speakers fully distributed-application ready, and a convenient front-mounted selector switch behind the removable grill makes it easy to set the right audio level, or to select 4 ohm operation for use with stereo receivers and multi-room amplifications.

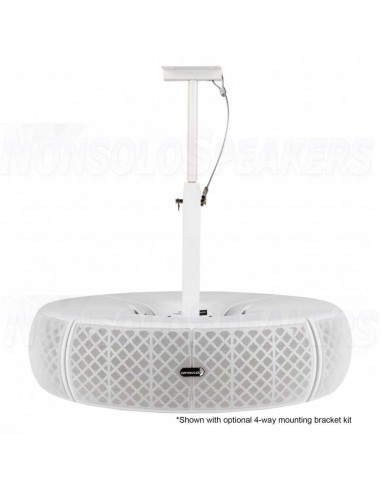

The included multi-angle mounting brackets permit mounting one, two, or three QS204W-4 speakers at 90 degree intervals in either vertical or horizontal orientation, for true application flexibility. Mount two units together on a wall to create 180 degree coverage, or install a single unit vertically in the corner between a wall and a ceiling for a stylish "sconce" appearance and wide dispersion. Using the optional QS204PB 4-way pole mounting bracket, you can even create a 360 degree ring of quality sound in an open space.

.

Specifications:

• Woofer: dual 10.2cm mineral-filled polypropylene • Tweeter: 2.54cm treated silk dome • Frequency response: 70 - 20,000 Hz • Impedance: 70V with 4 ohm bypass • 100V taps: 40, 20, 10, 5 watts • 70V taps: 40, 20, 10, 5, 2.5 watts • Power handling: 40 watts RMS/75 watts peak • SPL: 87 dB 1W/1m • Ingress protection rating: IP51 • Color: white • Dimensions (H x W x D): 13.7cm x 38.6cm x 26.2cm • Weight: 3.4 kg.

Note: Do not select the 4 ohm transformer tap when the QS204W-4 is used as part of a 70V / 100V distributed audio system. Damage to the loudspeaker or amplifier may result.

.

Product Specifications

Input Rating 4 ohm, 70V, 100V

Special Features Indoor / Outdoor, Water Resistant

Woofer Diameter 10.2cm

Configuration Dual Woofer (MTM)

Color White

Dayton Audio QS204W-4
