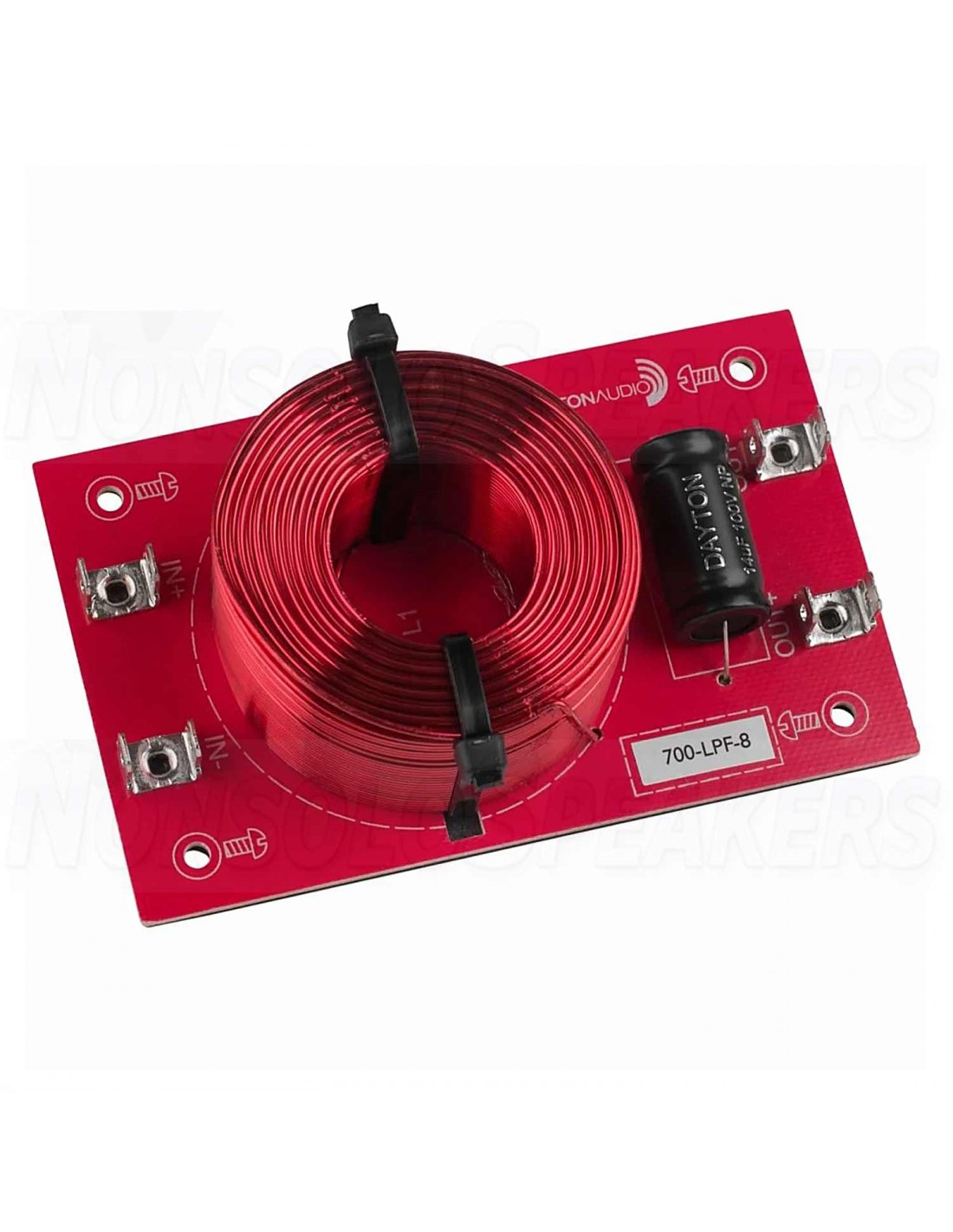

Dayton Audio 700-LPF-8 Low Pass Speaker Crossover 0.7 kHz 12 dB/Octave, 8 Ohm

.

Product description

This 2nd order (i.e. 12 dB per octave) low pass Linkwitz-Riley filter from Dayton Audio passes frequencies below the given frequency and can easily be combined with other filters in this series to create 2-way or even 3-way crossover networks. Designed for use with 8 ohm drivers.

.

Highlights

High quality air core inductors in series with the driver

High quality components are securely fastened to PCB

Frequencies can be staggered or overlapped for desired response

High quality red PC board with EVA backing to prevent shorts and vibration

Dual 0.205" terminals at each connection point for easy parallel wiring

Mounts to our 5" X 7" blank terminal plate

.

Product details

Dayton Audio Low Pass Speaker Crossover 12 dB/Octave, 8 Ohm

Dayton Audio's premium inline passive filters make it easy to limit a driver's frequency response to a specific desired bandwidth. By using combinations of these filters you can create complete 2-way or 3-way crossovers. The components used in each of these are the same high quality you have come to expect from Dayton Audio.

This 12dB/octave low pass filter can be combined with our 500 Hz high pass for a 2nd order Linkwitz-Riley crossover, which sums for flat transfer function across the crossover frequency. In addition, you can stagger or overlap filter frequencies to overcome peaks and dips in individual drivers' frequency response to create crossovers that acoustically sum flat across the crossover point.

.

Specifications:

Type: Low Pass Filter

Reference 700-LPF-8

0.7 kHz 12 dB/Octave

Impedance: 8 ohms

Power handling: 250 watts
