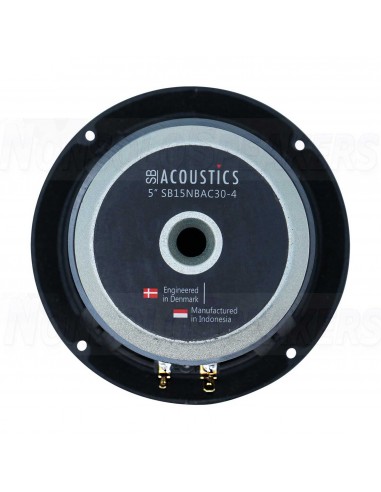

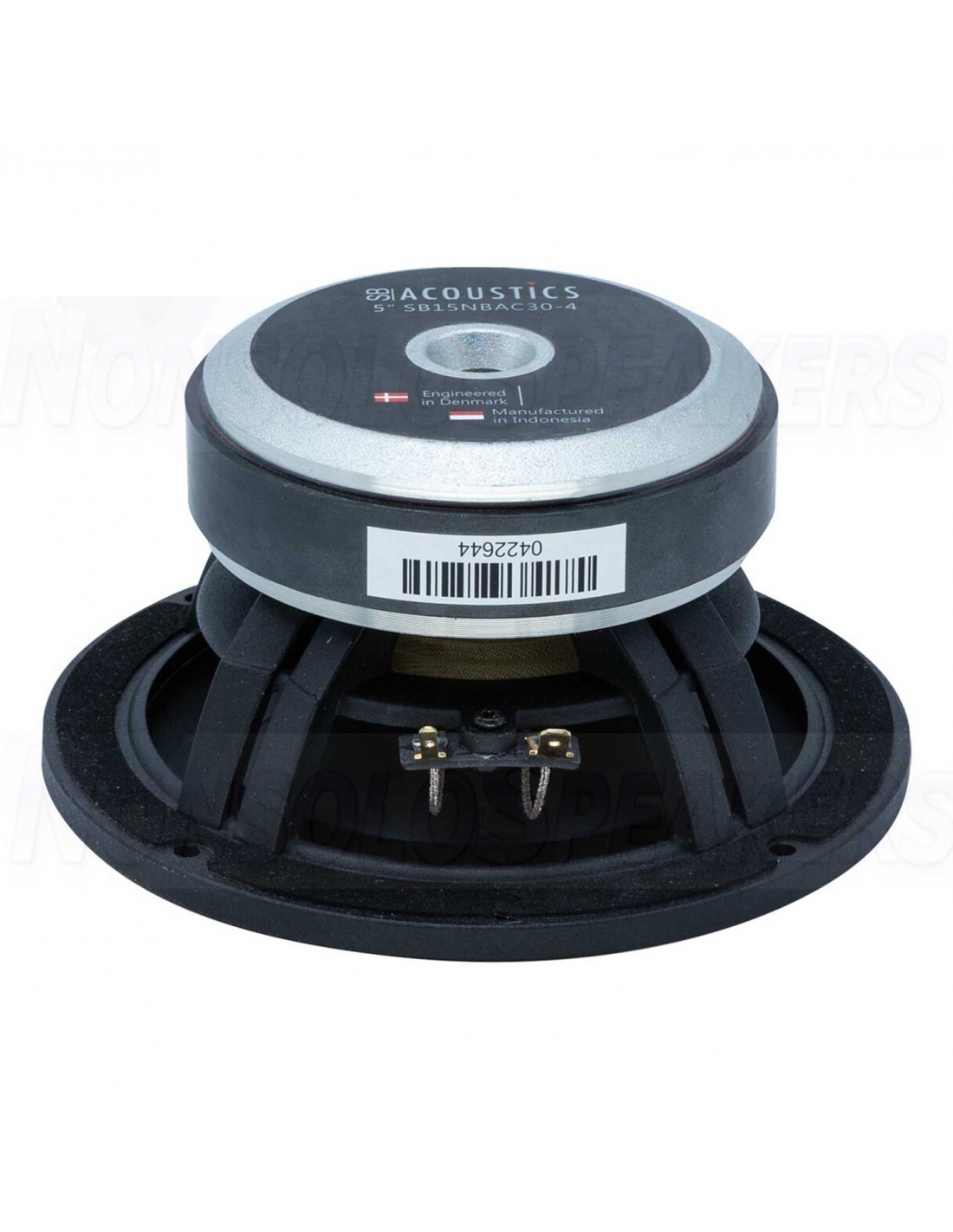

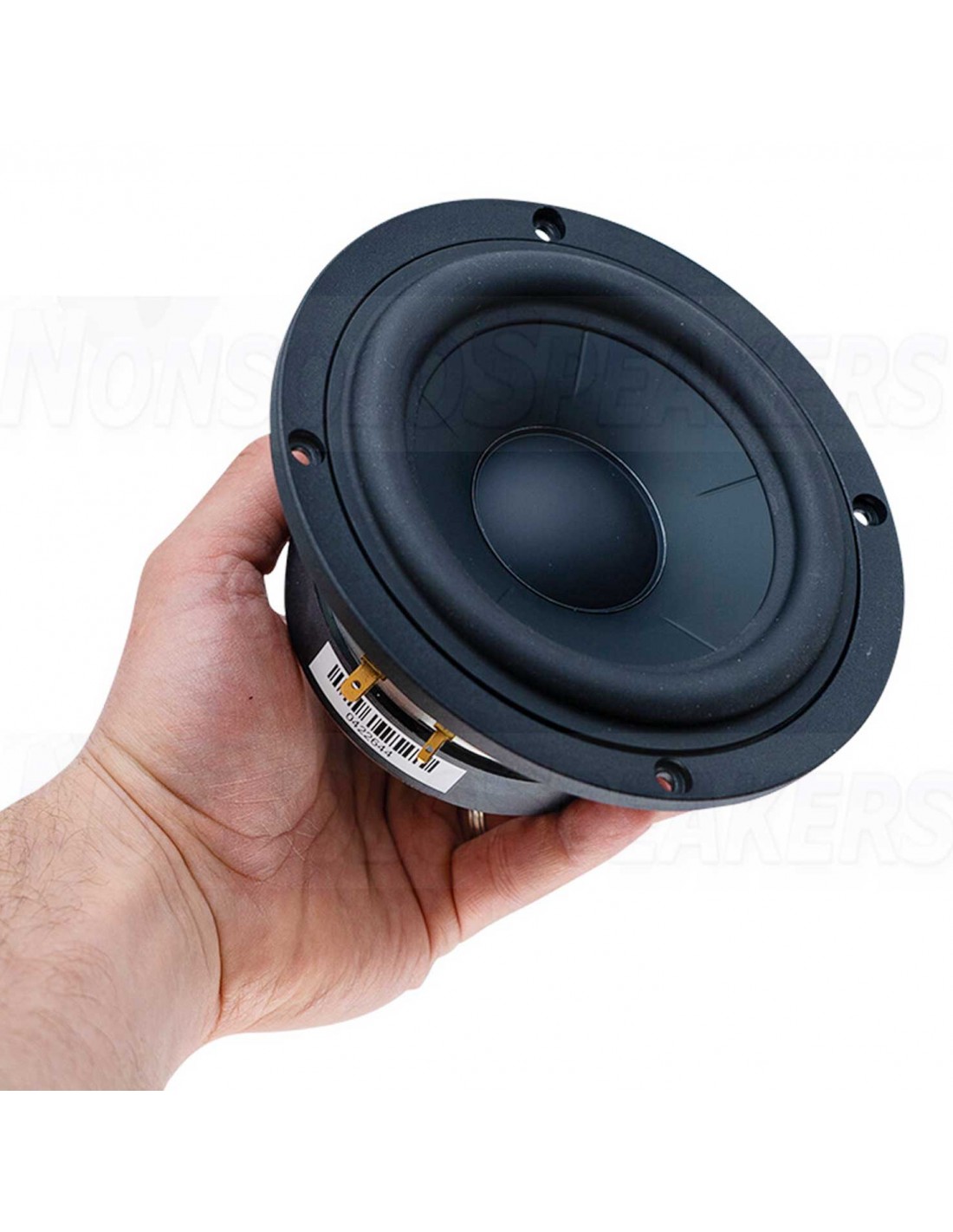

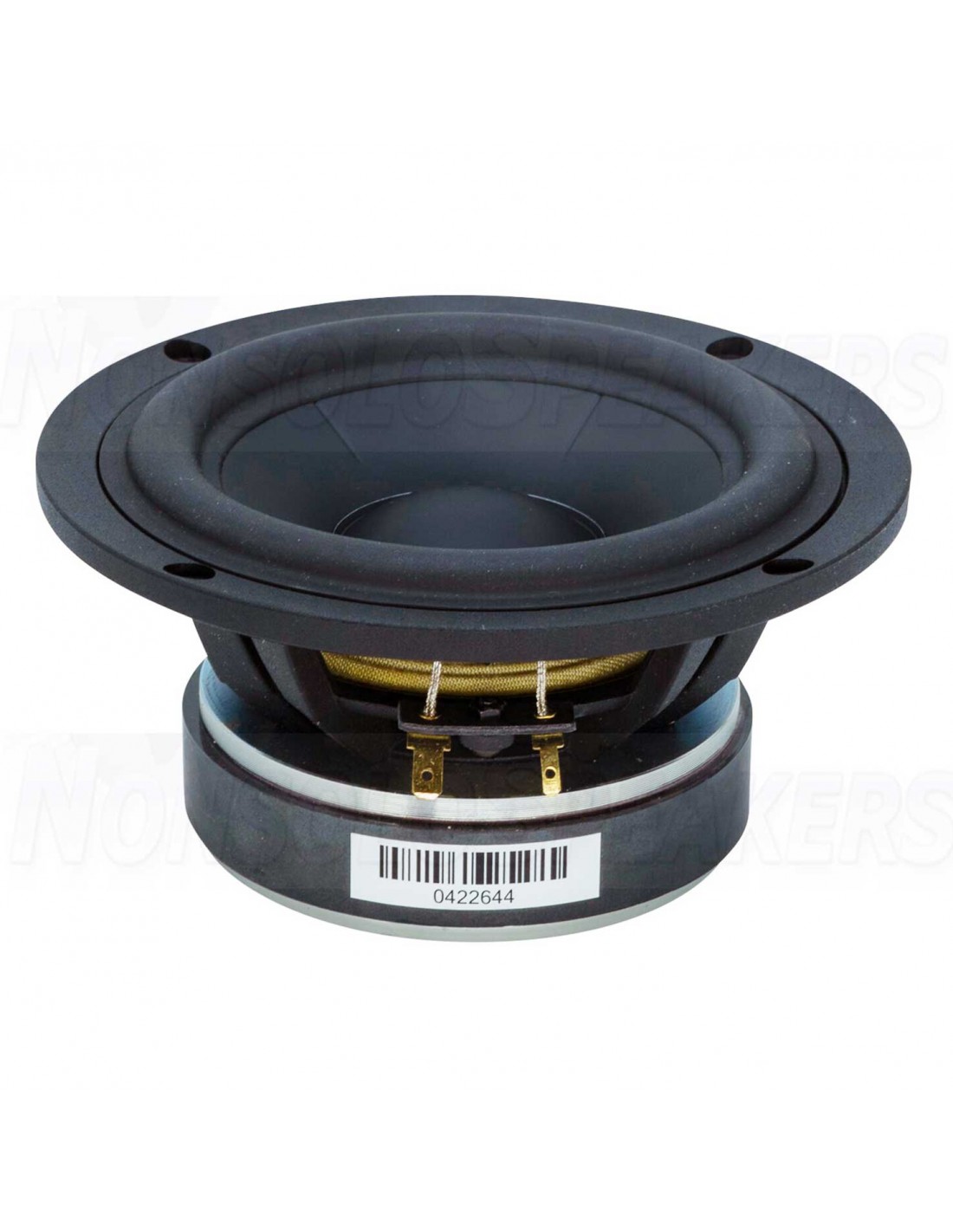

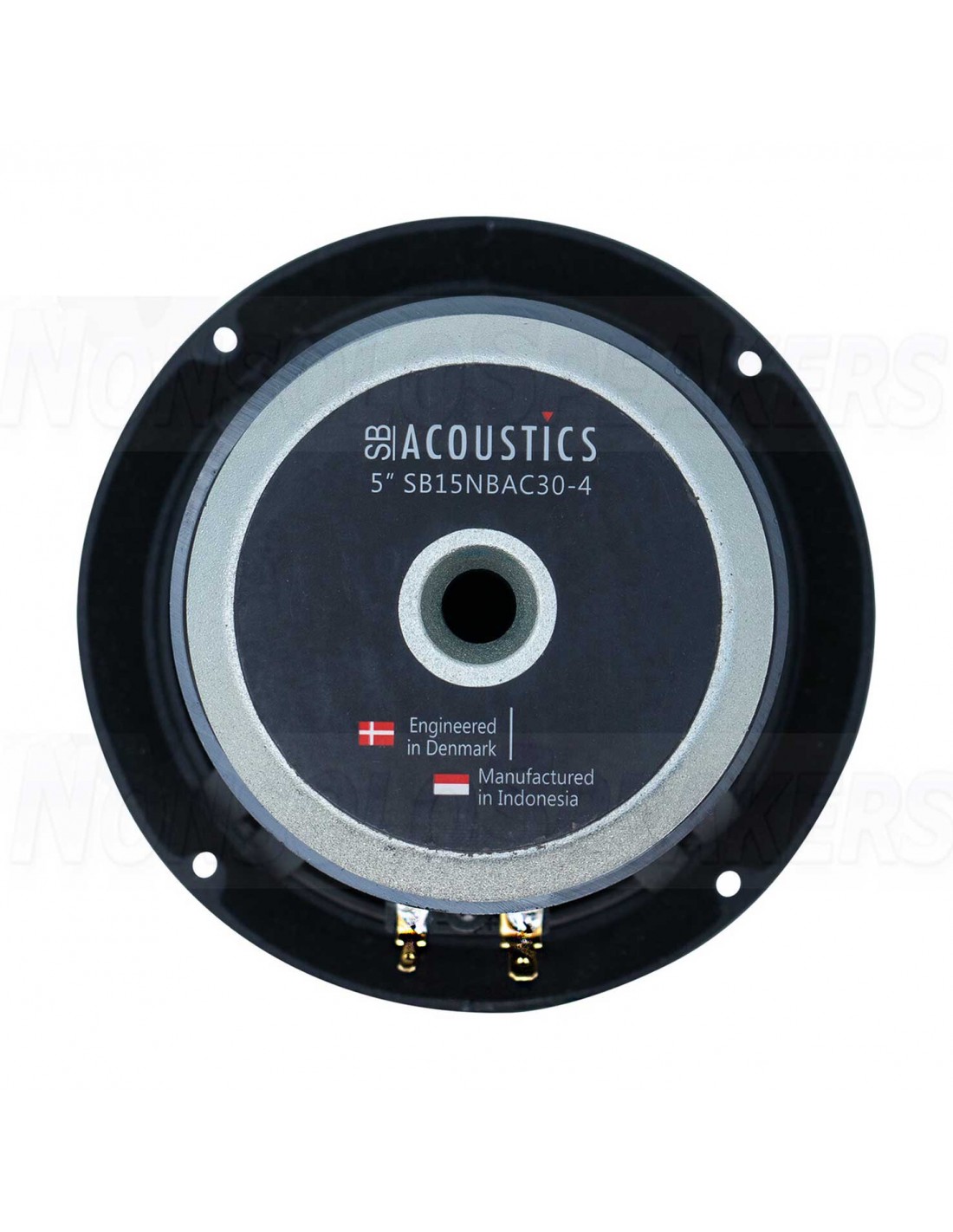

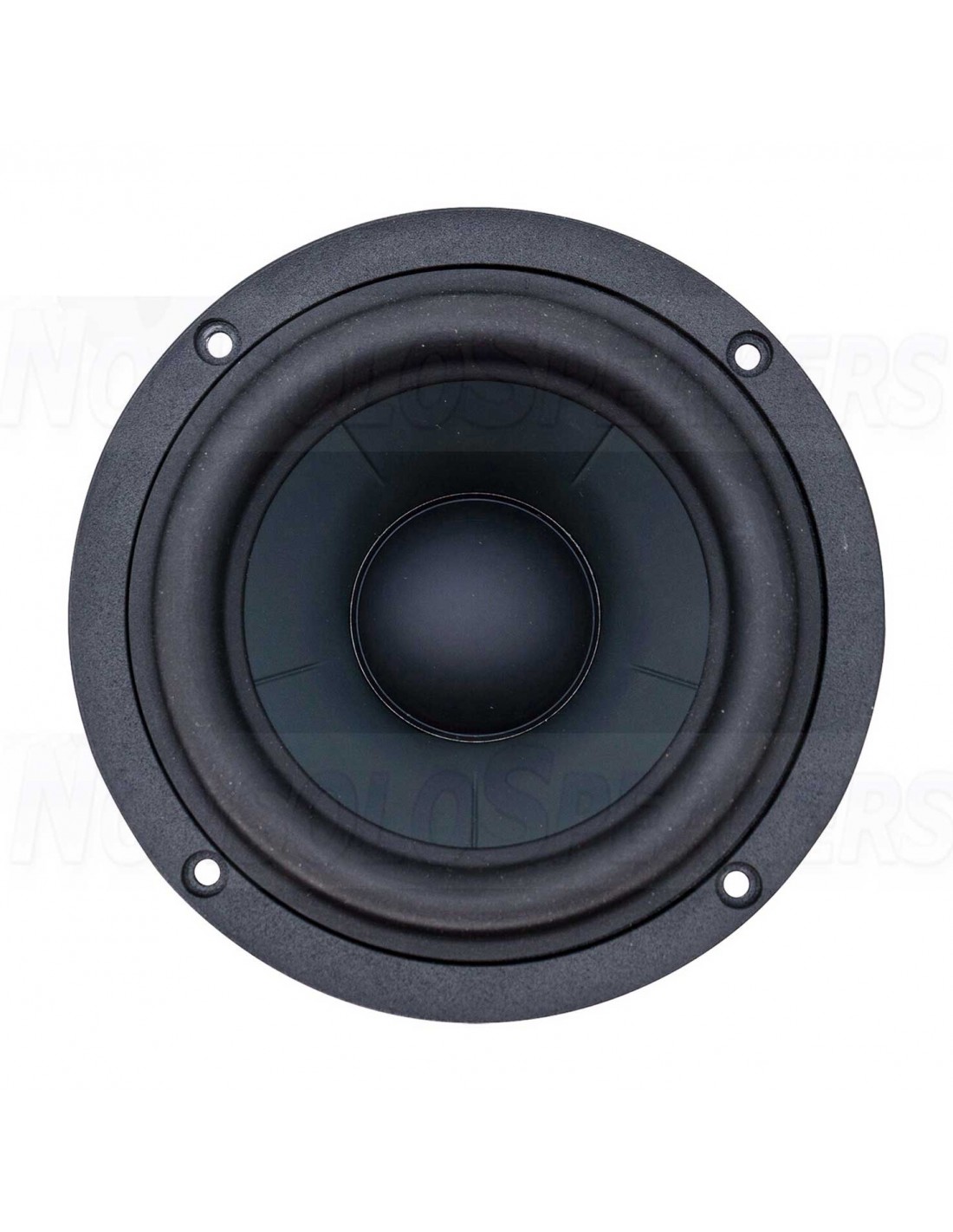

SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

SHIPMENT IN 7/10 WORKING DAYS
€78.80 €82.95 -5%
Tax included
rating No review at the moment

SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression.

Variants
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass
SB Acoustics SB15NBAC30-8 5" Black Aluminum Cone Mid-bass

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

.

Product description

Vented cast aluminum chassis for optimum strength and low compression

Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up

Soft low damping rubber surround for improved transient response

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

SB Acoustics SB15NBAC30-4 5" Black Aluminum Cone Mid-bass

The SB Acoustics SB15NBAC30-4 is a powerful 5’’ midwoofer with a vented chassis that provides optimum strength and allows low compression. Its geometrically reinforced aluminum cone gives it an optimum piston operation and a reduced break-up. Minimum damping and low inductance and distortion thanks to its non-conducting fiber glass voice coil former and extended copper sleeve on the pole piece. CCAW voice coil, long life silver lead wires and vented pole piece for a reduced compression.

.

Specifications

Article numberSB15NBAC30-4
EAN0696277269419
Woofer SeriesSB Acoustics NAC Aluminum series
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)50 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)88 dB
Voice Coil Diameter1.2"
DC Resistance (Re)3.1 ohms
Voice Coil Inductance (Le)0.12 mH
Resonant Frequency (Fs)33 Hz
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Diaphragm Mass Inc. Airload (Mms)10.6 g
Mechanical Compliance of Suspension (Cms)2.2 mm/N
Surface Area of Cone (Sd)82 cm2
BL Product (BL)4.7 Tm
Compliance Equivalent Volume (Vas)0.74 ft.³
Maximum Linear Excursion (Xmax)5 mm
B15NBAC30-4
