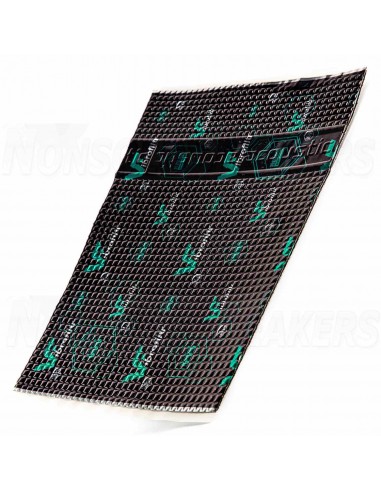

Vibrofiltr 3.0 mm anti-vibration material
Vibrofiltr 3.0 mm anti-vibration material
1 Pz 50X70 cm
Innovative anti-vibration damping material from the popular manufacturer Vibrofilter. VBF reacts to the development of the latest trends, adjusts the design of the cover film, perforation and adjusts the composition of the butyl layer.
Vibrofiltr 3.0 mm is an innovative self-adhesive anti-vibration damping material with a thickness of 3.0 mm.
Innovative anti-vibration damping material from the popular manufacturer Vibrofiltr. VBF reacts to the development of the latest trends, adjusts the design of the cover film, perforation and adjusts the composition of the butyl layer. Thanks to more pronounced perforation, the material better copies the complex shapes of interior parts. The new, softened butyl rubber with an innovative self-adhesive layer in conjunction with an ALU foil with a high grammage of 0.1 mm sets a new standard among damping materials, where its MLF acoustic loss factor at least equals thicker and heavier competitors.
-
Vibrofilter 3.0 mm is an innovative self-adhesive anti-vibration damping material with a thickness of 3.0 mm.
Innovative anti-vibration damping material from the popular manufacturer Vibrofilter. VBF reacts to the development of the latest trends, adjusts the design of the cover film, perforation and adjusts the composition of the butyl layer. Thanks to more pronounced perforation, the material better copies the complex shapes of interior parts. New, softened butyl rubber with an innovative self-adhesive layer in conjunction with ALU foil with a high grammage of 0.1 mm sets a new standard among damping materials.
.
The main characteristics of the damping material Vibrofilter 3.0 mm
self-adhesive anti-vibration, damping and anti-corrosion material for use in automobiles, agricultural machinery, engineering
serves to prevent unwanted resonances, dampens vibrations and absorbs acoustic waves
composition: self-adhesive layer, polymer layer based on butyl rubber and aluminum foil
higher grammage of ALU foil (0.1 mm) with anti-tear design during installation
highly flexible and elastic wetted material
resistant to water and oils
excellent anti-corrosion and sealing properties
temperature resistance: -45°C to +90°C (within 24 hours)
easy installation on any surfaces without the need for heating
use for automobiles, agricultural machinery and other technical equipment requiring noise and vibration reduction
can be stored in a dry environment at temperatures up to 40°C in a horizontal position
Recommended use in the car: floors, doors, roof, dashboard, engine and luggage compartment, wheel arches, etc.
.
Technical characteristics Vibrofilter 3.0 mm
- plate size 50 x 70 cm (0.350 m2)
- material thickness 3.0 mm + 0.1 mm ALU foil (+/- 0.2 mm)
- weight 4.5 kg / m2 (never less!)
- acoustic loss factor at 200Hz: 0.5
- connection strength on a metal surface at a temperature of -45 to +70°C 6N/cm
- non-flammable
- heating required during application - NO
- the whole package contains 15 pcs (5.25 m2)
.
How to apply the damping material Vibrofilter 3.0 mm?
1) Degrease the surface.
2) Cut the damping material into pieces approx. 15x15 cm in size
3) Apply from the bottom up with an overlap of about 0.5 cm (as if you were putting bags on the roof, the water from the material will then run down to the drainage channels and will not get under the material)
4) Carefully roll out with the ➡️ CTK ROLLER
Our TIP: For maximum efficiency in noise reduction, we recommend layering the material with a second layer of ➡️ VBF NOISE NEOPRENE 3 (undercarriage) or ➡️ VBF NOISE NEOPRENE 6 (doors, floor, sides, etc.).
Price for 1 plate
