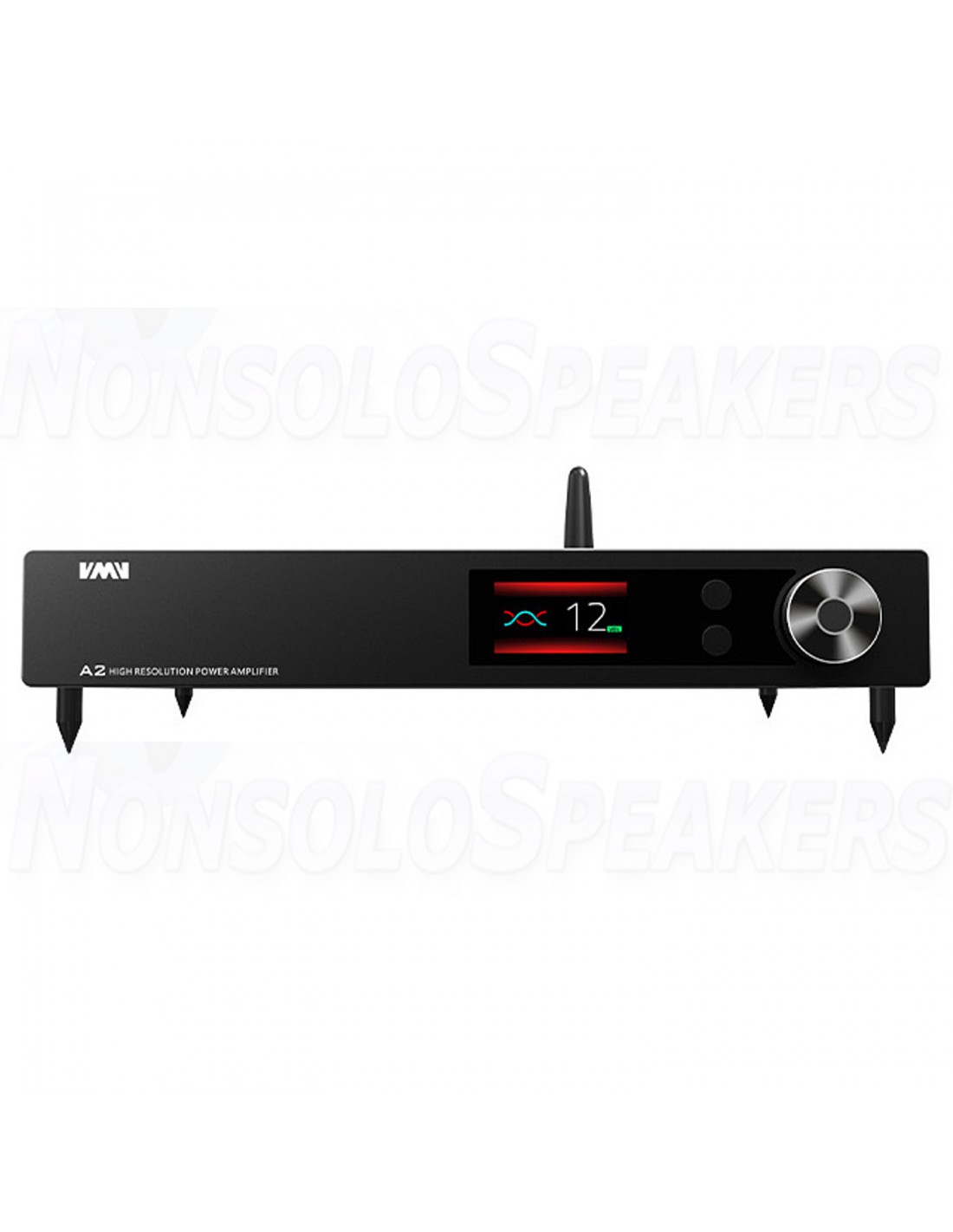

SMSL VMV A2 stereo amplifier

S.M.S.L has introduced the VMV A2, a power amplifier from the VMV premium-tier series. VMV A2 combines pure and surging sound together with a maximum power of 200 watts per channel. It is equipped with premium components such as a Qualcomm Bluetooth hardware, DSD512, latest DSP chips and a ST high-power amplifier chip. The VMV AA is made to power your high-tech speakers and bring them to life.

Product Highlights

• Aluminum alloy CNC housing
• Subwoofer pre-output
• Built-in multiple EQ modes and treble/bass adjustement options
• Protection circuit for overheating, overcurrent, etc.
• High quality gold-plated input and output terminals

.

Product details

VMV A2 2 x 200W High Resolution Stereo Amplifier with aptX HD and subwoofer pre-out

VMV A2 small delicate class D power amplifier is an ideal choice for spreading music. It can provide a very clean sound quality and due to the American TI audiophile ADC chip PCM1804, with a filter circuit composed of 3 low-noise operational amplifiers OPA1678, it delivers an overal good sound performance. The use of a professional LLC resonant power supply that are more suitable for power amplifers, which includes advanced EMI filters, match active PFC circuits and ensures a clean output, stabilize the power output and reduce the interference of the power grid. Furthermore, the VMV A2 uses the latest DSP chip with ST high-power amplifier chip, carefully designed and debugged, its distortion is as low as .0008% (-102dB)! The second-generation XMOS solution, the PCM sampling rate supports up to 32bit/768kHz, DSD supports up to DSD512, and the exclusive custom driver supports Native DSD! The analog audio signal input interface uses the American TI audiophile ADC chip PCM1804, with a filter circuit composed of 3 low-noise operational amplifers OPA1678, so that the analog audio signal input to this all-digital power amplifier can also have a good sound performance.

Due to its CNC aluminum shell, temperature control is greatly improved to heat dissipation capacity. In addition, this housing and has a nice appearance without compromising on performance or additions of cooling elements. Not to forget, the equally beautiful remote controller is included.

Specifications:

Article number VMV A2

Rated power output (RMS) 2x 200 watts at 4 ohms 2x 100 watts at 8 ohms

Minimum load 4 ohm

Signal-to-noise ratio (SNR) 115 dB

Distortion 0.0008% THD+N

Maximum sampling rate USB/I2S PCM: 44.1~768 kHz DSD: 2.8224~22.5792 MHz Optical/Coaxial PCM: 44.1~192kHz

Circuit Topology TI OPA16678

Amplifier classification Class D

Speaker output channels 2

Optical S/PDIF in/out 1/0 Coaxial in/out

Coaxial input/subwoofer output

RCA in/out Unbalanced line input

XLR in/out Input AES/EBU USB

USB-B

Subwoofer pre-out Yes

Bluetooth aptX-HD, UAT, LDAC, aptX, SBC and AAC

Banana plug compatible Yes

Remote control Yes

Equalizer (EQ) adjustment Bass and Treble adjustment. Range -10dB - +10dB

Equalizer (EQ) profiles 8 profiles

Crossover frequency adjustment Subwoofer output cuttoff freq. 150Hz @ -3dB

Power requirements 110/240 VAC

Dimensions (D x W x H) 255 x 280 x 43 mm

Case material Aluminum alloy CNC

.

What’s in the Box?

1 x Remote control

1 x External antenna

1 x Set adjustable feet

1 x Power cable

1 x USB A to B cable
