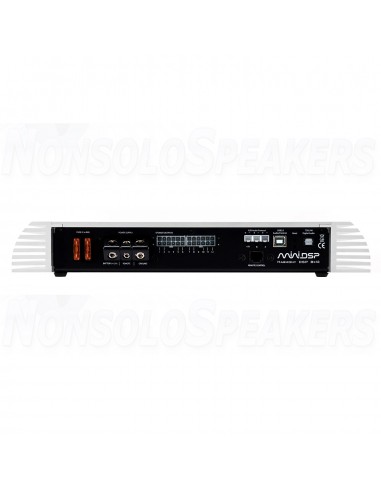

miniDSP Harmony 8x12 Car Amplifier with Dirac Live

Dirac Live powered 12ch Car Amplifier, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, USB/SPDIF/A2B, OLED Remote for Preset/Master & Sub volume control Array

.

Product Highlights

• 400MHz 32bit Sharc Floating point processor
• Dirac Live technology helps tune your cabin environment
• All Digital amplifier
• USB Audio (6ch), Toslink(2ch), A2B (future) digital inputs
• 12 channel flexible amplifier for Mono/Bridged mode and Line OUT(driving external amps)
• Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
• Windows/Mac compatible GUI
• Remote control or preset/master & sub volume control

.

Product Details:

Harmony DSP 8x12 | Dirac Live | Car Amplifier

miniDSP is proud to introduce the latest addition to its line of innovative car audio processors.

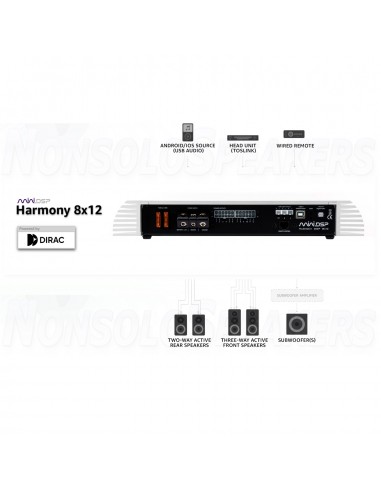

The all-digital Harmony DSP 8x12 integrated DSP/amplifier features six-channels digital audio input via USB, stereo digital optical input (TOSLINK), Dirac Live® acoustic correction and 12 output channels.

Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, and a wired remote with OLED display for dash or console.

Flexible output configurations cater to a wide variety of system configurations: each output can be a 40 Wrms power amplifier or a line-level output for driving external amplifiers.

In addition, each pair of outputs can be configured in parallel BTL mode for 80 W output into 2 Ω loads.

In addition to Dirac Live, the Harmony DSP 8x12 includes miniDSP’s powerful, easy-to-use audio processing: parametric EQ, compressors, adjustable time delay, crossovers up to 48 dB/octave, and an advanced matrix mixer with rear/center capability.

Four complete processing configurations are stored in flash memory for recall with a wired or infrared remote.

Specifications:

• Article number Harmony DSP 8x12
• Rated power output 12 x 40 W RMS (4 Ω load, BTL mode) 6 x 80 W RMS (2 Ω load, PBTL mode)
• Minimum load 2 Ω
• Signal-to-noise ratio (SNR) >107 dB (f = 1 kHz, A-weighted, 40 W into 4 Ω)
• Distortion < 0.03 % (f = 1 kHz, 30 mW to 40 W, 4 Ω load, BTL mode)
• Frequency response 20 Hz – 20 kHz ± 0.5 dB
• DSP function Four onboard presets for Dirac Live and miniDSP processing stored onboard
• Power Requirements 10 –16 V DC compliant REM in (4 V DC trigger level)
• Dimensions (L x W x H) 321 x 150 x 45 mm (main unit)

.

What's included in the box?

• 1 x Harmony 8x12 Car Amplifier
• 1 x Dirac Live license
• 2 x Speaker wiring harness
• 1 x 1m USB cable
• 1 x 5m remote cable + OLED
• Remote control module
