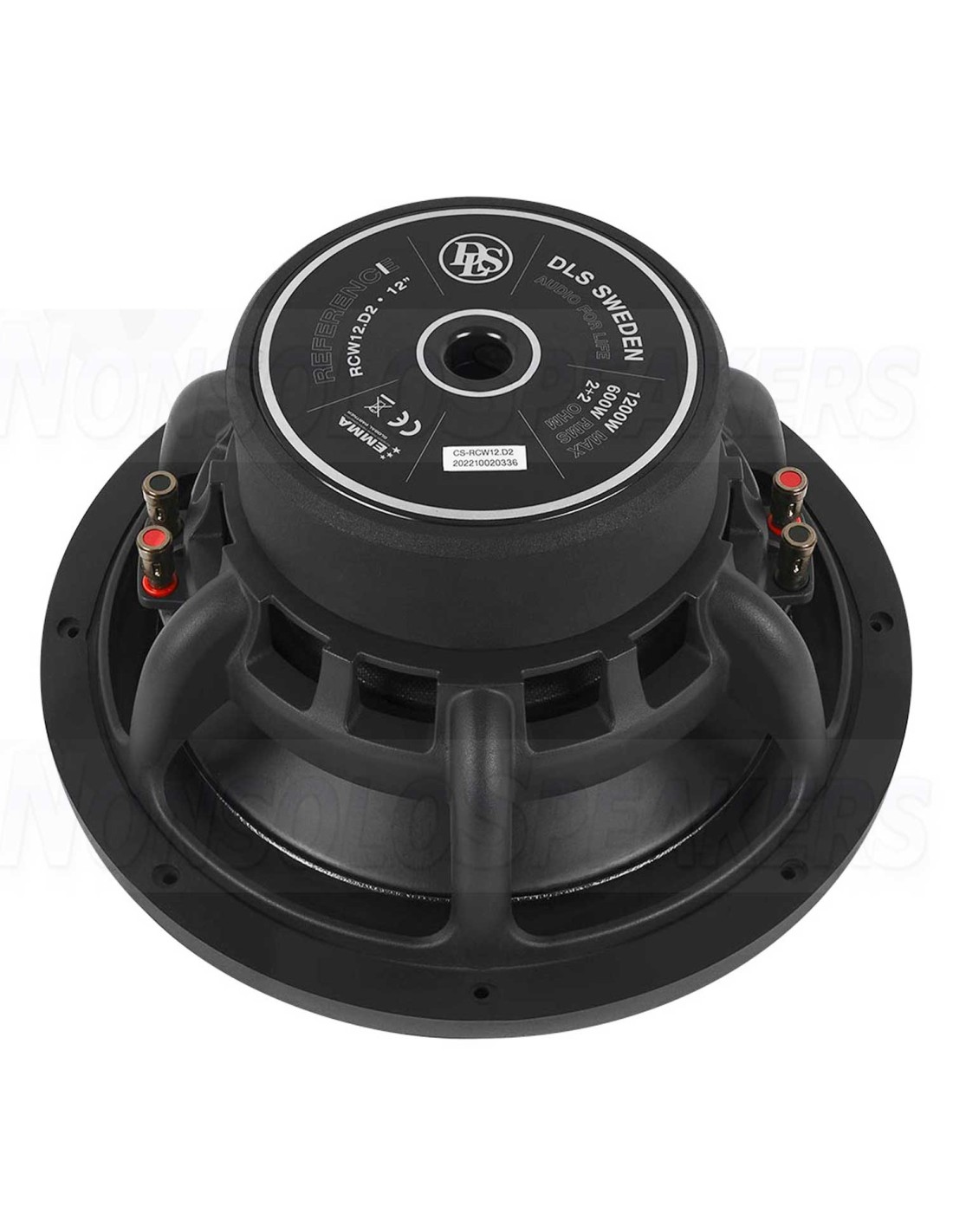

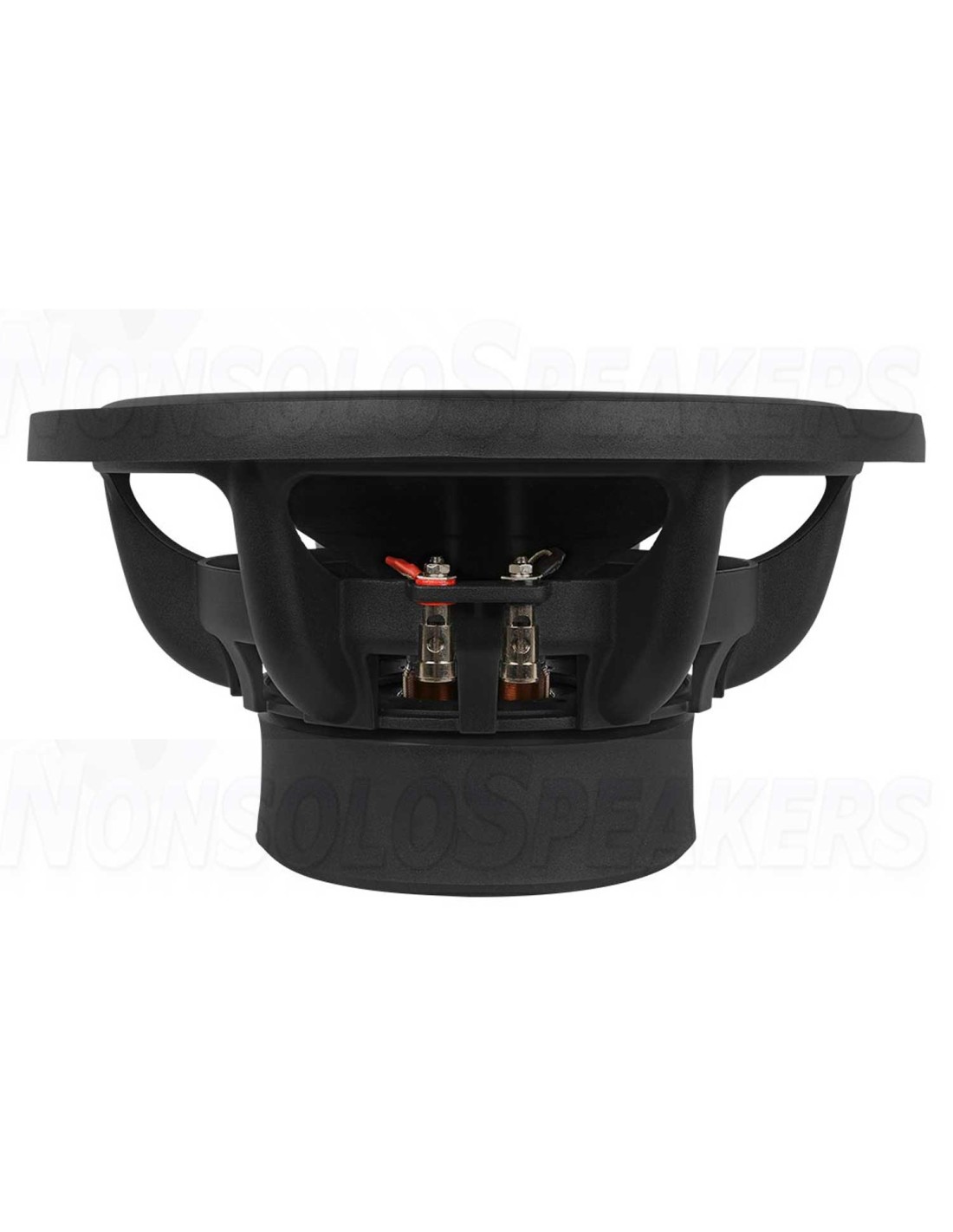

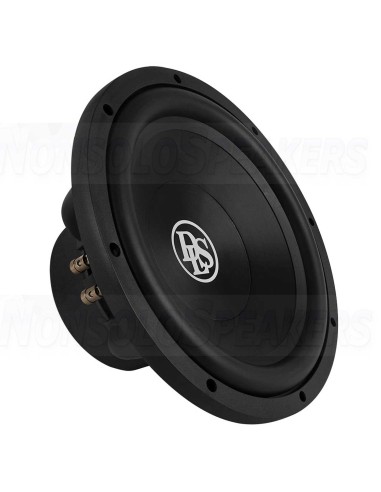

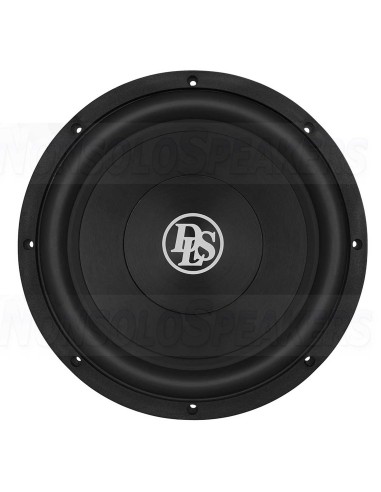

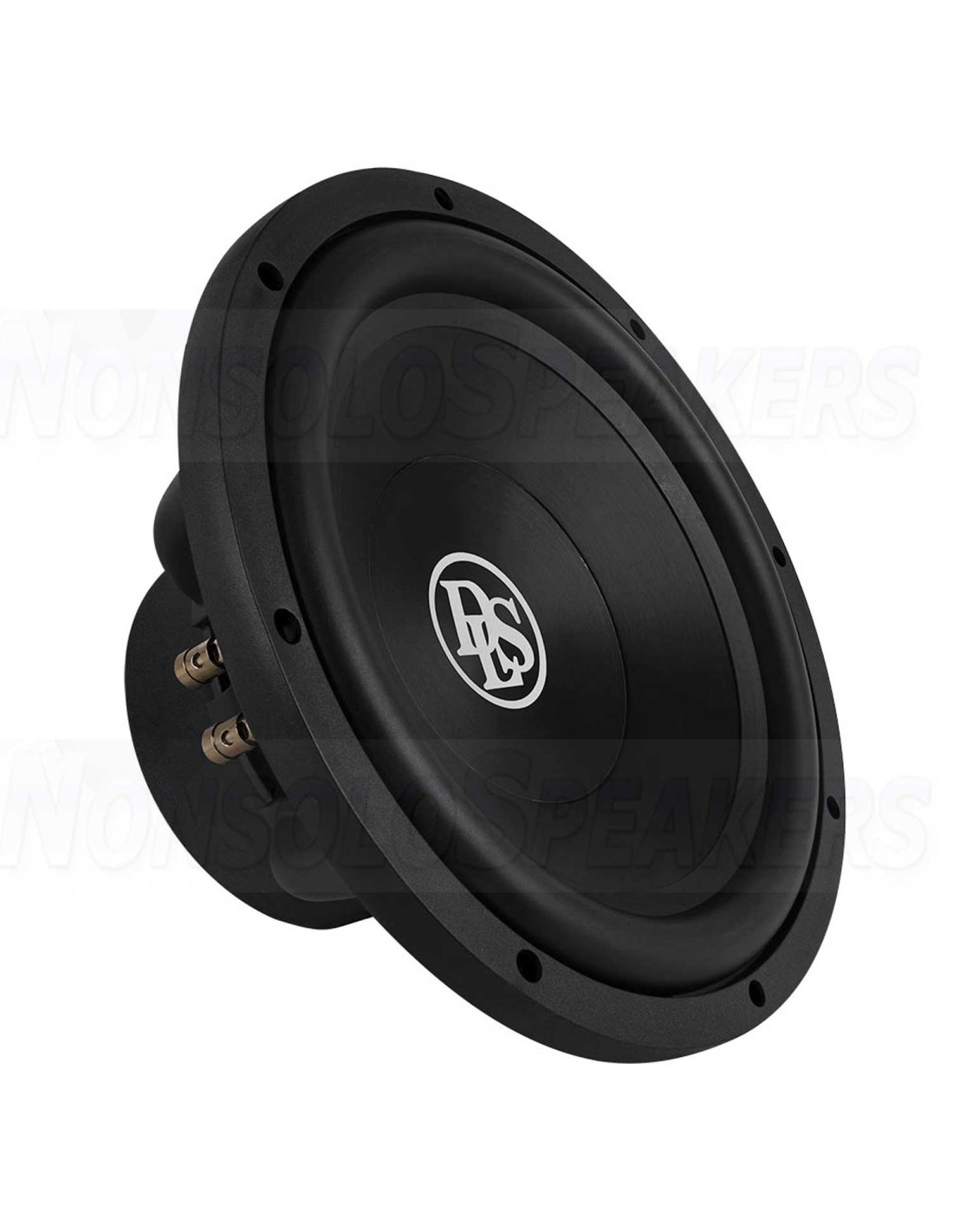

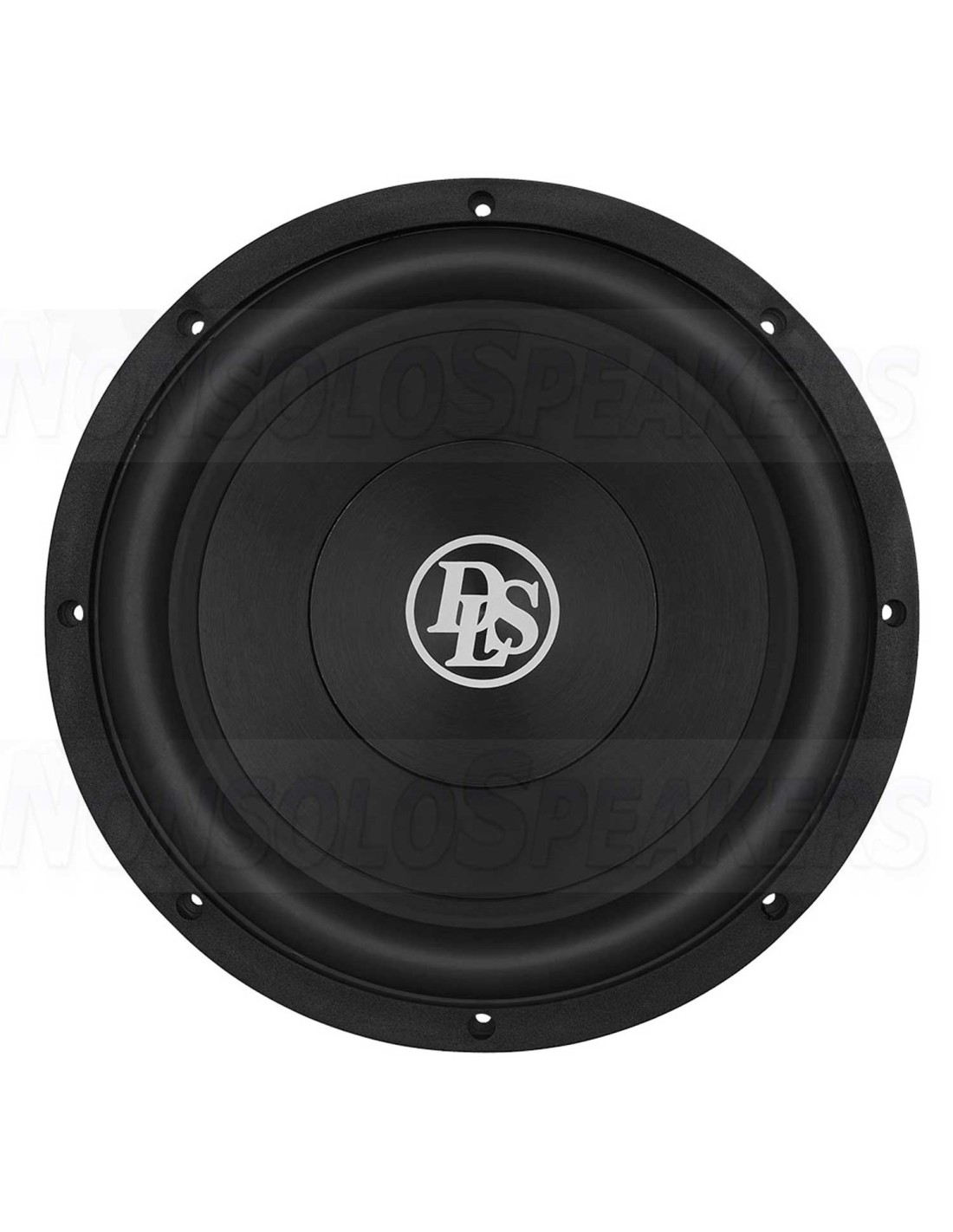

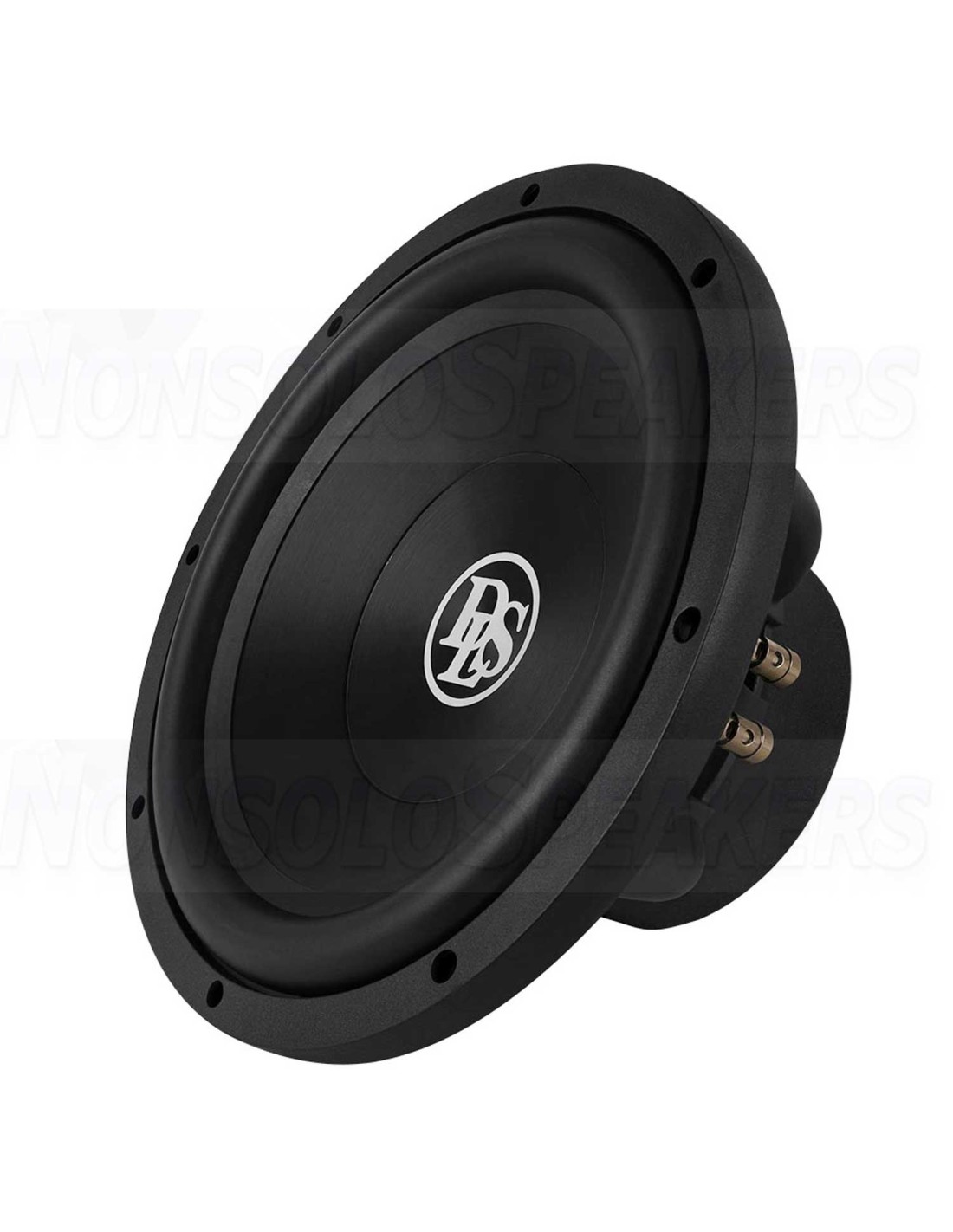

Subwoofer DLS RCW12.D2 12" 300 mm car subwoofer.
.
The DLS RCW12.D2 is a 12" (300 mm) car subwoofer designed for mounting in a sound box with a power of 600 W RMS.
DLS was founded in 1979 with a single purpose - to develop loudspeakers and amplifiers for true music lovers. Over the years DLS has won many awards in loudspeaker systems and has been very successful in sound-off competitions both in Sweden and the rest of the world. All model lines use advanced materials and technologies leading to improved sound quality!
.
The Reference series is developed for true music lovers. Packed with innovative solutions that deliver a warm and embracing sound.
.
DLS RCW12.D2 main advantages
- Reference sound quality
- 12” subwoofer optimized for small bass reflex enclosures.
- Black anodized aluminum diaphragm, die-cast aluminum basket, and double stacked premium ferrite magnet.
- A highly conductive aluminum shorting ring delivers reduced inductance and distortion for very detailed sub-bass reproduction.
- Dual 2-ohm copper voice coils on a non-magnetic 2” TIL former for the best musicality.
- Die-cast basket with full ventilation and durable terminals for strong speaker wiring.
- DLS RCW12.D2 parameters
- RMS/MAX power: 600/1200 W
- Impedance: 2+2 Ohms
- Sensitivity: 88 dB/1W/1m
- Frequency range: 20-500 Hz
- Fs: 25 Hz
- Mounting depth: 144 mm
- Mounting diameter: 279 mm
- Recommended volume of closed enclosure: 36 l
- Recommended volume of bass reflex enclosure: 40 l with a 104x420 mm mouthpiece
